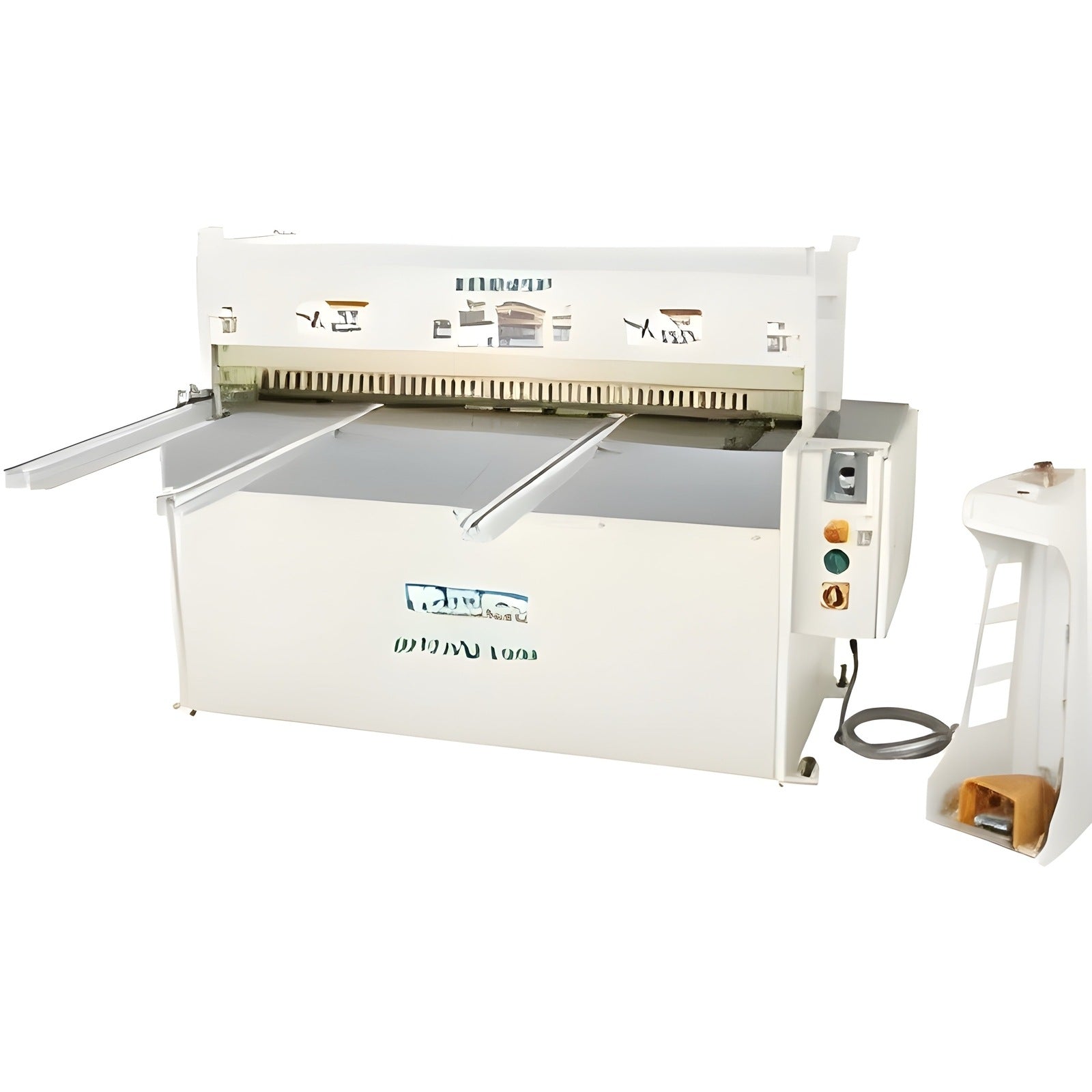

Grizzly Industrial Heavy-Duty 50" Electric Metal Shear - Polar Bear Series

Built for years of reliable service, this shear is a great choice for production fabrication shops.

The G0845P 50' Electric Metal Shear features a mighty 7.5 HP, 220V, 3-phase motor and fully integrated steel frame with hardened steel-alloy dies.

Capable of shearing up to 10-gauge mild steel and 10-gauge aluminum with a 50' maximum cutting width.

It proudly features a hold-down carriage with non-marring nylon fingers, adjustable front/rear work stops for accurate repeatability and a remotely activated foot pedal control that makes it a breeze to cut larger sheets.

Better yet, the relatively small footprint of 28-1/2' x 66-1/2' makes this a perfect option for shops that are tight on space.

Like all of the Grizzly metal shears, the G0845P comes with a 1-year warranty covering parts and assuring the unit is free from factory defects. (Consumables are not covered by the warranty.)

The G0845P manual was written by our U.S. based Documentation Department and is packed with useful information. The complete and easy to read manual makes it easier to assemble and maintain your shear.

The Grizzly Technical Support team is U.S. based. Parts and accessories for the metal shear are available on-line and shipped from the Grizzly parts warehouse in Springfield, MO.

Specifications

• Motor: 7.5 HP, 220V, 3-phase, 20.7A
• Maximum thickness: 10-gauge steel, 10-gauge aluminum
• Rear stop adjustment: 0-24'
• Front stop adjustment: 0-36'
• Maximum cutting capacity: 50'
• Maximum beam lift: 1/2' - 1-13/16'
• Front scale range: 3-5/16' to 39-5/16'
• Rear scale range: 0 to 25-5/8'
• Bed height above floor: 31-1/2'
• Base dimensions: 28-1/2' x 66-1/2'
• Overall size: 72-1/2'W x 80'D x 48'H
• Approximate shipping weight: 3266 lbs.

Features

• Reversible hardened steel alloy cutting sheer dies for extended life
• Hand and foot pedal operation
• Micro-switch on finger guard overrides main switch if guard is removed
• Adjustable front and rear stop scales
• Triple V-belts drive the counter-balance shaft
• Remote on/off foot pedal control
• Super-quiet operation
• Built-in non-marring hold down clamp
• Shadow light

Please note that this machine cannot be run on a phase converter; you must use a true 3-phase power supply.

Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate service is not available.

What Our Experts Think

The Grizzly Industrial Heavy-Duty 50" Electric Metal Shear from the Polar Bear Series is designed for high-efficiency metal cutting. Here’s why it’s a top choice for heavy-duty metalworking:

• 50" Cutting Capacity: Offers a large cutting width, ideal for processing long metal sheets with ease and accuracy.
• Heavy-Duty Motor: Provides consistent, powerful performance for cutting through thick and tough metals, including steel, aluminum, and copper.
• Electric Operation: The motorized shear reduces manual effort, improving productivity and making it easier to handle large volumes of work.
• Precision Cutting: Features sharp, durable blades for clean, accurate cuts with minimal distortion.
• Polar Bear Series Construction: Built with durable components and a sturdy frame for long-lasting reliability, even under continuous use.

Q&A

Q: What is the Grizzly Industrial Heavy-Duty 50" Electric Metal Shear - Polar Bear Series designed for?
A: This electric metal shear is designed for efficiently cutting a wide range of metals, providing clean, precise cuts for heavy-duty metalworking projects.

Q: What is the cutting capacity?
A: It has a 50" cutting capacity, making it ideal for larger metal sheets and industrial applications.

Q: How powerful is the motor?
A: It features a powerful electric motor, ensuring consistent cutting performance and efficiency for high-volume metal cutting tasks.

Q: What materials can it cut?
A: It can handle a variety of metals, including mild steel, aluminum, and other soft metals, with precision and ease.

Q: What makes the Polar Bear Series special?
A: The Polar Bear Series combines durable construction with advanced features, delivering top-tier performance and reliability in a compact design.

Q: Is it easy to operate?
A: Yes, the shear is equipped with user-friendly controls, offering smooth operation and accurate cuts with minimal effort.

Q: Why choose the Grizzly Heavy-Duty 50" Electric Metal Shear - Polar Bear Series?
A: With its large cutting capacity, powerful motor, and rugged build, it’s the perfect choice for professionals needing a reliable, high-performance shear for large-scale metal cutting.

Maintenance Tips

• Blade Inspection: Regularly check blades for chips, wear, or cracks. Replace them when necessary to ensure clean, accurate cuts.
• Clean the Machine: After each use, remove metal shavings and debris from the shear to prevent buildup that could affect cutting performance.
• Lubricate Moving Parts: Apply lubrication to the pivot points and shear mechanism to reduce friction and ensure smooth operation.
• Check Alignment: Periodically check the alignment of the blades to ensure they are properly positioned for even cutting.
• Inspect Electrical Components: Check electrical components and wiring for any signs of wear or damage, ensuring safe operation.
• Tighten Bolts and Screws: Regularly inspect and tighten any loose bolts, screws, or parts to prevent vibrations and maintain machine stability.
