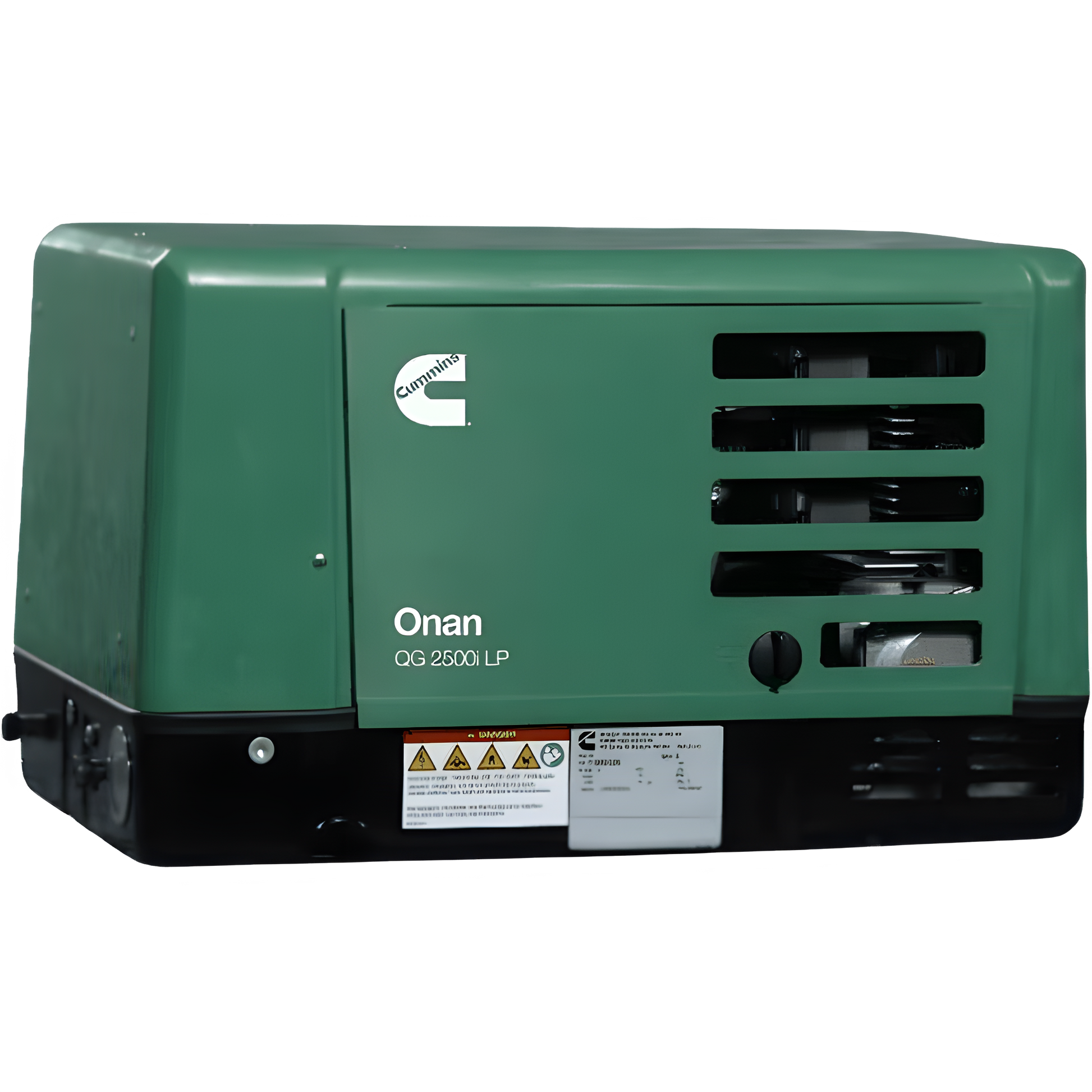

Cummins Onan QG 2500 EVAP 2.5kW RV Generator 2.5HGLAA-8304 RV Propane Single Phase 120 Volt New
The Cummins Onan 2.5HGLAA is an aesthetically pleasing quiet generator with 2.5 kW of power for RV. This generator is the quietest generator in its size. All of this while maintaining a low fuel consumption. Cummins backs this generator with a standard 3 year limited warranty.Features
Computer-controlled variable speed operation matches engine speed to load demand, minimizing noise level and vibration.
LP and EFI gasoline models
No fuel return line necessary - EFI gasoline
EVAP model for specialized applications
High power quality with inverted electrical output for sensitive RV loads.
J1939 communications capable
Increased oil capacity, reduced oil consumption, low oil shutdown switch, high oil temperature sensor, allows for no required oil checks between recommended oil changes.
Quietest generator sets of their size.
Completely enclosed with muffler, quick and easy to install.
3-year limited warranty
Low fuel consumption
Specification
Design
Cummins, permanent magnet
Bearings
None
DC Brushes
None
Exciter system
None
Air Conditioner Operation
2.8kW generator set will start and run one 13500 Btu high efficiency air conditioner (15.5 Amps or less) plus 600-Watt base load with an additional 300 Watts of power available. 2.5kW generator set will start and run one 13500 Btu high efficiency air conditioner (15.5 Amps or less) plus a 600- Watt base load.
Voltage Regulation
Exceeds requirements of ANSI/RVIA EGS-1 ±10%
Frequency Regulation
Exceeds requirements of ANSI/RVIA EGS-1 ± 5% Note: See your Cummins distributor or authorized Cummins service dealer for a listing of approved air conditioners
Design
4-cycle, single cylinder, OHV
Displacement
15.4 in3 (252 cm3 )
Compression Ratio
8.8:1
Power
7.1 bhp (max) at 3600 r/min
Cooling
Pressurized air
Cooling Air Volume
120 ft3 /m (3.40 m3 /min) at full load Fuel System: (Gasoline) Electric fuel transfer pump, max fuel lift 3 ft (914 mm), internal high-pressure injection pump module; (LP) electric fuel solenoid
