7,000 Cycles. LiFePO4 Lithium Battery. 20 Year Lifespan.

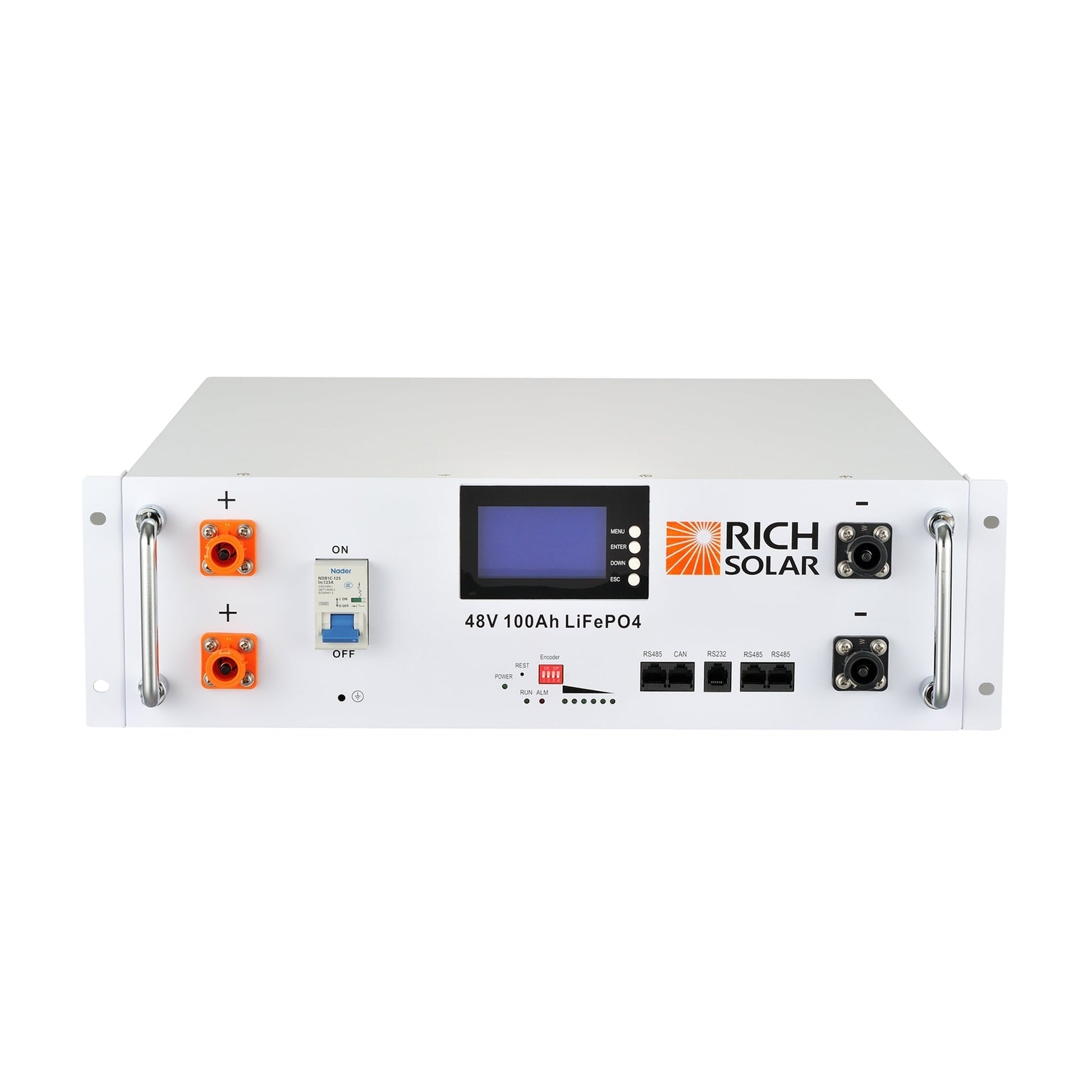

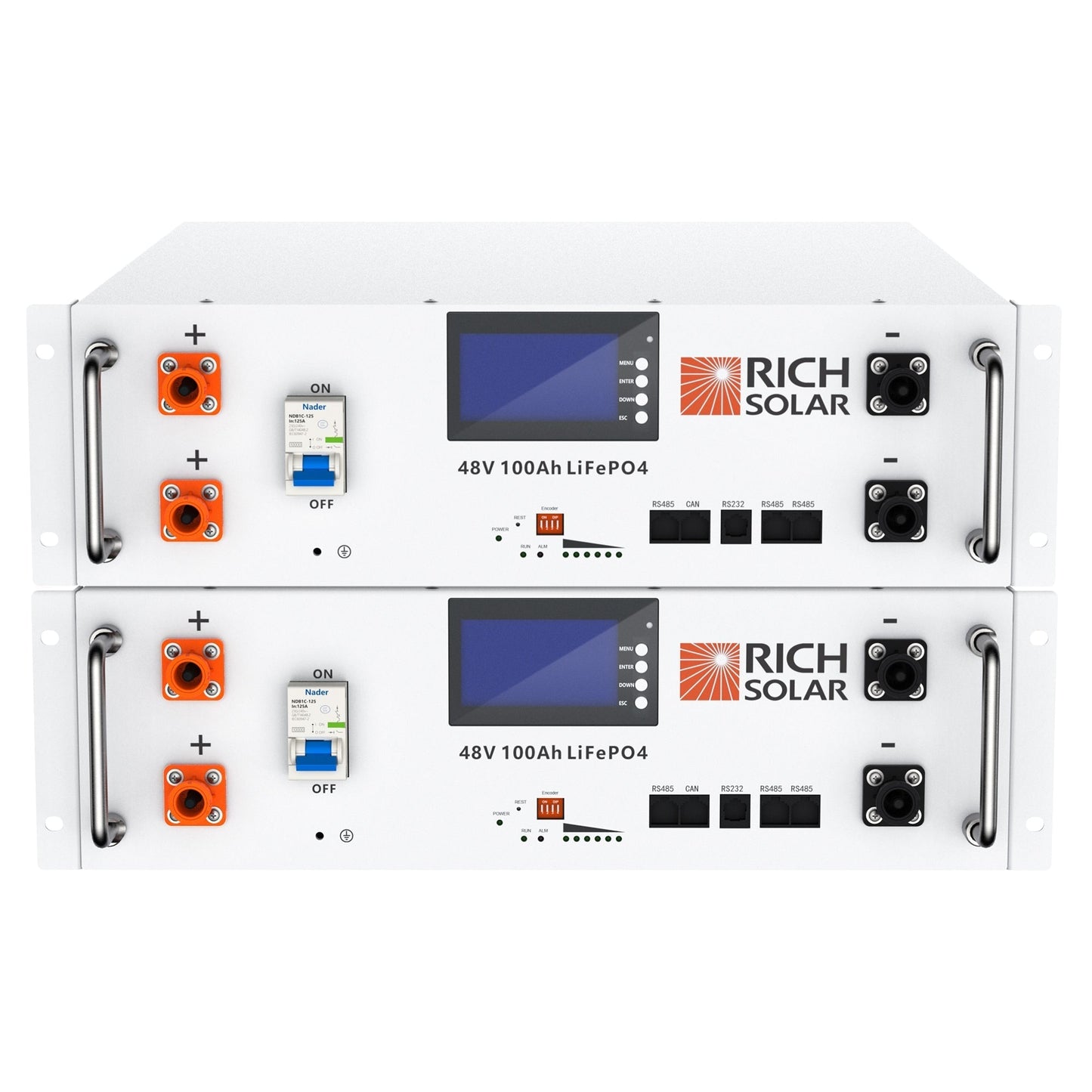

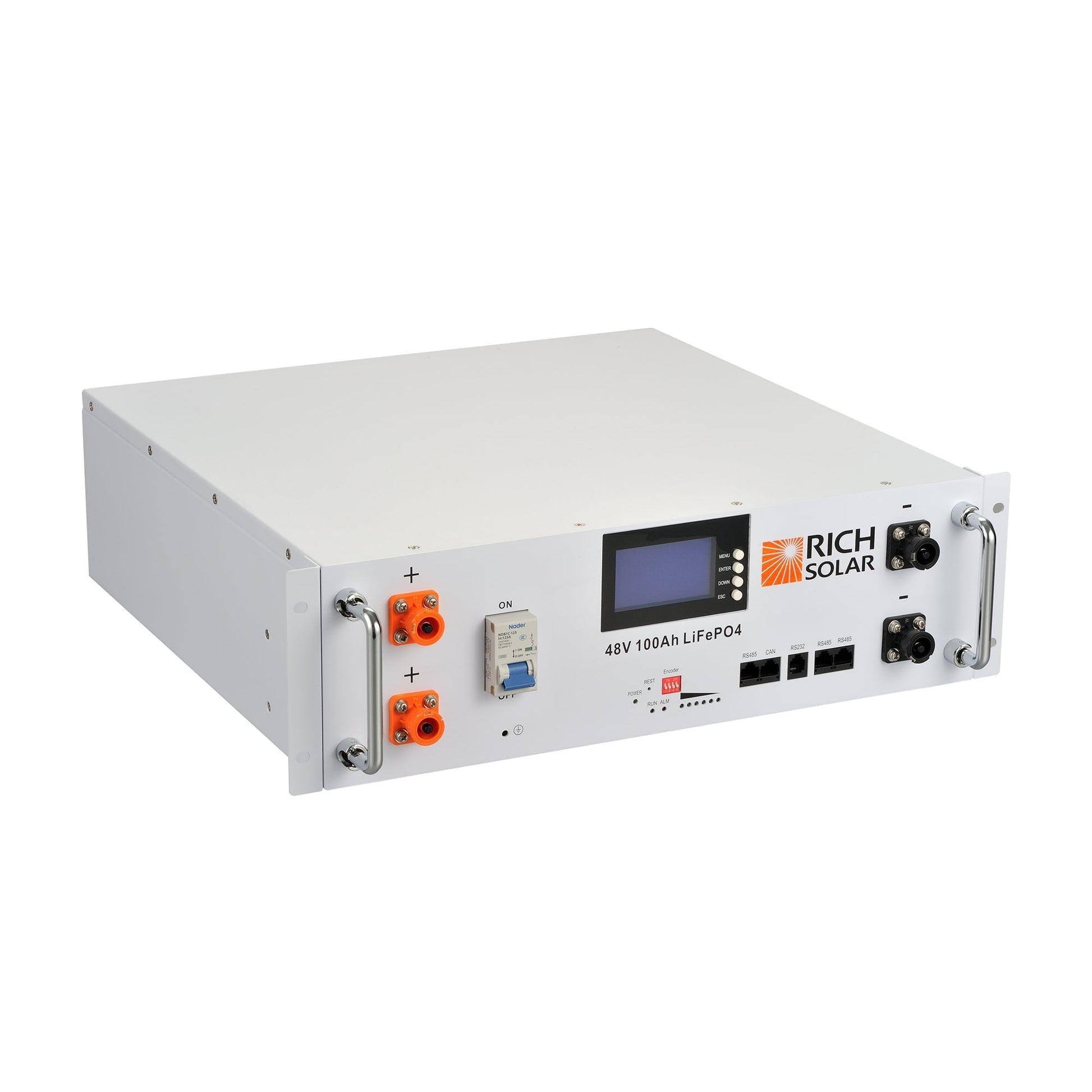

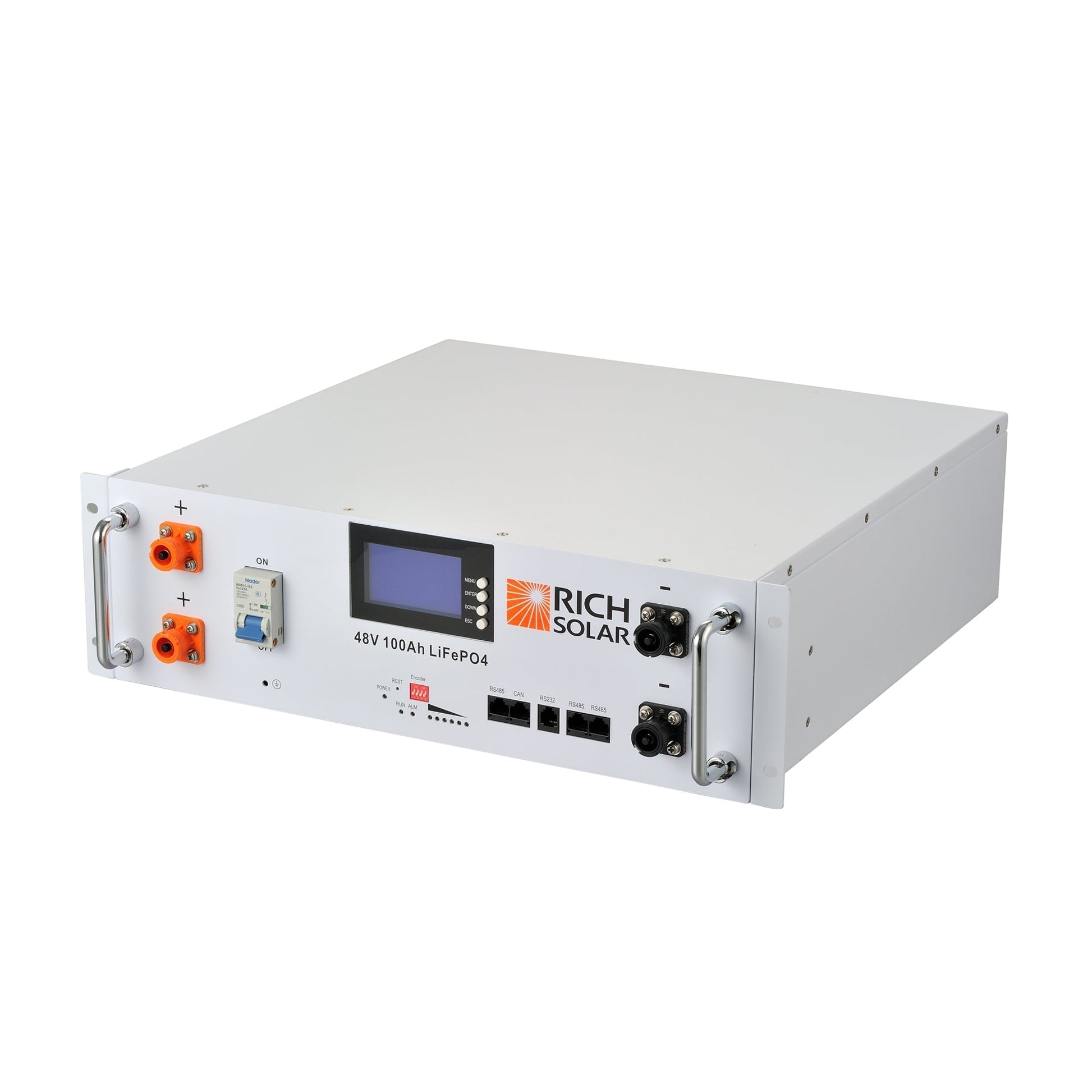

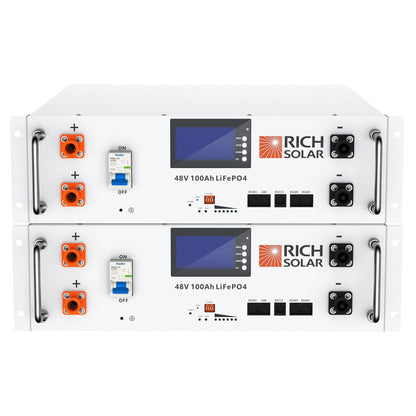

RICH SOLAR 48V 100Ah lithium iron phosphate battery (Alpha 5 Server) has a much longer cycle life capacity, and is easier to maintain compared to other battery technologies. The LiFePO4 technology has better thermal and chemical stability, which improves battery safety and packed with power in a small and lightweight footprint.Â
Features
- Extremely high number of charge/discharge cycles
- 20 Year lifespan with proper maintenance
- Built-in smart battery management system
- Wide operating temperature range
- Unsurpassed high temperature performance
- Green energy without metal contaminant
- Low maintenance
- High amp capacity
- Stable output voltage
- Little self-discharge
- Lifetime customer support
- Over charging or discharging protection.
- Over current & short circuit protection.
- High & low temperature disconnects
- Charge Voltage: 52.5V
- Max Charge Current: 100 A
- Max Discharge Current: 100 A
- Battery Dimensions: 19″L x 18 3/4″W x 5 1/4″H
- Weight: 130 lb

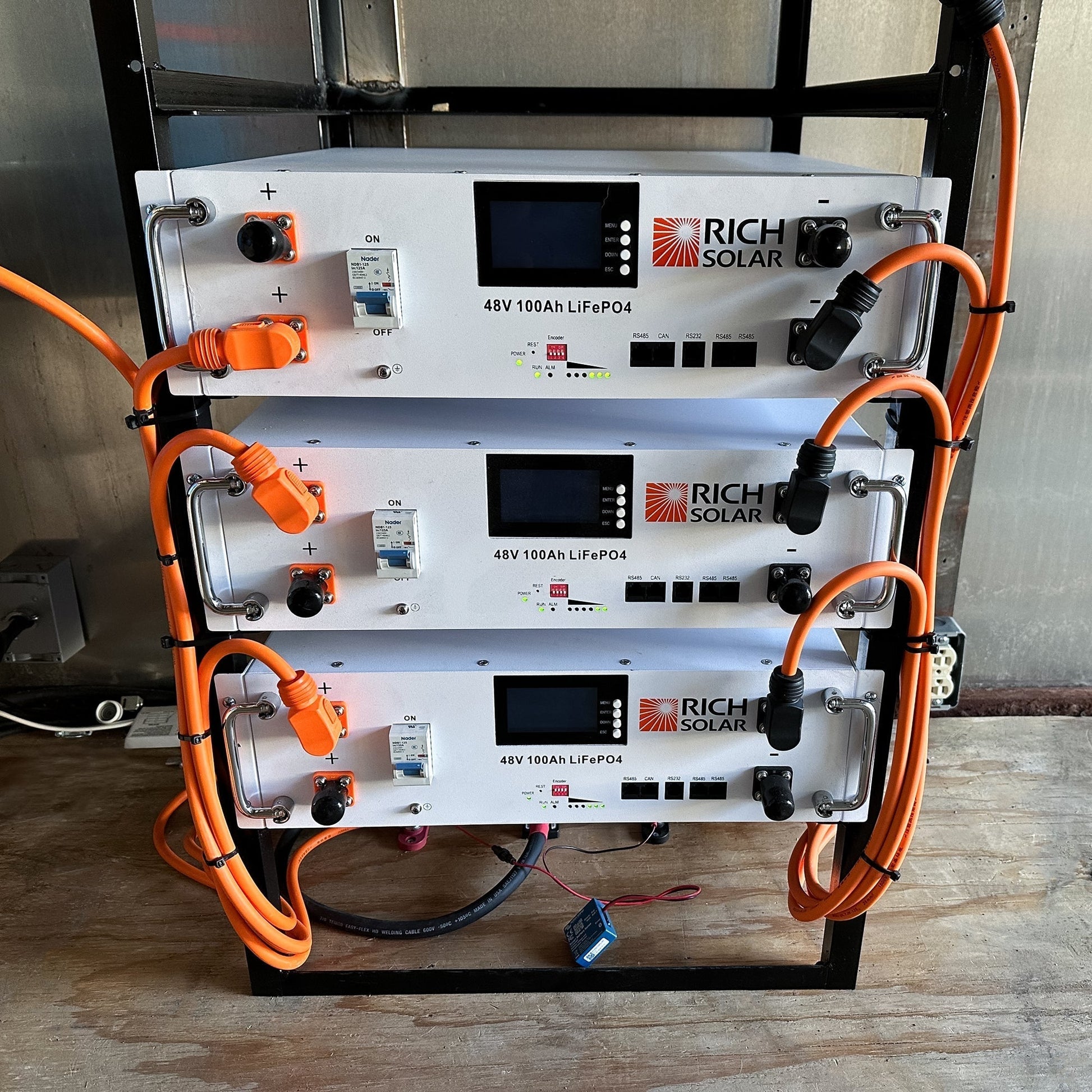

- Connect in Parallel for Larger Capacity
BMS Safety Protection
- Each cell is fused and if for some unlikely situation a cell fails, this design will isolate the cell stopping any other damage and allows the battery to function safely
- Convenient removable carry handle
- Lightweight
- Short circuit protected
- Physical damage to battery case will not cause fire
- Excessive thermal exposure will not cause a fire
- Able to withstand over-charge/over-discharge without damage to the battery
- Sophisticated Battery Management System (BMS)
Included:
- 1 foot RS485 communication cable
- Set of parallel cables per battery
- 4.8kWh (48V 100Ah) lithium iron phosphate battery

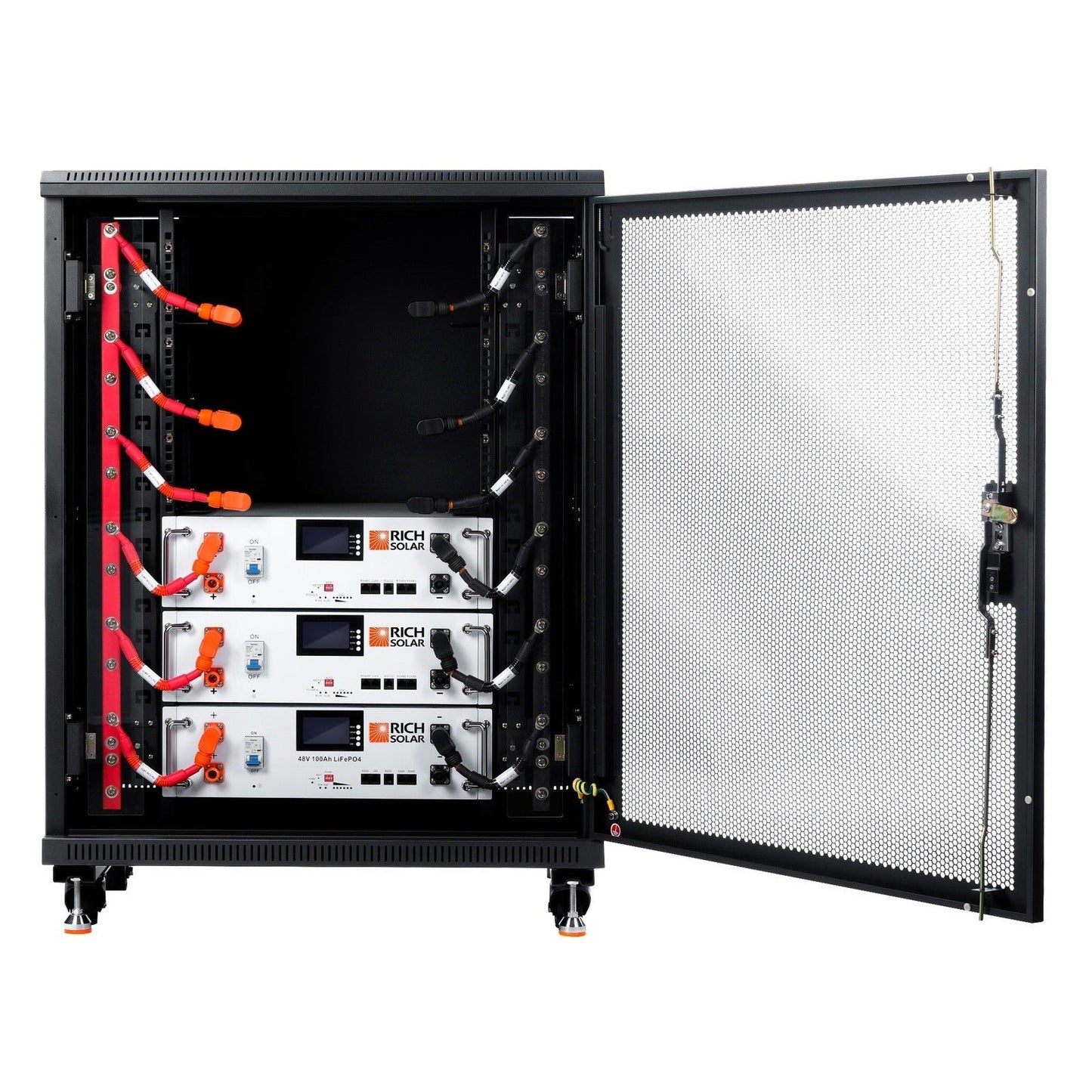

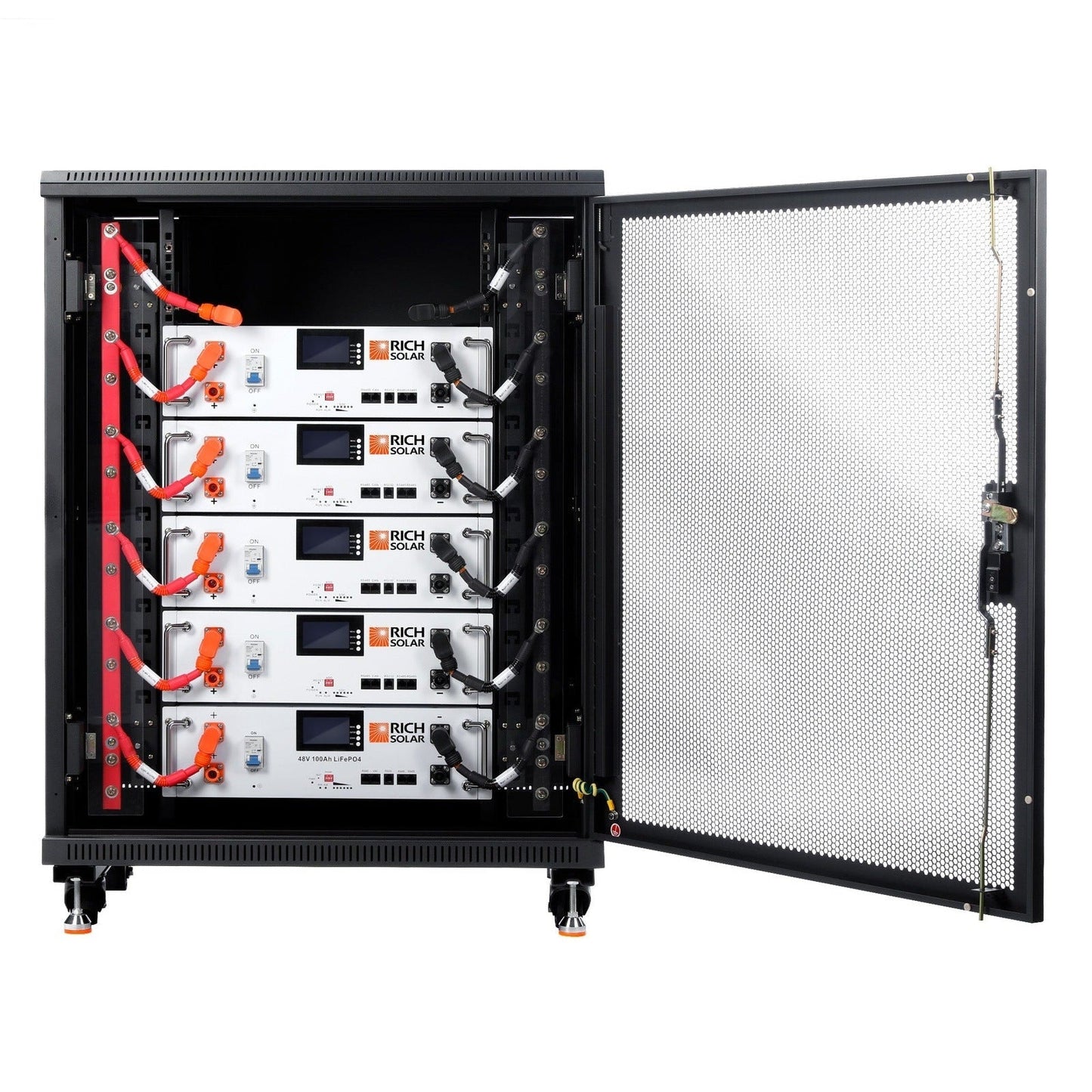

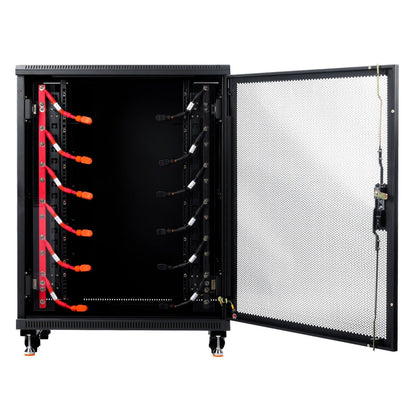

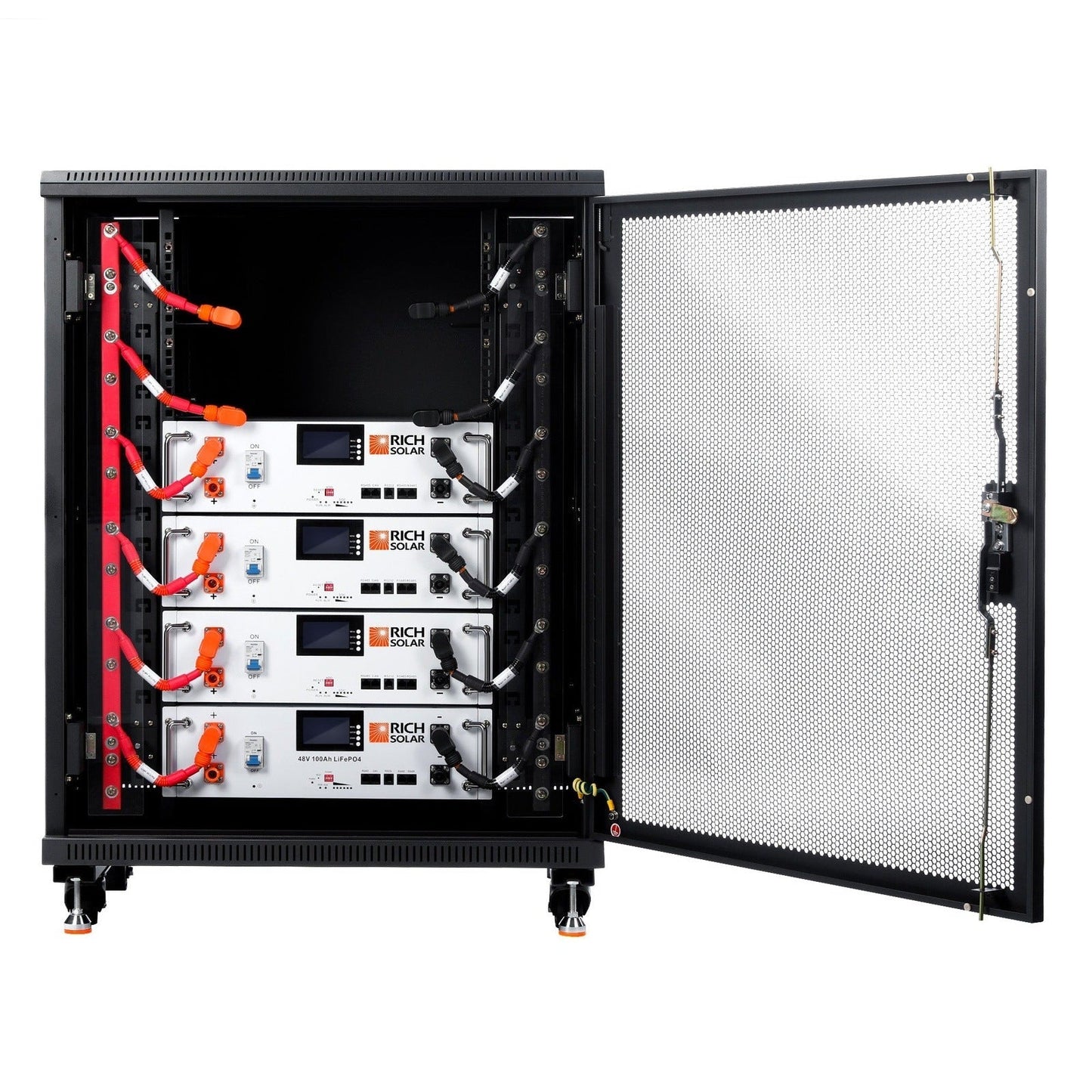

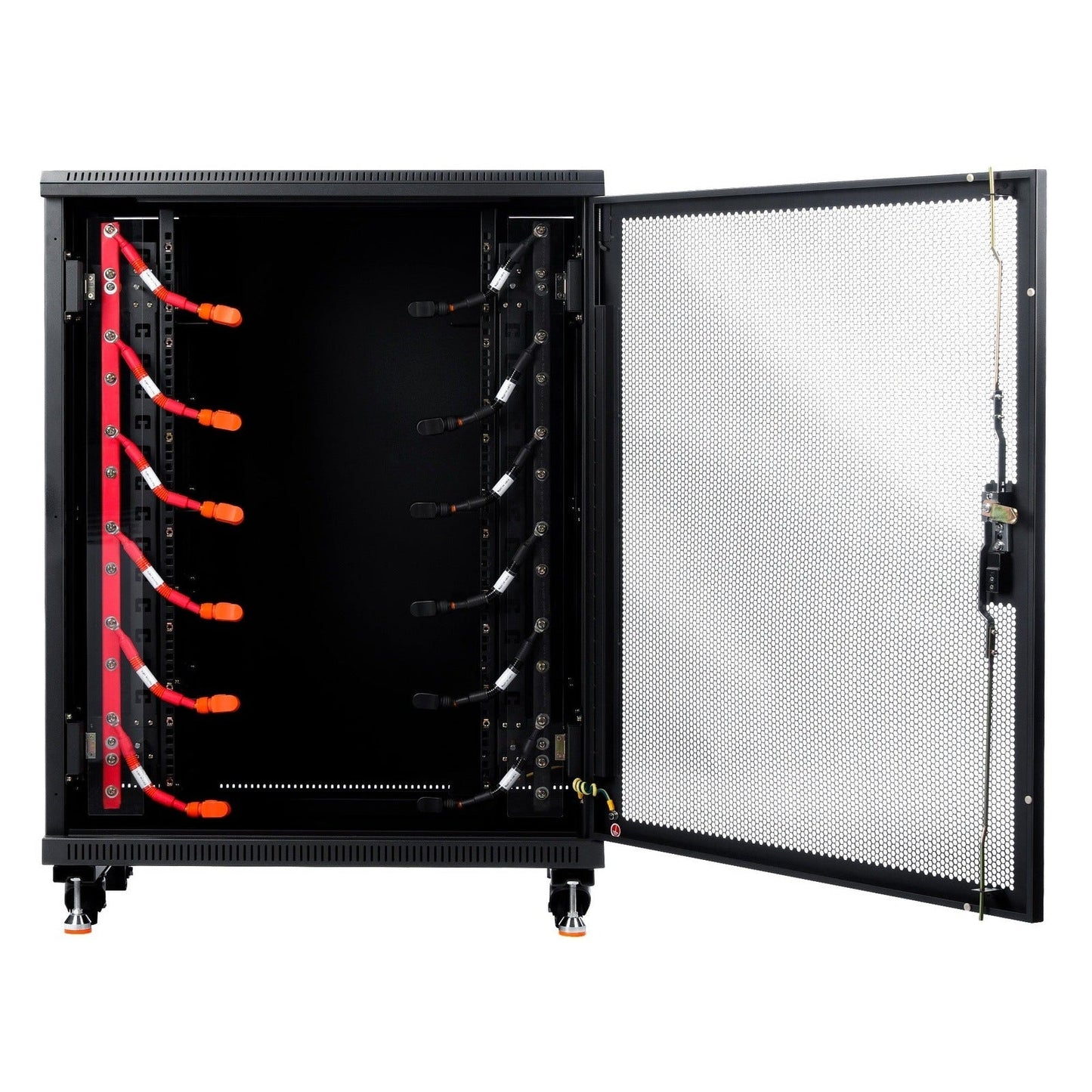

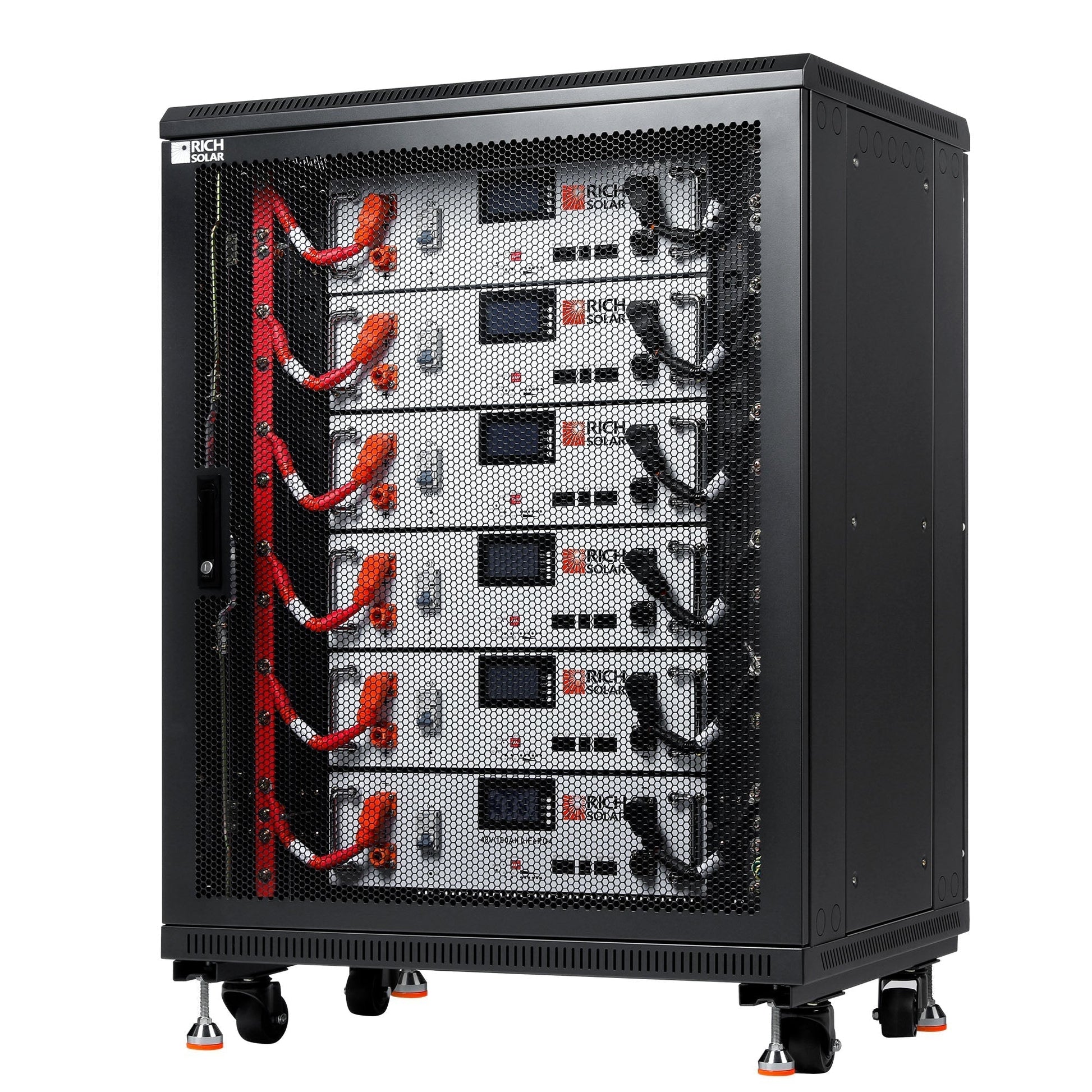

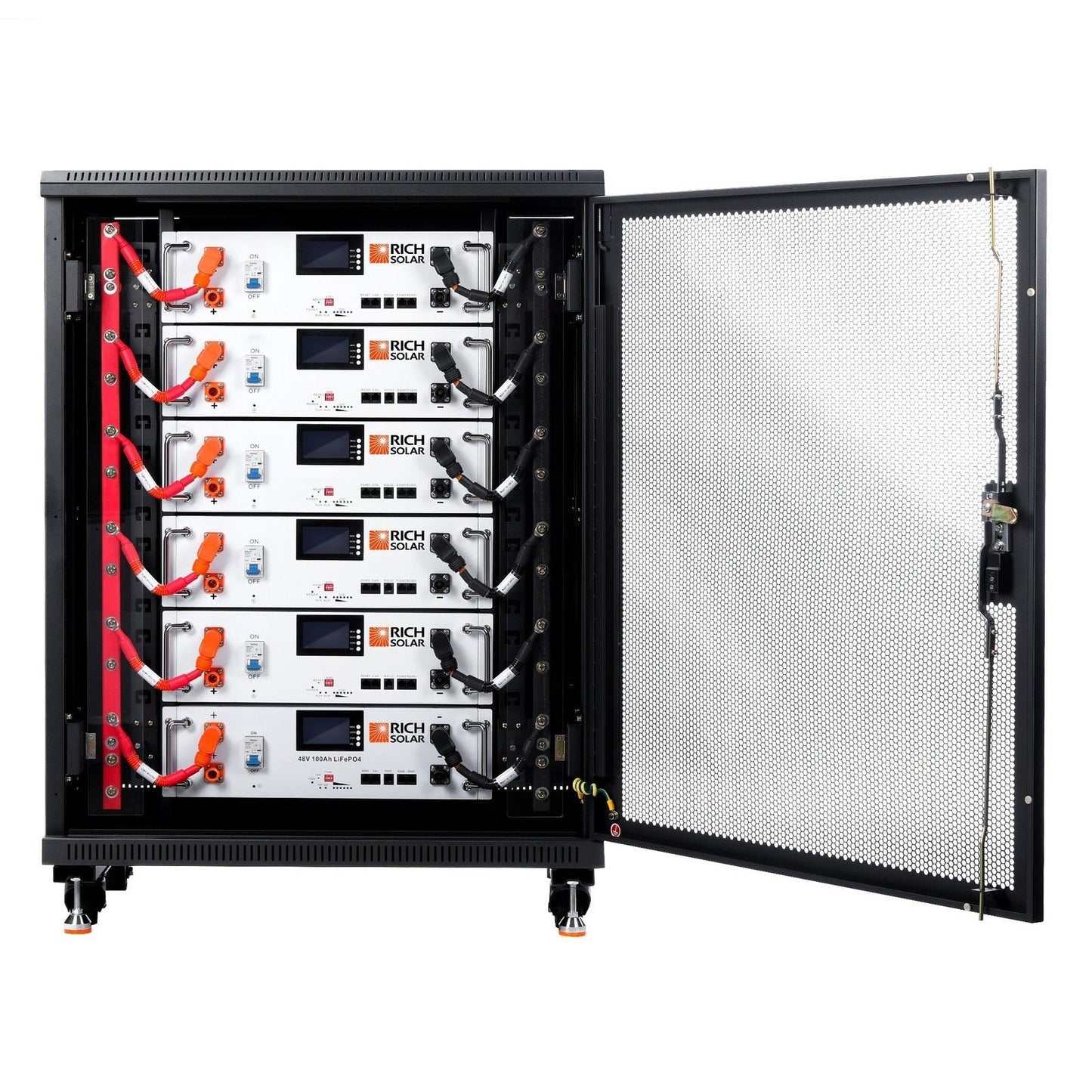

Battery Server Rack
-
Battery Server Rack Dimensions: 39″L x 32″W x 24″H
- Weight: 159 lb
- Material: High-quality cold-rolled steel plate
- Protection level: IP20
- Packaging:Carton + wooden pallet
Specs
Electrical Specifications |
Nominal Voltage: |
48V |
Nominal Capacity (at .5C, 77°F): |
100Ah |
Minimum Capacity (at .5C, 77°F): |
95Ah |
Expected Cycle Life: |
>7000 cycles w/1C charge and discharge rate, at 77°F, 80% DOD |
Operating Specifications |
Charge Method: |
Smart charger, constant current, constant voltage |
Operating Voltage: |
48 V |
Capacity: |
100 Ah |
Energy: |
4800 Watt Hours |
Charge Voltage Range (Max 52.5V): |
52.0 -52.5V |
Continuous Charge Current: |
100A |
Continuous Discharge Current: |
100A |
Over Voltage Shutdown: |
52.5 +/-0.2V |
Discharge Cut-off Voltage: |
42V =/- 0.5V |
Self Discharge (stored at 50% SOC): |
<3%/month |
Waterproof: |
IP65 |
Temperature Performance |
Charge Temperature: |
32° F to 113° F |
Discharge Temperature: |
-4° F to 122° F |
Storage Temperature: |
-4° F to 122° F |
BMS High Temperature Cut-off: |
149°F |
BMS Low Temperature Cut-off: |
32°F |
Physical Specifications |
Battery Dimensions: |
19″L x 17.7″W x 5.2″H |
Weight: |
42kg/92.6 lb |
Group Size: |
15 |
Battery Server Rack Specifications |
Battery Server Rack Dimensions: |
39″L x 32″W x 24″H |
Weight: |
159 lb |
Thickness: |
Frame 1.5mm, top/bottom plate 1.2mm, column 2.0mm, mesh door plate 1.2mm, side plate (screw fixed) 1.0mm, L-shaped bracket 2.0mm; |
Material: |
High-quality cold-rolled steel plate |
Protection level: |
IP20 |
BMS Operation
Over Charge Protection |
Over charge detection voltage: |
3.9 +/- 0.05V |
Over charge detection delay time: |
0.96 – 1.4s |
Over charge release voltage: |
3.80 +/-0.05V |
Maximum charge voltage: |
3.65 +/-0.05V |
Over Discharge Protection |
Over discharge detection voltage: |
2.0V +/- 0.05V |
Over discharge detection delay time: |
115-173ms |
Over discharge release voltage: |
2.3V +/- 0.10V |
Over Current Protection Over current detection delay time: |
9 +/- 2ms |
Over current release condition: |
Cut load |
Manual
 Â
Alpha 5 Server Lithium Iron Phosphate Battery
Â
What Our Experts Think
-
Optimized for High-Demand Applications: The Alpha 5 Server Lithium Iron Phosphate (LiFePO4) Battery is specifically designed to meet the rigorous demands of data centers and server applications, providing reliable and efficient power storage for continuous operations.
-
Superior Cycle Life: Utilizing advanced LiFePO4 technology, the Alpha 5 Server Battery offers exceptional cycle life, typically lasting longer than traditional batteries. This ensures consistent power over an extended period, reducing the frequency of replacements.
-
High Safety Standards: LiFePO4 chemistry provides enhanced safety due to its inherent thermal stability and resistance to thermal runaway, offering a safer energy solution for sensitive environments like data centers.
-
Scalable & Flexible: The modular design allows for easy scalability, enabling businesses to expand their storage capacity as their energy demands grow. It is suitable for a range of server and IT infrastructure needs.
-
Efficient Power Management: With high energy density and efficiency, the Alpha 5 Server Battery ensures optimal energy use, improving operational efficiency and lowering energy costs for data centers and server rooms.
-
Quick Charge & Reliability: The fast-charging capability ensures the battery is ready for use quickly, reducing downtime and providing reliable backup power in case of power disruptions or emergencies.
-
Long-Term Cost Savings: With its long lifespan and low maintenance requirements, the Alpha 5 reduces long-term operational costs and minimizes the need for frequent battery replacements.
Q&A
Q: What is the Alpha 5 Server Lithium Iron Phosphate Battery?
A: The Alpha 5 Server is a high-performance energy storage solution designed to power servers, data centers, and other critical applications with Lithium Iron Phosphate (LiFePO4) technology.
Q: What are the key features of the Alpha 5 Server Battery?
A: Features include long lifespan, high energy density, fast charging, enhanced safety with LiFePO4 chemistry, and reliability for uninterrupted server performance.
Q: How does the Alpha 5 Server Battery work?
A: It stores energy and ensures continuous power supply to servers or data centers during power outages, reducing downtime and improving operational efficiency.
Q: What is the capacity of the Alpha 5 Server Battery?
A: The battery provides a scalable energy solution, with specific capacity options designed for various server power needs.
Q: Why is LiFePO4 technology used in the Alpha 5 Server Battery?
A: LiFePO4 is known for its high thermal stability, non-flammability, and long cycle life, ensuring safe, reliable, and efficient energy storage.
Q: Is the Alpha 5 Server Battery scalable?
A: Yes, the system can be expanded to meet the power requirements of larger data centers or more energy-intensive server environments.
Q: How long does the Alpha 5 Server Battery last?
A: The battery offers a lifespan of over 10,000 charge cycles, ensuring reliable service for many years with proper maintenance.
Q: Is the Alpha 5 Server Battery easy to install?
A: Yes, installation is designed to be straightforward, with integration into existing power infrastructure for minimal downtime.
Q: Can the Alpha 5 Server Battery be used in remote locations?
A: Yes, it’s ideal for off-grid locations or where reliable backup power is needed for critical operations.
Maintenance Tips
-
Regular Monitoring: Track battery health and charging status using the management system to ensure optimal operation.
-
Cleaning: Periodically clean the battery's exterior and vents to prevent dust buildup and ensure proper airflow.
-
Temperature Control: Keep the battery in a cool, dry environment, ideally between 32°F (0°C) and 85°F (29°C), to maximize efficiency and lifespan.
-
Inspection: Perform regular checks on connections, terminals, and wiring for any signs of corrosion or damage.
-
Battery Charge Cycles: Avoid deep discharges and excessive charging to maintain battery longevity. Aim for regular partial charge cycles.
