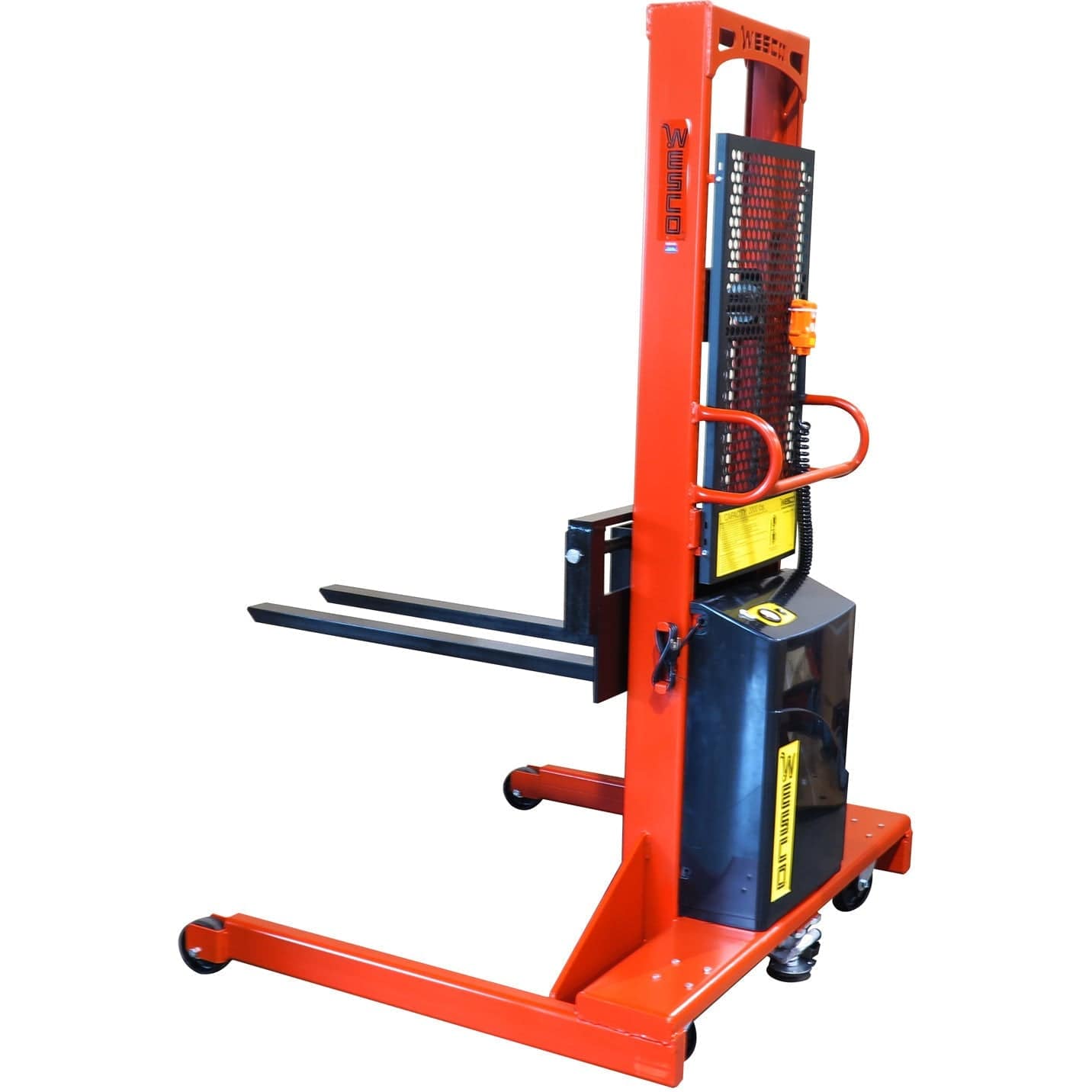

Wesco 3" X 42" FORK / 56" O.D. FIXED BASE POWERED STACKER - 261065
Features
- 1-year warranty.
- Proven quality: Wesco® manufactured Hydraulic Cylinder.
- Meets ANSI B56.10 specifications.
- Battery and charger included.
- Forks lower to floor on all models.
- Reinforced frame and fixed base.
- Double chain, lift support.
- Heavy-duty pump.
- Ergonomic "D" handles.
- 5th wheel and power drive options available.
- 110V AC models available (Special order no cancellations or returns).
- To order add AC to the end of the battery powered stacker part #.
Example:
Battery Powered #261065
110V AC Powered #261065AC
Specifications
PART NUMBER |
261065 |
MODEL |
PSFL-64-42-50S-1.5K |
LIFT HEIGHT |
64" |
CAPACITY |
1500 lb |
WIDTH FORKS |
3" |
LENGTH FORKS |
42" |
LOAD CENTER |
24" |
BASE LEG (ID/OD) |
50"/56" |
OVERALL HEIGHT |
83" |
WEIGHT |
577 lb |
ADJUSTABLE FORK MIN / MAX OD |
6" / 29" |
Drawing
What Our Experts Think
-
Solid Capacity: Handles up to 1,500 lbs, ideal for medium-duty material handling and storage tasks.
-
Wide Base Design: The wide base enhances stability and support, ensuring safer lifting operations.
-
Long Forks: 42" forks provide versatility, accommodating a range of pallet sizes and heavy loads.
-
Hydraulic Lift System: Offers smooth and controlled lifting with minimal effort, making it user-friendly.
-
Durable and Reliable: Built to endure the demands of industrial environments, ensuring long-term durability.
Q&A
Q: What is the weight capacity of this fork stacker?
A: The Wesco 261065 can lift up to 1,500 lbs.
Q: What is the maximum lift height?
A: This stacker provides a lift height of up to 64 inches.
Q: What are the fork dimensions?
A: The forks measure 42 inches in length.
Q: Is this stacker hydraulic-powered?
A: Yes, it features a hydraulic power lift for efficient lifting.
Q: What is the base configuration?
A: This stacker has a wide base for enhanced stability during operation.
Q: What are the primary applications for this stacker?
A: Ideal for lifting and stacking heavy loads, pallets, and materials in warehouses and industrial settings.
Q: Is it easy to maneuver?
A: Yes, it’s designed for smooth mobility and precise control.
Q: Does it require assembly?
A: Minimal assembly may be required, with clear instructions included.
Q: Is it durable?
A: Yes, built with heavy-duty materials for long-lasting reliability and performance
Maintenance Tips
-
Inspect Regularly: Check forks, base, and hydraulic components for damage or wear monthly.
-
Lubricate Moving Parts: Grease chains, rollers, and hinges every 3 months to ensure smooth functionality.
-
Hydraulic Fluid Check: Ensure fluid levels are adequate and check for any hydraulic leaks.
-
Battery Care: Charge fully before use and inspect cables for wear or corrosion.
-
Clean After Use: Wipe down forks, frame, and base to prevent dirt buildup and rust.
-
Secure Fasteners: Tighten bolts, screws, and hardware regularly for safe operation.
-
Test Functionality: Verify that the lift, lowering, and braking systems are operating smoothly.
