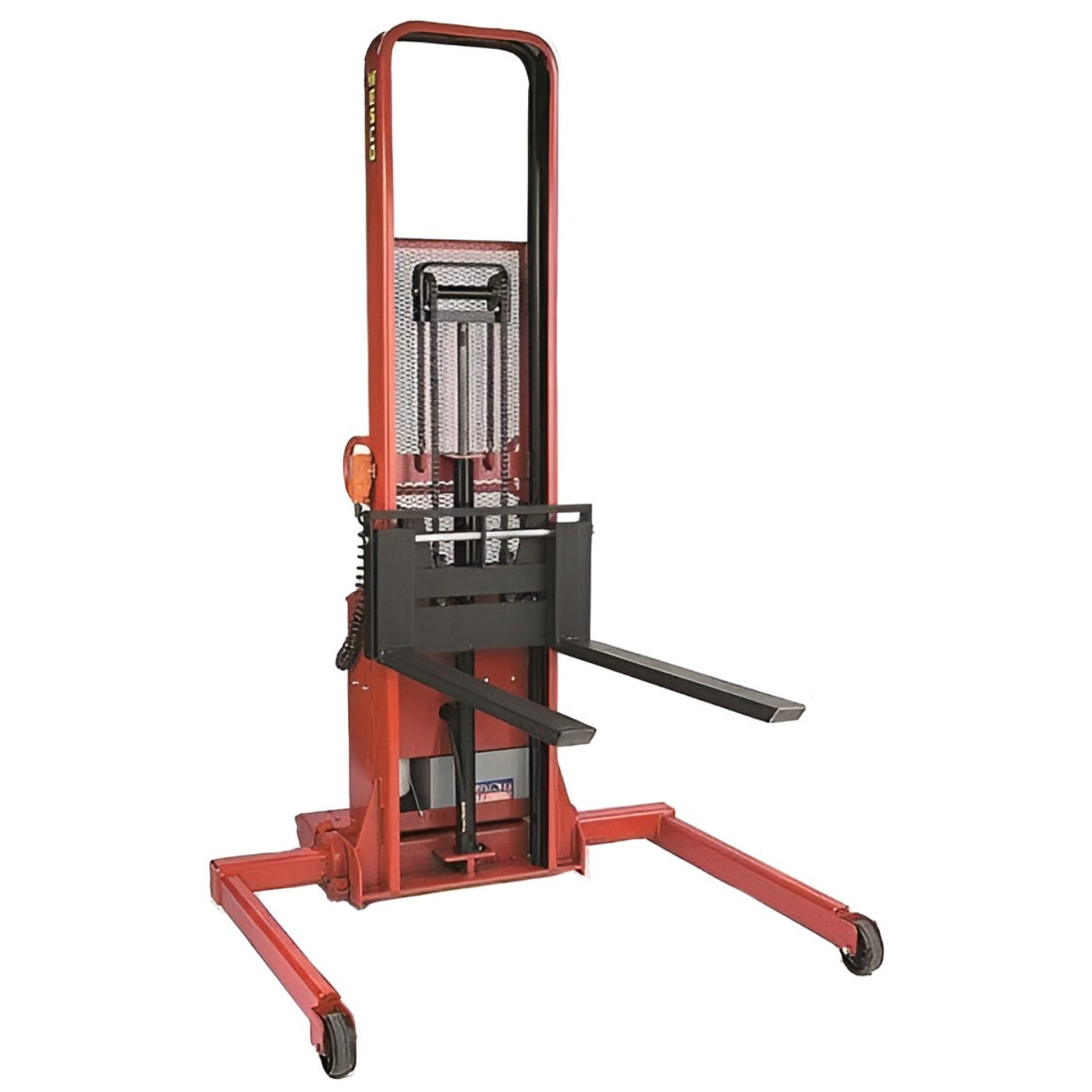

Wesco 3" X 42" FORK / 35" - 50" I.D. ADJUSTABLE BASE POWERED STACKER- 261054
Features
- 1-year warranty.
- Proven quality: Wesco® manufactured Hydraulic Cylinder.
- Meets ANSI B56.10 specifications.
- Battery and charger included.
- Forks lower to floor on all models.
- Adjustable base legs.
- Reinforced frame and adjustable base.
- Double chain, lift support.
- Heavy-duty pump.
- Ergonomic "D" handles.
- 5th wheel and power drive options available.
- 110 V AC models available. (special order no cancellations or returns).
- To order add AC to the end of the battery powered stacker part #.
Example:
Battery Powered #261054
110V AC Powered #261054AC
Specifications
PART NUMBER |
261054 |
MODEL |
PASFL-76-42-3550S-2K |
LIFT HEIGHT |
76" |
CAPACITY |
2000 lb |
WIDTH FORKS |
3" |
LENGTH FORKS |
42" |
LOAD CENTER |
24" |
ADJUSTABLE BASE LEG |
35" to 50" ID |
OVERALL HEIGHT |
94" |
WEIGHT |
657 lb |
ADJUSTABLE FORK MIN / MAX OD |
6" / 29" |
Drawing
What Our Experts Think
-
High Load Capacity: Supports up to 2,000 lbs, ideal for lifting and handling large, heavy materials.
-
Adjustable Straddle Forks: 42" adjustable forks offer flexibility to accommodate different pallet sizes and load configurations.
-
High Lift Range: 76" lift height provides ample reach for efficient stacking and storage at elevated levels.
-
Powered Lift System: Smooth and controlled operation with the electric-powered lift, enhancing productivity.
-
Durable Design: Engineered for long-lasting use in tough industrial environments, ensuring stability and reliability.
Q&A
Q: What is the weight capacity of this fork stacker?
A: The Wesco 261054 can lift up to 2,000 lbs.
Q: What is the maximum lift height?
A: This stacker offers a lift height of up to 76 inches.
Q: What are the fork dimensions?
A: The forks measure 42 inches in length.
Q: Is this stacker adjustable?
A: Yes, it features adjustable straddle forks for enhanced flexibility and versatile material handling.
Q: Is this stacker electric-powered?
A: Yes, it is equipped with a power lift mechanism for efficient lifting.
Q: What are the primary applications for this stacker?
A: Ideal for lifting and stacking heavy loads, pallets, and materials in warehouses and industrial environments.
Q: Is it easy to maneuver?
A: Yes, designed for smooth operation and precise control.
Q: Does it require assembly?
A: Minimal assembly may be required, with clear instructions provided.
Q: Is it durable?
A: Yes, built with heavy-duty materials for long-lasting reliability and performance.
Maintenance Tips
-
Inspect Regularly: Check the forks, straddle legs, and hydraulic components for any damage or wear every month.
-
Lubricate Moving Parts: Grease rollers, chains, and hinges every 3 months to ensure smooth operation.
-
Hydraulic Fluid Check: Ensure hydraulic fluid levels are adequate and inspect for leaks in the system.
-
Battery Care: Fully charge before use and inspect cables and terminals for corrosion or wear.
-
Clean Equipment: Wipe down the forks, base, and frame after use to prevent dirt accumulation and rust.
-
Secure Fasteners: Tighten bolts, screws, and other fasteners regularly to ensure stability and safety.
-
Test Functionality: Verify lift, lowering, and braking systems are working correctly.
-
Observe Load Limits: Never exceed the 2,000 lb. capacity or 76" lift height to maintain safe operation.
