Never used.

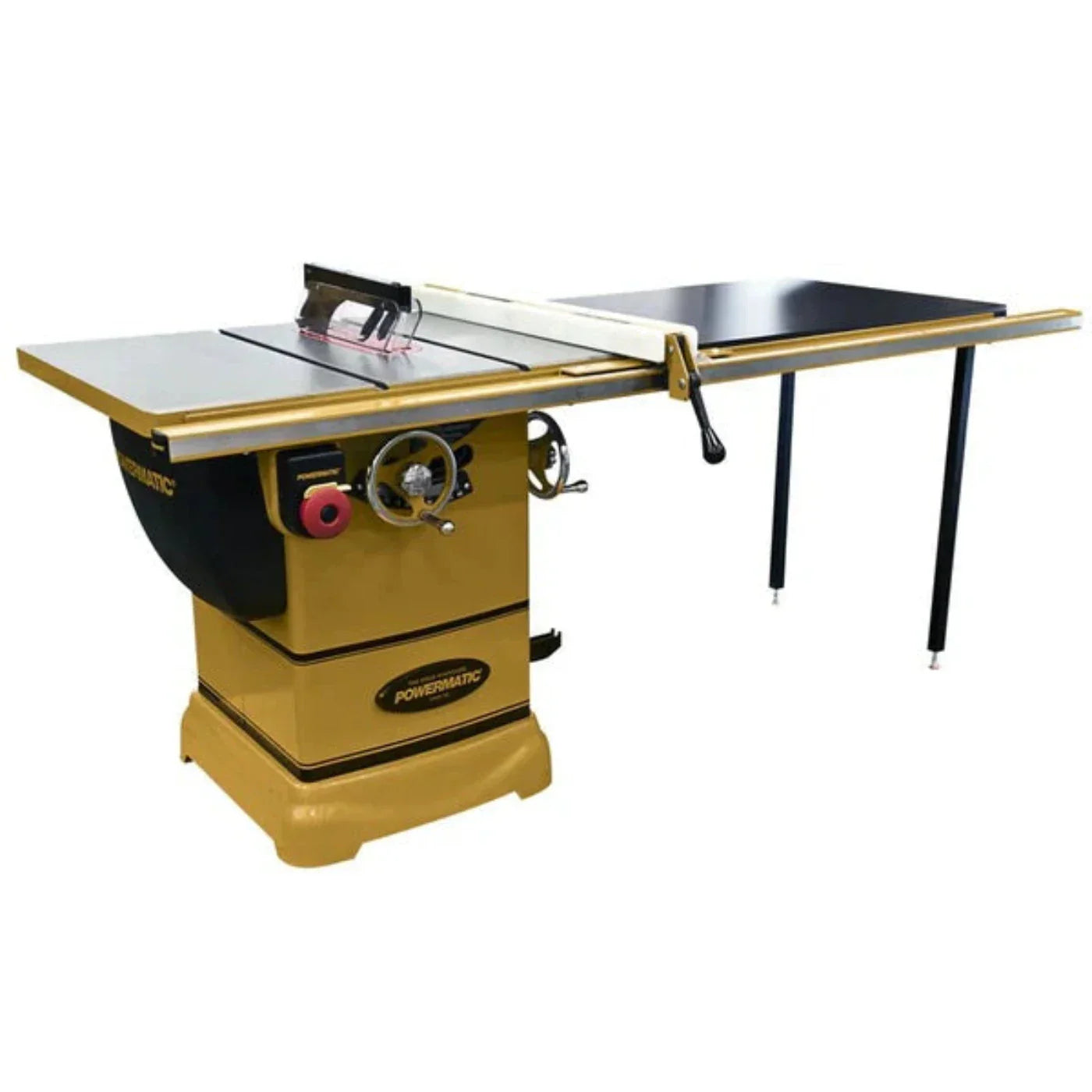

Powermatic PM1000 Table Saws are the perfect blend of capability and refinement. The superior internal design has been engineered to ensure precision and efficiency. Dust collection is maximized thanks to blade housing and a collection hose providing an unobstructed path for particles. The Poly V belt reduces vibration and maximizes efficiency of the 1.75hp motor. The hinged motor cover provides quick access to the interior of the cabinet.

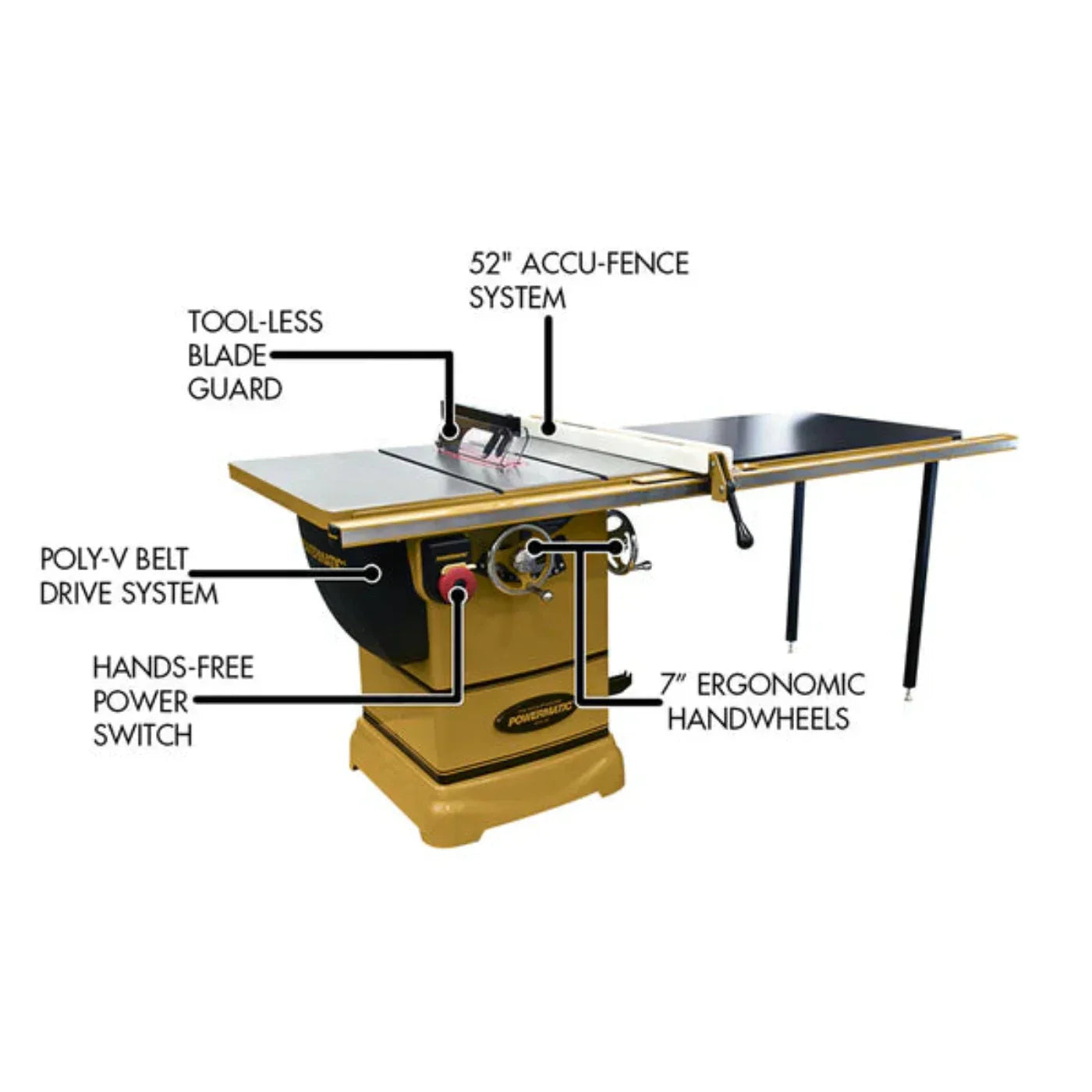

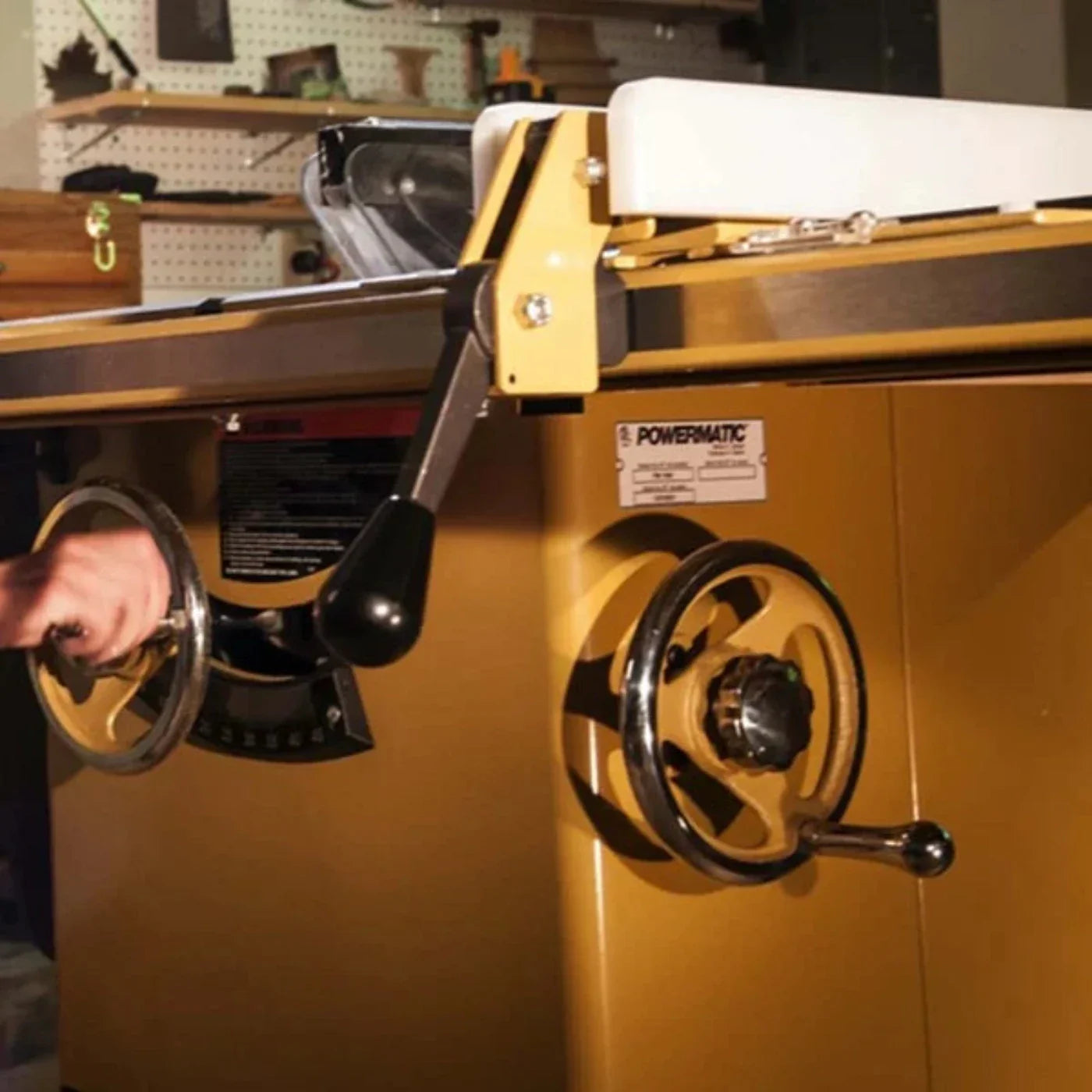

Powermatic's rigid Accu-Fence System instills confidence with every cut. Cuts are made easier with a bevel along the entire cast iron work surface. The tool-less guard assembly with independent side leaves is easy to use, and the push-button arbor lock allows for easy blade changes with minimal tools.
Arbor Diameter | 5/8" |
Arbor Speed | 4,200 RPM |
Blade Diameter | 10" |
Dust Collection Required (min.) | 350 CFM |
Dust Port Outside Diameter | 4" |
Gross Weight | 289 lbs. |
Max. Depth of Cut at 45° | 2-1/8" |
Max. Diameter of Dado | 8" |
Max. Rip Left of Blade | 12" |
Max. Rip Right of Blade | 52" |
Max. Width of Dado | 13/16" |
Miter Gauge Type | T-Slot with Stops |
Motor Phase | 1 |
Motor Power | 1-3/4hp |
Motor Voltage | 115V |
Net Weight | 289 lbs. |
Overall Dimensions (L x W x H) | 43" x 83" x 44" |
Prewired Voltage | 115/230V |
Recommended Circuit Size | 20 Amps |
Style (Type) | Cabinet |
Table Height from Floor | 34-1/4" |
Table in Front of Saw Blade at Maximum Depth of Cut | 10" |
Table Type | Cast Iron |
Q: What are the key features of the Powermatic PM1000 52" Rip Table Saw with Accu-Fence PM9-1791001K?
A: The Powermatic PM1000 features a 10" blade, a 1.75hp motor, and a 52" rip capacity. It includes the Accu-Fence system for enhanced accuracy and operates on a 1-phase, 115/230V power supply, making it ideal for precise cutting in professional woodworking shops.
Q: What is the Accu-Fence system on the Powermatic PM1000?
A: The Accu-Fence system ensures accurate, straight cuts with minimal adjustments, providing excellent control and consistency for all your woodworking projects.
Q: What motor does the Powermatic PM1000 use?
A: The table saw is powered by a 1.75hp motor, delivering reliable power for various cutting tasks.
Q: What is the rip capacity of the Powermatic PM1000?
A: The PM1000 offers a 52" rip capacity, enabling users to cut larger workpieces with ease and greater flexibility.
Q: Is the Powermatic PM1000 suitable for professional use?
A: Yes, this table saw is designed for professional use, providing the precision, durability, and high-quality performance needed in commercial woodworking environments.
Q: What electrical requirements does the Powermatic PM1000 need?
A: The table saw operates on a 1-phase, 115/230V electrical system, making it versatile for different workshop settings
