Powermatic 43" Wide Belt Sander WB-43 - PM9-1790843

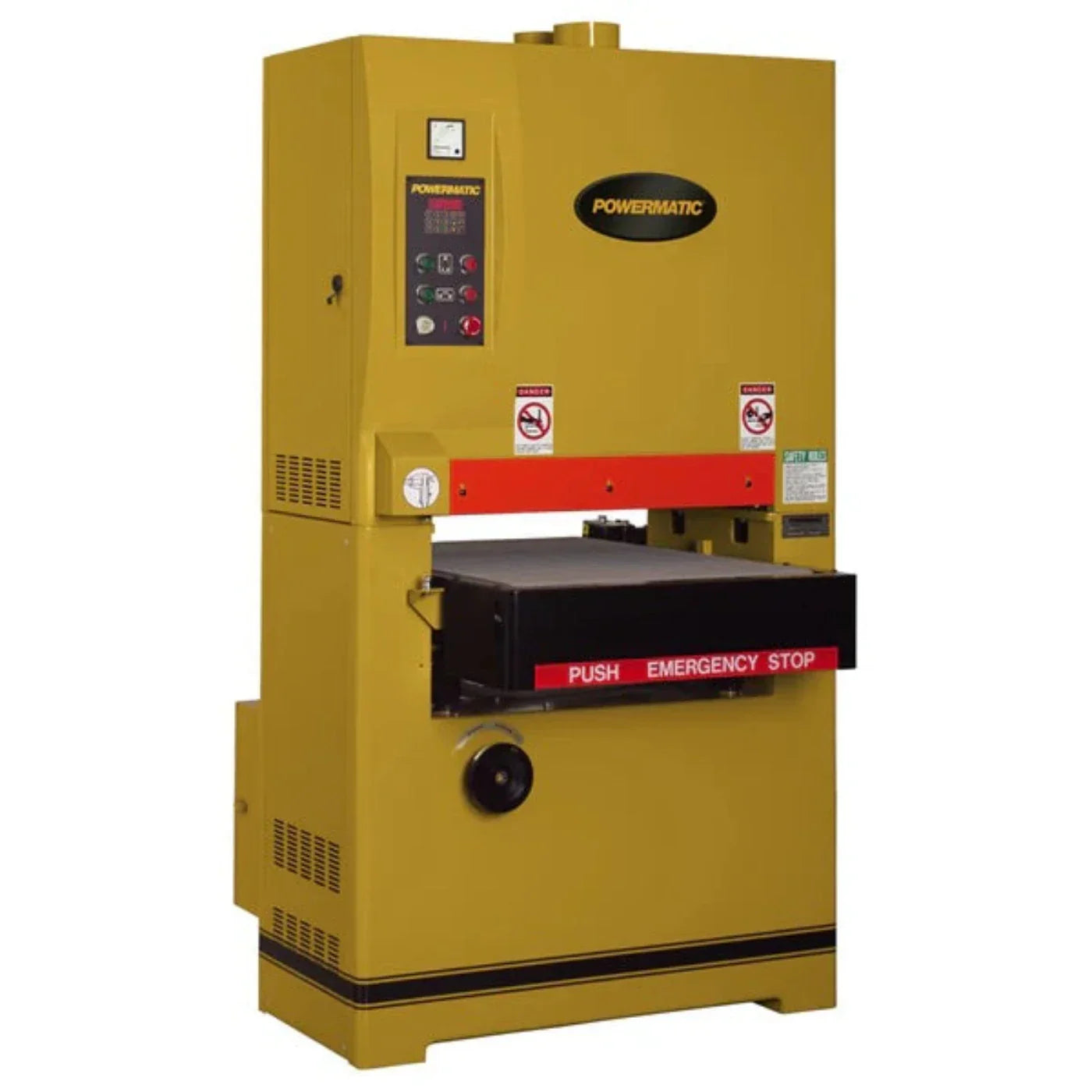

Powermatic 43" Wide Belt Sander WB-43

The POWERMATIC® 43" Wide Belt Sander delivers the utmost performance in measurement and sanding, creating a flawless finish every time. The Sander has centralized controls that allow the user to access all the needed buttons on one simple panel for more convenience. The variable speed feed belt allows the user to accurately dial in the exact feed speed to best suit each project and work environment.

Featured is a special digital readout control. This element is especially helpful because it will show the exact thickness of the finished piece or will allow the user to preset exactly what thickness they would prefer the finished piece to be. The sander also includes a unique measuring device, the auto thicknesser, that will capture the piece of wood to give the user an exact measurement of the starting thickness.

The POWERMATIC® 43" Wide Belt Sander has an air-eye system which controls the oscillation for the 43" x 75" sanding belt. This prevents the belt from running off the end of the drums and uses the sanding surface in a more uniform manner. This also ensures sanding lines will not be left on the workpiece.

The 43" wide belt sander also has a powerful three-motor system for maximum performance. The first motor system allows for maximum horsepower to feed the drive drums. A second, smaller motor, directly powers the VS feed belt and a third, smaller motor, powers the feed table up and down to the desired thickness automatically and with ease. For safety, the Sander has a disc brake, which slows the machine quickly and stops it instantly in the event of an emergency.

Features

• Centralized controls allow you to access all the needed buttons on one simple panel
• Digital readout will show the user the exact thickness of the finished piece, or will allow you to preset exactly the thickness you prefer for the finished piece
• The auto thicknesser will capture the piece of wood to give the user the exact starting thickness
• Disc brake slows the machine quickly and will activate immediately to stop machine in an emergency
• The pneumatic sensor system controls the sanding belt oscillation to prevent the belt from running off the ends of the drums, as well as use the sanding surface more uniformly without leaving sanding lines on the workpiece
• The three motor system allows for maximum horsepower to independently power the sanding drums, the variable speed feed, and the feed table movement.
• The variable speed feed belt allows you to accurately dial in the exact feed speed to best suit your project

Specifications

What Our Experts Think

• Massive 43" Sanding Width: Perfect for oversized panels, delivering fast and efficient sanding on large workpieces.
• High-Performance Motor: Provides continuous power for demanding, high-volume sanding, ensuring consistent material removal.
• Solid Build: Heavy-duty construction minimizes vibrations, promoting smoother finishes and greater accuracy.
• Advanced Precision Controls: Features adjustable belt tracking and depth settings for fine-tuned sanding results.
• User-Friendly Interface: Easy-to-use design ensures both novice and professional operators can achieve optimal performance.

Q&A

Q: What is the Powermatic 43" Wide Belt Sander (WB-43)?
A: A high-capacity 43" wide belt sander designed for large-scale sanding and finishing, built to handle heavy-duty woodworking tasks with ease.

Q: What are its key features?
A: 43" sanding width, powerful motor for consistent performance, adjustable conveyor speed, robust steel frame, and precise sanding control for superior finishes.

Q: Who is it ideal for?
A: Ideal for industrial woodshops and professionals needing to sand large panels, thick materials, or high volumes with precision and efficiency.

Q: Why choose this model?
A: Provides exceptional sanding power, stability, and finish quality, making it perfect for demanding, high-volume woodworking applications

Maintenance Tips

• Inspect Sanding Belt: Regularly check the sanding belt for wear, damage, or accumulation of debris; replace or clean as needed.
• Clean the Machine: After each use, remove sawdust and debris from the sanding surfaces, motor, and dust collection port.
• Lubricate Moving Parts: Apply grease to the feed rollers, bearings, and other moving components to reduce friction and ensure smooth operation.
• Check Belt Tension: Ensure the sanding belt is correctly tensioned to avoid slipping or uneven sanding results.
• Check Drum Alignment: Regularly inspect the sanding drum for alignment and adjust as needed to ensure consistent, even sanding.
• Dust Collection Maintenance: Ensure the dust collection system is clean and functioning properly to prevent clogging and maintain a cleaner workspace.
• Electrical System: Verify proper voltage (230/460V) and inspect the motor and wiring for any signs of damage or wear.
• Proper Storage: Keep the sander in a dry, clean environment to avoid rust or corrosion on metal parts.
