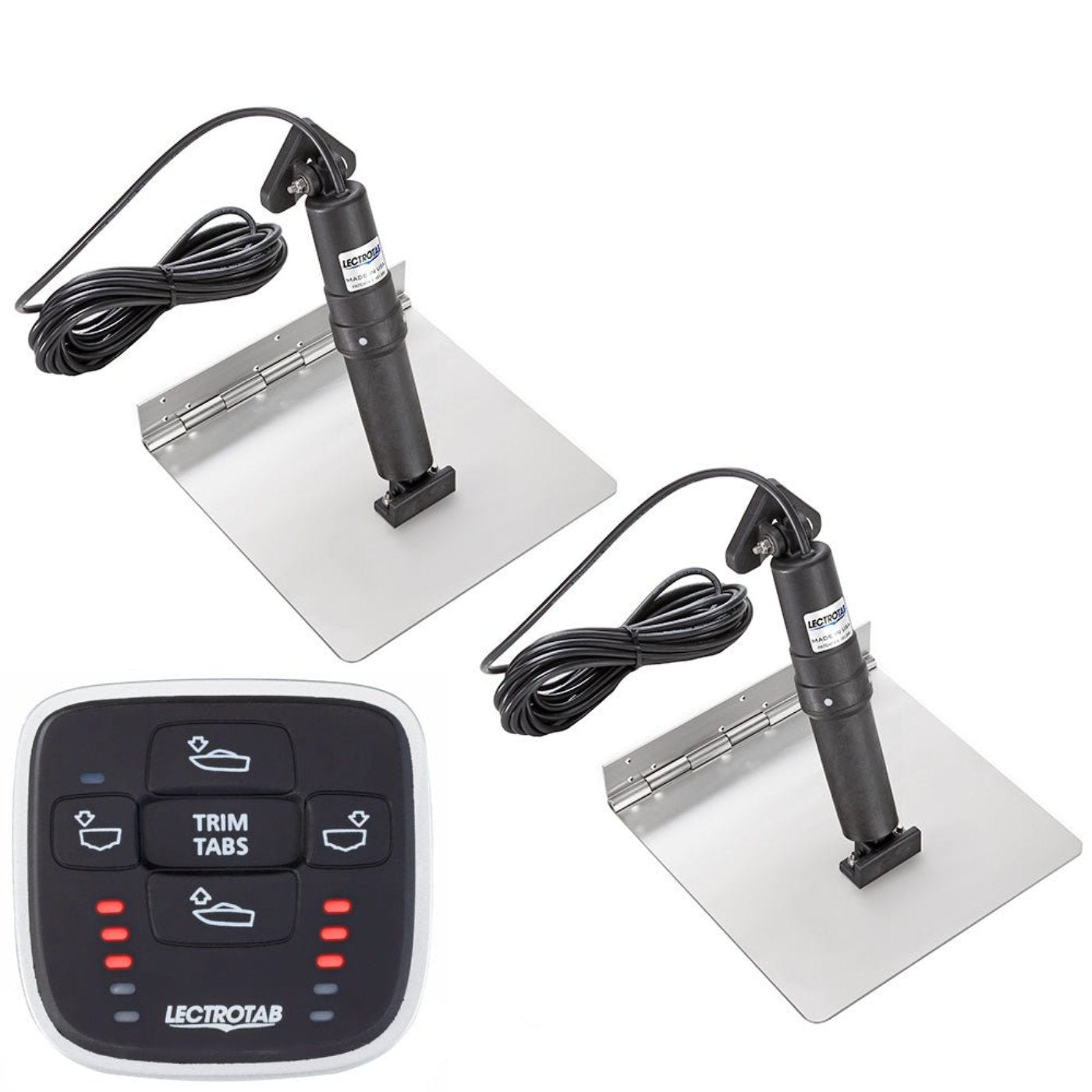

Lectrotab XKA Stainless Steel Trim Tab Kit w/MLC-1 Control - 12 x 24 - XKASML12X24 - CW96285

Lectrotab XKA Stainless Steel Trim Tab Kit w/MLC-1 Control - 12 x 24 - XKASML12X24 - CW96285

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Lectrotab MLC-1 is a microprocessor based trim tab control that can move both tabs simultaneously at the touch of a single button. It includes LED tab position indicators which will automatically dim in darkness and brighten in sunlight.

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when under way or backing down

• Quiet operation

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

• One (1) Manual Leveling Control

• Two (2) Aluminum Alloy tabs

• Two (2) actuators w/23' (7 M) cables

• Instruction Manual

Owners Manual

Product Brochure

The Lectrotab XKA Stainless Steel Trim Tab Kit w/MLC-1 Control (12" x 24") - XKASML12X24 is a top-tier solution for optimizing performance on larger boats. Here’s why it excels:

• Comprehensive Kit: Includes stainless steel trim tabs, actuators, and the MLC-1 control for precise and reliable trimming.
• Heavy-Duty Construction: Built from marine-grade stainless steel, ensuring excellent durability and corrosion resistance in saltwater environments.
• Enhanced Performance: Improves stability, minimizes bow rise, and increases fuel efficiency, delivering smoother and more efficient rides.
• Generous Size: The 12" x 24" dimensions are ideal for larger vessels requiring substantial lift and robust trim control.
• Intuitive Control: MLC-1 control provides user-friendly, accurate adjustments for seamless operation under any conditions.
• Easy Installation: Pre-drilled tabs and pre-configured components simplify setup, whether DIY or professional installation.
• Proven Reliability: Supported by Lectrotab’s longstanding reputation for high-quality and dependable marine solutions.

Q: What are the key features of the Lectrotab XKA Stainless Steel Trim Tab Kit (XKASML12X24)? A: The XKASML12X24 kit includes 12" x 24" stainless steel trim tabs, a corrosion-resistant design, and an MLC-1 manual control system for precise and effective trim adjustments.

Q: What does the MLC-1 control system offer? A: The MLC-1 provides smooth manual operation, allowing users to adjust trim tabs for enhanced boat stability, handling, and fuel efficiency.

Q: Is this kit suitable for saltwater environments? A: Yes, the stainless steel construction ensures excellent corrosion resistance, making it ideal for both saltwater and freshwater use.

Q: How easy is installation? A: The kit features pre-drilled trim tabs and includes all necessary components, making installation straightforward and secure.

Q: What types of boats is this kit designed for? A: This kit is perfect for recreational and commercial boats requiring reliable and durable trim control for larger applications.

• Rinse After Use: Thoroughly rinse with fresh water after use, particularly in saltwater, to prevent corrosion.
• Inspect Hardware: Regularly check brackets, hinges, and screws for tightness and signs of wear or damage.
• Lubricate Moving Parts: Use marine-grade lubricant on hinges and actuators to maintain smooth operation.
• Hydraulic & Electrical System Checks: Monitor hydraulic fluid levels, inspect for leaks, and ensure electrical connections are secure and dry.
• Clean Stainless Steel: Apply a stainless steel cleaner to maintain shine and protect against rust.
• Test MLC-1 Control: Periodically operate the control system to ensure proper functionality and recalibrate as needed.
• Protect Wiring: Inspect and secure wiring to avoid water exposure or corrosion.
