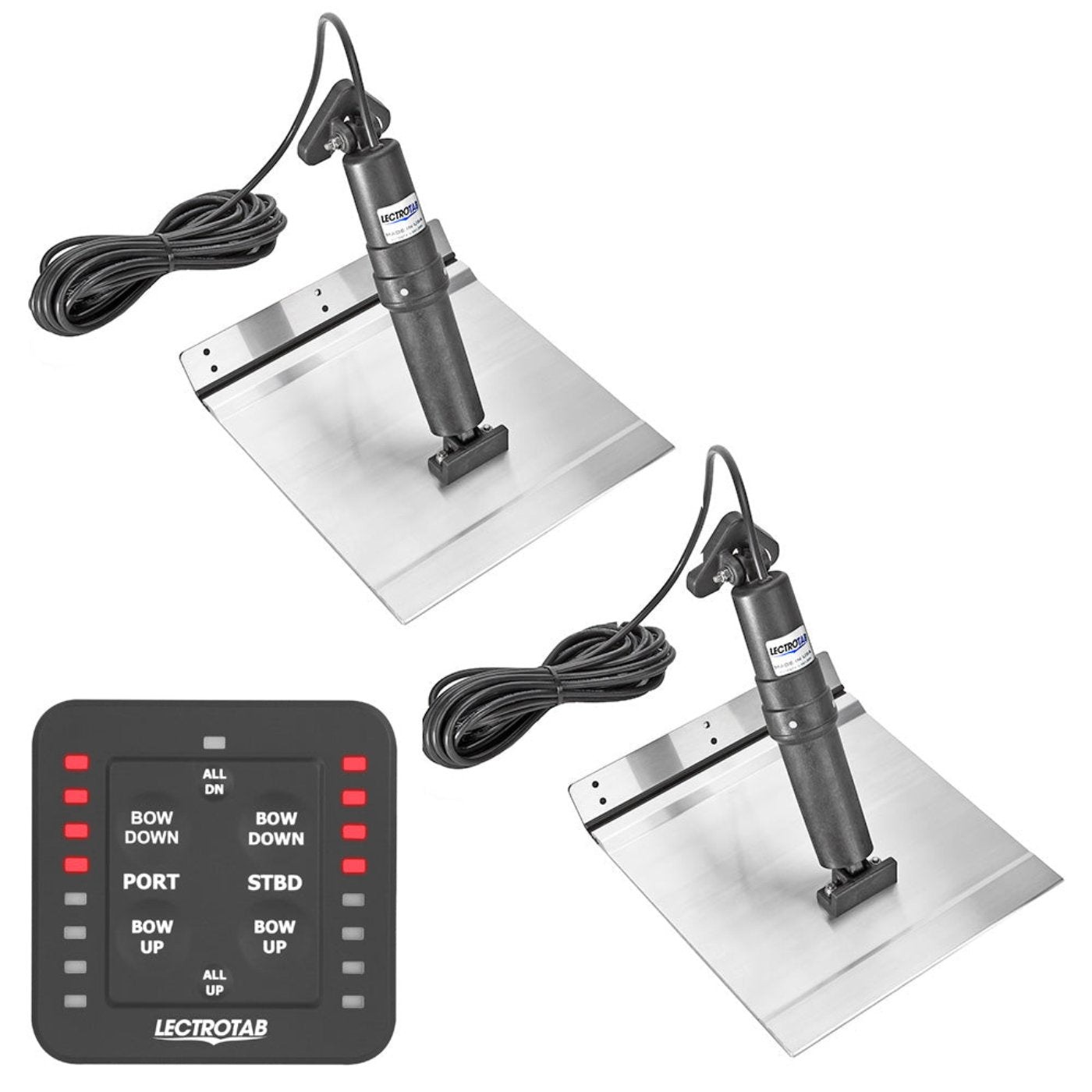

Lectrotab XKA Aluminum Alloy Trim Tab Kit w/One-Touch Control - 12 x 24 - XKASL12X24A - CW96311

Lectrotab XKA Aluminum Alloy Trim Tab Kit w/One-Touch Control - 12 x 24 - XKASL12X24A - CW96311

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.

• All Tabs sealed with a corrosive resistant epoxy coating

• Equivalent strength to 10 gauge stainless steel

• "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when under way or backing down

• Quiet operation

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

• One (1) Manual Leveling Control

• Two (2) Aluminum Alloy tabs

• Two (2) actuators w/23' (7 M) cables

• Instruction Manual

Owners Manual

Product Brochure

The Lectrotab XKA Aluminum Alloy Trim Tab Kit with One-Touch Control (12 x 24, XKASL12X24A) is a top-tier option for boaters looking to maximize performance and ease of use. Here’s why it’s a standout choice:

• Durable Aluminum Alloy: Lightweight and resistant to corrosion, ensuring long-term durability even in challenging marine environments.
• One-Touch Control: Simple and intuitive trim adjustments with just a single touch, improving boat stability and handling for a smoother ride.
• Optimal for Larger Boats: The 12 x 24-inch tabs are perfect for larger vessels, providing excellent lift and better control, especially in rough water.
• Fuel Efficiency: Helps reduce drag, improving fuel economy and contributing to more cost-effective boating.
• Reliable Actuators: High-torque actuators deliver consistent, smooth performance, even in rough conditions.
• Easy Installation: Pre-assembled kit ensures a quick and hassle-free installation process.

Q: What is the Lectrotab XKA Aluminum Alloy Trim Tab Kit w/One-Touch Control (XKASL12X24A)?
A: A 12 x 24-inch trim tab kit for larger boats, featuring durable aluminum alloy tabs and the One-Touch control system, designed to enhance stability, performance, and handling with easy adjustments.

Q: What are the key features?
A: Includes corrosion-resistant aluminum alloy trim tabs, robust stainless steel actuators, and the One-Touch control system for quick, smooth adjustments to optimize boat performance and fuel efficiency.

Q: Who is it ideal for?
A: Ideal for owners of larger boats seeking improved handling, fuel efficiency, and overall ride quality in a variety of water conditions.

Q: What makes it unique?
A: The 12 x 24 size provides optimal stability and performance for larger vessels, while the One-Touch control system offers user-friendly operation and precise adjustments.

Q: Is installation easy?
A: Yes, the kit includes all necessary components for installation; professional installation is recommended for best results and optimal performance.

• Rinse After Use:

  • After each use, especially in saltwater, rinse the trim tabs thoroughly with fresh water to remove salt, dirt, and debris. This helps prevent corrosion and extends the lifespan of the trim tab components.

• Inspect for Wear and Damage:

  • Regularly inspect the trim tabs, actuators, One-Touch Control, mounting hardware, and hinges for signs of wear, corrosion, or damage. Replace any worn or damaged parts to ensure continued performance.

• Lubricate Moving Parts:

  • Periodically apply marine-grade lubricant to the trim tab hinges, actuators, and other moving components. This reduces friction, prevents rust, and ensures smooth operation.

• Check Electrical Connections:

  • Inspect the wiring and electrical connections for the One-Touch Control system for signs of corrosion, wear, or loose connections. Ensure all electrical components are securely sealed to prevent water damage.

• Test Trim Tab Functionality:

  • Test the trim tabs with the One-Touch Control before each use to ensure they are operating correctly and adjusting smoothly. Address any resistance or malfunctions immediately.

• Prevent Electrolysis:

  • Install and regularly check a sacrificial anode to protect the aluminum trim tabs from electrolysis damage, particularly when operating in saltwater. Replace the anode when it becomes significantly corroded.

• Annual Maintenance:

  • Perform a comprehensive inspection of the trim tab system once a year, checking actuators, seals, wiring, and moving parts. Clean all components, replace worn parts, and ensure the system is fully operational.
