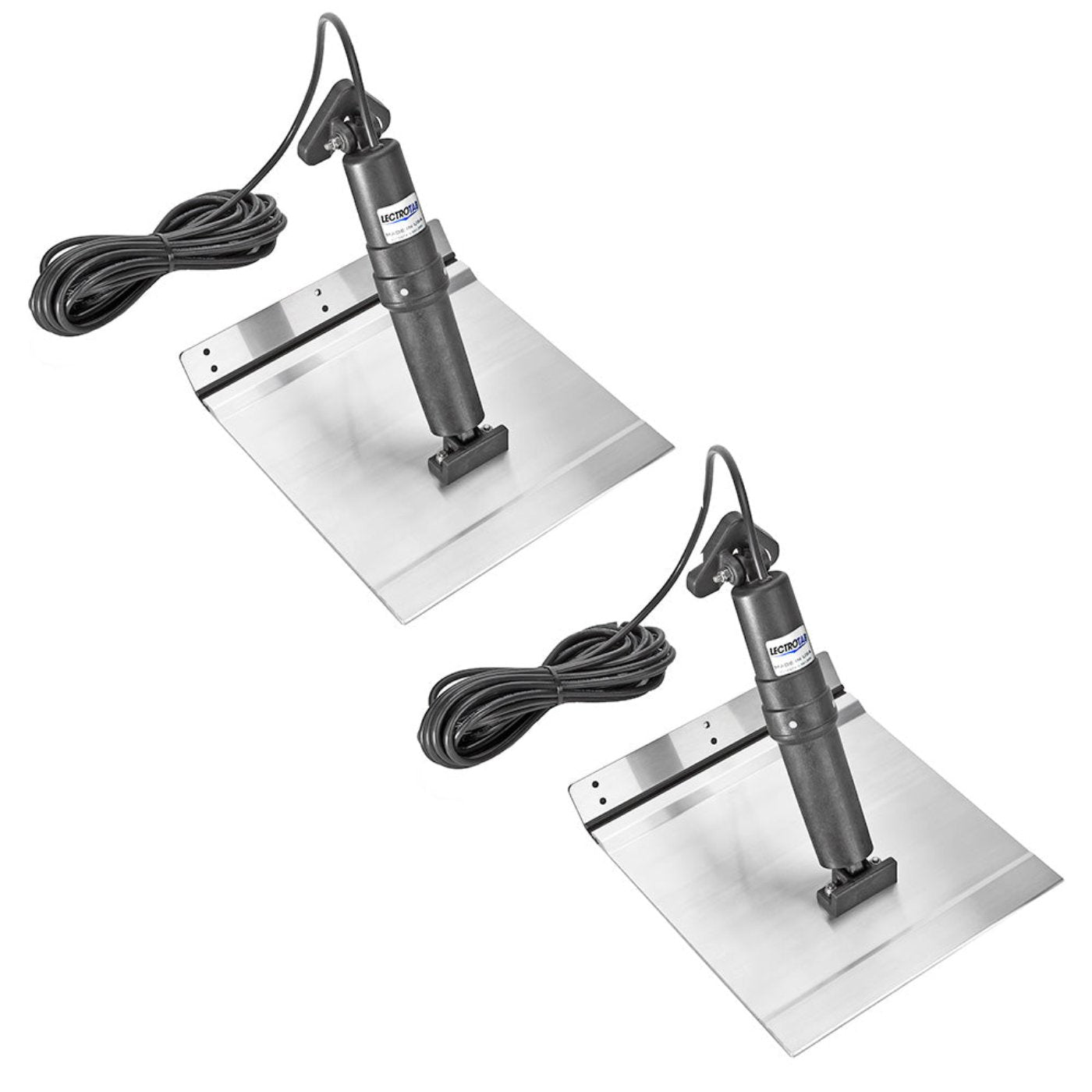

Lectrotab XKA Aluminum Alloy Trim Tab - 12x9 - XKA12X9A - CW96051

Lectrotab XKA Aluminum Alloy Trim Tab - 12x9 - XKA12X9A - CW96051

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

• All Tabs sealed with a corrosive resistant epoxy coating

• Equivalent strength to 10 gauge stainless steel

• "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when under way or backing down

• Quiet operation

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

• One (1) Manual Leveling Control

• Two (2) Aluminum Alloy tabs

• Two (2) actuators w/23' (7 M) cables

• Instruction Manual

Owners Manual

Product Brochure

• Optimized for Medium Boats: The 12" x 9" size provides excellent lift and stability for a variety of boat sizes.
• Durable Aluminum Alloy Build: Corrosion-resistant material ensures long-lasting performance in marine environments.
• Enhanced Efficiency: Reduces drag, improves fuel economy, and ensures smoother rides even in rough conditions.
• Balanced Performance: Ideal for boats with moderate loads, delivering consistent and effective trim control.
• Easy Installation: Straightforward setup with minimal maintenance requirements for hassle-free operation.
• Reliable Marine-Grade Construction: Engineered for durability and dependable performance in demanding conditions.

Q: What is the Lectrotab XKA Aluminum Alloy Trim Tab (12 x 9 - XKA12X9A)?
A: A durable and efficient trim tab designed for small to medium boats, providing enhanced stability, smoother rides, and improved fuel efficiency.

Q: What are its key features?
A:

• Aluminum Alloy Construction: Corrosion-resistant and lightweight for reliable marine performance.
• 12 x 9 Tab Size: Ideal for small to medium-sized boats requiring precise trim control.
• Hydrodynamic Design: Optimizes vessel performance by reducing drag and enhancing handling.
• Sealed Actuators: Built to endure harsh marine conditions with minimal maintenance.
• Universal Compatibility: Easily integrates with Lectrotab control systems for accurate adjustments.

Q: Why choose the Lectrotab XKA 12 x 9 Trim Tab?
A: It’s a compact yet robust solution for enhancing boat handling, comfort, and efficiency in various water conditions.

Q: Who is it best suited for?
A: Small to medium boat owners looking to improve stability, control, and fuel economy.

Q: Is it easy to install?
A: Yes, it features a straightforward installation process and is designed for long-term, low-maintenance use.

• Rinse After Use: Wash the trim tabs thoroughly with fresh water after every outing, especially in saltwater, to prevent corrosion.
• Inspect for Damage: Regularly check the trim tabs, hinges, and actuators for wear, cracks, or signs of corrosion.
• Clean Marine Growth: Remove barnacles, algae, and other marine growth from the tab surfaces to maintain optimal performance.
• Lubricate Moving Parts: Apply a marine-grade lubricant to the hinges and actuator pins to ensure smooth operation.
• Check Actuators: Inspect the actuators for leaks, damage, or reduced performance, and replace them as needed.
• Tighten Hardware: Ensure all bolts, screws, and fittings are securely fastened to prevent misalignment or vibrations.
• Inspect Electrical Connections: Check wiring for corrosion or loose connections, and seal with marine-grade waterproof connectors.
• Test Functionality: Operate the trim tabs regularly to verify that the actuators and control system are responsive.
• Apply Anti-Fouling Paint: Coat the tabs with anti-fouling paint to minimize marine growth and prolong their lifespan.
• Follow Manufacturer Recommendations: Adhere to the maintenance guidelines and schedules outlined in the Lectrotab manual for best results.
