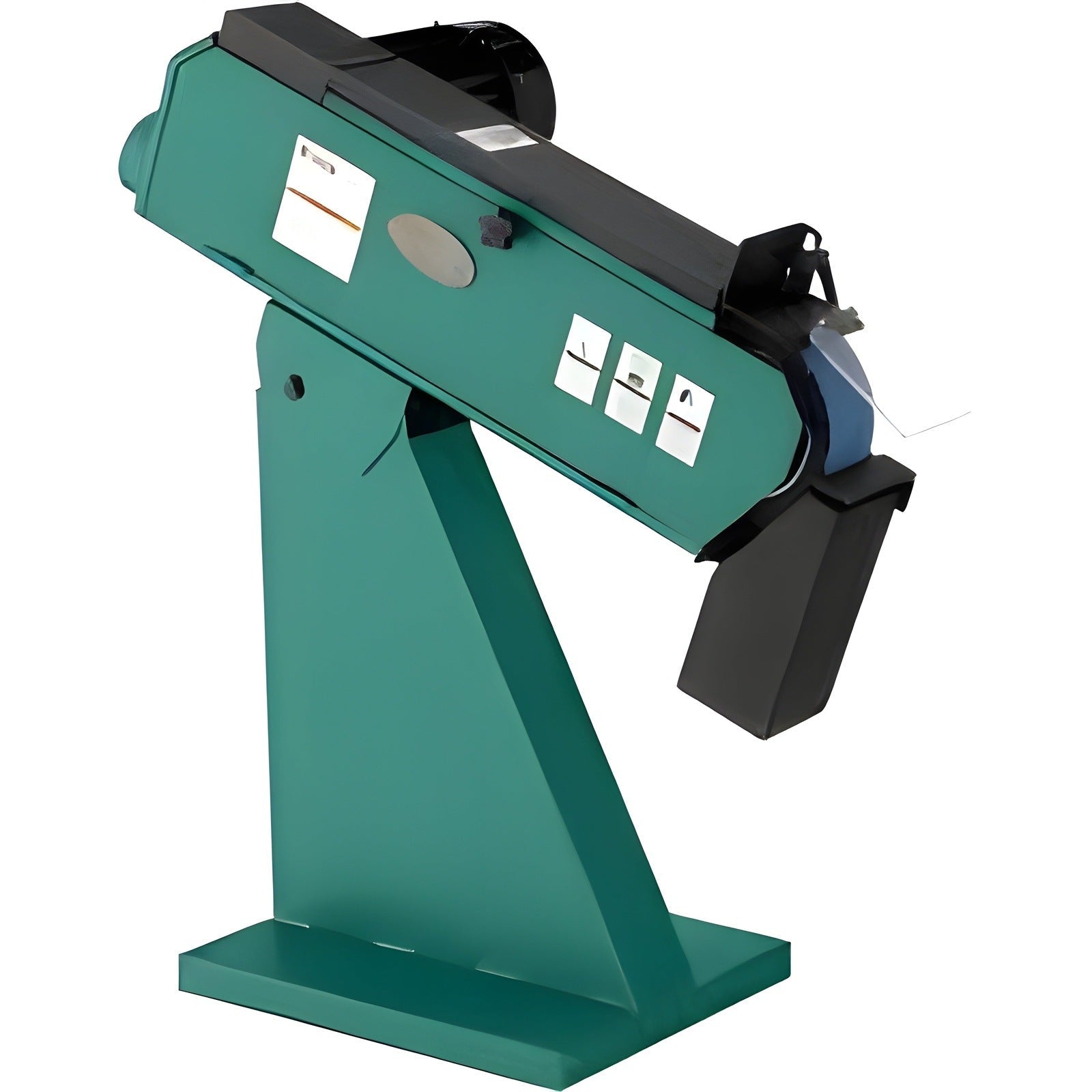

Grizzly Industrial 3" x 79" 2-Wheel Metal Belt Grinder/Sander

A belt grinder/sander designed to give you versatility and performance.

The Grizzly G0489 3' x 79' 2-Wheel Metal Belt Grinder/Sander is made specially for metal workers.

It uses 79' sanding belts that resist heating up, even with a surface speed of 3900 FPM.

The sanding head tilts from 0°––30° to suit the job at hand.

Sand against the rubber contact wheel using the supplied work rest or sand flat surfaces against the 3' x 20-1/2' graphite-backed platen.

Covers are supplied with the machine to expose only the part of the sander you want to use.

The spark trap picks up the grindings at one end of the machine and the other end is supplied with a 4' part so you can connect your approved collection device.

Belt adjustments are easy with use of the single knob tracking adjustment.

For use with our wide selection of sanding belts for rapid material removal and shaping.

Like all Grizzly grinders, the G0489 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects. (Consumables are not covered by the warranty.)

The manual for the G0489 was written by our U.S. based Documentation Department and is packed with useful information.

The Grizzly Customer Service and Technical Support Teams are U.S. based.

Parts for the grinder/sander may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

• Motor: 4 HP, 220V, 3-phase, 11A
• Sanding belt size: 3' x 79'
• Sanding belt tilt: 0°–30°
• Sanding belt speed: 3937 FPM
• Platen type: graphite-backed
• Platen size: 3' x 20-1/2'
• Overall size: 39'W x 22-1/2'D x 48'H (head raised)
• Approximate shipping weight: 248 lbs.

• Work stop for use with the platen
• Work rest for use with the contact wheel
• 8' rubber contact wheel
• Spring loaded quick-release belt
• Single knob tracking adjustment
• Built-in spark trap

The Grizzly Industrial 3" x 79" 2-Wheel Metal Belt Grinder/Sander is a versatile tool for metalworking and finishing tasks. Here's why it’s a standout:

• Large 3" x 79" Belt: Provides an ample surface area for aggressive grinding, sanding, and polishing of various metals.
• 2-Wheel Design: The robust 2-wheel setup offers smooth and consistent belt tracking for even, high-quality results.
• Powerful Performance: Equipped with a reliable motor that provides the necessary power for heavy-duty metalworking applications.
• Variable Speed Control: Offers adjustable speed settings for optimal performance across different tasks, from coarse grinding to fine finishing.
• Heavy-Duty Construction: Built with durability in mind, ensuring long-lasting performance even under continuous use.

Q: What is the Grizzly Industrial 3 HP Cyclone Dust Collector designed for?
A: This dust collector is designed to efficiently remove dust and debris from woodworking or metalworking shops, improving air quality and maintaining a cleaner work environment.

Q: How powerful is the motor?
A: It features a 3 HP motor, providing ample suction power for handling large dust volumes from multiple machines.

Q: What is the airflow capacity?
A: The dust collector provides high airflow to capture a large amount of dust and debris, ensuring efficient collection throughout your workspace.

Q: What type of filtration does it use?
A: It uses a cyclone separation system combined with high-quality filtration bags, effectively capturing fine dust particles and improving overall filtration.

Q: Is it easy to maintain?
A: Yes, it features a large collection bin that is easy to empty, along with a durable design for minimal maintenance needs.

Q: Why choose the Grizzly 3 HP Cyclone Dust Collector?
A: With its powerful motor, efficient cyclone filtration system, and high airflow, it’s perfect for professional shops needing reliable dust collection to maintain a clean and safe working environment.

• Belt Inspection: Regularly check the sanding or grinding belts for wear or damage. Replace worn belts to maintain optimal performance.
• Clean Debris: Remove metal dust and debris from the machine after each use to prevent buildup and ensure smooth operation.
• Lubricate Moving Parts: Apply lubricant to the wheel bearings and other moving components to reduce friction and prolong their lifespan.
• Check Tension: Ensure the belt is properly tensioned for consistent speed and accuracy. Adjust the tension as needed.
• Motor Maintenance: Inspect the motor for dust accumulation and clean regularly to avoid overheating and maintain efficiency.
• Safety Features: Ensure all safety guards and features, such as the on/off switch and belt guards, are in good working order.
