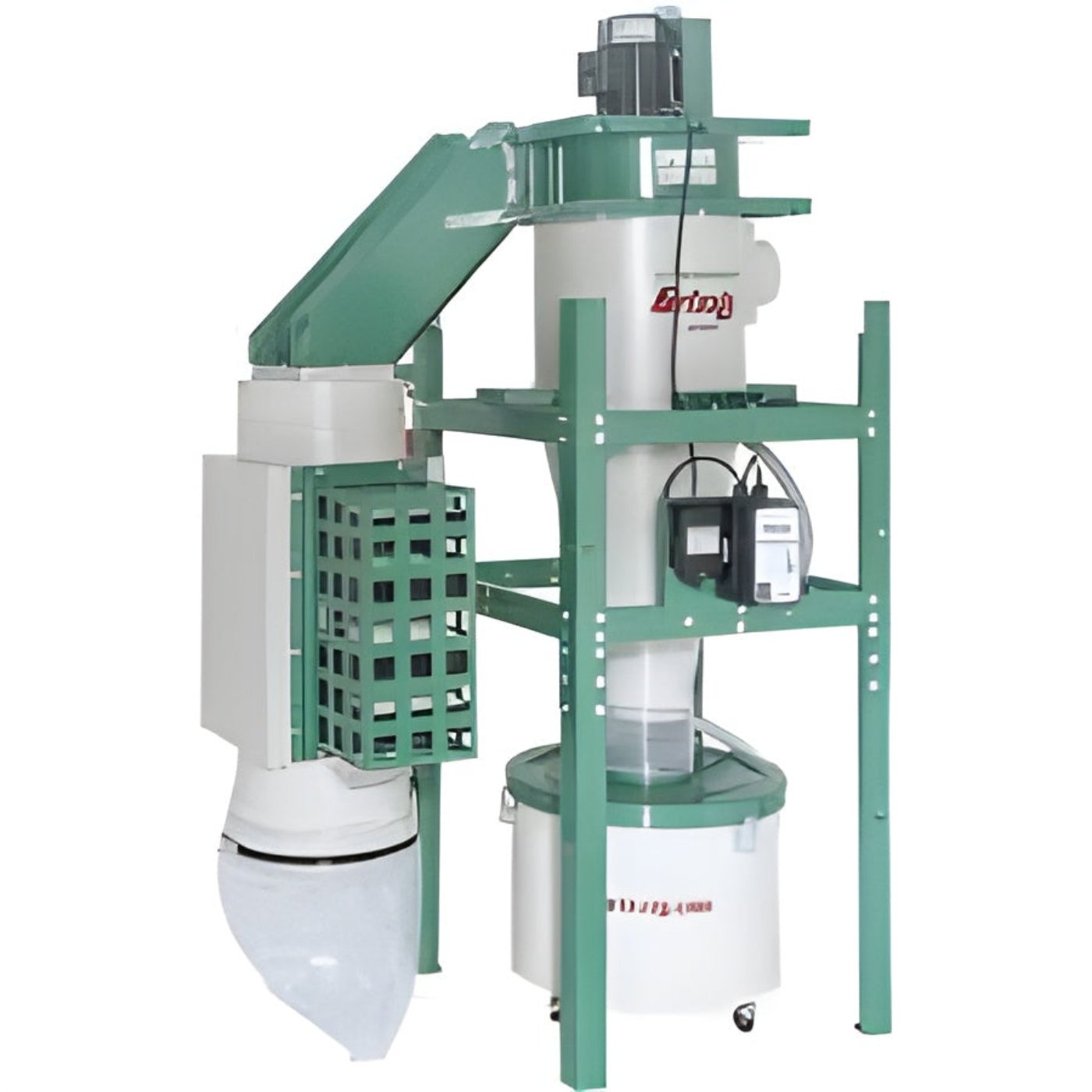

Grizzly Industrial 2 HP Dual-Filtration HEPA Cyclone Dust Collector

The best of the best cyclone dust collectors!

This G0440HEP is the same unit as our G0440, but pre-equipped with the upgraded dual-filtration HEPA filter system! Our dual-filtration HEPA cyclones are geared toward those looking for the best filtration on the market.

The G0440HEP 2 HP Dual-Filtration HEPA Cyclone Dust Collector features a primary filter with efficiency of 99.9% at 0.2-2 microns. The secondary HEPA filter has an efficiency of 99.97% at 0.3 microns in size.

The advantage of this dual filtration setup is the majority of all fine dust is captured by the first filter. Only the finest dust makes it to the HEPA filter, resulting in up to a 900% increase in the life of the HEPA filter, potentially lasting up to 10 years!

Cyclonic action separates the heavy dust particles from the fine particles and drops them into the 35-gallon steel drum. The fine dust travels past the 14-1/2' diameter impeller and is then trapped by the cartridge filters made of spun-bond polyester. A clear plastic bag collects the fine cake that shakes off the filter for consistent dust collector performance.

Casters mounted to the drum make disposal of the larger chips and dust as easy as it gets.

Like all Grizzly dust collectors, the G0440HEP comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.

The G0440HEP manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your dust collector.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the dust collector may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

CSA certified

Specifications

• Motor: 2 HP, 220V, single-phase, 14A
• Intake hole size: 7'
• Impeller size: 14-1/2' steel radial fin
• Airflow capacity: 1354 CFM @ 2.5' SP
• Maximum static pressure: 10.4'
• MERV rating: MERV 17
• Primary filter: 99.9% at 0.2-2 microns
• Secondary filter: HEPA rated 99.97% at 0.3 microns
• Filter surface area: 96 sq. ft.
• Collection drum: Steel, 35 gallons
• Sound rating: 78–82 dB
• Overall dimensions: 55-1/4' W x 33' D x 96-1/2' H
• Approximate shipping weight: 476 lbs.

Features

• Dual-filtration with BIA-certified cartridge filter and V-cell MERV-17 HEPA filter
• Blower and barrel rotate 360 degrees for inlet and outlet positioning
• Clear, disposable plastic collection bags
• Gentle brush-cleaning mechanism inside cartridge filter
• Ramped inlet maximizes dust flow into collection drums
• Reinforced motor mount
• Remote-controlled magnetic switch
• Wall-mountable blower design
• 14-gauge steel stand

What Our Experts Think

The Grizzly Industrial 2 HP Dual-Filtration HEPA Cyclone Dust Collector offers powerful and efficient dust management for any workshop. Here’s why it’s a must-have:

• 2 HP Motor: Delivers strong suction power, capturing dust and debris from multiple machines with ease.
• Dual Filtration System: Features a HEPA filtration setup, ensuring fine dust particles are efficiently trapped for cleaner air quality.
• Cyclone Design: The cyclone separation system maximizes dust collection efficiency, reducing the strain on the filter and extending its lifespan.
• Large Capacity: Comes with a large collection drum that reduces frequent emptying, increasing productivity.
• Easy Mobility: Equipped with casters for easy positioning around your shop, providing flexibility in use.

Q&A

Q: What is the Grizzly Industrial 2 HP Dual-Filtration HEPA Cyclone Dust Collector designed for?
A: This dust collector is designed to capture fine dust and debris from woodworking and metalworking shops, improving air quality and keeping workspaces clean.

Q: How powerful is the motor?
A: It features a 2 HP motor, providing strong suction power for efficient dust collection.

Q: What filtration system does it use?
A: It includes dual filtration with a HEPA filter for superior dust removal, trapping particles as small as 0.3 microns.

Q: What is the airflow capacity?
A: The dust collector provides excellent airflow to handle large volumes of dust and debris, ensuring a cleaner environment.

Q: Is it easy to maintain?
A: Yes, it has easy-to-empty collection bags and a durable construction for hassle-free maintenance and long-term use.

Q: Why choose the Grizzly 2 HP Dual-Filtration HEPA Cyclone Dust Collector?
A: It offers powerful dust collection, superior filtration, and efficient performance, making it an ideal choice for shops that require clean air and high-efficiency dust removal.

Maintenance Tips

• Filter Cleaning: Regularly clean the HEPA and primary filters to maintain maximum suction power and airflow. Replace filters when worn or clogged.
• Empty Dust Bin: Empty the dust bin before it becomes overfilled to ensure optimal dust collection and prevent system strain.
• Inspect Hoses: Check hoses for leaks, tears, or blockages, and replace them as needed to ensure effective dust transfer.
• Motor Maintenance: Inspect the motor for dust buildup, clean the area around the motor, and check for smooth operation.
• Check for Loose Components: Tighten any loose parts, including clamps and bolts, to avoid vibrations and reduce wear on the system.
• System Calibration: Periodically check the cyclone's airflow and adjust the system for optimal performance.
