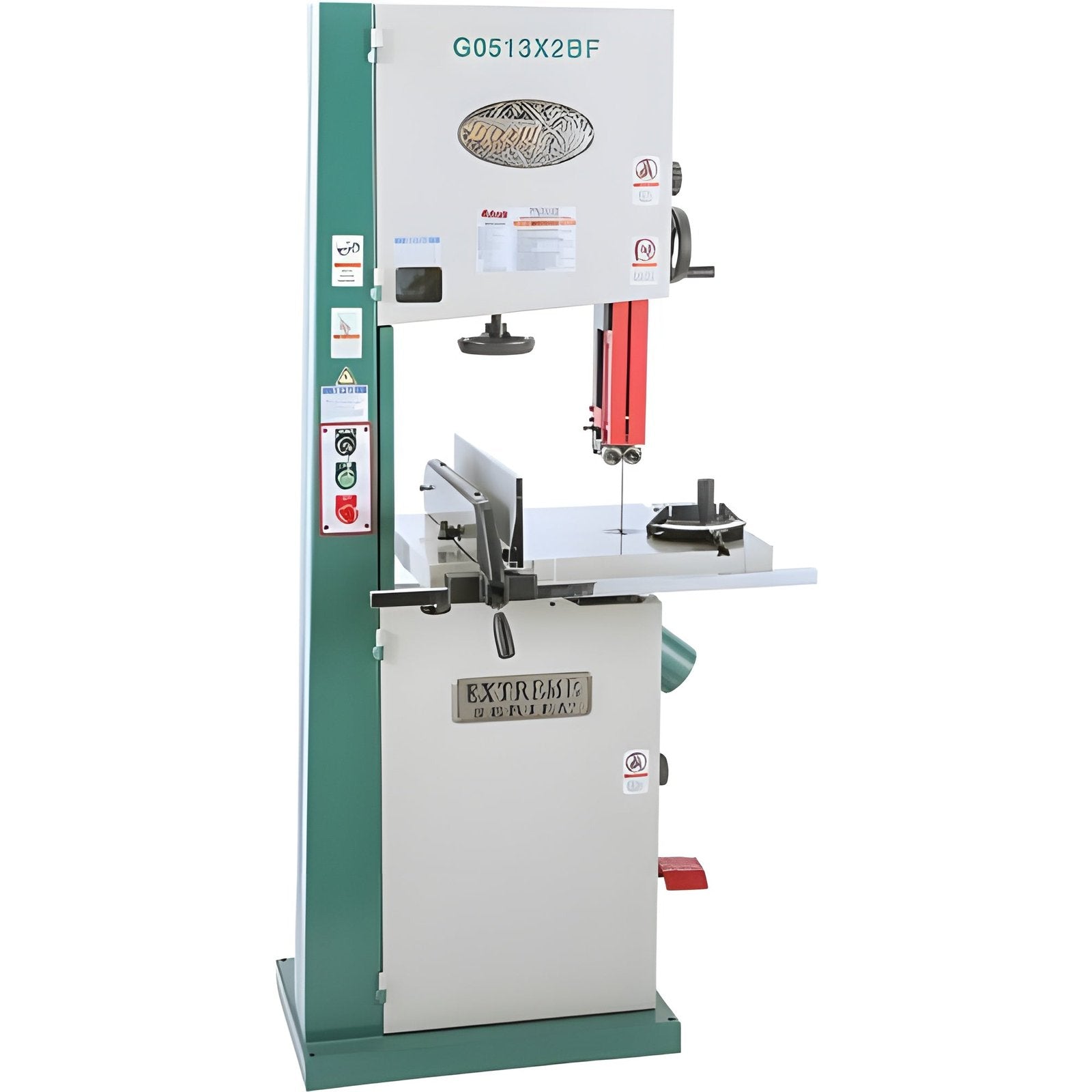

Grizzly Industrial 17" 2 HP Bandsaw w/ Cast-Iron Trunnion

From top to bottom, this bandsaw is built to perform.

The G0513X2 17' 2 HP Bandsaw features a heavy-duty cast-iron and double ball-bearing blade guides usually only found on machines costing much, much more.

The 2 HP motor powers through hardwoods with a 12-1/8' cutting height and 16-1/4' throat provide ample cutting capacity for most applications. For a full range replacement and resaw blades for your G0513X2, click here.

The G0513X2 has a large 23-5/8' x 17-1/4' cast-iron table that can tilt from 5° left to 45° right. A cast-iron fence with extruded-aluminum rail and resaw fence attachment mount to the table.

Power and capacity are just a part of why owners continue to give this bandsaw a solid 5-star rating.

The stout steel frame houses the heavy computer-balanced cast-iron wheels designed to minimize vibration during resaw operations.

This machine is prewired to operate on a 220V power supply circuit that has a verified ground and meets the 220V operation requirements. If you prefer 110V, refer to the Voltage Conversion instructions in the manual.

Like all Grizzly bandsaws, the G0513X2 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.

The G0513X2 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your bandsaw.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts for the bandsaw may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

CSA certified

• Motor: 2 HP, 110V/220V (prewired 220V), single-phase, 19A/9.5A
• Max. cutting width left of blade: 16-1/4'
• Max. cutting height (resaw capacity): 12'
• Blade guides: Ball-bearing with full enclosure protection
• Bearings: Sealed and permanently lubricated
• Table size: 23-5/8' W x 17-1/4' D
• Table tilt: 5° left, 45° right
• Floor to table height: 37-1/2'
• Blade size: 131-1/2' (1/8' - 1' wide)
• Blade speed: 1700 and 3500 FPM
• Footprint: 27' W x 18' D
• Overall size: 32' W x 32' D x 73' H
• Approximate shipping weight: 421 lbs.

• Deluxe cast-iron fence with extruded aluminum resaw fence attachment
• Magnifying window over fence scale
• Precision-ground cast-iron table
• Quick-change blade release/tensioner
• Blade tension indicator
• Micro-adjusting geared table
• Blade height scale measurement
• Blade tracking window
• Cast-iron table trunnions
• Includes 1/2' 6-TPI hook blade and miter gauge

The Grizzly Industrial 17" 2 HP Bandsaw with Cast-Iron Trunnion is built for precision and durability, ideal for serious woodworkers. Here's why it excels:

• 2 HP Motor: Delivers ample power for cutting through thick materials with ease and efficiency.
• Cast-Iron Trunnion: Provides added stability and vibration reduction for smooth, accurate cuts.
• Large Cutting Capacity: 17" throat depth and 12" resaw capacity make it perfect for larger projects and tall stock.
• Precision Guide System: Includes adjustable blade guides for superior cutting accuracy and a high-quality finish.
• Heavy-Duty Construction: Sturdy frame and build ensure longevity and minimal maintenance.

Q: What is the Grizzly Industrial 17" 2 HP Bandsaw with Cast-Iron Trunnion designed for?
A: This high-performance bandsaw is ideal for woodworking, offering precision cutting and versatility for various cutting tasks in professional and hobbyist shops.

Q: How powerful is the motor?
A: It features a 2 HP motor, delivering ample power for smooth, consistent cuts through a wide range of materials.

Q: What is the cutting capacity?
A: It has a 17" throat depth and a 12" maximum cutting height, allowing for large workpieces and intricate cuts.

Q: What makes the trunnion special?
A: The cast-iron trunnion provides superior stability and durability, ensuring consistent, accurate cuts over time.

Q: Is the bandsaw easy to adjust?
A: Yes, it includes adjustable blade guides, a quick tension release, and a precision fence for ease of setup and accurate cutting.

Q: What are the benefits of this bandsaw's design?
A: The cast-iron frame and heavy-duty construction reduce vibration, providing smooth cuts and extending the tool's lifespan.

Q: Why choose the Grizzly 17" 2 HP Bandsaw?
A: It combines power, durability, and precision, making it an excellent choice for woodworkers looking to take on larger, more demanding projects.

• Blade Tension and Tracking: Regularly check and adjust blade tension and tracking to ensure proper alignment and smooth cuts.
• Blade Cleaning: Clean blades to remove metal debris and prevent buildup, ensuring longer blade life and consistent performance.
• Lubricate Bearings and Guides: Apply lubricant to the bearings and guides to reduce friction and maintain smooth operation.
• Check Trunnion and Table Alignment: Ensure the trunnion and table are properly aligned for accurate cuts and stability.
• Dust Removal: Keep the dust collection system clean to maintain airflow and prevent clogging.
• Motor Inspection: Check for any signs of dust buildup or wear in the motor, and clean regularly to maintain peak performance.
