Grizzly Industrial 10" x 22" Benchtop Metal Lathe

Grizzly Industrial 10" x 22" Benchtop Metal Lathe

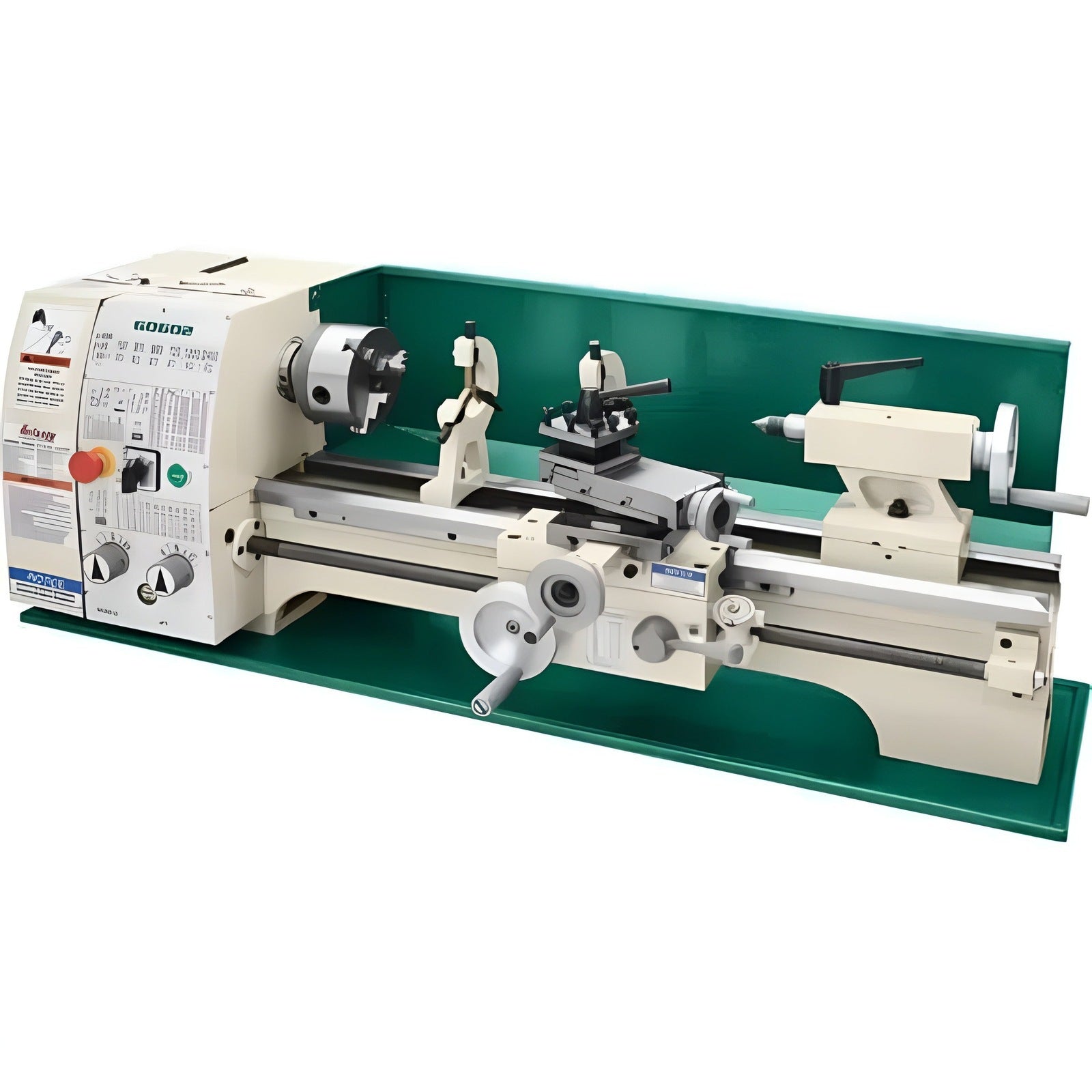

The Grizzly G0602 Benchtop Metal Lathe is the perfect size for garage or workshop at 10' x 22'. It features a 25mm spindle bore, 1-3/4'- 8 TPI MT#4 headstock and an 1-1/4' MT#3 tailstock.

The 1 HP motor powers the spindle through six speeds from 150-2400 RPM.

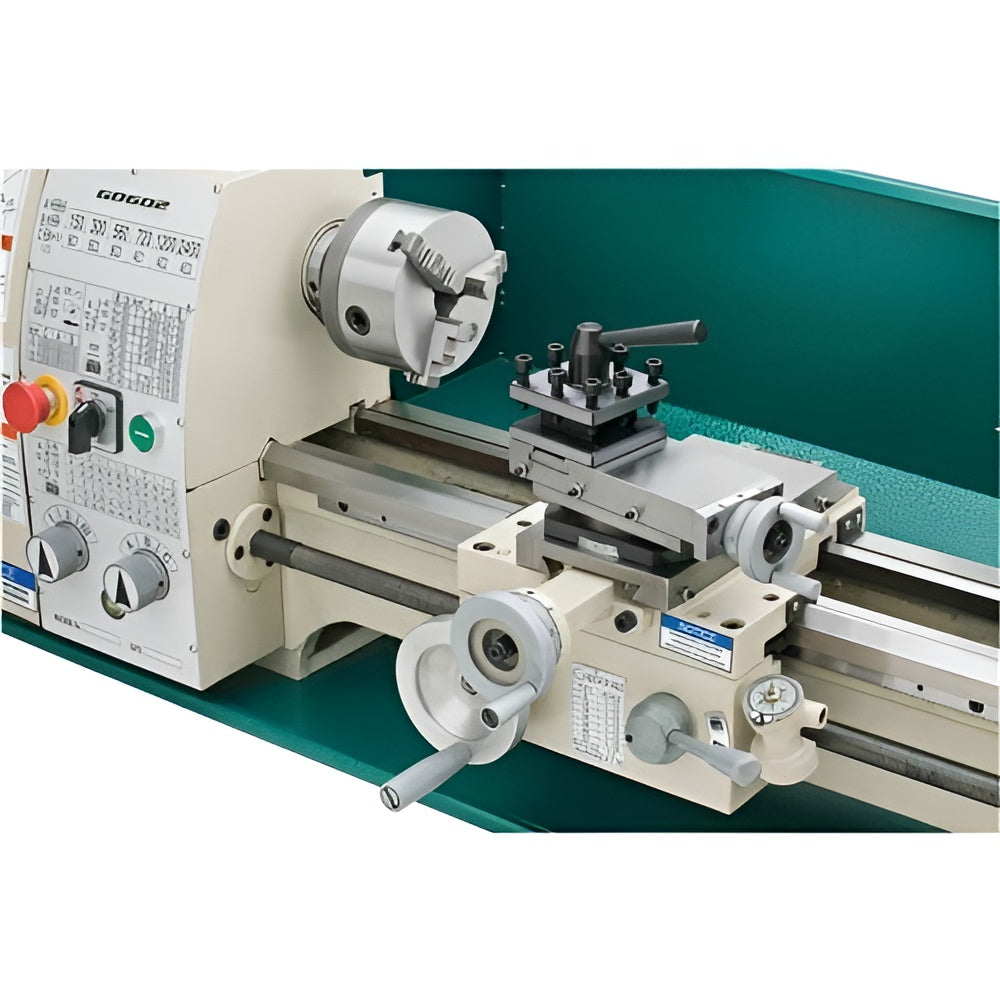

This lathe comes equipped with a full featured carriage and apron assemblies that provide super accurate cuts and finishes. This Benchtop Metal Lathe will cut only right-hand threads.

The G0602 includes other exceptional equipment you’ll need to get up and running including: the hardened and precision-ground V-ways, 5' 3-Jaw chuck with two sets of jaws, 6-1/2' 4-jaw chuck with reversible jaws, 8' faceplate and 4-way tool post.

The G0602 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects.

The G0602 manual was written by our U.S. based Documentation Department is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your lathe.

The Grizzly Technical Support team is U.S. based. Parts for the lathe may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

• Motor: 1 HP, 110V, single-phase, 13.6A
• Swing over bed: 9-1/2'
• Swing over cross slide: 6-1/8'
• Swing over saddle: 6-1/8'
• Distance between centers: 22'
• Bed width: 6-1/8'
• Spindle bore: 25mm
• Spindle type: Threaded, 1-3/4' x 8 TPI
• Spindle taper: MT#4
• Tailstock taper: MT#3
• Tailstock quill travel: 2-1/2'
• Cross slide travel: 6-1/2'
• Compound travel: 3-1/2'
• Maximum tool bit size: 1/2'
• Spindle speeds: (6) 150–2400 RPM
• Leadscrew: 3/4' x 12 TPI
• Longitudinal feeds: (9) 0.0025, 0.0140 in./rev.
• Inch thread range: (31) 8–72 TPI
• Metric thread range: (26) 0.25–3.50mm
• Footprint: 12-1/2' x 47-1/2'
• Overall dimensions: 46' W x 22' D x 16-5/8' H
• Approximate shipping weight: 432 lbs.

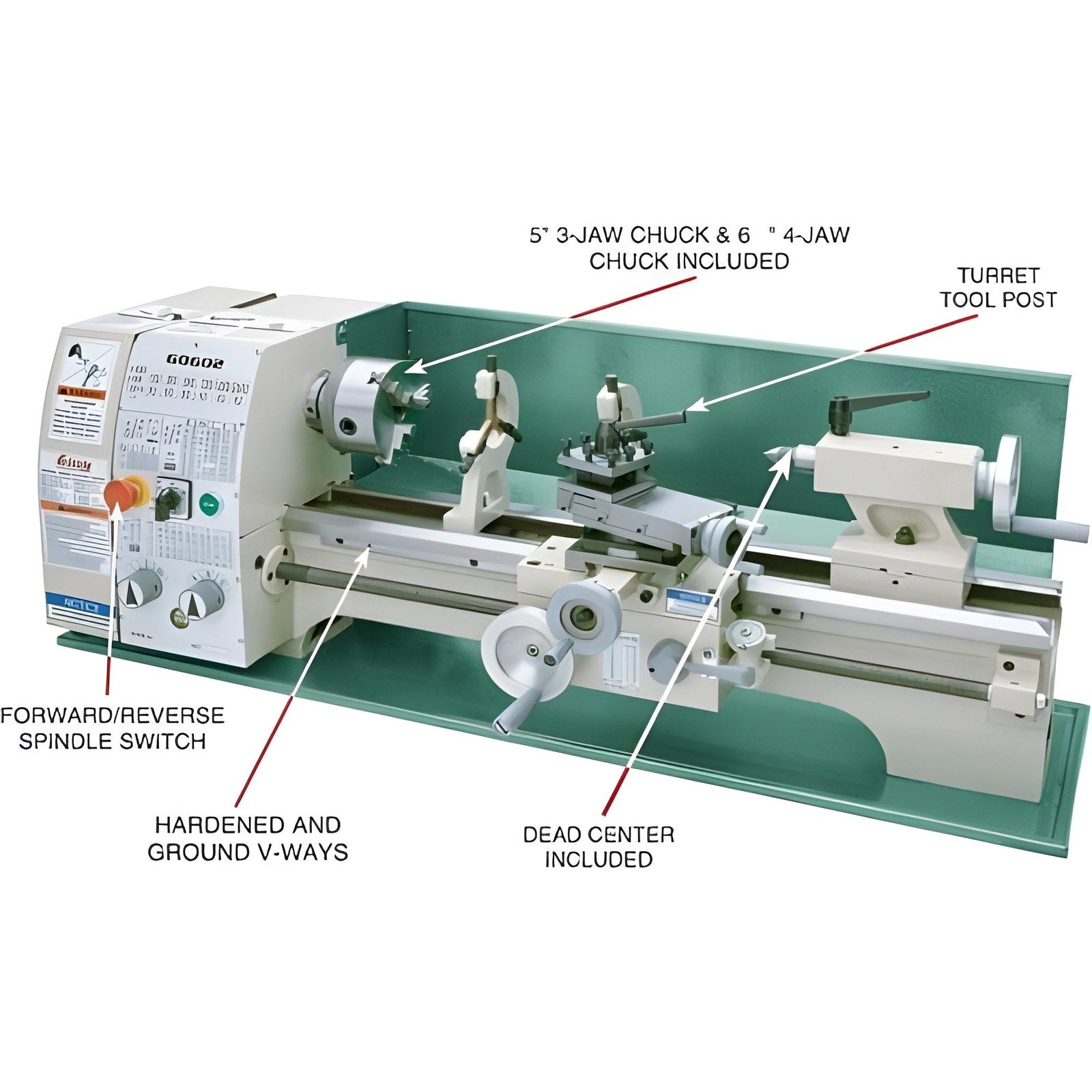

• Hardened and ground V-ways
• Thread dial
• Spindle reversing switch
• Inch/metric dials
• Emergency stop button
• Quick-locking tailstock
• Enclosed oil-bath gearbox
• Chip tray and backsplash guard

• 5' 3-Jaw scroll chuck with two sets of jaws
• 6-1/2' 4-Jaw independent chuck with reversible jaws
• 8' Faceplate
• 4-Way turret tool post
• MT#3 dead center
• MT#4 dead center
• Set of change gears
• Follow rest
• Steady rest
• Bottle for oil
• Tool box with service tools

The Grizzly Industrial 10" x 22" Benchtop Metal Lathe is a versatile tool designed for precision and durability in metalworking. Here’s why it’s a standout:

• Compact and Powerful: Packs a 1 HP motor in a space-saving design, perfect for benchtop use without sacrificing performance.
• Generous Swing and Length: 10" swing and 22" between centers accommodate a wide range of projects.
• Variable Speed Control: Allows fine-tuned adjustments for optimal performance on various materials.
• Precision and Stability: Features hardened and ground V-way bed construction for consistent accuracy and reduced vibration.
• Comprehensive Accessories: Includes a 3-jaw chuck, 4-way tool post, and steady rest to get started immediately.

Q: What is the Grizzly Industrial 10" x 18" 2 HP Metal-Cutting Bandsaw designed for?
A: This bandsaw is engineered for precision cutting of metal, offering robust performance for small to medium-scale metalworking projects.

Q: What is the cutting capacity?
A: It has a cutting capacity of 10" x 18", accommodating various metal sizes and shapes.

Q: How powerful is the motor?
A: It features a 2 HP motor, providing reliable power for consistent and accurate cuts.

Q: What speed options does it offer?
A: The bandsaw comes with variable speed settings to optimize cutting performance for different materials.

Q: Are there any safety features?
A: Yes, it includes an automatic shut-off and adjustable blade guides for safe operation.

Q: What makes this bandsaw user-friendly?
A: It has a swivel vise for angled cuts, easy-to-use controls, and a compact design for space efficiency.

Q: Why choose the Grizzly 10" x 18" 2 HP Bandsaw?
A: It combines durability, precision, and versatility, making it an excellent choice for professional and hobbyist metalworkers.

• Lubrication: Regularly oil the spindle, gears, and slides as specified in the manual to ensure smooth operation.
• Chuck Care: Keep the chuck clean and free of debris. Tighten it securely before use.
• Slideways: Clean and lubricate slideways to prevent wear and ensure accuracy.
• Tool Post Inspection: Check the tool post and cutting tools for alignment and sharpness.
• Belt Tension: Inspect and adjust the belt tension to maintain consistent power transfer.
• Debris Removal: Clean chips and metal shavings from the machine after each use.
