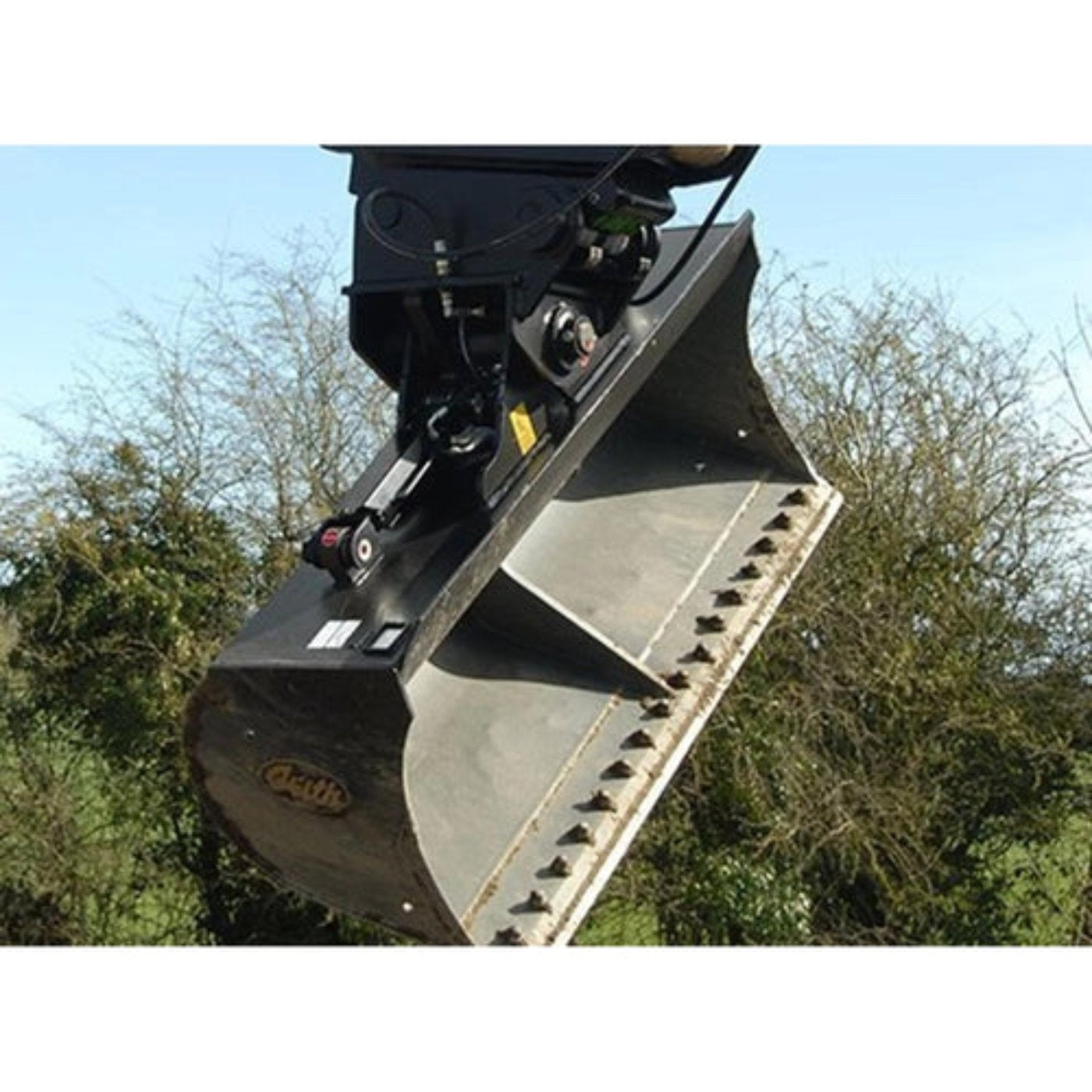

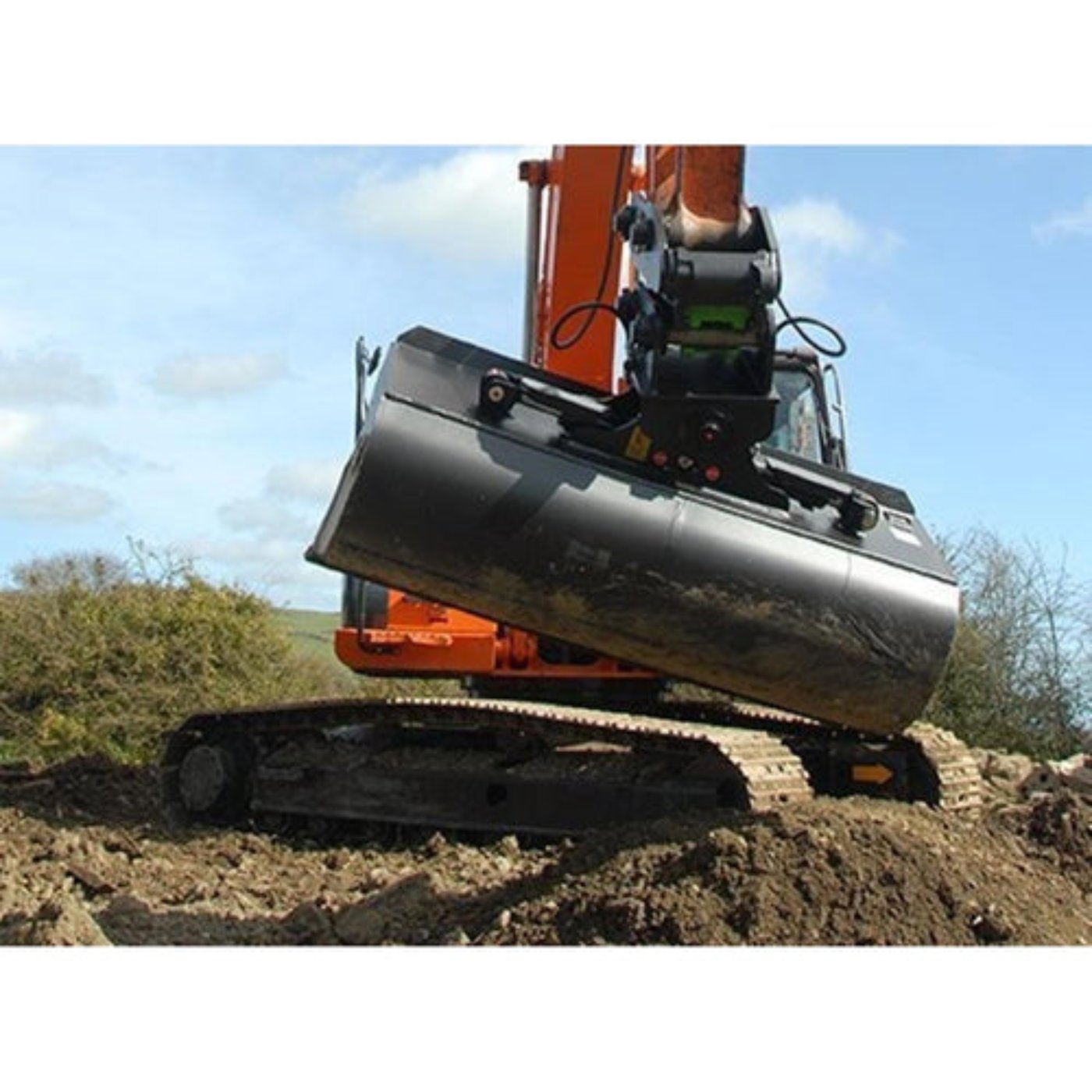

Geith Hydraulic Angle Tilt Bucket (Dual Ram) - AT18R-1500-15T
Increase the adaptability and productivity of your excavator with a Geith Tilt bucket, which offers a cost effective and long lasting solution for work from the standard ditching and grading to backfilling and light material loading and handling.
Features
-
Range from 2 to 29 tons
-
Optimum pivotal arrangement provides 90 degree tilt (45 degrees in either direction)
-
Two heavy duty hydraulic cylinders with hardened rods for excellent holding power
-
Spill guard and cylinder guards to protect the cylinder rod and hose fittings
-
Fitted with Flow Control Valves for easy adjustment of tilting speed to suit customer working preferences (for excavators bigger than 11 tons)
-
Reversible bolt-on cutting edge, heavy duty cast banana side cutters and wear pads as standard to ensure that the customer achieves the highest productivity by increasing the life of the bucket
-
Centre web plate provides increased bucket strength
-
Corrosion resistant high tensile pivot pins and hard inserts are used to ensure low maintenance and maximum performance
-
Dual mechanical stops to extend cylinder life
Specifications
| Machine Type | Model | Width (mm) |
Capacity (cubic meters) |
Capacity (cubic yds) | Weight (kg) | Weight (lbs) |
|---|---|---|---|---|---|---|
| 2-4 | AT04-1200 | 1200 (48) | 0.18 | 0.24 | 176 | 80 |
| 2-4 | AT04-1350 | 1350 (54) | 0.2 | 0.26 | 187 | 85 |
| 2-4 | AT04-1500 | 1500 (60) | 0.25 | 0.33 | 198 | 90 |
| 4-6 | AT06-1200 | 1200 (48) | 0.28 | 0.37 | 220 | 100 |
| 4-6 | AT06-1350 | 1350 (54) | 0.28 | 0.37 | 250 | 113 |
| 4-6 | AT06-1500 | 1500 (60) | 0.36 | 0.47 | 280 | 127 |
| 6 - 11 | AT11-1200 | 1200 (48) | 0.40 | 0.52 | 377 | 171 |
| 6 - 11 | AT11-1500 | 1500 (60) | 0.44 | 0.58 | 428 | 194 |
| 6 - 11 | AT11-1700 | 1700 (66) | 0.55 | 0.72 | 452 | 205 |
| 6 - 11 | AT11-1800 | 1800 (72) | 0.57 | 0.75 | 478 | 217 |
| 11 - 14 | AT14-1500 | 1500 (60) | 0.64 | 0.84 | 785 | 356 |
| 11 - 14 | AT14-1800 | 1800 (72) | 0.63 | 0.82 | 663 | 301 |
| 11 - 14 | AT14-2000 | 2000 (79) | 0.57 | 0.75 | 848 | 385 |
| 14 - 18 | AT18-1500 | 1500 (60) | 0.85 | 1.11 | 705 | 320 |
| 14 - 18 | AT18-1800 | 1800 (72) | 0.80 | 1.05 | 817 | 371 |
| 18 - 25 | AT25-1500 | 1500 (60) | 0.93 | 1.22 | 743 | 337 |
| 18 - 25 | AT25-1800 | 1800 (72) | 1.31 | 1.71 | 753 | 341 |
| 18 - 25 | AT25-2000 | 2000 (79) | 1.05 | 1.37 | 818 | 371 |
| 25 - 29 | AT29-1800 | 1800 (72) | 1.22 | 1.6 | 923 | 419 |
| 25 - 29 | AT29-2000 | 2000 (79) | 1.05 | 1.37 | 908 | 412 |
| 25 - 29 | AT29-2100 | 2100 (84) | 1.22 | 1.6 | 919 | 417 |
What Our Experts Think
-
Dual Ram Design: The Geith Hydraulic Angle Tilt Bucket features a dual ram system, providing precise and smooth tilting for enhanced control during excavation tasks.
-
Versatile Functionality: Ideal for grading, digging, and trenching, it allows the operator to adjust the bucket angle up to 180°, making it perfect for tight spaces and complex tasks.
-
Durable Build: Constructed with high-strength steel, the bucket is built to withstand heavy-duty applications, ensuring long-lasting performance in tough environments.
-
Increased Efficiency: The hydraulic tilt feature improves productivity by allowing quick adjustments without needing to reposition the machine, reducing downtime.
-
Easy Integration: Compatible with most excavators, the bucket easily attaches to your existing hydraulic system for seamless operation.
-
Enhanced Precision: Ideal for achieving precise digging angles and contours, improving overall excavation and grading efficiency.
Q&A
Q: What is the Geith Hydraulic Angle Tilt Bucket (Dual Ram) - AT18R-1500-15T?
A: The Geith Hydraulic Angle Tilt Bucket is a dual-ram hydraulic attachment designed for excavators, providing enhanced control and flexibility for grading, digging, and land clearing with up to 45° of tilt.
Q: How does the dual-ram system work?
A: The dual-ram hydraulic system allows for smooth and precise tilting of the bucket, enabling operators to adjust the angle of the bucket for efficient digging and leveling in various terrains.
Q: Is this bucket compatible with all excavators?
A: The AT18R-1500-15T is designed for medium to large hydraulic excavators with compatible pin sizes and mounting systems.
Q: What are the main benefits of the hydraulic angle tilt bucket?
A: The main benefits include improved productivity, better control for precise grading, reduced need for repositioning the machine, and the ability to tackle difficult terrain and hard-to-reach areas.
Q: Can this bucket handle heavy-duty tasks?
A: Yes, it is built with durable materials and designed to withstand tough conditions, making it ideal for construction, demolition, and heavy material handling tasks.
Q: Is the tilt bucket easy to maintain?
A: Yes, the hydraulic components and design are low-maintenance, ensuring long-lasting performance with minimal upkeep.
Maintenance Tips
- Daily Inspections: Check for visible wear, cracks, or loose bolts on the tilt bucket, rams, and hydraulic components.
- Lubricate Moving Parts: Grease all pivot points, pins, and moving components to ensure smooth operation and reduce wear.
- Inspect Hydraulic Hoses: Examine hydraulic hoses for leaks, wear, or damage. Replace any damaged hoses immediately to avoid performance issues.
- Clean After Use: Remove dirt, debris, and grease buildup to prevent corrosion and maintain optimal function.
- Monitor the Tilt Mechanism: Ensure the tilt mechanism is functioning properly and that all pins are securely fastened.
- Check the Bucket’s Edge: Regularly inspect the bucket edge for wear and replace it if necessary to ensure efficient digging.
- Tighten Bolts: Periodically check and tighten all bolts to keep the tilt bucket securely attached during operation.
- Seasonal Maintenance: Before storing for long periods, clean, lubricate, and protect the tilt bucket from moisture to prevent rust and wear.
Following these steps will help extend the life of the Geith Hydraulic Angle Tilt Bucket and keep it performing at its best.
