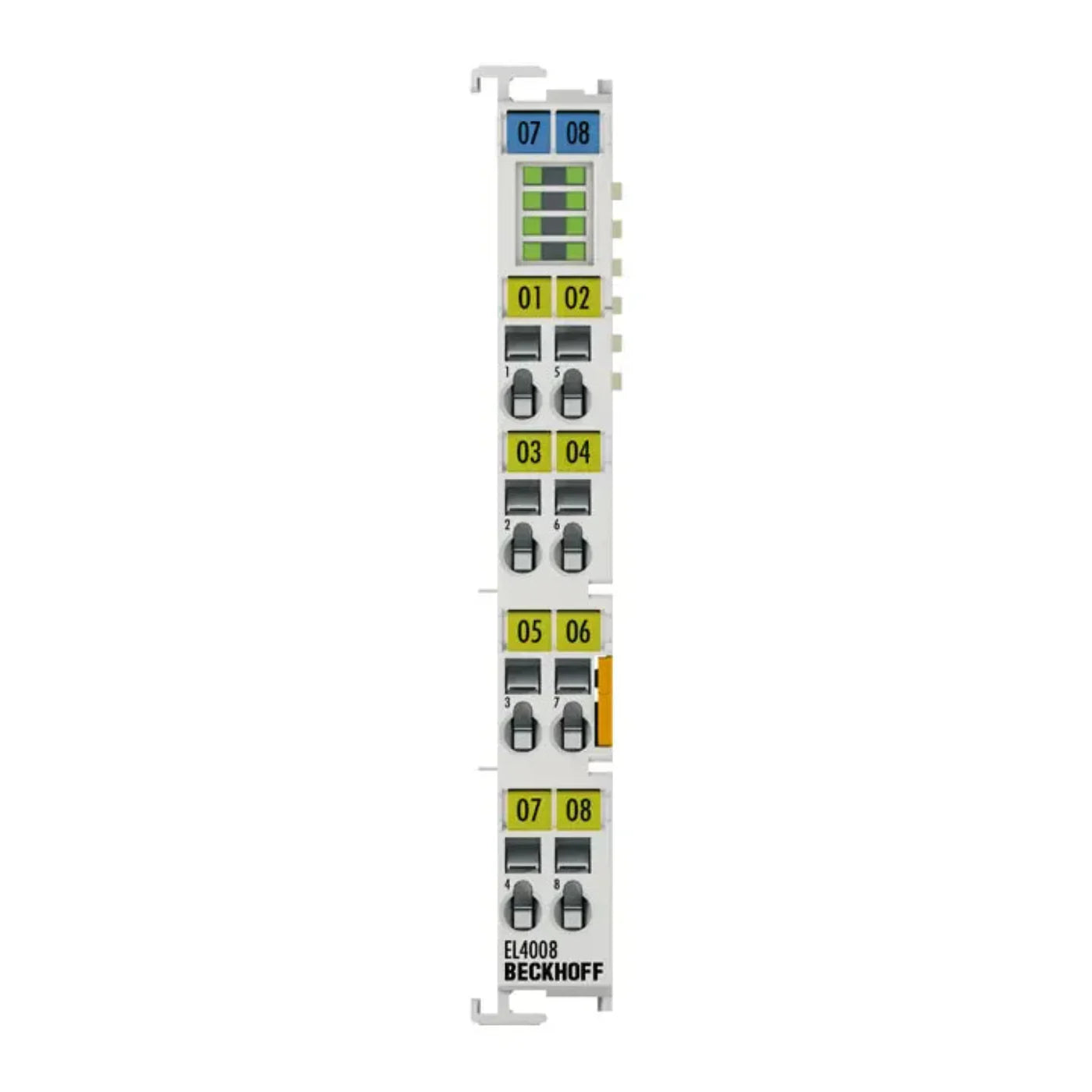

Beckhoff EtherCAT Terminal, 8-channel Analog Output - EL4008
The EL4008 is an EtherCAT Terminal with 8-channel analog output. It generates signals within the 0 to 10 V range, utilizing a 12-bit resolution. The voltage is supplied to the process level and is electrically isolated. All output channels share a common ground potential. The EL4008 consolidates eight output channels within a single housing. Output stages are powered by a 24 V supply. Signal states are indicated by light-emitting diodes.
Specifications
| Part Number | EL4008 |
|---|---|
| Category | PLCs/Machine Control |
| Subcategory | PLC Programming Terminal |
| Number of outputs | 8 |
| Power supply | 24 V DC via power contacts |
| Signal voltage | 0…10 V |
| Distributed clocks | Yes |
| Distributed clock precision | << 1 µs |
| Load | > 5 kΩ (short-circuit proof) |
| Resolution | 12 bit |
| Output error | < 0.1% (relative to end value) |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Conversion time | ~ 400 µs |
| Current consumption power contacts | typ. 40 mA |
| Current consumption E-bus | typ. 100 mA |
| Bit width in the process image | 8 x 16 bit AO output |
| Special features | Optional watchdog: user-specific output value with ramp; user synchronization can be activated |
| Weight | approx. 85 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protection rating/installation position | IP20/variable |
Information About EL4008
The EL4008 is an EtherCAT Terminal designed to generate analog output signals within the range of 0 to 10 V. This terminal integrates eight output channels within a single housing, offering efficient space utilization. The voltage output to the process level is provided with a 12-bit resolution, ensuring precise signal generation. Electrical isolation is maintained between the E-bus and the signal voltage, with an isolation voltage rating of 500 V.
Each output channel of the EL4008 shares a common ground potential. The output stages derive power from a 24 V DC supply via power contacts. The terminal is equipped with distributed clocks, enabling high synchronization precision with a precision rating significantly less than 1 µs. The typical load capacity is greater than 5 kΩ, and the outputs are designed to be short-circuit proof.
The conversion time for the EL4008 is approximately 400 µs, facilitating rapid signal processing. In terms of current consumption, the power contacts typically draw 40 mA, while the E-bus consumes around 100 mA. The bit width in the process image is structured as 8 x 16-bit analog output.
