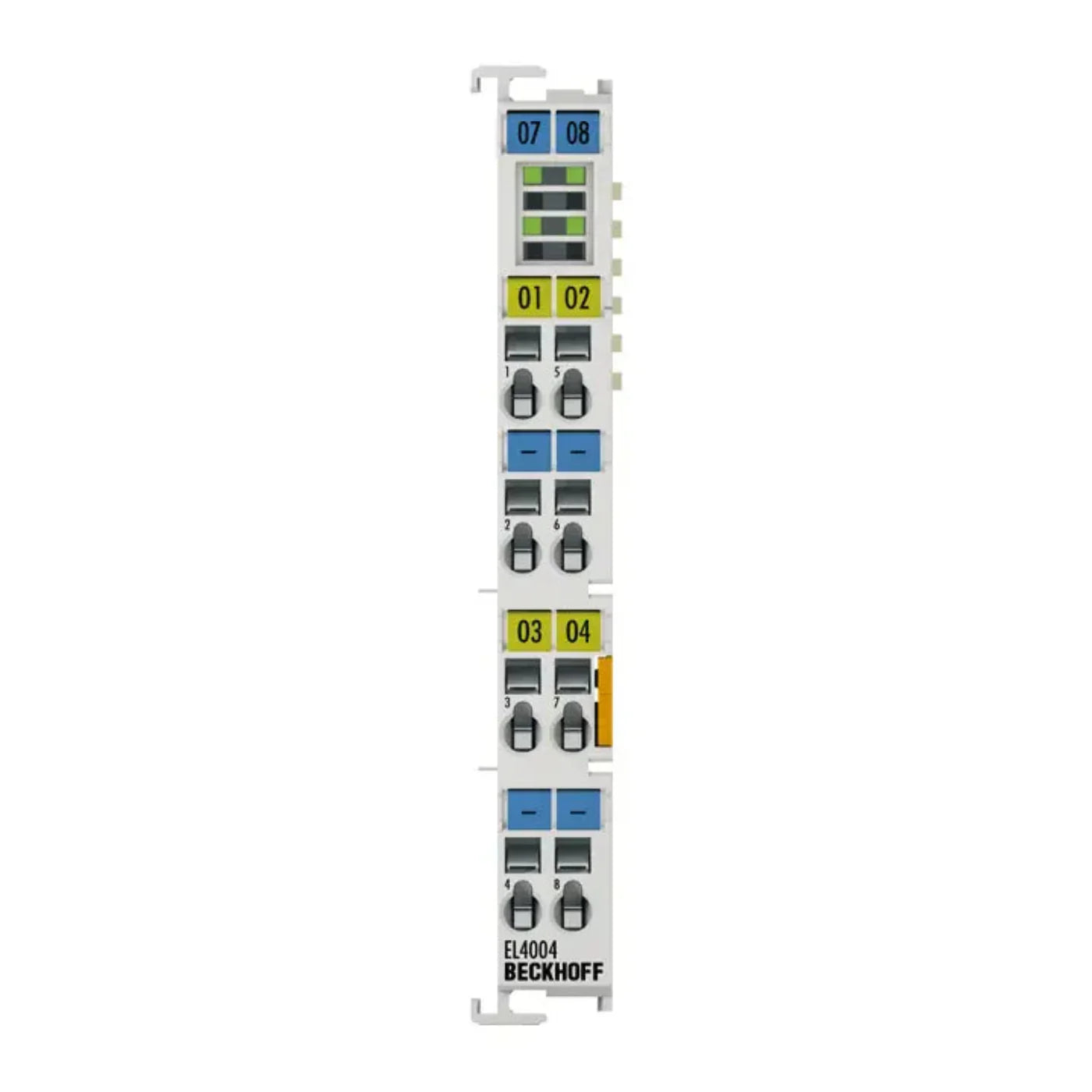

Beckhoff | Terminal - EL4004
Specifications
| Part # | EL4004 |
|---|---|
| Manufacturer | BECKHOFF |
| Category | PLCs/Machine Control |
| Subcategory | PLC Programming Terminal Connection |
| Technology | 2-wire, single-ended |
| Number of Outputs | 4 |
| Power Supply | 24 V DC via power contacts |
| Signal Voltage | 0…10 V |
| Distributed Clocks | Yes |
| Distributed Clock Precision | << 1 µs |
| Load | > 5 kΩ (short-circuit proof) |
| Output Error | < 0.1 % (relative to end value) |
| Resolution | 12 bit |
| Electrical Isolation | 500 V (E-bus/signal voltage) |
| Conversion Time | ~ 250 µs |
| Current Consumption Power Contacts | Typ. 40 mA |
| Current Consumption E-bus | Typ. 140 mA |
| Bit Width in the Process Image | 4 x 16 bit AO output |
| Special Features | Optional watchdog: user-specific output value with ramp; user synchronization can be activated. |
| Weight | Approx. 85 g |
| Operating/Storage Temperature | -25…+60 °C / -40…+85 °C |
| EMC Immunity/Emission | Conforms to EN 61000-6-2 / EN 61000-6-4 |
| Relative Humidity | 95 %, no condensation |
| Vibration/Shock Resistance | Conforms to EN 60068-2-6 / EN 60068-2-27 |
| Protection Rating/Installation Pos. | IP20 / Variable |
Information About EL4004
The EL4004 is an EtherCAT Terminal designed to provide analog output signals within the range of 0 to 10 volts. With a resolution of 12 bits, it ensures precise voltage generation for industrial applications. The voltage signals generated by the EL4004 are directed to the process level, facilitating seamless integration into control systems.
One notable feature of the EL4004 is its electrical isolation, which enhances safety and prevents interference between channels. This isolation ensures reliable and accurate signal transmission in various industrial environments.
The EL4004 features four output channels, each capable of producing analog signals within the specified voltage range. These channels share a common ground potential, simplifying wiring and ensuring consistent performance across all channels.
To operate, the output stages of the EL4004 require a 24-volt power supply, which powers the terminal and facilitates signal generation. This supply voltage is standard in many industrial settings, ensuring compatibility with existing power systems.
