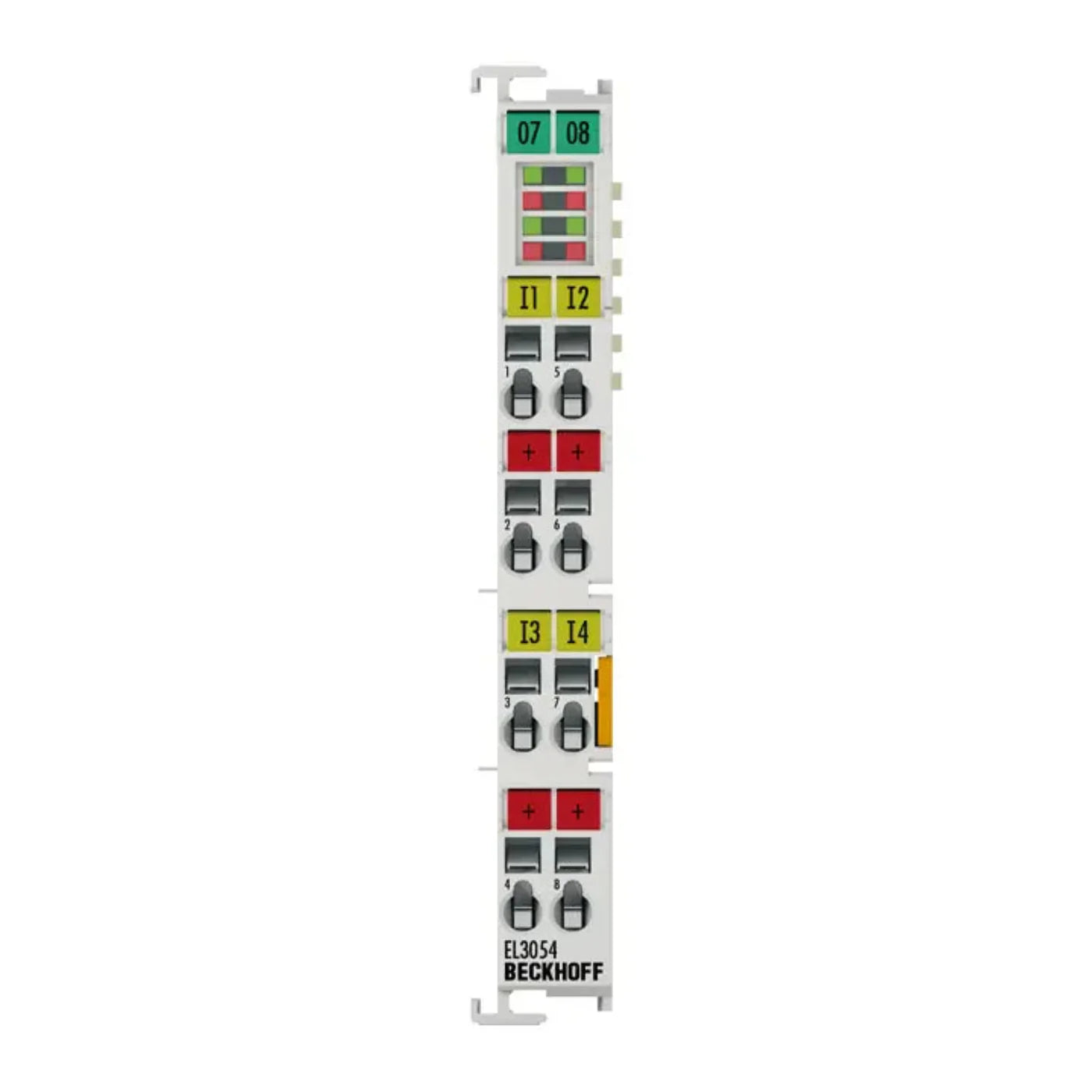

Beckhoff EtherCAT Terminal, 4-Channel Analog Input - EL3054
The Beckhoff EL3054 is an EtherCAT Terminal featuring 4-channel analog input for current signals (4–20 mA). With a high-resolution 12-bit precision, it ensures accurate and reliable data acquisition. Operating in a single-ended configuration, this terminal offers seamless integration into industrial systems, providing precise current measurement capabilities for diverse applications.
Specifications
| Manufacturer | Beckhoff |
|---|---|
| Category | PLCs/Machine Control |
| Subcategory | PLC Programming Terminal |
| Part Number | EL3054 |
| Number of inputs | 4 (single-ended) |
| Technology | single-ended |
| Signal type | single-ended |
| Signal current | 4…20 mA |
| Internal resistance | typ. 85 Ω |
| Input filter limit frequency | 1 kHz |
| Dielectric strength | max. 30 V |
| Conversion time | 0.625 ms default setting, configurable, multiplex |
| Resolution | 12 bit (16 bit presentation incl. sign) |
| Measurement error/ uncertainty | < ±0.3 % (relative to full scale value) |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Current consumption E-bus | typ. 130 mA |
| Bit width in the process image | inputs: 16 byte |
| Configuration | no address or configuration setting required |
| Special features | standard and compact process image, activatable FIR/IIR filters, limit value monitoring |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Pluggable wiring | for all ESxxxx terminals |
| Approvals/markings | CE, UL, ATEX, IECEx |
Information About EL3054
The EL3054 analog input terminal processes signals in the range between 4 and 20 mA. The current is digitized to a resolution of 12 bits and is transmitted (electrically isolated) to the higher-level automation device. The input electronics are independent of the supply voltage of the power contacts. In the EL3054 with four inputs, the 24 V power contact is connected to the terminal in order to enable connection of 2-wire sensors without external supply. The power contacts are connected through. The signal state of the EtherCAT Terminal is indicated by light emitting diodes. The error LEDs indicate an overload condition and a broken wire.
The Beckhoff EL3054 is a feature-rich EtherCAT Terminal with 4 single-ended analog inputs for current signals (4–20 mA). Equipped with a 12-bit resolution (16-bit presentation incl. sign), it ensures high-precision data acquisition. With an internal resistance of typically 85 Ω and a 1 kHz input filter limit frequency, it provides reliable signal processing.
The terminal offers a fast conversion time of 0.625 ms (configurable) and supports standard and compact process image formats. Noteworthy features include activatable FIR/IIR filters, limit value monitoring, and electrical isolation of 500 V (E-bus/signal voltage). The EL3054 operates in a wide temperature range (-25 to +60 °C) and is compliant with EMC standards, providing robust performance in diverse industrial environments.
With pluggable wiring for ESxxxx terminals, this EtherCAT Terminal is easy to install. It carries multiple certifications including CE, UL, ATEX, IECEx, attesting to its quality and compliance. The EL3054 is an ideal choice for applications demanding precise and reliable current signal measurements in industrial automation setups.
