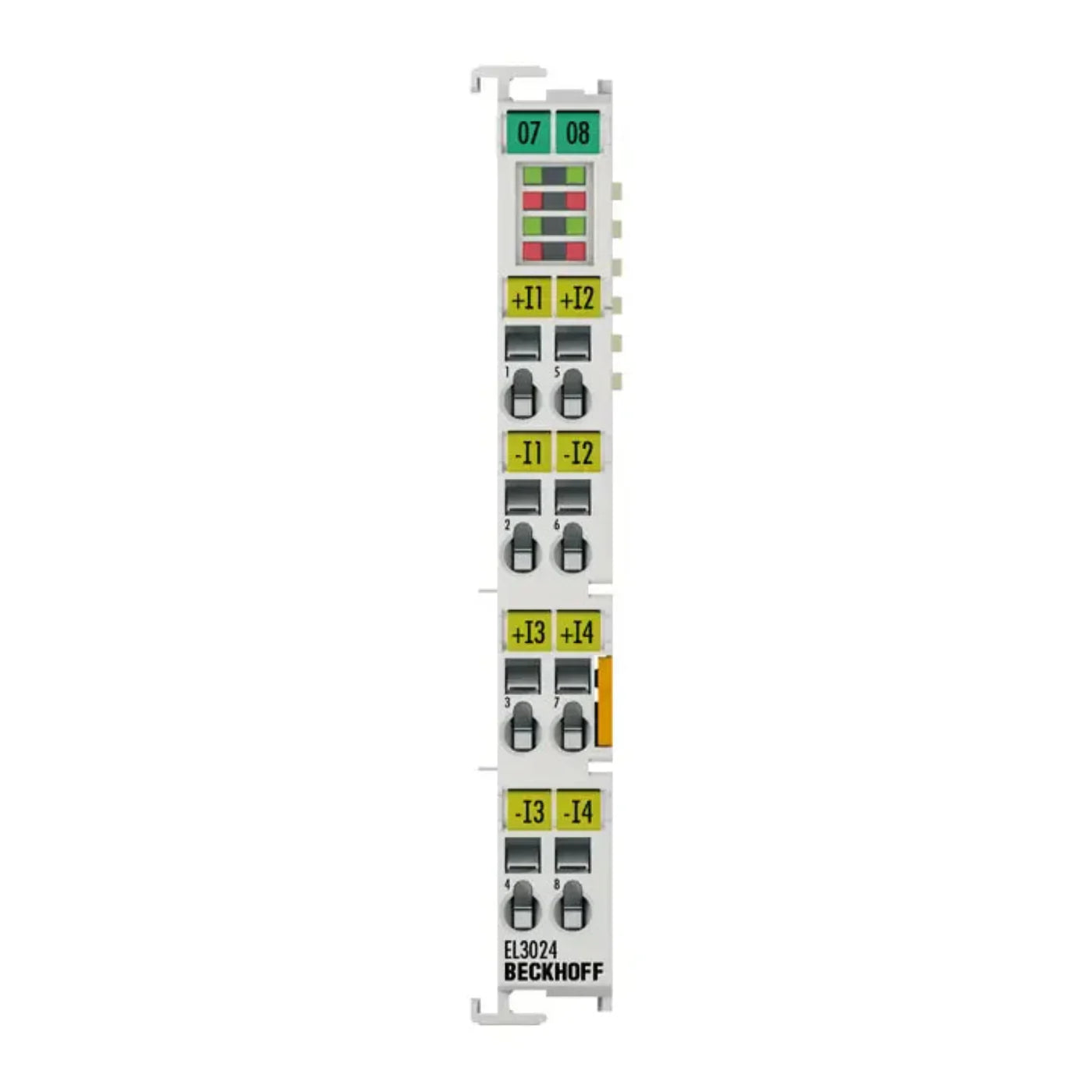

Beckhoff | Terminal- EL3024
Specifications
| Part # | EL3024 |
|---|---|
| Manufacturer | BECKHOFF |
| Category | PLCs/Machine Control |
| Subcategory | PLC Programming Terminal |
| Number of Inputs | 4 (differential) |
| Power Supply | via the E-bus |
| Technology | differential input |
| Signal Type | differential |
| Signal Current | 4…20 mA |
| Internal Resistance | typ. 85 Ω + diode voltage |
| Input Filter Limit Frequency | 1 kHz |
| Common-Mode Voltage UCM | max. 10 V |
| Conversion Time | 0.625 ms default setting, configurable, multiplex |
| Resolution | 12 bit (16 bit presentation incl. sign) |
| Measurement Error/Uncertainty | < ±0.3 % (relative to full scale value) |
| Surge Voltage Resistance | 35 V DC |
| Electrical Isolation | 500 V (E-bus/signal voltage) |
| Current Consumption E-bus | typ. 130 mA |
| Bit Width in the Process Image | inputs: 16 byte |
| Configuration | no address or configuration setting |
| Special Features | standard and compact process image, activatable FIR/IIR filters, limit value monitoring |
| Weight | approx. 60 g |
| Operating/Storage Temperature | -25…+60 °C / -40…+85 °C |
| Relative Humidity | 95 %, no condensation |
| Vibration/Shock Resistance | conforms to EN 60068-2-6 / EN 60068-2-27 |
| EMC Immunity/Emission | conforms to EN 61000-6-2 / EN 61000-6-4 |
| Protect. Rating/Installation Pos. | IP20 / variable |
| Pluggable Wiring | for all ESxxxx terminals |
| Approvals/Markings | CE, UL, ATEX, IECEx |
Information About EL3024
The EL3024 EtherCAT Terminal serves as a 4-channel analog input module designed to handle currents ranging from 4 to 20 mA. With a resolution of 12 bits, the terminal digitizes the input current signals and transmits them in an electrically isolated manner to the higher-level automation device. Featuring differential inputs, the input channels of the EtherCAT Terminal share a common, internal ground potential. Consolidating four channels into one housing, the EL3024 optimizes space efficiency within the automation setup.
The EL3024 is equipped with detection mechanisms to identify open lead or overload conditions. Upon detection, the terminal relays its status to the controller via the E-bus, facilitating swift response and troubleshooting. Signal states are indicated by light emitting diodes, with error LEDs specifically highlighting overload conditions and broken wires. This feature enhances diagnostic capabilities and system reliability.
The EtherCAT Terminal's design emphasizes functionality and reliability, ensuring seamless integration and operation within industrial automation environments. By providing accurate and reliable analog input handling, the EL3024 contributes to the overall performance and efficiency of the automation system.
The EL3024's compatibility with EtherCAT technology enables efficient data exchange and communication, enhancing system responsiveness and flexibility. Its differential inputs and electrically isolated transmission ensure signal integrity and minimize interference in industrial settings where electromagnetic noise is prevalent.
