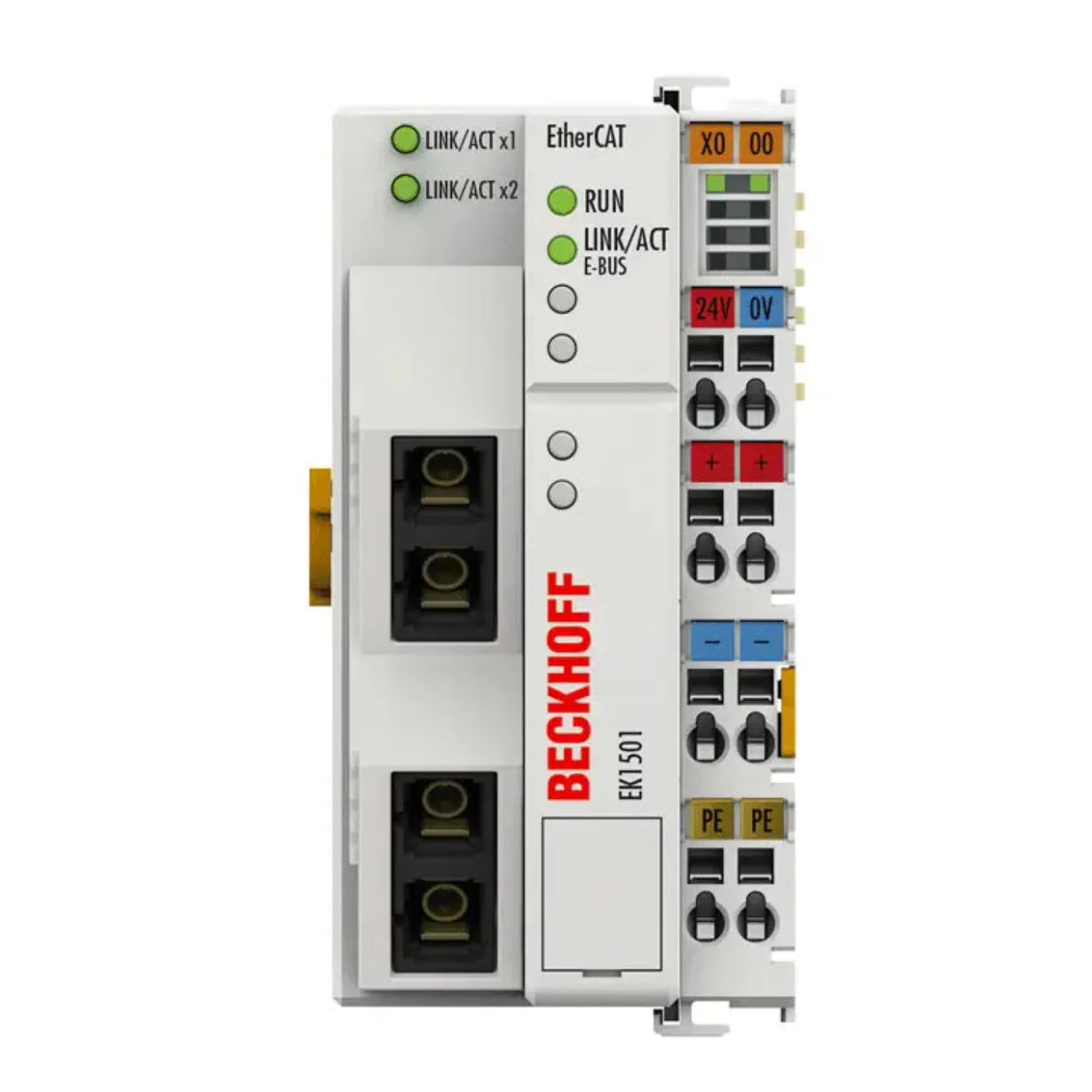

BECKHOFF EtherCAT Coupler - EK1501
The EK1501 is an EtherCAT Coupler with multi-mode fiber-optic connection, designed to bridge the EtherCAT protocol at the fieldbus level and the EtherCAT Terminals. It converts Ethernet 100BASE-FX telegrams to E-bus signal representation. Featuring 2 multi-mode fiber-optic SC duplex connections, it supports connection lengths up to 2 km. It includes 3 ID switches for variable topology implementation and can manage up to 65,535 EtherCAT Terminals. The EK1501 has two SC duplex sockets and three hexadecimal ID switches, providing flexible network configuration. It operates on a 24 V DC system and field supply, delivering up to 5 V and 2 A to connected EtherCAT Terminals.
Specifications
| Part Number | EK1501 |
|---|---|
| Category | PLCs/Machine Control |
| Subcategory | PLC Module/Rack |
| Data transfer medium | Multi-mode glass fiber 50/125 µm (MM) |
| Distance between stations | Max. 2000 m (100BASE-FX) |
| Number of EtherCAT Terminals | Up to 65,534 |
| Type/number of peripheral signals | Max. 4.2 GB addressable I/O points |
| Number of configurable IDs | 4096 |
| Protocol | EtherCAT |
| Delay | Approx. 1 µs |
| Data transfer rates | 100 Mbit/s |
| Bus interface | 2 x SC Duplex |
| Power supply | 24 V DC (-15%/+20%) |
| Current consumption from US | 130 mA + (∑ E-bus current/4) |
| Current consumption from UP | Load |
| Current supply E-bus | 2000 mA |
| Power contacts | Max. 24 V DC / Max. 10 A |
| Electrical isolation | 500 V (power contact/supply voltage/Ethernet) |
| Weight | Approx. 190 g |
| Operating/storage temperature | -25…+60°C / -40…+85°C |
| EMC immunity/emission | Conforms to EN 61000-6-2 / EN 61000-6-4 |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | Conforms to EN 60068-2-6 / EN 60068-2-27 |
| Protection rating/installation position | IP20 / Variable |
Information About EK1501
The EK1501 is an EtherCAT coupler with a multi-mode fiber-optic connection. This device functions as the intermediary between the EtherCAT protocol at the fieldbus level and the EtherCAT terminals. It converts the passing telegrams from Ethernet 100BASE-FX to E-bus signal representation. The configuration of a station comprises the coupler and any number of EtherCAT terminals, which are automatically detected and individually displayed in the process image.
The EK1501 features two SC duplex sockets for the fiber-optic connection. These sockets allow for connection lengths of up to 2 km. The device also includes three hexadecimal ID switches for implementing variable topologies. The coupler can support up to 65,535 EtherCAT terminals in the overall system.
The upper Ethernet connection on the EK1501 is used to connect the coupler to the network. The lower SC duplex socket may be utilized to connect additional EtherCAT devices within the same segment. The multi-mode glass fiber connection, with a specification of 50/125 µm, enables a maximum distance of 2000 meters between two couplers. A group of EtherCAT components can be assigned a unique ID using the hexadecimal ID switches, which allows this group to be positioned at any location within the EtherCAT network. This functionality facilitates the implementation of variable topologies. Additionally, an EtherCAT junction or extension can be used to extend or establish line or star topologies.
Manufacturer information
Beckhoff Automation is a German manufacturer of open automation systems, including industrial PCs, I/O and fieldbus components, drive technology, automation software, and hardware for machine vision. Beckhoff is known for its innovative and reliable automation technology, which is used in a wide range of industries. The company is committed to providing customers with the best possible automation solutions to help them succeed in their businesses.
What Our Experts Think
-
High Performance: Beckhoff control systems offer powerful computing capabilities for demanding industrial automation tasks.
-
Energy-Efficient: Designed with optimized power usage to support sustainable, low-energy operations.
-
Durable & Reliable: Built to withstand harsh industrial environments with high-quality components and rugged designs.
-
Quiet Operation: Fanless or low-noise cooling systems in many models ensure minimal disruption in sensitive areas.
-
Easy Installation: Modular design allows for quick and flexible setup in a wide range of industrial applications.
Q&A
Q: What is Beckhoff equipment used for?
A: Beckhoff products are used for industrial automation, providing control, motion, and communication solutions for a variety of industries.
Q: What features are included in Beckhoff automation systems?
A: Features include high-performance CPUs, modular I/O systems, compact form factors, and support for leading industrial communication standards like EtherCAT.
Q: Are Beckhoff products energy-efficient?
A: Yes, many Beckhoff systems are designed to reduce energy consumption while maintaining high-speed, precise control.
Q: How does Beckhoff compare to other automation brands?
A: Beckhoff stands out for its open automation systems, flexible designs, and strong performance in both small and large-scale industrial projects.
Maintenance Tips
-
Keep Units Clean: Regularly remove dust and debris from ventilation openings and surfaces.
-
Check Connections: Inspect cables and connectors periodically for wear or damage.
-
Monitor Software Updates: Keep firmware and software updated to ensure optimal performance and security.
-
Temperature Control: Ensure devices are operated within recommended temperature ranges to avoid overheating.
-
Annual System Check: Have a technician perform a full inspection and preventive maintenance annually.
