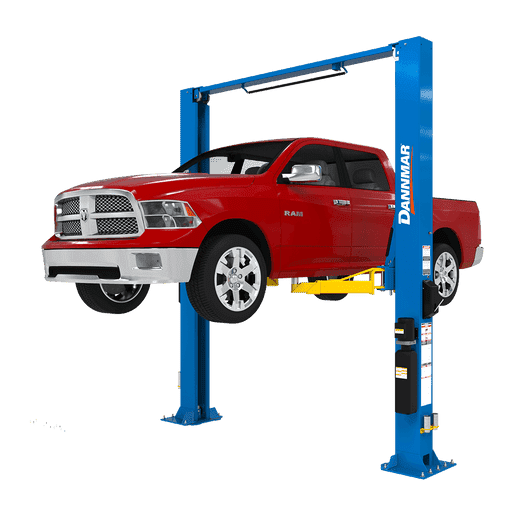

Dannmar’s D2-12C is loaded with features to make your lift work better. With triple-telescoping arm sets, three-stage front and three-stage rear arms this Dannmar provides greater maximum reach with minimum retraction. This strong lift system will raise just about all passenger vehicles and many heavy-duty pickup trucks. The high-speed hydraulics, free-flow, high-pressure 3/8” hydraulic lines, a high-flow pump and integrated AC power-unit increase ascent and descent speeds. The safe and rugged D2-12C two-post lift features extended height columns for added overhead clearance, as well as an adjustable top beam to accommodate wide or narrow installation setups.
Dual direct-drive hydraulic cylinders
Heavy-duty 1/2” aircraft-quality equalizer cables
Oversized cable sheave diameter reduces cable fatigue
Durable, rubber lift pads with stackable adapters
Dual-synchro equalization system for equal lifting
Padded overhead safety shutoff bar - Extended height top-beam provides greater clearance
Single-point safety release
Height Overall | 168.75" (4,286 mm) |
---|---|
Width Overall | 155.25" (3,943 mm) |
Width Outside Columns | 142.5" (3,620 mm) |
Width Inside Columns | 119.5" (3,035 mm) |
Drive-Thru Clearance | 105” (2,663 mm) |
Floor to Top Switch | 162.75” (4,131 mm) |
Arm Reach | 31.5" (800 mm) - 58” (1,473 mm) |
Max. Load per Arm | 3,000 lbs. (1,361 kg) |
Outside Edge of Runways | 72.5” (1,842 mm) |
Outside Length | 194.75” (4,947 mm) |
Width Outside Columns | 142.5" (3,620 mm) |
