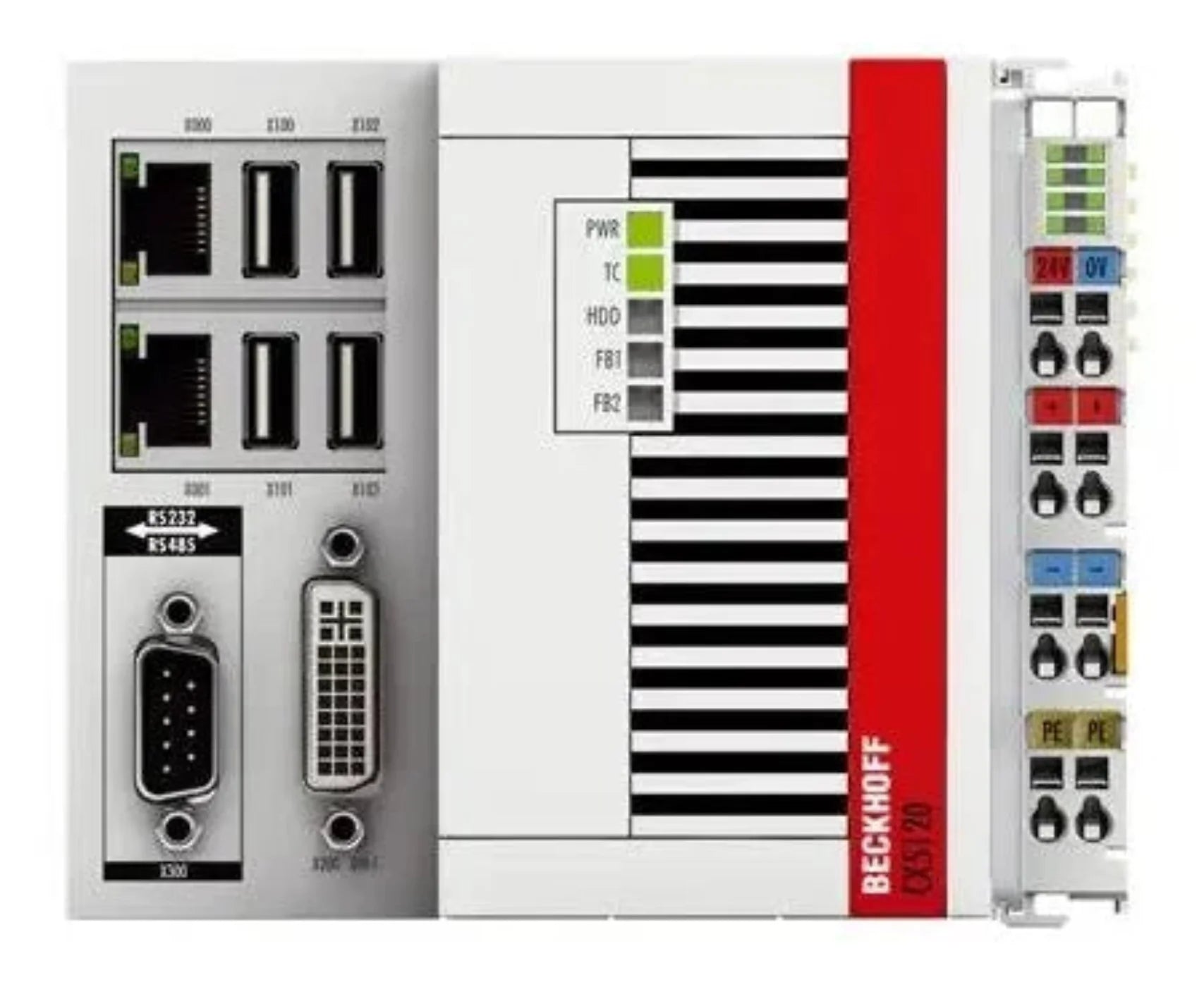

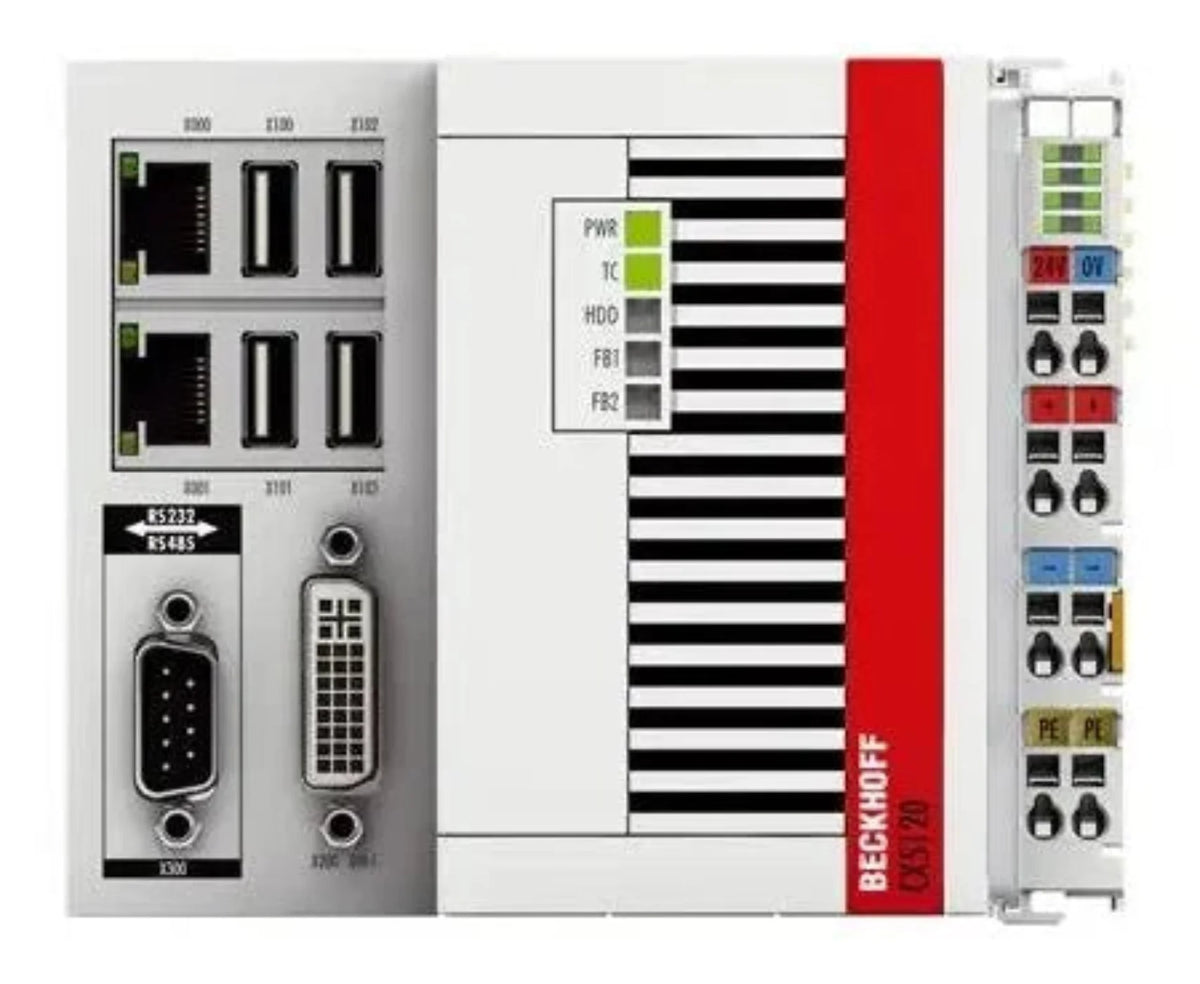

BECKHOFF Embedded PC with Intel Atom Processor - CX5120
The CX5120 is an embedded PC featuring an Intel Atom single-core processor clocked at 1.46 GHz. It maintains hardware interface compatibility with the CX5000 series, offering two independent Gigabit-capable Ethernet interfaces, four USB 2.0 ports, and a DVI-I interface. Optional interfaces can be factory-installed to enhance connectivity, supporting E-bus or K-bus terminals for versatile I/O configurations.
Specifications
| Part # | CX5120-0155 |
|---|---|
| Category | Controls & Indicators |
| Subcategory | CPU/Control Board Processor |
| Processor | Intel Atom E3815, 1.46 GHz |
| Number of cores | 1 |
| Flash memory | Slot for CFast card and microSD card, cards not included |
| Main memory | 2 GB DDR3 RAM (not expandable) |
| Persistent memory | Integrated 1-second UPS (1 MB on CFast card) |
| Interfaces | 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-I, 4 x USB 2.0, 1 x optional interface |
| Diagnostics LED | 1 x power, 1 x TC status, 1 x flash access, 2 x bus status |
| Clock | Internal battery-backed clock for time and date (battery exchangeable) |
| Control software | TwinCAT 2 runtime, TwinCAT 3 runtime (XAR) |
| I/O connection | E-bus or K-bus, automatic recognition |
| Power supply | 24 V DC (-15%/+20%) |
| Current supply E-bus/K-bus | 2 A |
| Max. power consumption | 11 W |
| Max. power consumption (with loading UPS) | 18 W |
| Dimensions (W x H x D) | 122 mm x 100 mm x 92 mm |
| Weight | Approx. 975 g |
| Relative humidity | 95%, no condensation |
| Operating/storage temperature | -25…+60°C / -40…+85°C |
| EMC immunity/emission | Conforms to EN 61000-6-2/EN 61000-6-4 |
| Vibration/shock resistance | Conforms to EN 60068-2-6/EN 60068-2-27 |
| Protection rating | IP20 |
Information About CX5120
The CX5120 is an embedded PC featuring an Intel Atom single-core processor clocked at 1.46 GHz. It shares hardware interfaces identical to those found in the CX5000 series, including two independent Gigabit-capable Ethernet ports, four USB 2.0 ports, and a DVI-I interface. Additional connectivity options or gateway functionalities can be enabled through an optional interface that can be factory-installed. The I/O level supports either E-bus or K-bus terminals, providing flexibility in system configuration.
Designed with a focus on efficiency, the CX5120 boasts low power consumption and operates without a fan, enhancing reliability and reducing maintenance needs in industrial environments. This design feature contributes to its suitability for applications requiring stable performance over extended periods.
The CX5120 supports various configurations of TwinCAT runtime environments, facilitating its use in PLC or PLC/motion control projects with or without visualization capabilities. It enables the execution of motion control applications that involve interpolating axis movements, ensuring precise and responsive control in automated processes.
Beckhoff Automation is a German manufacturer of open automation systems, including industrial PCs, I/O and fieldbus components, drive technology, automation software, and hardware for machine vision. Beckhoff is known for its innovative and reliable automation technology, which is used in a wide range of industries. The company is committed to providing customers with the best possible automation solutions to help them succeed in their businesses.
What Our Experts Think
-
High Performance: Beckhoff control systems offer powerful computing capabilities for demanding industrial automation tasks.
-
Energy-Efficient: Designed with optimized power usage to support sustainable, low-energy operations.
-
Durable & Reliable: Built to withstand harsh industrial environments with high-quality components and rugged designs.
-
Quiet Operation: Fanless or low-noise cooling systems in many models ensure minimal disruption in sensitive areas.
-
Easy Installation: Modular design allows for quick and flexible setup in a wide range of industrial applications.
Q&A
Q: What is Beckhoff equipment used for?
A: Beckhoff products are used for industrial automation, providing control, motion, and communication solutions for a variety of industries.
Q: What features are included in Beckhoff automation systems?
A: Features include high-performance CPUs, modular I/O systems, compact form factors, and support for leading industrial communication standards like EtherCAT.
Q: Are Beckhoff products energy-efficient?
A: Yes, many Beckhoff systems are designed to reduce energy consumption while maintaining high-speed, precise control.
Q: How does Beckhoff compare to other automation brands?
A: Beckhoff stands out for its open automation systems, flexible designs, and strong performance in both small and large-scale industrial projects.
Maintenance Tips
-
Keep Units Clean: Regularly remove dust and debris from ventilation openings and surfaces.
-
Check Connections: Inspect cables and connectors periodically for wear or damage.
-
Monitor Software Updates: Keep firmware and software updated to ensure optimal performance and security.
-
Temperature Control: Ensure devices are operated within recommended temperature ranges to avoid overheating.
-
Annual System Check: Have a technician perform a full inspection and preventive maintenance annually.
