Description

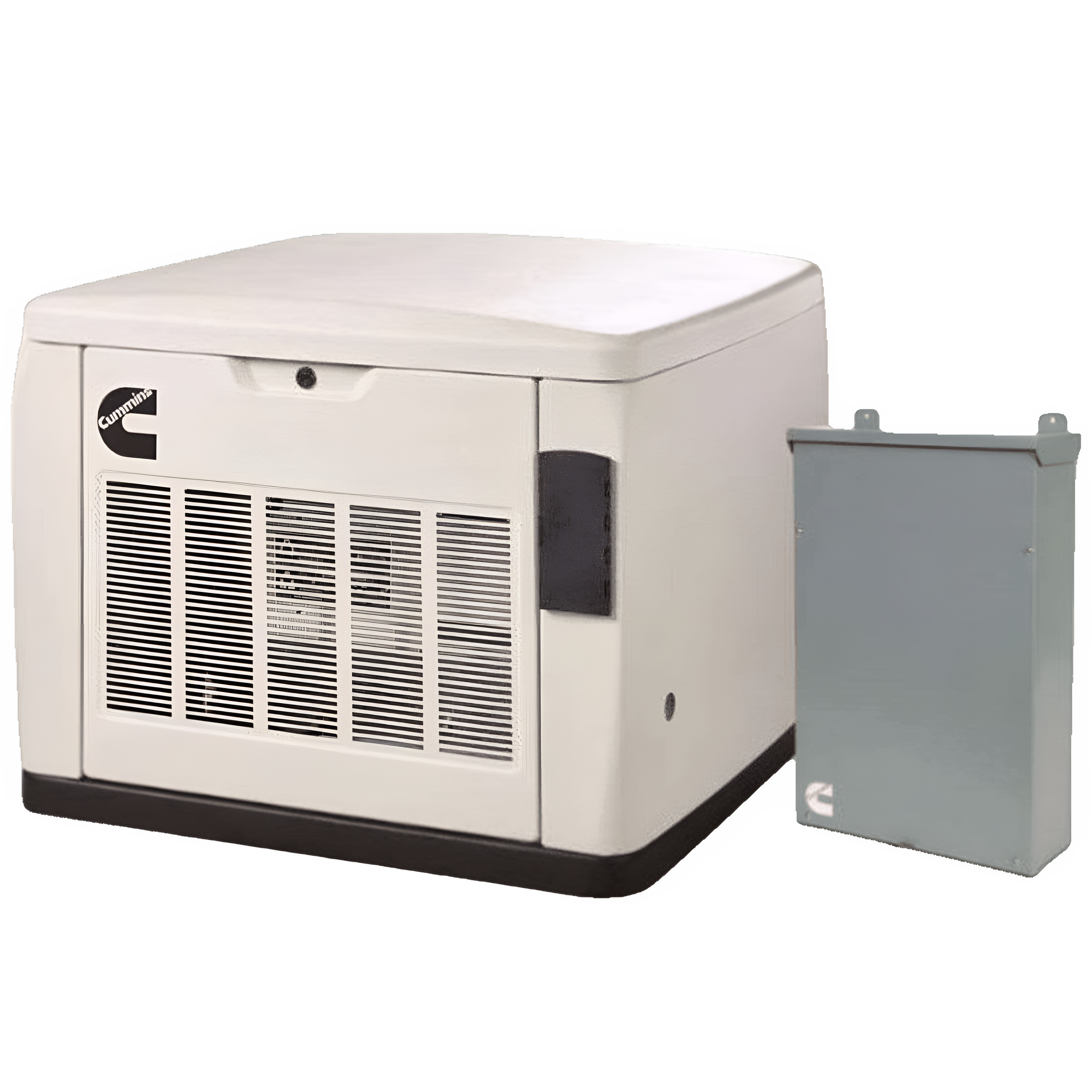

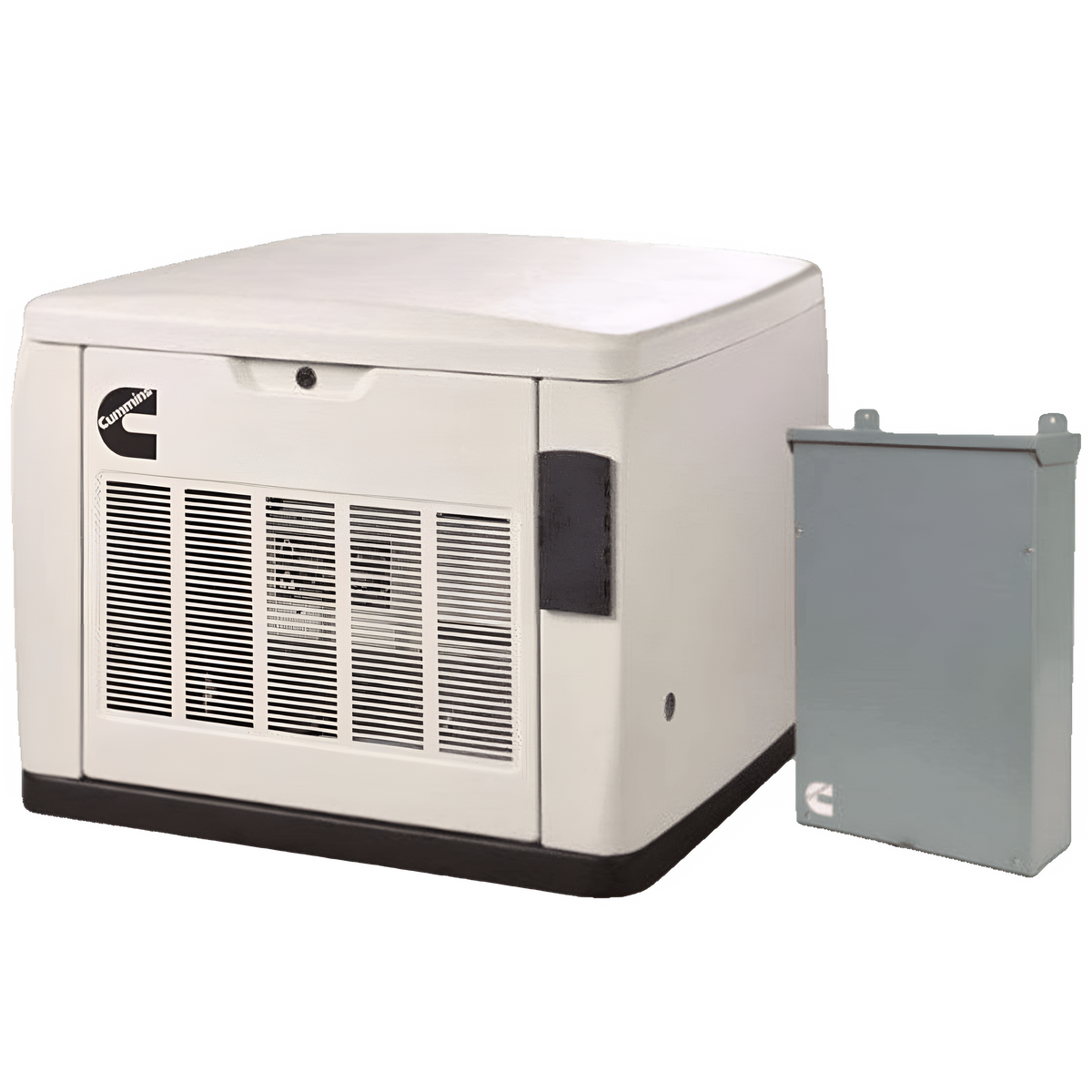

Cummins RS20AC A061C602 20kW w/Remote Monitoring Quiet Connect™ Series Standby Generator LP/NG with 200A Automatic Transfer Switch New
The RS20AC is a home standby generator permanently connected to your house by an automatic transfer switch. The generator operates on your home's existing natural gas (18kW) or LP Gas (20kW) supply. Access the generator controller on any smartphone, laptop, tablet, or desktop computer. Operate the generator manually, program the exercise cycle, view status and reports, or schedule maintenance.
The A045P697 Automatic Transfer Switch (ATS) has a NEMA 3R rating for indoor and outdoor use that installs between the utility meter and a typical 200-amp main service panel. The generator controller monitors the utility supply 24 / 7 and automatically starts the generator the moment an outage is detected.
Features
- Cummins 20 kilowatt Quiet Connect Series Home Standby Generator.
- Automatic Transfer Switch for 24 / 7 independent operation.
- Remote Internet Access to the Quiet Connect Controller and Generator.
- User-Programmable Exercise including “Crank-Only” Mode.
- Powered by Cummins QSJ999G engine.
- A patented “Crank-Only” mode reduces wear and tear during the exercise cycle.
- WiFi included - Check generator status, program exercise periods, even manually start and stop the generator using the Cloud Connect Smartphone App on phones, tablets, or computers.
- Starts and runs a 5-ton A/C while accepting a full household load.
- Field Selectable for Natural Gas or Propane Fuel.
- Rated for installation as close as 18-inches to the home.
- Extremely Quiet Operation – 65 dB or less.
- Operates at 0 degrees out of the box. Cold weather kits add reliable operation for extreme climates.
- Intelligent Load Management for up to four loads such as Air Conditioners.
Specifications
| COOLING SYSTEM | AIR COOLED |
|---|---|
| UL LISTED | YES |
| GRADE TYPE | EMERGENCY |
| ENGINE BRAND | CUMMINS ONAN |
| STARTING SYSTEM | 12V AUTO START |
| ENGINE SIZE | 999 CC |
| ENGINE RPM | 3600 RPM |
| LOW OIL ALERT/SHUTDOWN | YES |
| WEIGHT | 540 LBS |
| MADE IN USA | YES |
| PRODUCT LENGTH | 34.1" |
| PRODUCT WIDTH | 36" |
| PRODUCT HEIGHT | 27.3" |
| VOLTAGE | 120/240 SINGLE PHASE |
| FREQUENCEY | 60 HERTZ |
| ALTERNATOR | BRUSH |
| AUTO VOLTAGE REGULATION | YES |
| RATED WATTS | 20000 WATTS |
| FUEL TYPE | LP/NATURAL GAS |
