36,000 BTU 19.4 SEER ACiQ Single Zone Platinum Ceiling Cassette Mini Split System w/ Extreme Heat - Backyard Provider

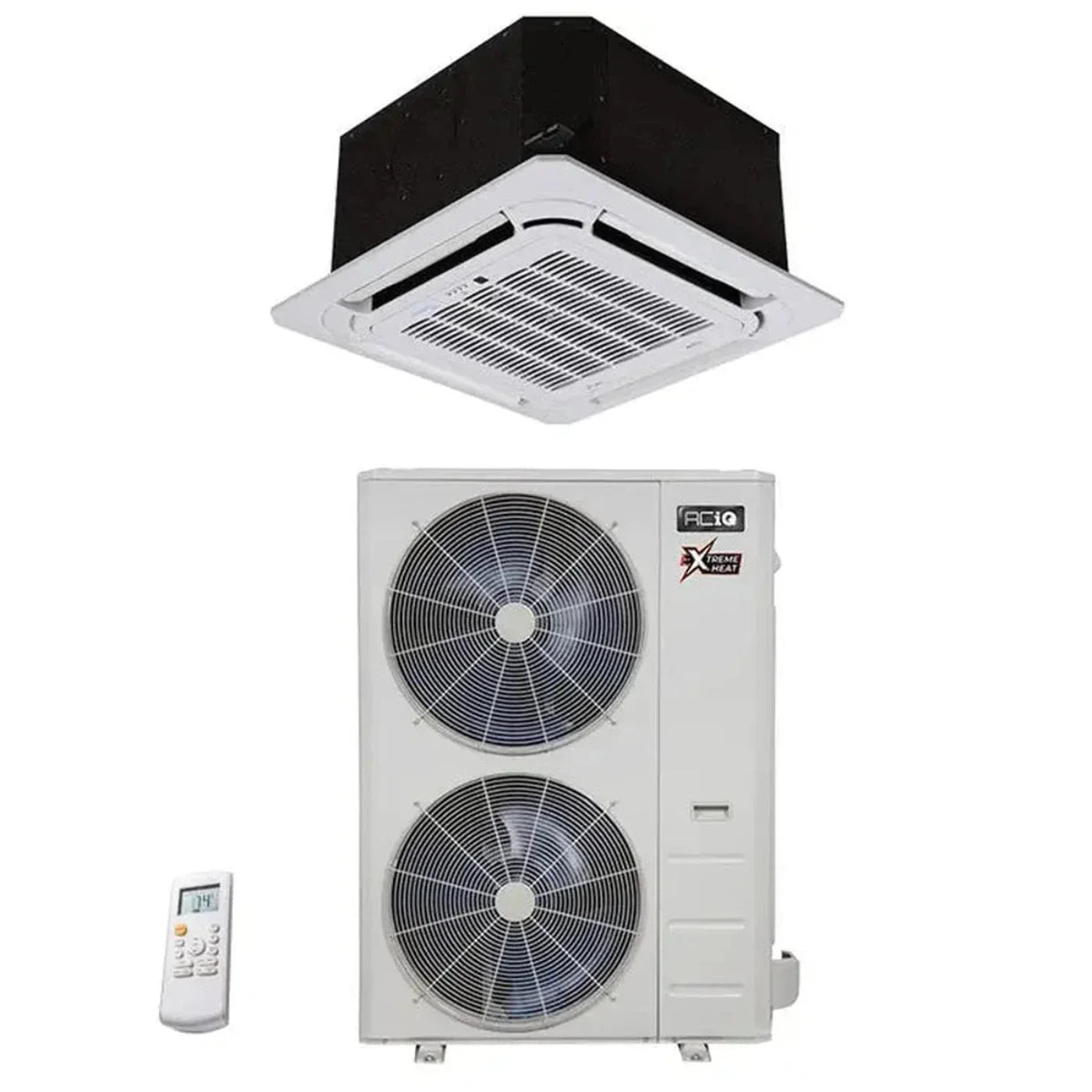

36,000 BTU 19.4 SEER ACiQ Single Zone Platinum Ceiling Cassette Mini Split System w/ Extreme Heat

36,000 BTU 19.4 SEER ACiQ Single Zone Platinum Ceiling Cassette Mini Split System w/ Extreme Heat

Name: 36,000 BTU 19.4 SEER ACiQ Single Zone Platinum Ceiling Cassette Mini Split System w/ Extreme Heat
Brand: ACIQ
SKU: ACIQ-36ZPL-HP230B / ACIQ-36CC-HH-MB / ACIQ-CC-GRILLE-24
Price: 2289.99 USD
Availability: InStock

1 Review

Vendor: ACIQ

SKU: ACIQ-36ZPL-HP230B / ACIQ-36CC-HH-MB / ACIQ-CC-GRILLE-24

$2,289.99; ~~$2,693.99~~; $2,289.99
Unit price: per

clearance sale ends in

00 Hours

00 Minutes

00 Seconds

Expert Support,

Dial +1 (888) 673-2298

All Items are brand New,

Never used.

36,000 BTU 19.4 SEER ACiQ Single Zone Platinum Ceiling Cassette Mini Split System w/ Extreme Heat

~~$2,693.99~~ $2,289.99

Quantity:

36,000 BTU 19.4 SEER ACiQ Single Zone Platinum Ceiling Cassette Mini Split System w/ Extreme Heat

~~$2,693.99~~ $2,289.99

Popular Add-Ons

Liftgate

$200.00

$70.00

Reinforced Package

$100.00

$30.00

Add-Ons Bundle

Liftgate

$200.00

$70.00

Reinforced Package

$100.00

$30.00

Bundle Offer

$300.00

$100.00

36,000 BTU 19.4 SEER ACiQ Single Zone Platinum Ceiling Cassette Mini Split System w/ Extreme Heat

Discover the cutting-edge technology and exceptional comfort of ACiQ's mini split systems, available at an affordable price. This 3 ton system is ideal for spacious rooms in need of dependable heating and cooling. With the 36,000 BTU ACiQ Platinum series Single Zone Condenser w/ Extreme Heat, you'll experience the innovative Extreme Heat - hyper heat technology that can keep you warm even at -22 degrees outside. This system boasts impressive SEER2 and HSPF ratings for maximum efficiency in both cooling and heating your space.

High capacity, high efficiency

The ACIQ-36ZPL-HP230B Condenser, when matched with the a wall mounted, ceiling cassette, concealed duct, floor mount, or ducted air handler, has enough capacity for large rooms. The dual rotary compressor and variable inverter technology give this system exceptionally high efficiency ratings.

Please note that this model of equipment does not have quick connect line set connectors and is not a DIY unit. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section on this page. You will need a professional to add more refrigerant and vacuum the lines as needed. The automated cleaning function will clean your system, but it is recommended to periodically clean the unit's filters manually.

Extreme Heat Base Pan Heater Technology

Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation. The best news of all? ACiQ includes these technologies with every multizone condenser – the competition makes you pay for it.

Quality Construction

State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling. Base pan heaters come standard on every multi-zone condenser.

Highest Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.

Longer life, longer warranty

Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.

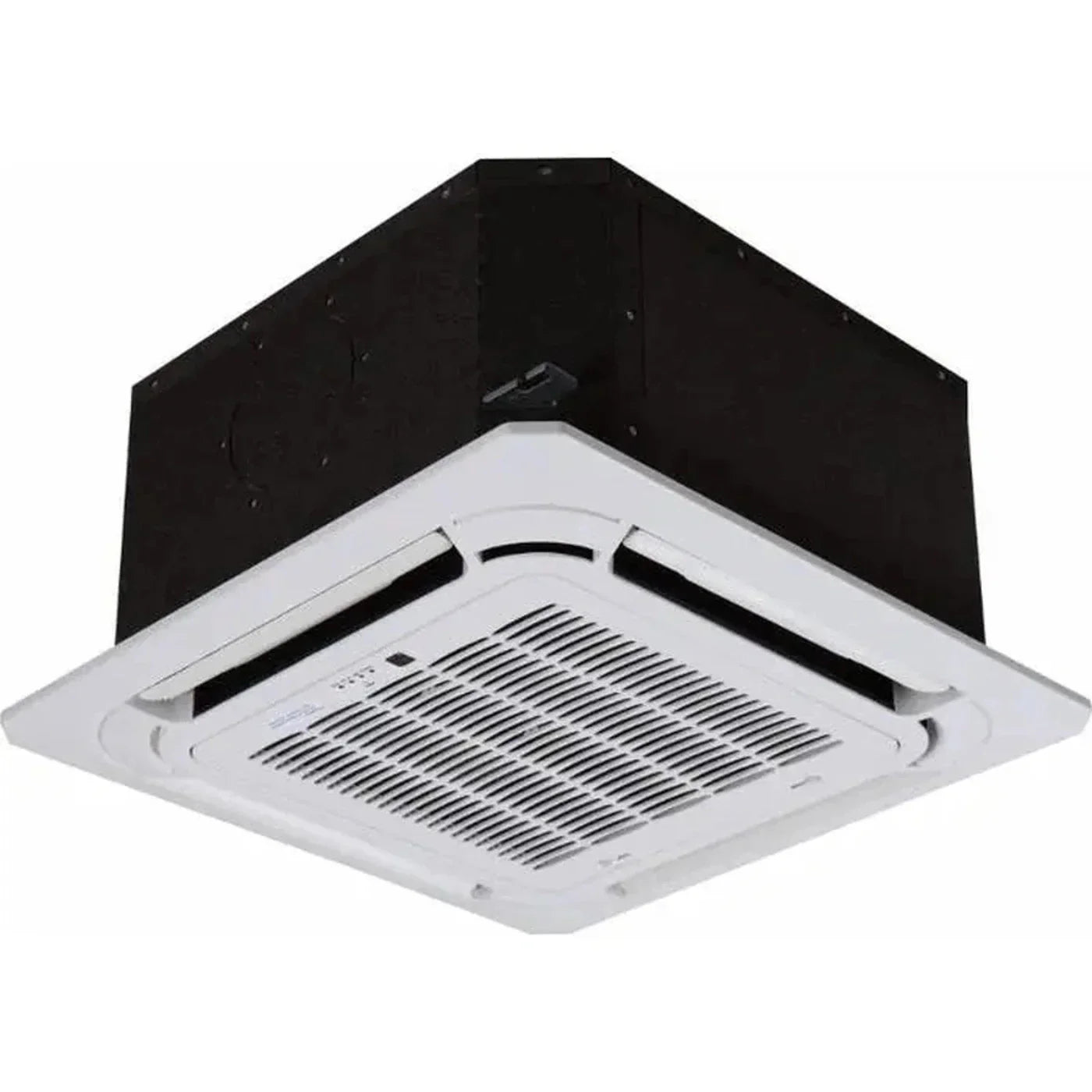

36,000 BTU Ceiling Cassette ACiQ Mini-Split Air Handler

Mini Split systems are great, but what if you don't want the air handler on your wall? ACiQ offers the ACIQ-24CC-HH-MB ceiling cassette air handler for customers who want a more hidden appearance and more centralized air distribution. Ceiling Cassette air handlers provide the same high-efficiency heating and cooling of a regular wall-mounted unit, and come with an included hand-held remote control. Once the ceiling cassette is mounted in the ceiling, only the grille is visible for the most understated appearance.

Installation Considerations

Ceiling Cassettes are flush-mounted, which requires removal of enough ceiling material to create a cavity for the unit. The 24k Ceiling cassette is large format (see specs below) and will require modifications to ceiling framing in most cases. Additionally, Ceiling Cassettes have factory-installed, onboard pumps to lift the condensation produced by the unit during cooling. The pump can lift the condensation up to 14. From there, it will be necessary to construct a PVC drain system to route the condensation to a safe wastewater location. Refrigerant and wiring connections are the same as the wall mounted units.

Ceiling Cassette

Flush-mounted Ceiling Cassettes offer the most understated appearance of any ductless air handler type. They can be centrally located in the room, and deliver conditioned air in all four directions, with return air being brought in through the center. Ceiling Cassettes include a factory installed condensation pump.

Specs

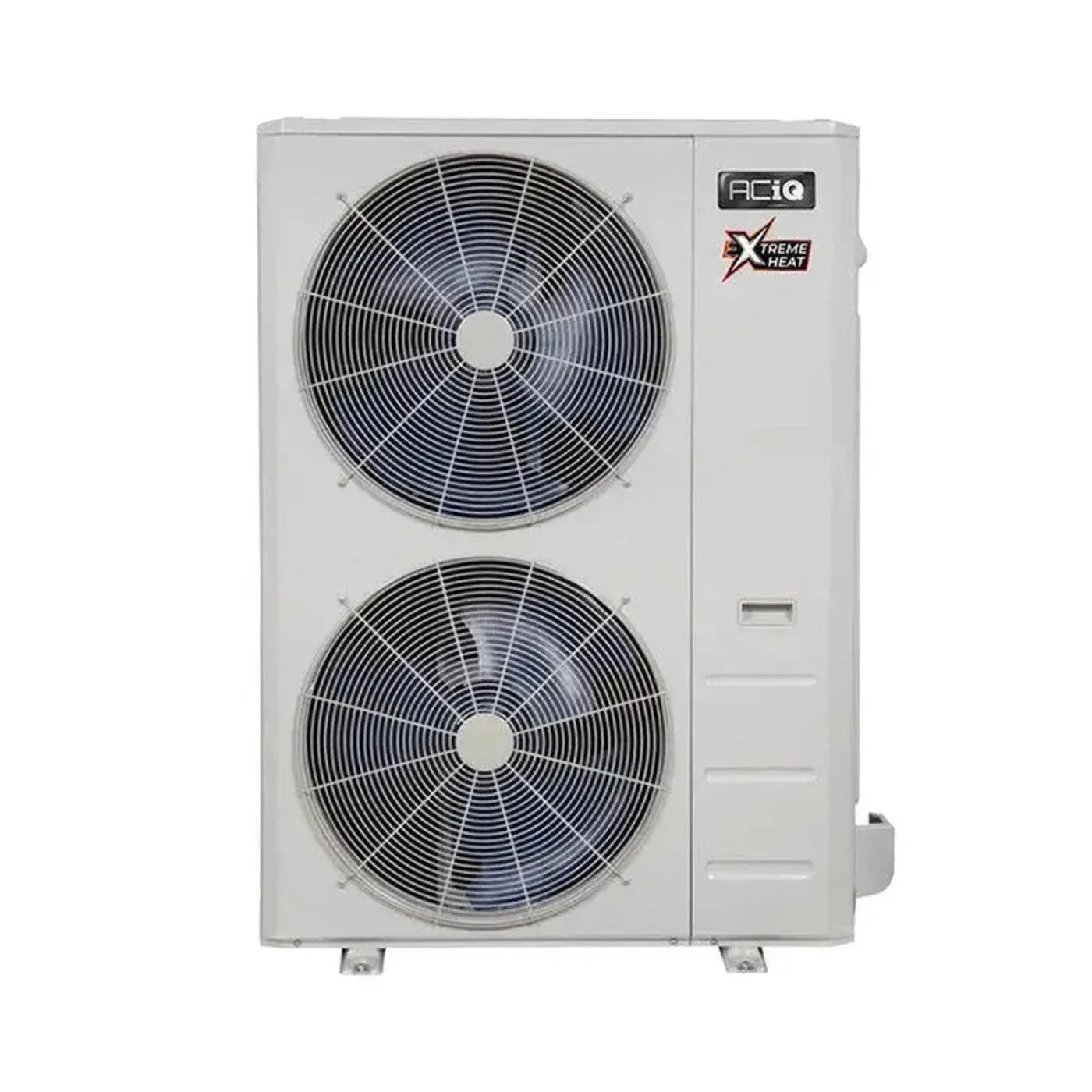

36,000 BTU ACiQ Platinum series Single Zone Condenser w/ Extreme Heat
SKU	ACIQ-36ZPL-HP230B
Refrigerant Charge	25'
Weight (in lbs)	158.950000
Brand/Manufacturer	ACiQ
HSPF	10.5
HSPF2	8.5
Cooling BTU	36000 BTU
Heating BTU	40000 BTU
Decibel Level (dBA)	63.5
Electric Heat	Heat Pump
Refrigerant	R410A
SEER1 (Efficiency)	16-17
EER	9.5
Compressor Type	Rotary
Liquid Line	3/8'
Suction Line	5/8'
Electrical	208/230V 1 Phase 60 Hz
Max Breaker Size	50
Min. Breaker Size	41
Tonnage	3 Ton
BTU/Tonnage	36,000 BTU/3 Ton
Zone Compatibility	Single Zone
Height	31.89'
Width	37.24'
Depth	16.14'
Warranty	12 year compressor, 7 year parts with online registration
Resources
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm.
36,000 BTU Ceiling Cassette ACiQ Mini-Split Air Handler
SKU	ACIQ-36CC-HH-MB / ACIQ-CC-GRILLE-24
Weight (in lbs)	69.000000
Brand/Manufacturer	ACiQ
Controller	Wireless Included
Cooling BTU	36,000 BTU
Heating BTU	40,000 BTU
Maximum CFM	1041.18
Decibel Level (dBA)	52.5 max
Electric Heat	Heat Pump
Refrigerant	R410A
Liquid Line	3/8'
Suction Line	5/8'
Electrical	208/230V 1 Phase 60Hz
Phase	Single Phase
Max Breaker Size	50
Min. Breaker Size	41
Tonnage	3 Ton
System Tonnage	3 Ton
BTU/Tonnage	36,000 BTU/3 Ton
Mini-Split Type	Ceiling Cassette
Zone Compatibility	Multi Zone, Single Zone
Height	52.48
Width	37.48
Depth	16.34
Warranty	12 year compressor, 7 year parts with online registration
Resources
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm.

What Our Experts Think

Powerful Performance: 36,000 BTU capacity ensures efficient heating and cooling for large spaces.
High Efficiency: With a 19.4 SEER rating, it delivers superior energy savings while maintaining comfort.
Extreme Heat Capability: Perfect for extreme temperatures, offering reliable performance even in harsh climates.
WiFi Control: Convenient remote access via smartphone or voice assistants for easy adjustments.
Quiet Operation: Designed for minimal noise, providing a peaceful environment.
Compact & Sleek Design: The ceiling cassette installation offers a discreet, space-saving solution.

Q&A

Q: What is the SEER rating?
A: It features a 19.4 SEER rating, ensuring energy-efficient performance.

Q: Can this system handle extreme temperatures?
A: Yes, it's designed for extreme heat, providing reliable performance in harsh climates.

Q: Is remote control possible?
A: Yes, with WiFi integration, you can control the system via smartphone or voice assistants.

Q: How quiet is this system?
A: It operates quietly for a comfortable, noise-free environment.

Q: What is the installation type?
A: This system is a ceiling cassette, offering a discreet and space-saving installation

Maintenance Tips

Clean filters regularly: Every 1-2 months to maintain airflow and efficiency.
Check for blockages: Inspect the outdoor unit for debris and clear it to ensure proper airflow.
Inspect drain lines: Ensure they are free from obstructions to avoid water damage.
Schedule annual servicing: Have a professional check for optimal performance and refrigerant levels.
Keep vents clear: Ensure the ceiling cassette and ducts are unobstructed for maximum air distribution.
