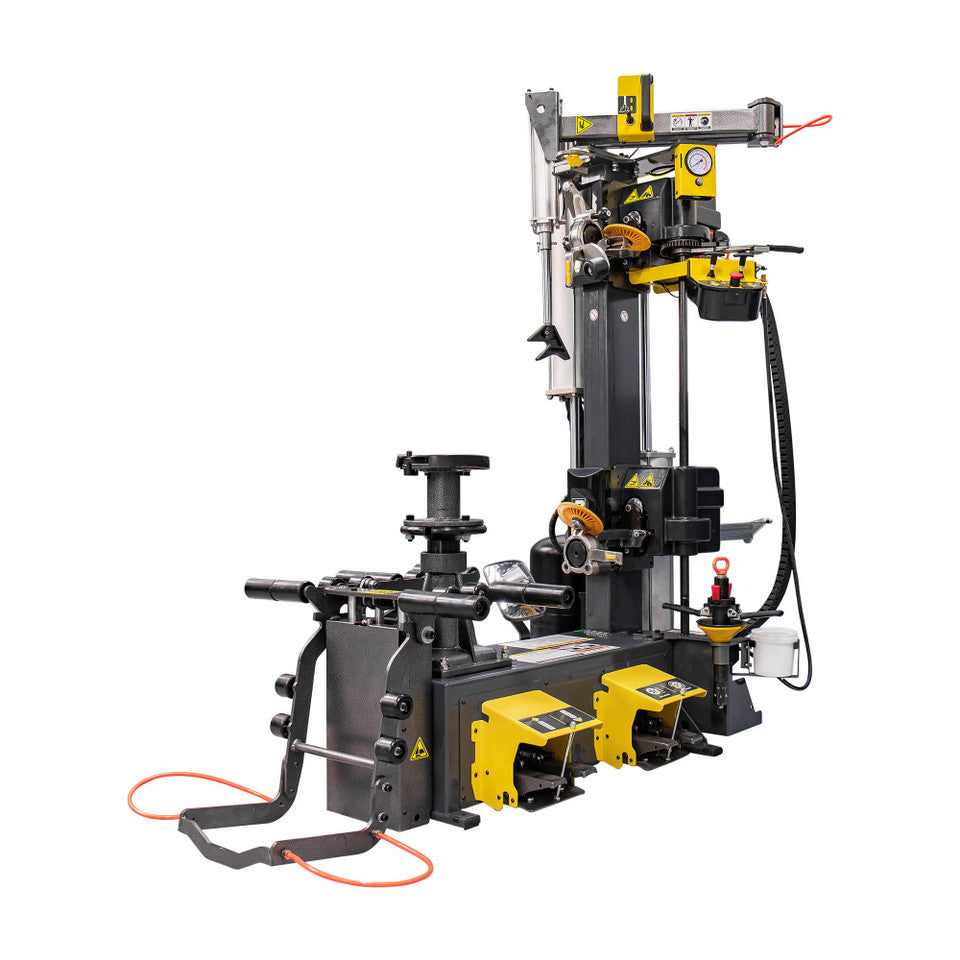

Ranger RV1 Wheel Guardian Touchless Tire Changer

The Ranger RV1 Wheel Guardian is a game-changing, touchless tire changer designed to revolutionize your wheel service. This machine quickly breaks beads and swaps tires with exceptional speed, making it one of the fastest on the market. By eliminating manual effort, the RV1 provides a seamless, touchless experience that protects both the operator and the customer's wheels.

Specifications

• Shipping Weight: 1,004 lbs. (455 kg)
• Maximum Tire Diameter: 47" (1,194 mm)
• Rim Diameter Range: 13" - 30" (330 mm - 762 mm)
• Maximum Wheel Width: 15" (381 mm)
• Overall Depth: 71" (1,803 mm)
• Overall Height: 73" (1,854 mm)
• Overall Width: 34" (864 mm)
• Motor Specs: 3 HP (220 VAC 50-60 HZ)
• Motor Power: 1.1 kW / 24A / NEMA 30 amp plug
• Air Supply Requirements: 140 - 165 psi (10 - 11 bar)
• Air Consumption: 1 SCFM / 27 L/Min
• RPM of Turntable: 7 - 14 turns/min
• Assist Type: Single-Tower Assist
• Speed: Standard
• Mount / Demount Tool: Steel-Alloy with Polymer Guards / Leverless

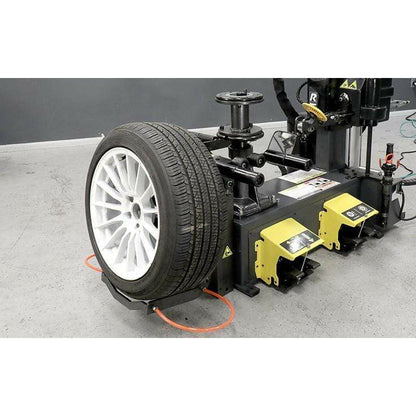

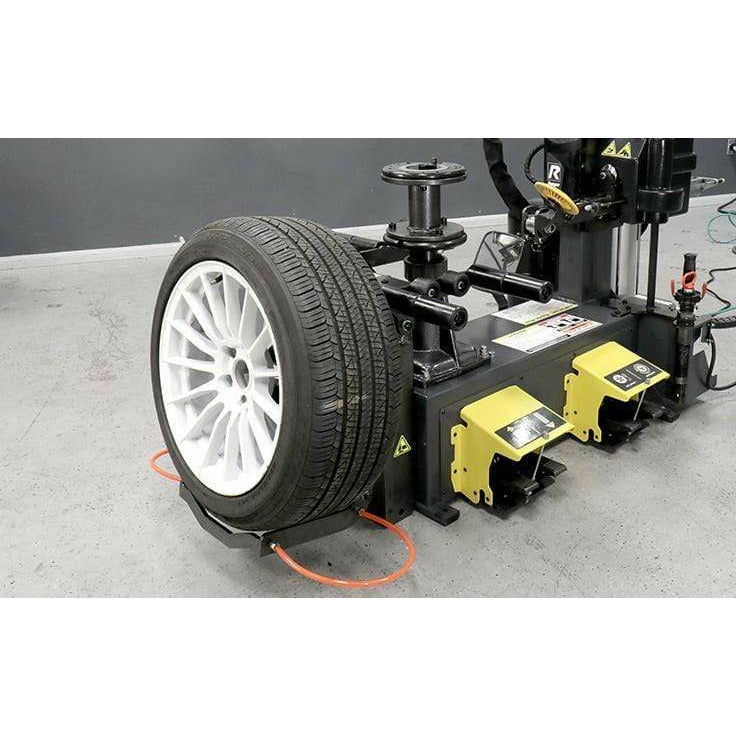

• Clamping Type: Center Post with Quick Clamp

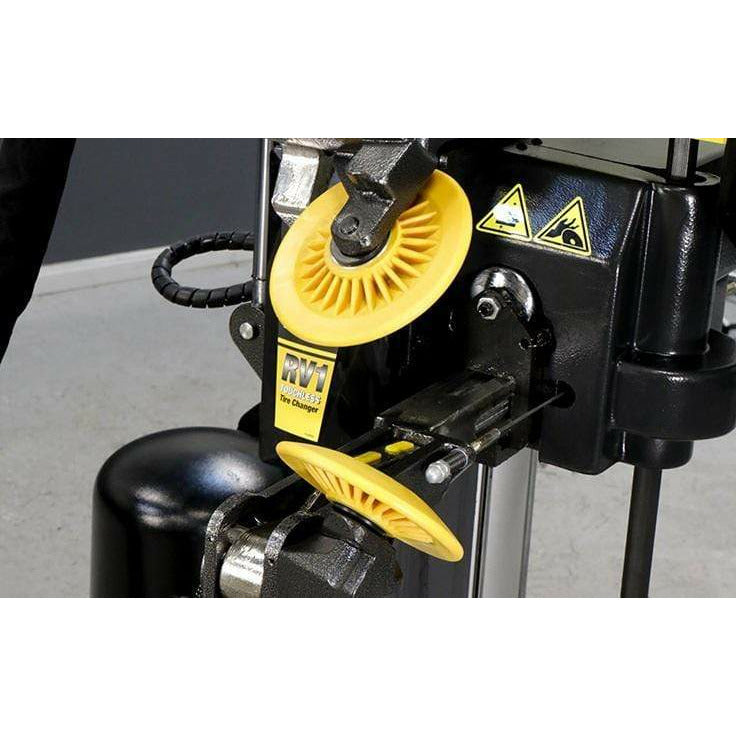

• Bead Loosening Type: Upper / Lower Roller
• Max Tire Weight: 143 lbs. (65 kg)
• Shipping Dimensions: 26" x 71" x 78" (660 mm x 1,803 mm x 1,981 mm)
