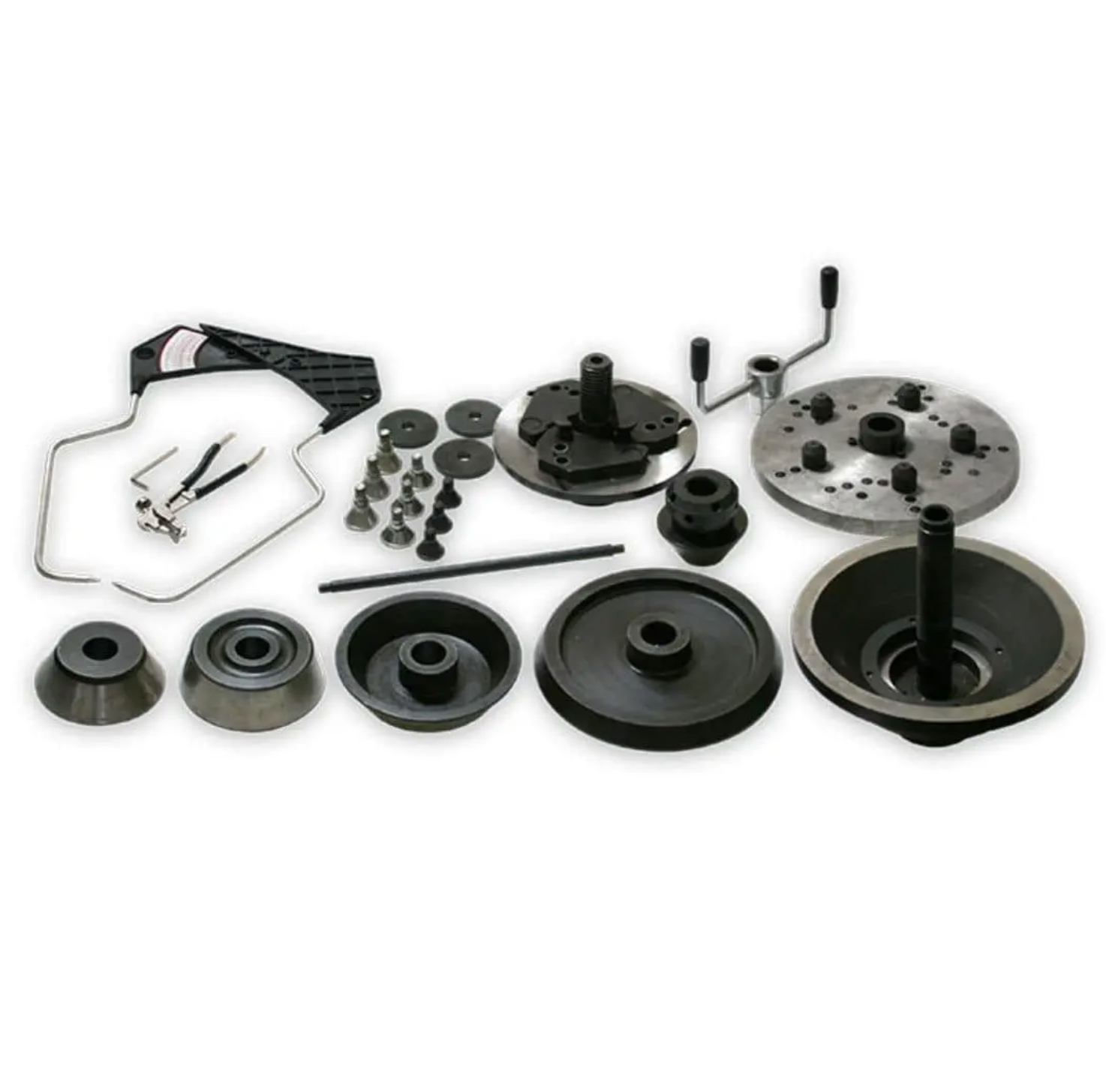

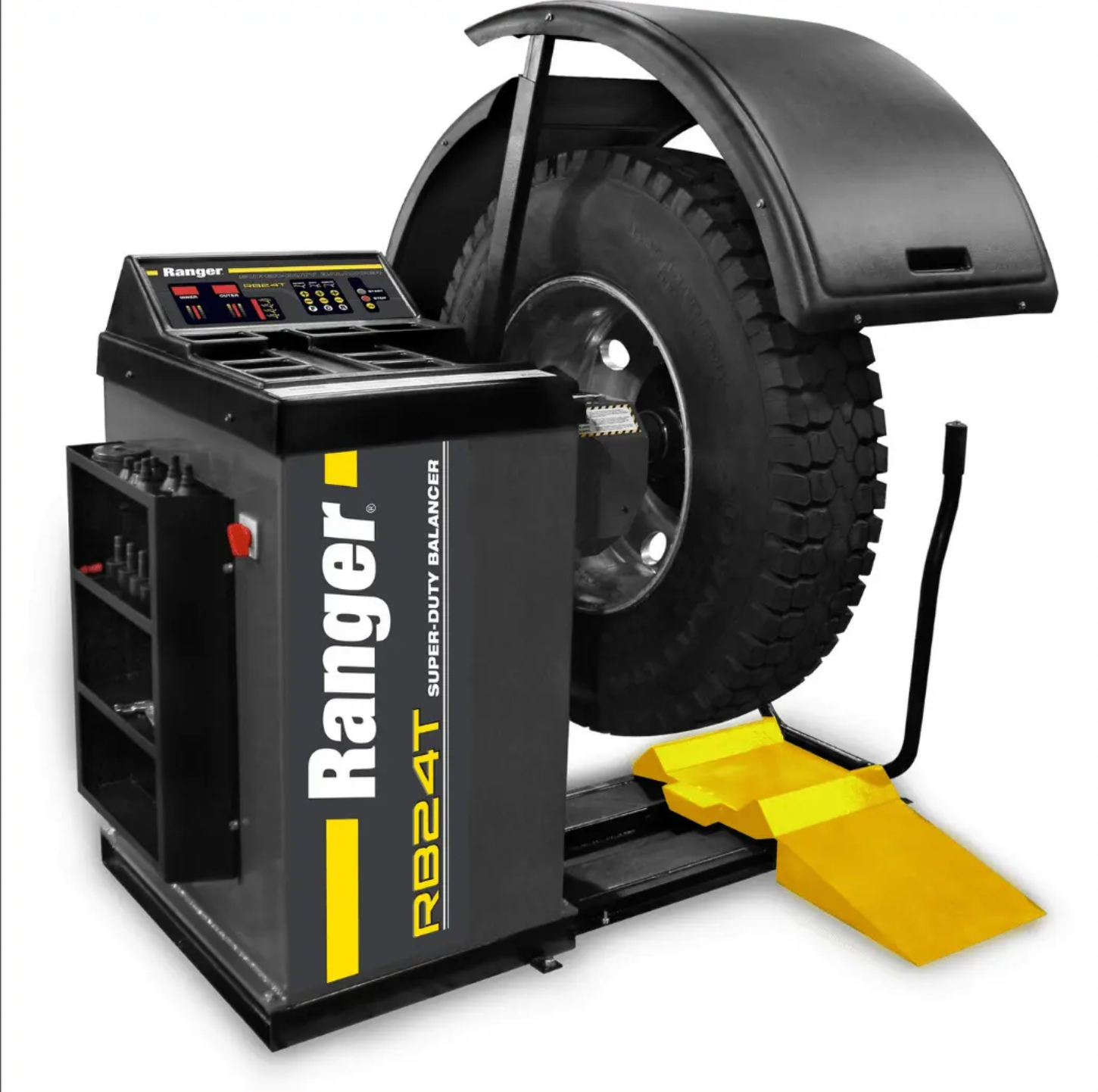

Ranger RB24T Truck Wheel Balancer with Adapter Kit and Quick-Chuck

The Ranger RB24T is a professional-grade wheel balancer engineered specifically for the demands of high-volume commercial tire shops and truck fleets. Unlike standard balancers with larger cones, the RB24T is a true truck balancer, designed with robust components to handle larger wheels with fast startup and braking speeds. It provides exceptional accuracy and is packed with features to maximize your shop's productivity.

Specifications

• Shipping Weight: 25 lbs. (374 kg)
• Max. Tire Weight: 400 lbs. (181 kg)
• Max. Tire Diameter: 50” (1,270 mm)
• Max. Wheel Diameter: 30” (762 mm)
• Wheel Width Capacity: 2” - 20” (51 mm - 508 mm)
• Power Supply: 208 – 240V, 50 / 60 Hz, 1 Ph
• Drive Motor: 1.5 HP, 380V, 50 / 60 Hz, 3 Ph
• Drive System: Ribbed Nylon Fiber Drive Belt
• Cycle Time: 7 - 10 seconds (avg.)
• Balancing Modes: 1 Dynamic / 1 Static / 3 Alloy
• Balancing Speed: 220 RPM
• Balancing Increments: 0.25 or 0.01 oz
• Accuracy / Standard: +/- 1 grams / .03 oz (Cars & Light Trucks)
• Accuracy / Truck: +/- 10 grams / .35 oz (Truck, Bus & OTR)
• Working Temperature: -5°C / 27°F - 50°C / 82°F
• Wheel Spin Braking: Electronic Pulse / Pneumatic Brake
• Wheel Hold Device: Pneumatic Brake
• Resolution: +/- 7 grams (.25 oz)
• Shaft Size: 40 mm
