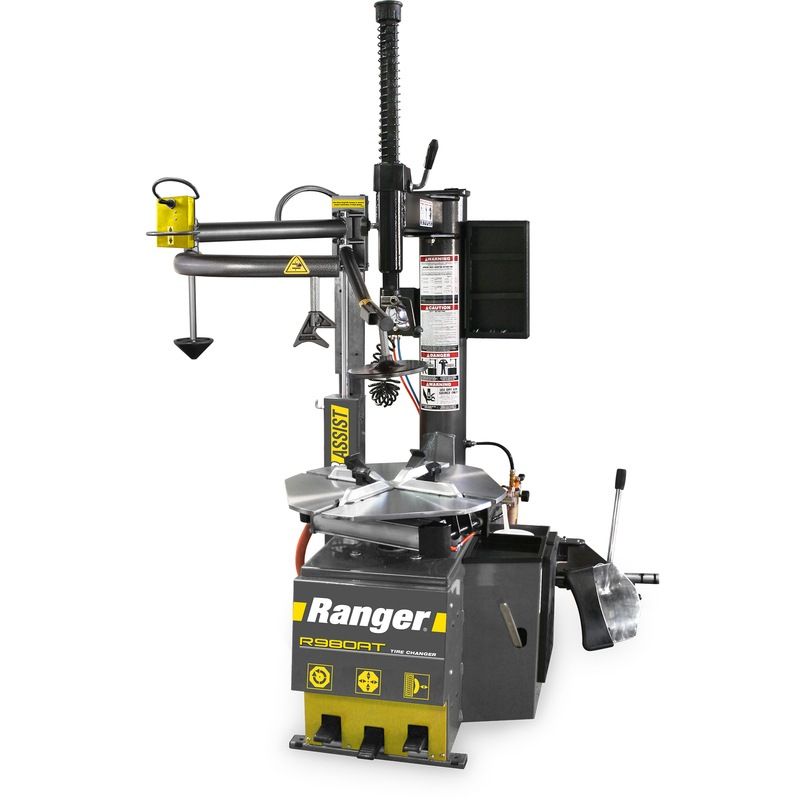

Ranger R980AT Swing-Arm Tire Changer with Single-Tower Assist

The Ranger R980AT is a space-saving solution designed for professional garages that need both power and efficiency. Its unique swing-arm design allows for installation flush against a wall, making it ideal for smaller shops or cramped work areas. Equipped with a single assist tower, this machine effortlessly handles challenging tires, including stiff sidewalls, run-flats, and other low-profile assemblies. The R980AT provides the versatility and precision needed for a wide range of vehicles, from commuter cars to pickup trucks and even race cars. It's the perfect addition to any full-service repair bay or general tire shop looking for a reliable and compact workhorse.

Specifications

• Shipping Weight: 904 lbs. (410 kg)
• Maximum Tire Diameter: 50” (1,270 mm)
• Air Requirement: 140-165 PSI (10-11 BAR)
• Motor: 3 HP (220 VAC 50-60 HZ)
• Internal Rim Clamping Capacity: 10” - 30” (254 mm - 762 mm)
• External Rim Clamping Capacity: 9” - 28” (229 mm - 711 mm)
• Bead Breaker Tire Width Capacity (Demounting): 1.5” – 13” (38 mm – 330 mm)
• Turntable Tire Width Capacity (Mounting): 4” - 18” (102 mm - 457 mm)
• Style: Fixed Tower Design
• Assist Type: Single-Tower Assist
• Speed: Standard
• Drive System Type: Electric / Air

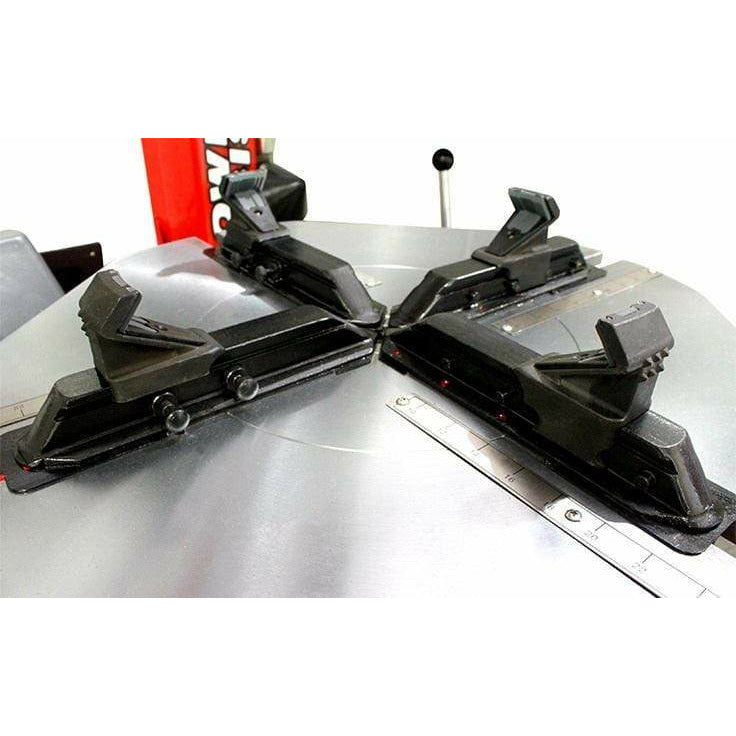

• Wheel Clamping Method: 4 Clamps - Internal / External
• Bead Breaking System: Pneumatic Blade / Dual
• Table Clamping System: Dual Pneumatic Cylinders
• Tower Design: Rigid Fixed / Swing Arm
• Power Assist Towers: Single Assist Tower
• Bead Lifting Roller(s): Single Lifting Roller
• Bead Seating System: Turbo Blast / Bead Seating
• Shipping Dimensions: 51'' x 45'' x 73'' (1,295 mm x 1,143 mm x 1,854 mm)
