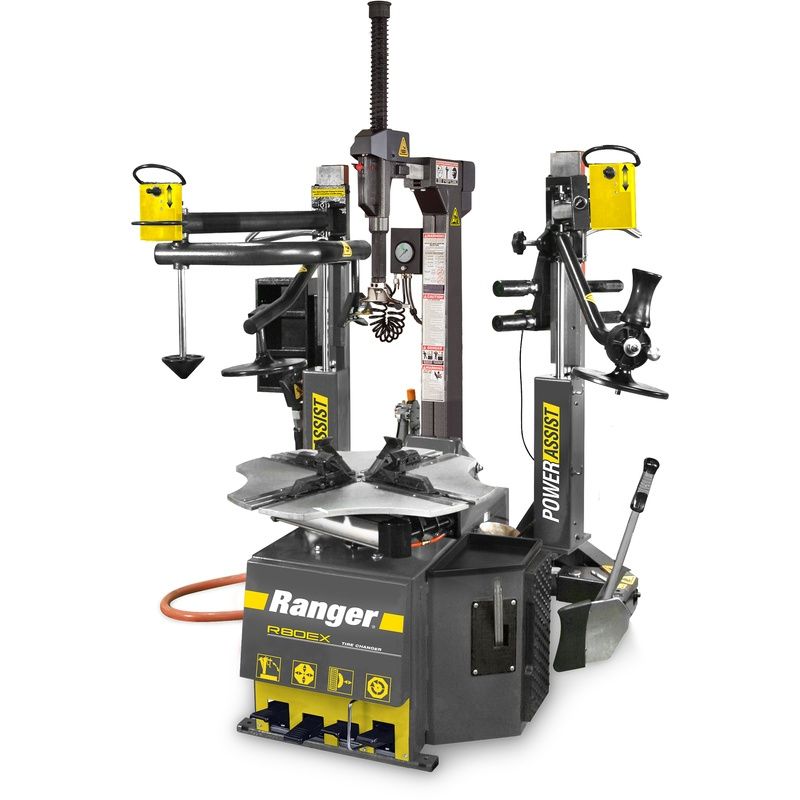

Ranger R80EX Tilt Back Tire Changer with Dual-Tower Assist

The Ranger R80EX is engineered for professional shops that demand a high-performance tire changer capable of handling a wide range of modern and traditional wheel assemblies. Its dual-assist, tilt-back tower design provides the robust support and flexibility needed to manage tough jobs with ease. This machine is built with the rugged reliability Ranger is known for, packed with a range of standard features to boost efficiency and safety in your workspace. From stiff sidewalls to low-profile tires, the R80EX offers the power and precision to get the job done right.

Specifications

• Shipping Weight: 1,184 lbs. (537 kg)
• Maximum Tire Diameter: 47" (1,194 mm)
• Air Requirement: 110-175 PSI (8-12 BAR)
• Motor: 3 HP (220 VAC 50-60 HZ)
• Internal Rim Clamping Capacity: 13" - 34" (305 mm - 864 mm)
• External Rim Clamping Capacity: 10" - 30" (254 mm - 762 mm)
• Bead Breaker Tire Width Capacity (Demounting): 1.5" - 18" (38 mm - 457 mm)
• Maximum Rim Width: 15" (381 mm)
• Style: Tilt-Back Tower Design
• Assist Type: Dual-Tower Assist
• Drive System Type: Electric / Air

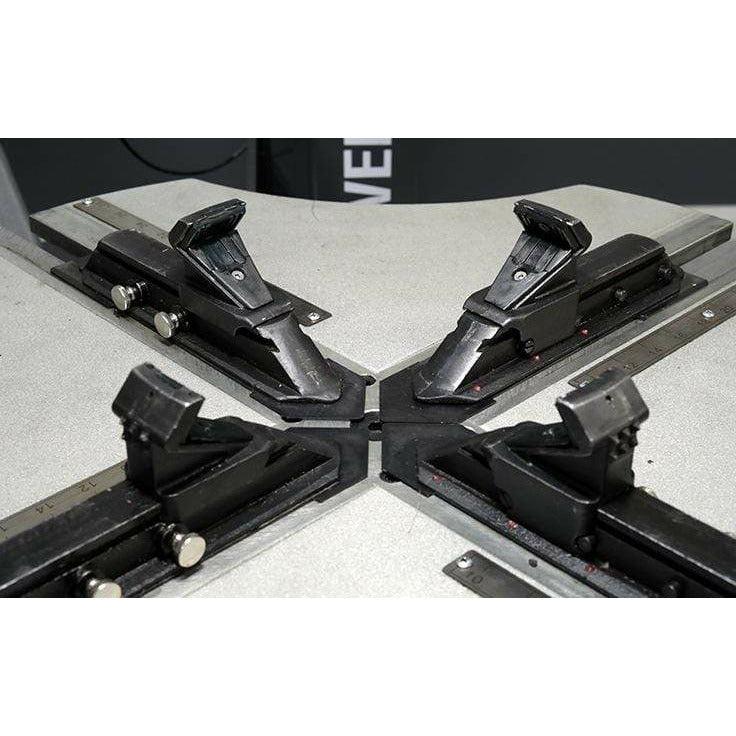

• Wheel Clamping Method: 4 Clamps - Internal / External
• Bead Breaking System: Pneumatic Blade
• Table Clamping System: Dual Pneumatic Cylinders

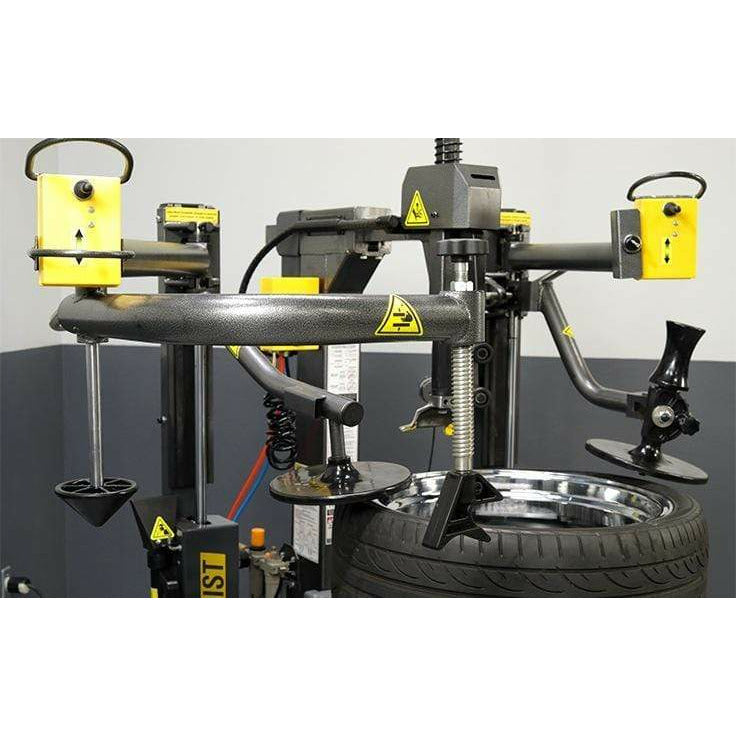

• Power Assist Towers: Dual / Left & Right
• Bead Seating System: Turbo Blast / Bead Seating
• Shipping Dimensions: 45" x 53" x 73" (1,134 mm x 1,346 mm x 1,854 mm)
