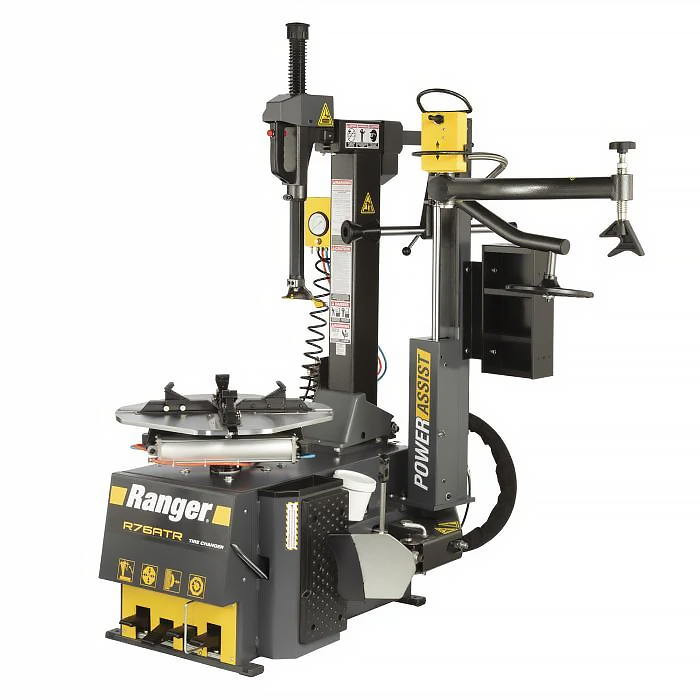

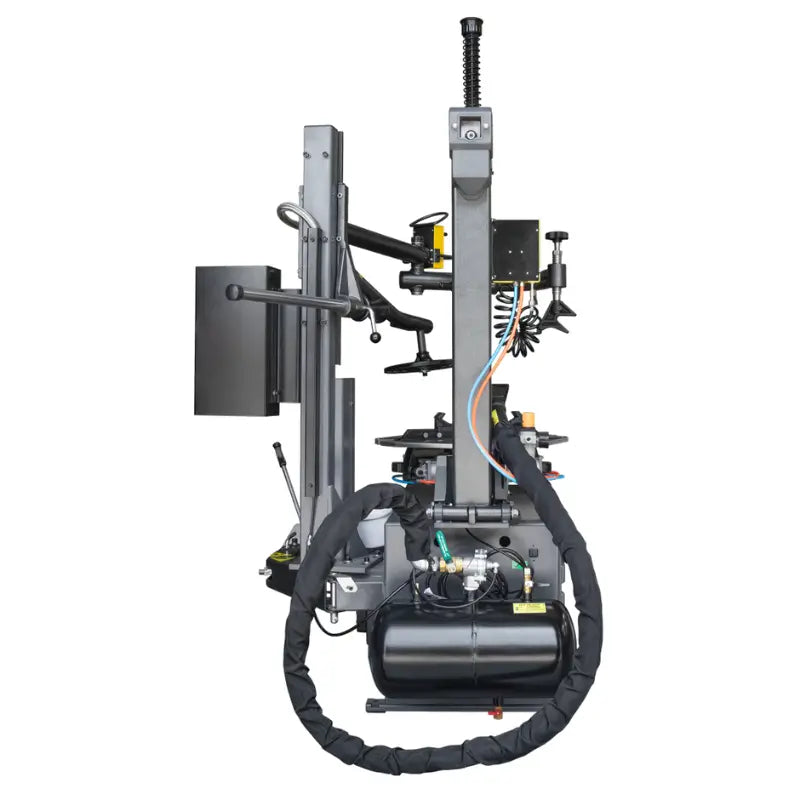

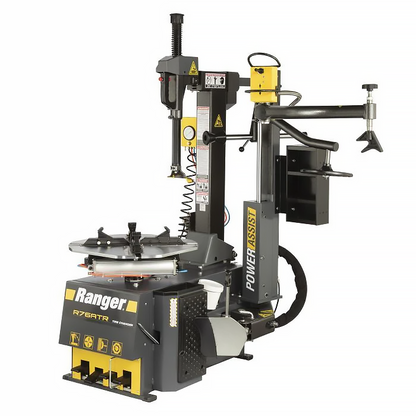

Ranger R76ATR Tilt Back Tire Changer Right-Tower Single Assist

The Ranger R76ATR is designed to save you valuable time while providing the muscle needed for modern wheels. Its smart tilt-back tower lets you handle various tire and wheel sizes without constant adjustments to the duck head. The swing-arm design, paired with a single-tower assist, makes short work of even the most stubborn, stiff sidewall tires. This machine brings together reliable performance and convenient features, making it a powerful and efficient addition to any professional garage.

Specifications

• Shipping Weight: 970 lbs. (440 kg)
• Maximum Tire Diameter: 43" (1,092 mm)
• Assist Type: Single-Tower Assist
• Style: Tilt-Back Tower Design
• Tower Design: Tilt-Back
• Power Assist Tower(s): Single / Right-Side
• Motor: 3 HP (220 VAC 50-60 HZ)
• Drive System Type: Electric / Hydraulic
• Air Requirement: 110-175 PSI (8-12 BAR)
• Internal Rim Clamping Capacity: 10" – 30" (254 mm - 762 mm)
• External Rim Clamping Capacity: 9" – 28" (229 mm - 711 mm)
• Wheel Clamping Method: 4 Clamps - Internal / External
• Table Clamping System: Dual Pneumatic Cylinders
• Bead Breaking System: Adjustable Pneumatic Blade
• Bead Breaker Tire Width Capacity (Demounting): 1.5" – 16" (38 mm – 406 mm)
• Turntable Tire Width Capacity (Mounting): 4" – 18" (102 mm – 457 mm)
• Vertical Shaft / Tool Head: Pneumatic / Locking
• Bead Lifting Roller(s): Single / Right-Side
• Upper Bead Assist Roller: Single / Right-Side
• Shipping Dimensions: 45" x 73" x 51" (1,143 mm x 1,854 mm x 1,295 mm)
