Featuring industry-leading 4K (8 megapixel) resolution recording

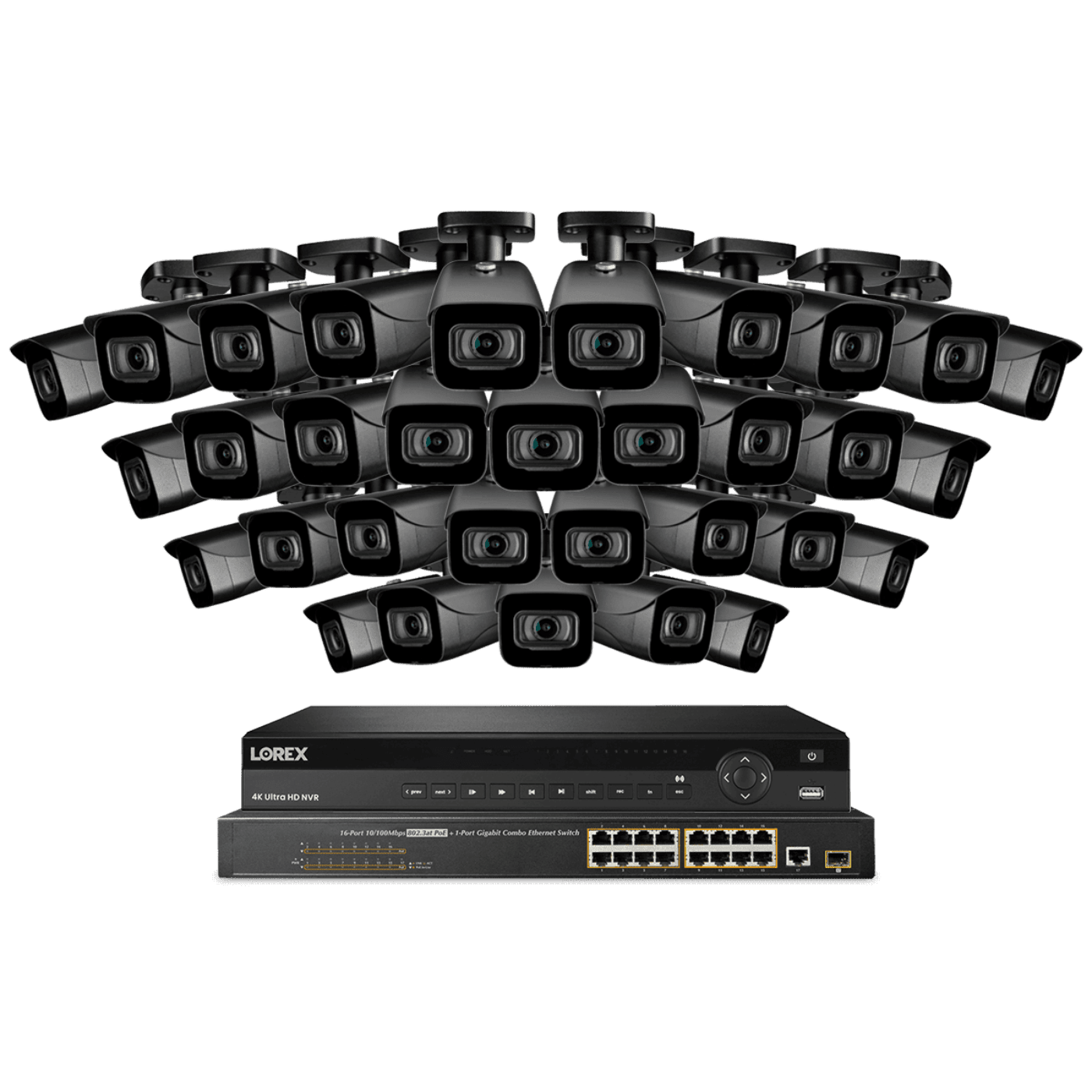

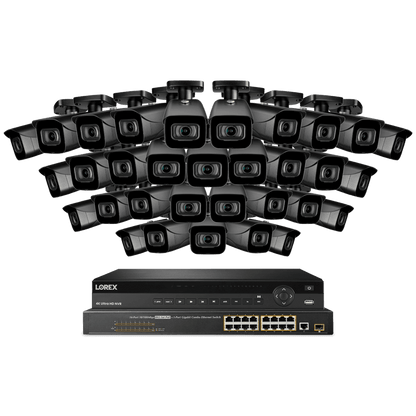

With industry-leading 4K (8 megapixel) resolution, this security camera system from Lorex will bring a whole new level of detail to your security monitoring. It includes a 32-channel Network Video Recorder (NVR), thirty-two 4K (8MP) IP security cameras, and a PoE switch. Whether you are looking to protect your home or small business, this powerful security camera system will help you secure the things that matter most.
Features:

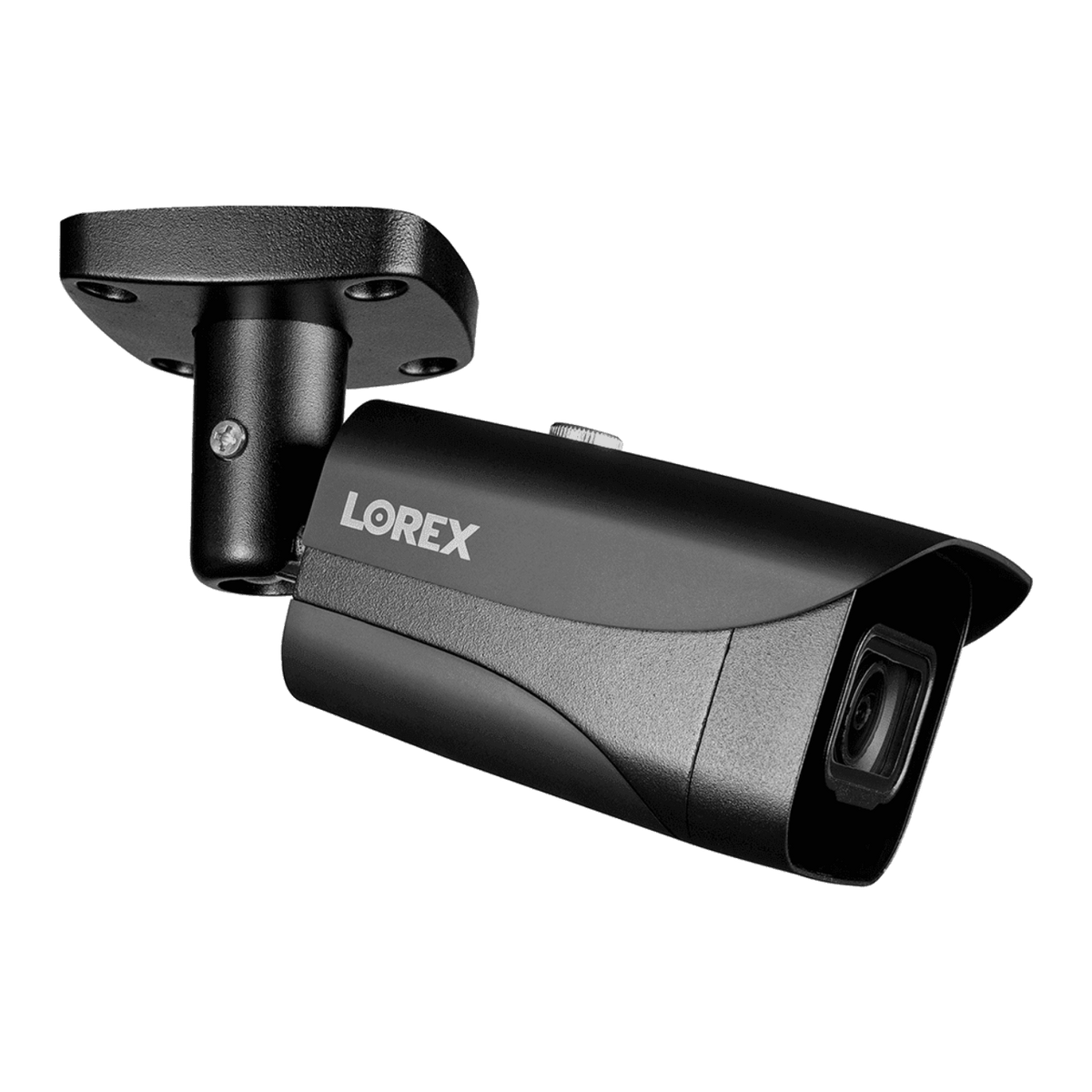

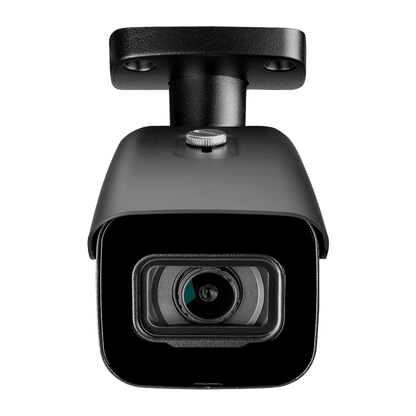

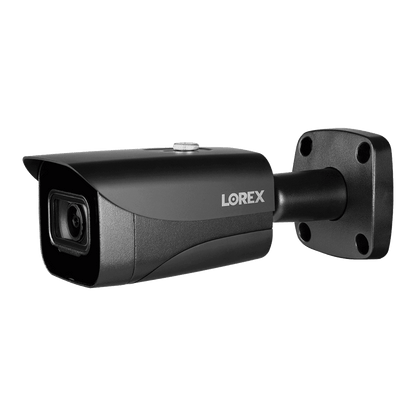

- Thanks to the camera's powerful 8MP image sensor, you'll experience the difference that 4K resolution makes when it comes to your security. 4K means there are more than 8 million pixels, and that results in sharper video and realistic color representation
- This camera features our revolutionary Color Night Vision⢠(CNV) technology, which will produce full-color video with the help of external lighting around the camera. CNV also adds a further level of detail (the color of clothes or cars, for example), and increases contrast for easier detection and recognition of people and objects.
- In regular nighttime conditions that are too dark for CNV to render full-color images, this camera will use it's infrared LEDs to record crisp black and white video footage up to 130ft (40m) away and up to 90ft (27m) in complete darkness.
- Mother Nature is no match for this security camera. Rated IP67, it can endure anything from torrential downpours to freezing snowstorms. So go ahead and place this security camera where you need it most.
- Easily access your Nocturnal security camera system through our innovative Lorex Cloud⢠app for your mobile devices. With this app, you can securely view your security cameras from virtually anywhere in the world, keep track of all motion activity with easy-to-read timelines, and receive push notifications for motion-triggered events.

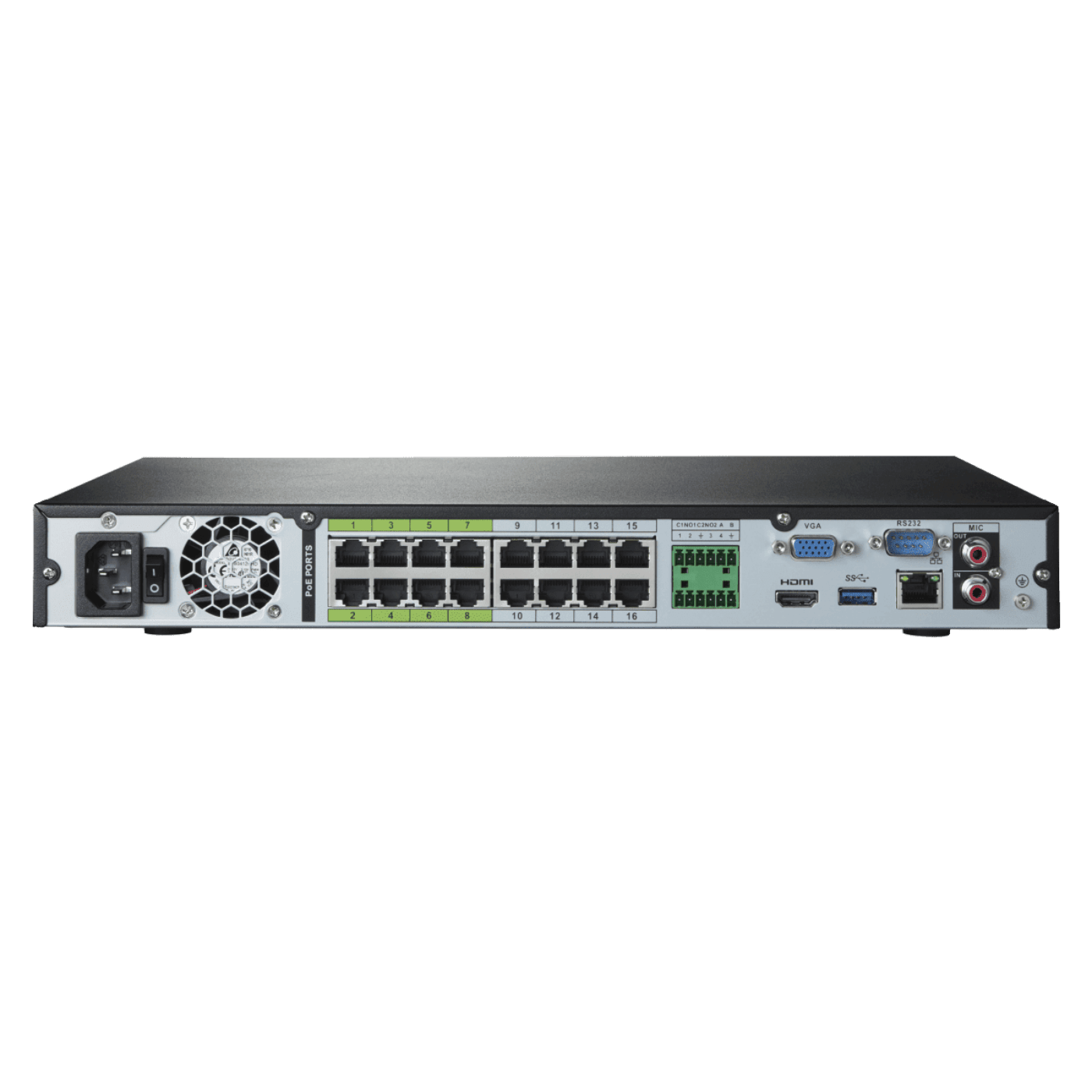

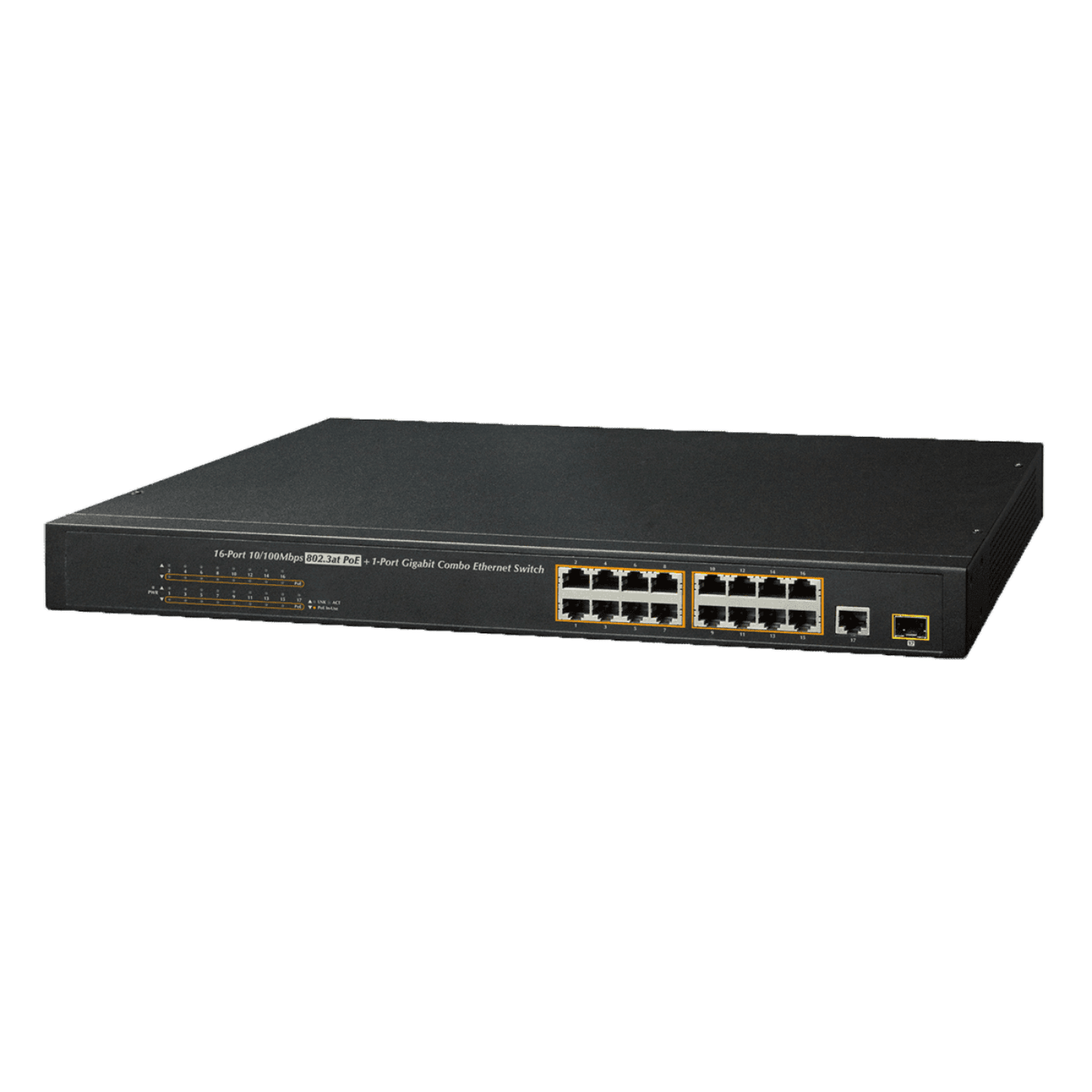

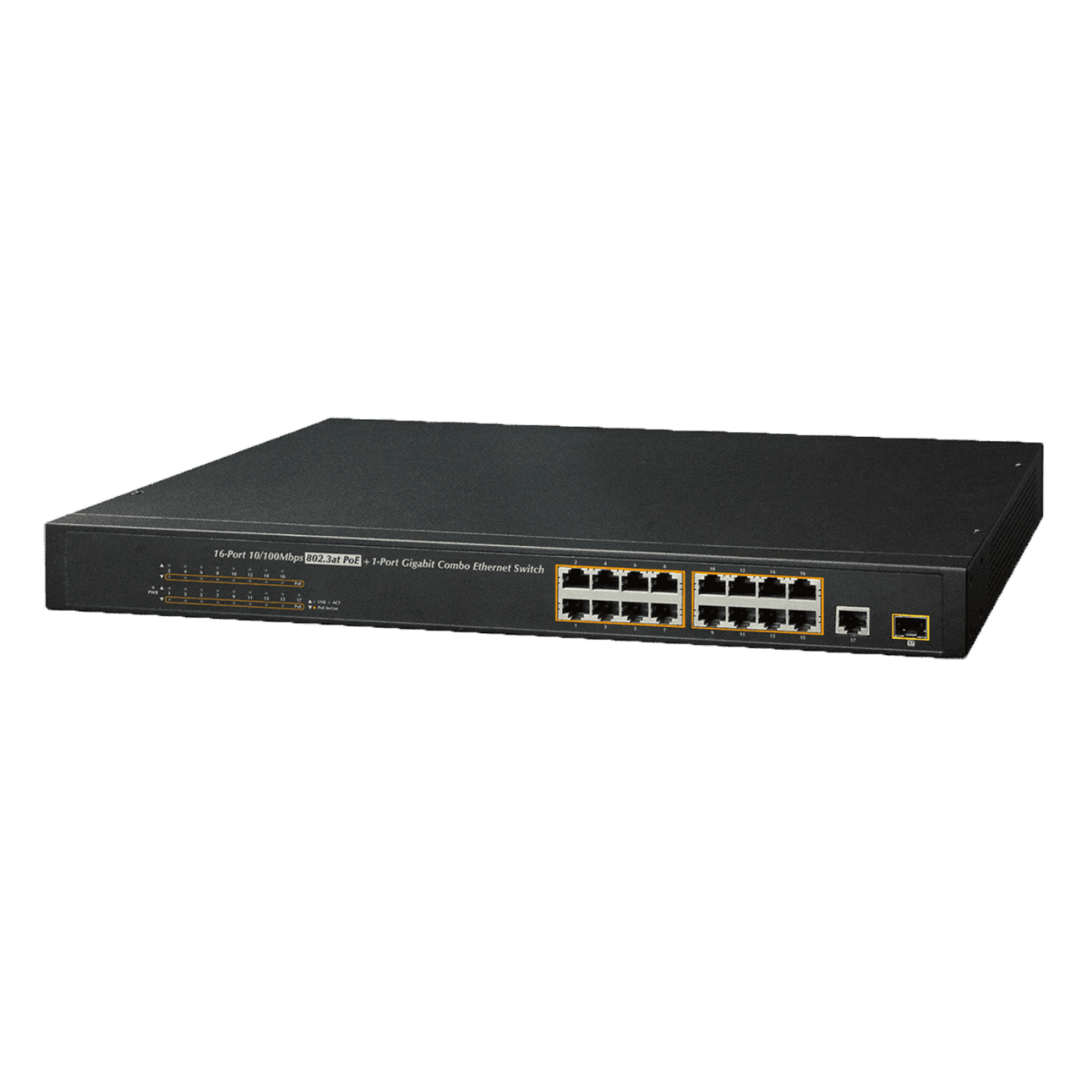

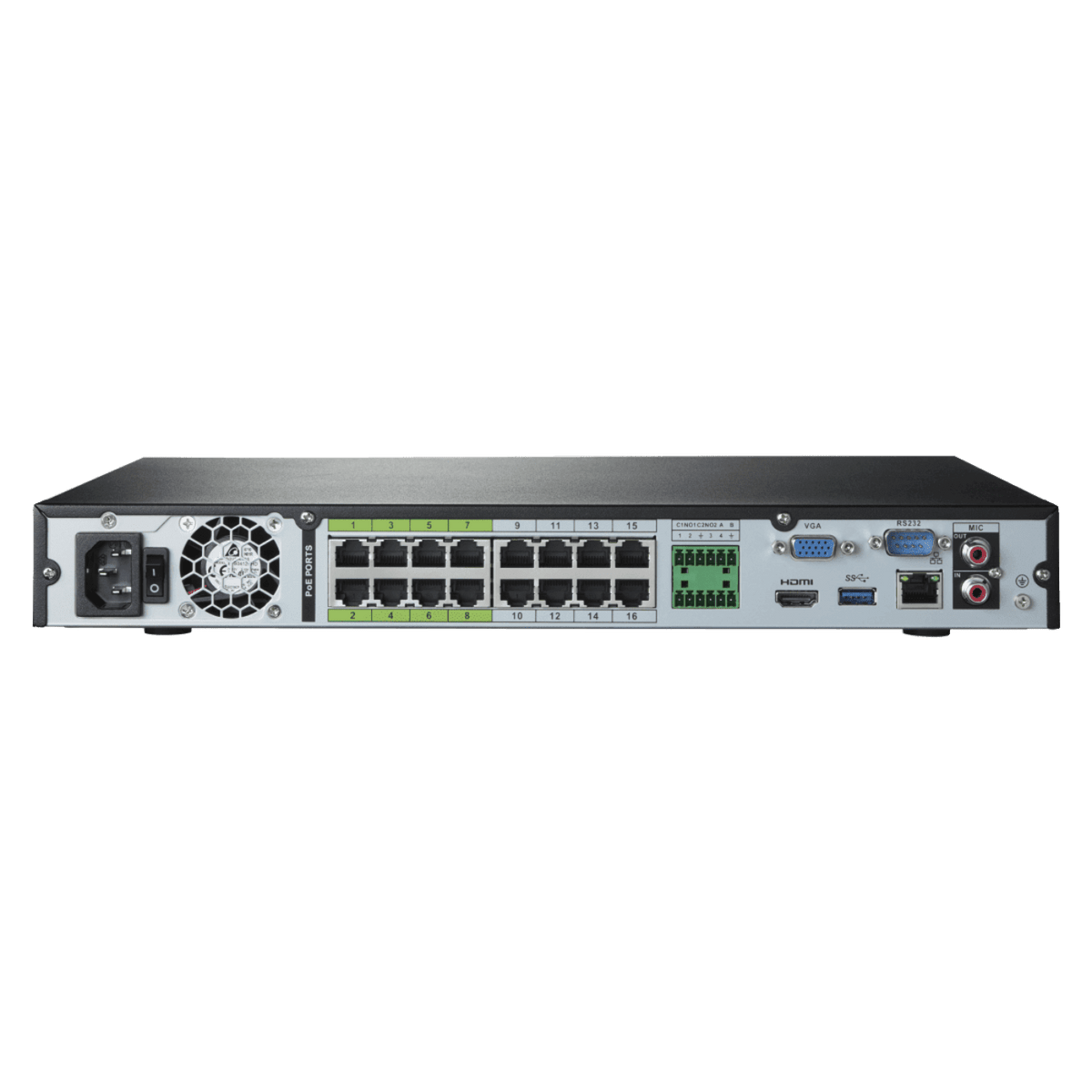

- The 32-channel NVR supports up to 32 security cameras but only has 16 built-in PoE ports on the back. This is why a PoE switch has been included in this system. By connecting this PoE switch to your system you can utilize the remaining open channels.
- Included in the NVR is 8TB security-grade hard drives that have been designed to meet the demands of 24/7 surveillance, while also providing ample storage space for all recorded video footage. With the possibility of increasing storage space up to 20TB (2 Ă 10TB), there is more than enough room to safely store all motion events that only you can access.
Specifications:
| Email Notification |
Text and Snapshot |
| PC/Mac Remote Viewing |
Yes /Lorex Cloud |
| Network Interface |
1000 Base-TX (Gigabit), RJ45 |
| Network Bit Rate |
320Mbps total |
| DDNS |
Yes (Optional) |
| USB interface |
USB 2.0 Ă 2 |
| FW Upgrade |
USB/Network |
| Watchdog Function |
Yes |
| Power Consumption |
Approx. 15W (no HDD included) |
| Supply Voltage |
100VAC-240VAC, 50/60hz |
| Total PoE Power Output |
16 PoE: Max 25.5W for single port, 220W total |
| Unit Dimensions (W Ă D Ă H) |
14.7 Ă 12.9 Ă 2.1â / 375 Ă 327 Ă 53mm |
| Unit Weight |
5.8lb / 2.6kg (without HDD) |
| Operating Temperature |
14° ~ 131°F / -10° ~ 55°C |
| Humidity |
10 ~ 90% RH |
| Video Transmission Technology |
IP |
| Channels |
16, 32 channel (32ch. includes 16ch. PoE Switch) |
| Video Input |
16ch: 16 x PoE |
| Video Outputs |
1 Ă VGA/1 x HDMI |
| Audio Input |
1 Ă RCA |
| Audio Output |
1 Ă RCA |
| Alarm In |
4 channels |
| Alarm out |
2 channels |
| Display Output Resolution |
Up to 4K UHD, Auto Detect |
| Live Display |
16ch: 1/4/8/9/16 32Ch: 1/4/8/9/16/25/32 |
| Live Display Speed (Max) |
Up to 4ch 4K@30fps |
| OSD |
On/Off |
| System Navigation |
USB Mouse, Front Panel Buttons |
| Recording Resolution |
4K (8MP)/5MP/4MP/3MP/1080p/720p |
Â
Packages Include:
- 4K Ultra HD NVR

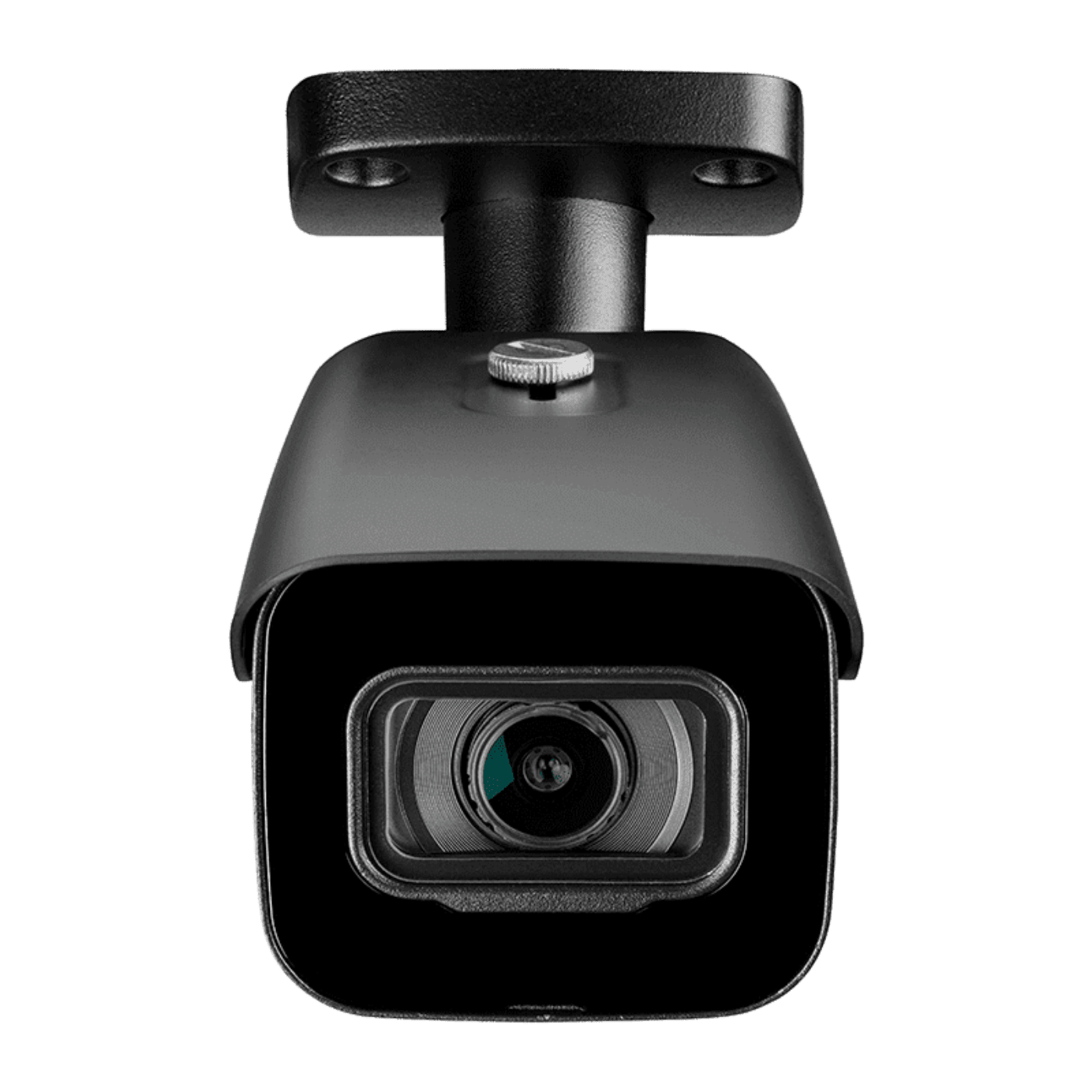

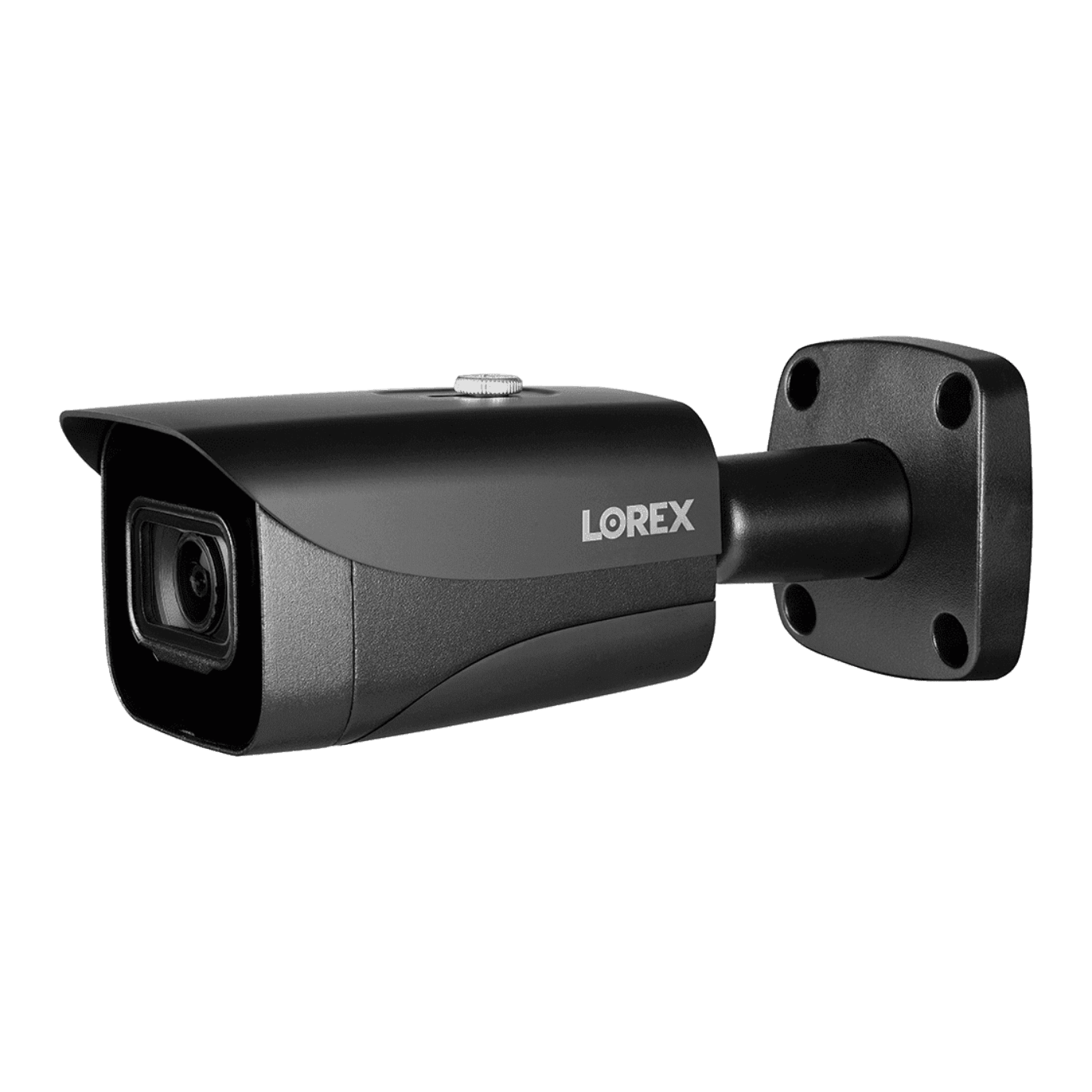

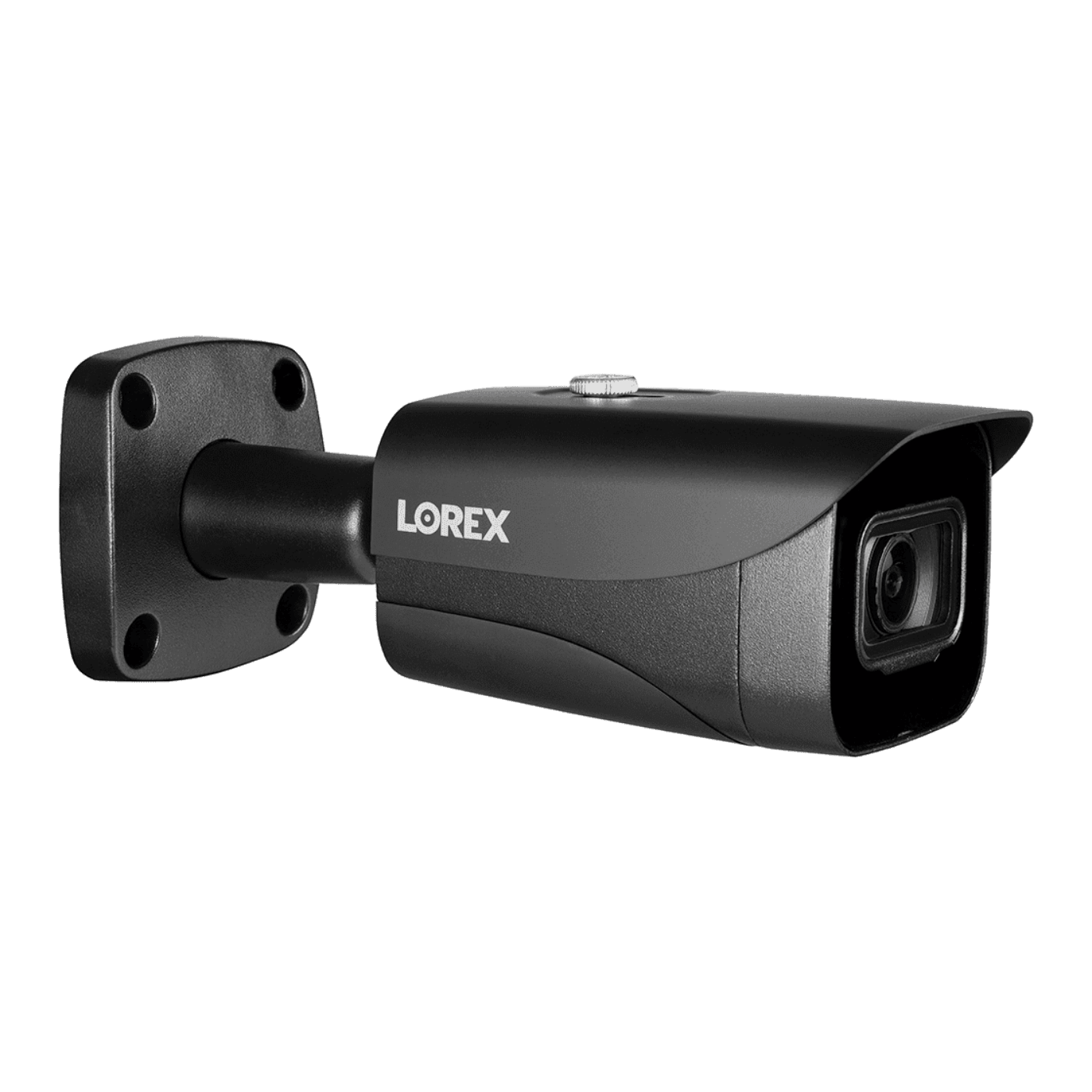

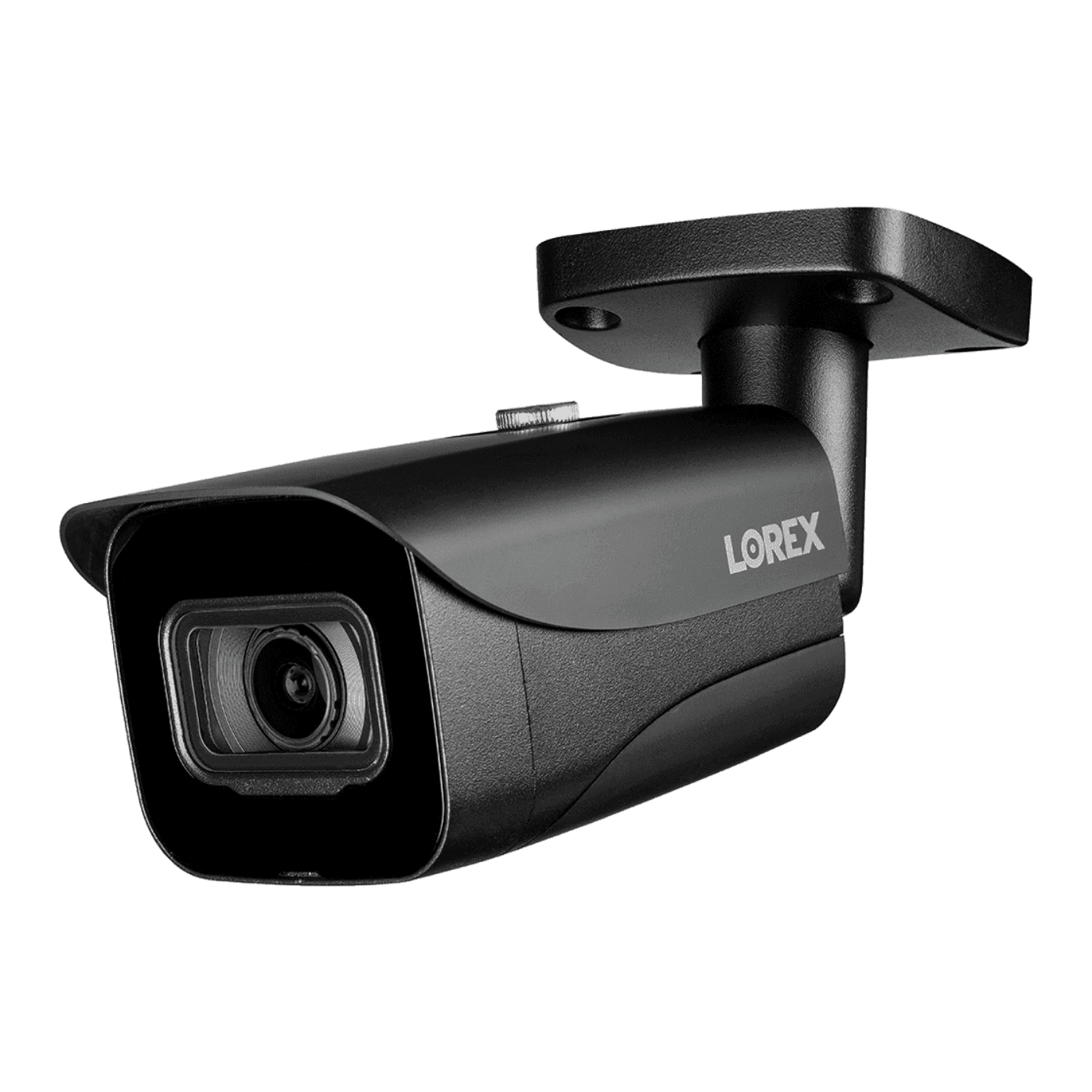

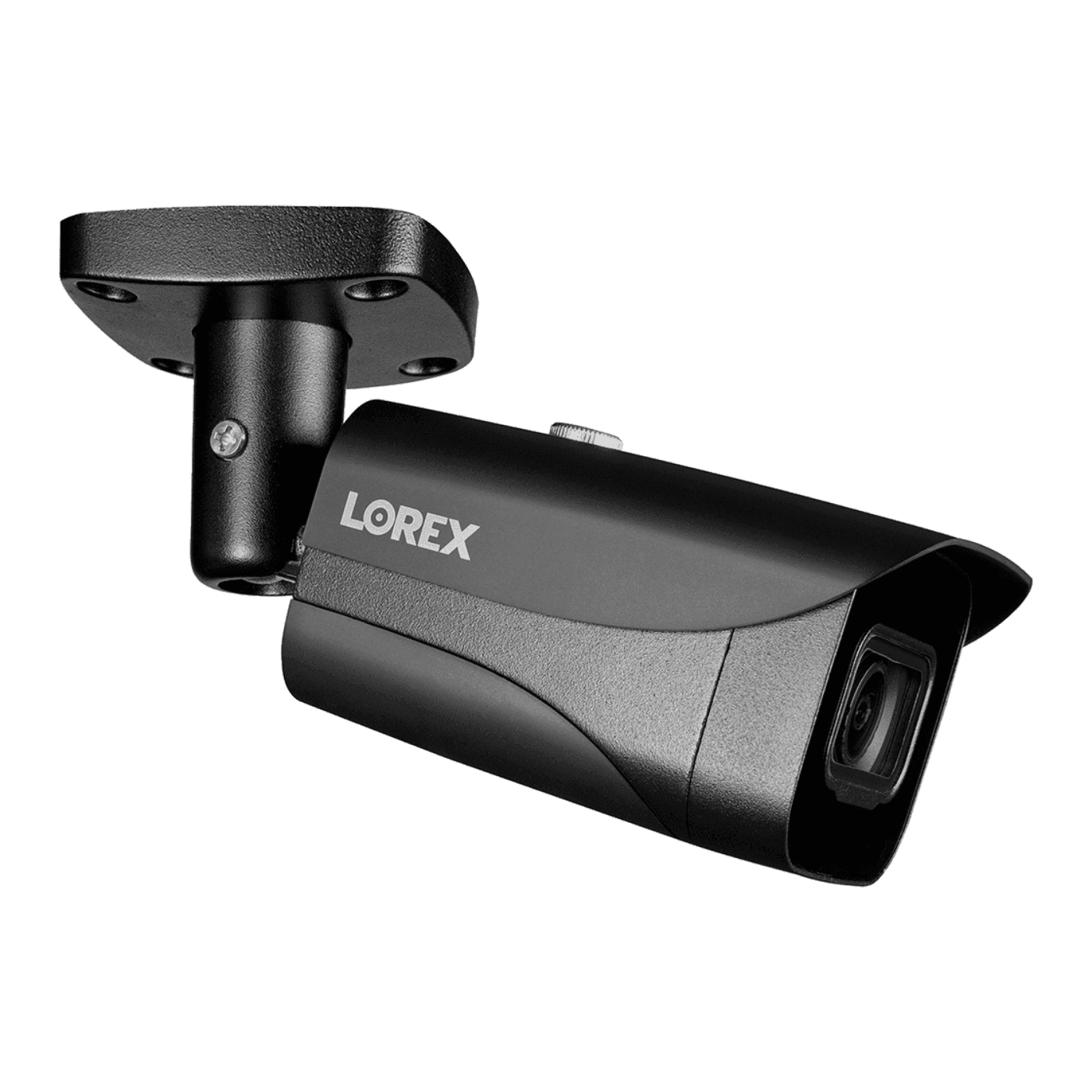

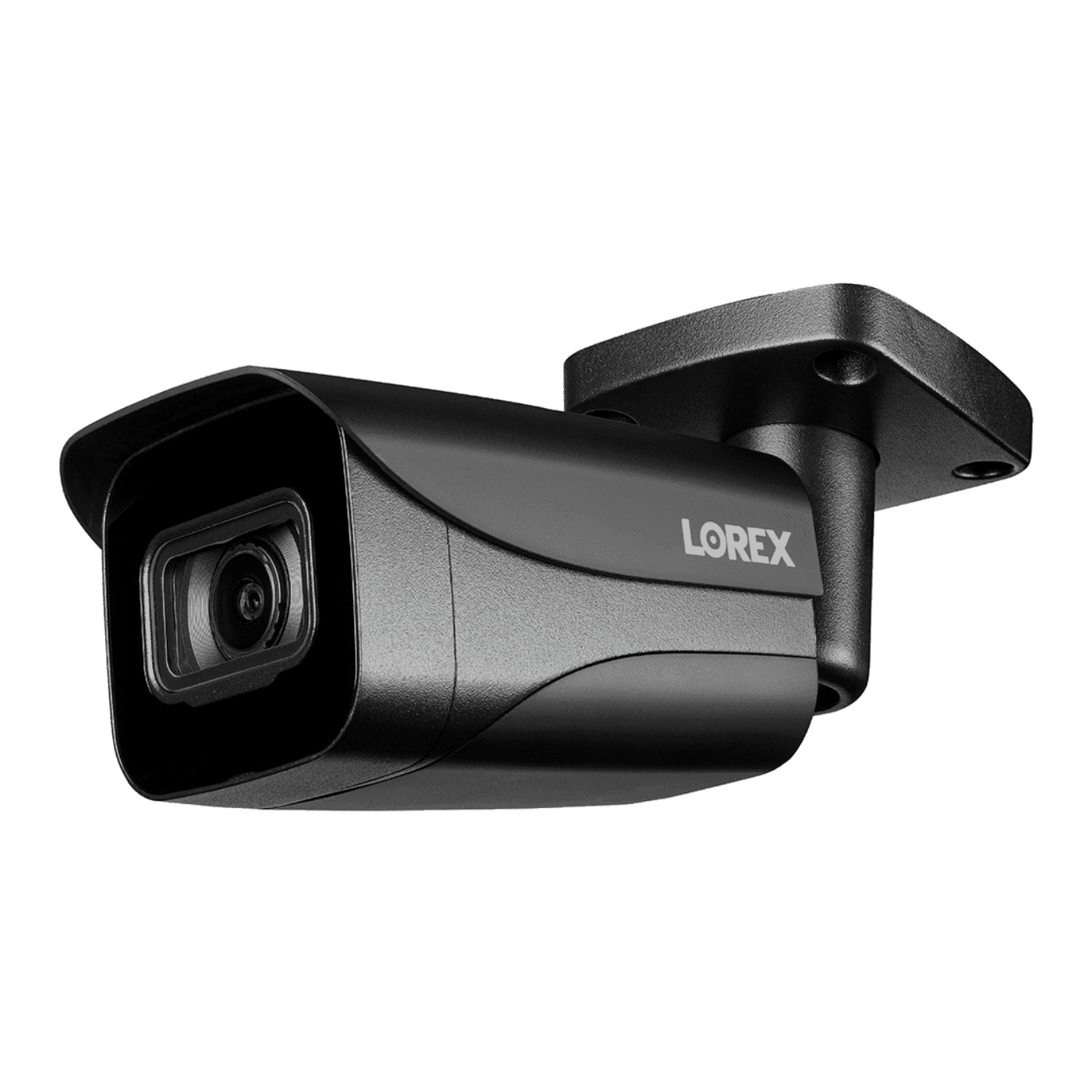

- 4K Ultra HD Bullet Cameras
- 16 Channel PoE switch
- 100ft Cat5e Cable
- Mounting template
- Power adapter
- Ethernet cable
- HDMI cable
- Mouse
- Security decal
- Quick Start Guides
- Manual
Product Manual:
 â  NC4K8-3232BB User Manual
â Â NC4K8-3232BBÂ Data Sheet
â Â NC4K8-3232BBÂ Camera Quick Start Guide
â Â NC4K8-3232BBÂ Camera Spec Sheet
Â
Delivery:
Order shipment preparation takes 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.
