Lorex 16-Channel Fusion NVR System with Sixteen 4K (8MP) IP Cameras Security Surveillance System New N4K3-1616WB

FREE SHIPPING Save 15%
Lorex
Price:
$1,283.99 $1,509.99
American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard Shop Pay Visa

Description

Featuring industry-leading 4K (8 megapixel) resolution recording

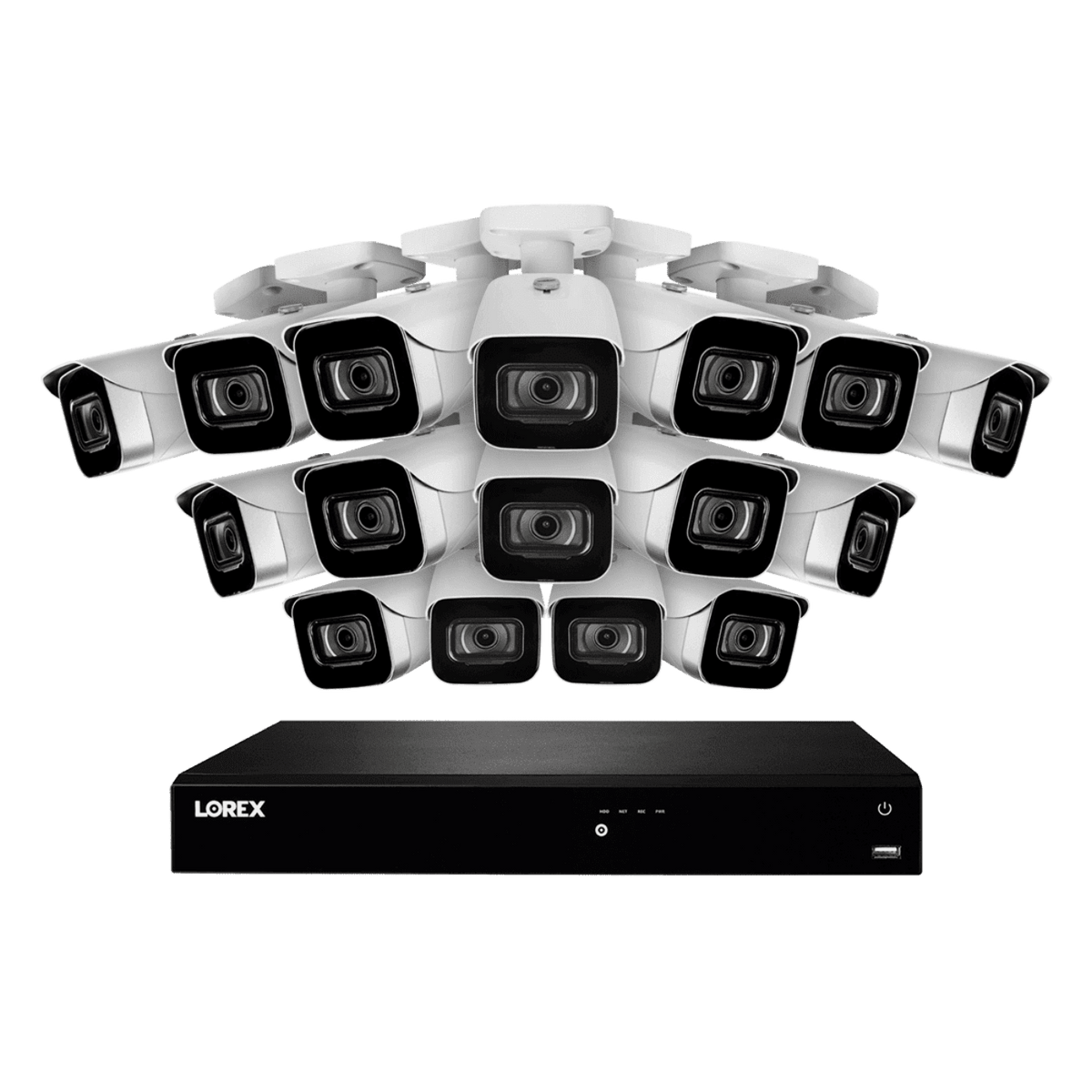

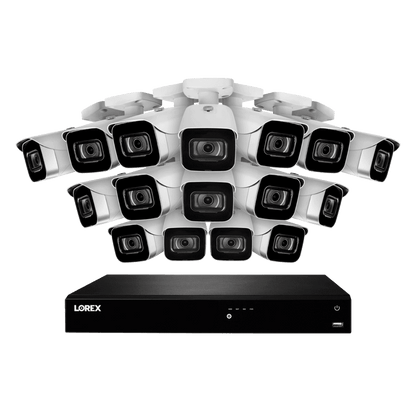

With industry-leading 4K (8 megapixel) resolution, this security camera system will bring a whole new level of detail to your security monitoring. It includes a 16-channel Network Video Recorder (NVR) and sixteen 4K bullet security cameras with Color Night Vision. So whether you are looking to protect your home, small business or commercial property, this powerful security camera system will help you secure the things that matter most.

  • A 3TB security grade hard drive (expandable up to 2 × 8TB) comes preinstalled within this NVR. Designed to meet the high workload demands of continuous security monitoring, this heavy-duty hard drive can reliably record weeks (even months) of footage without taking a break. All recorded footage is then safely stored on the hard drive where only you can access it, so there are no surprise fees or monthly cloud subscriptions.
  • Get faster access to you security system with hands-free voice control. Use simple voice commands to activate camera features with Amazon Alexa™ and Google Assistant™. Use it with Chromecast or Firestick to monitor your security camera footage on a larger screen. You can also download the Lorex Home app on your Apple TV* to view live video in single or multiple feeds, or playback recorded footage. For more information about current smart home integrations, visit our Smart Home Guide.

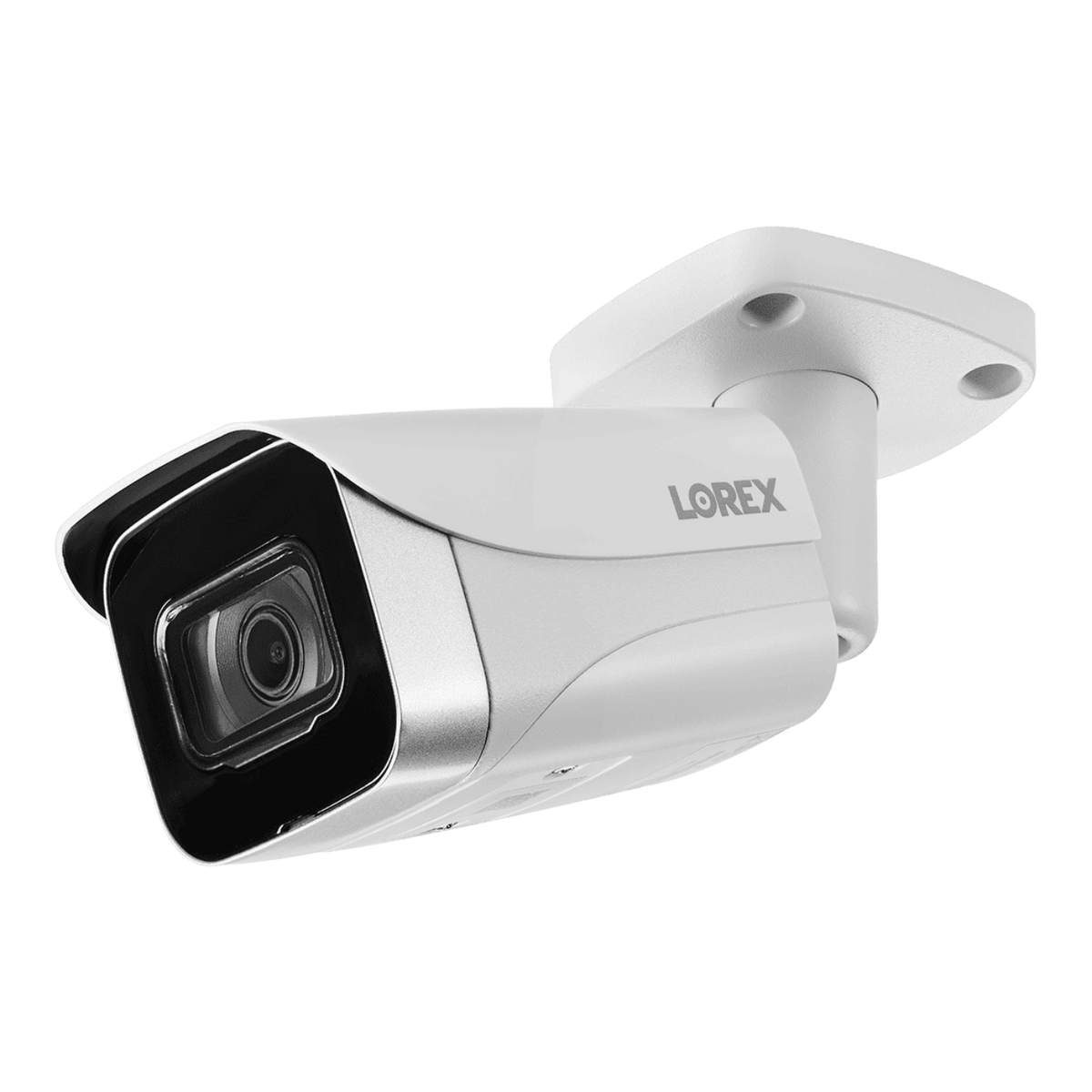

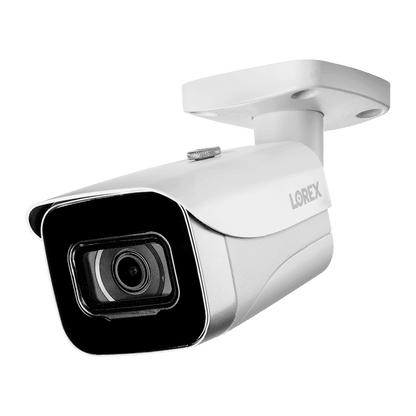

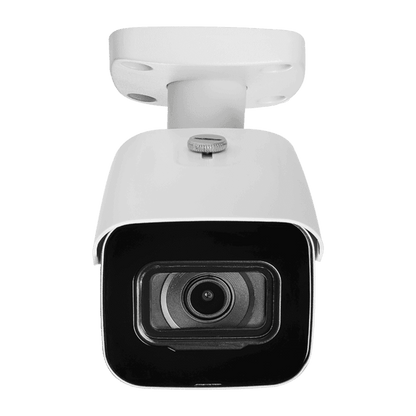

  • Thanks to the camera's powerful 8MP image sensor, you'll experience the difference that 4K resolution makes when it comes to your security. 4K means there are more than 8 million pixels, and that results in sharper video and higher quality digital zooms to capture the details you need.
  • This camera features our revolutionary Color Night Vision™ (CNV) technology, which will produce full-color video with the help of external lighting around the camera. CNV also adds a further level of detail (the color of clothes or cars, for example), and increases contrast for easier detection and recognition of people and objects.
  • In regular nighttime conditions that are too dark for CNV to render full-color images, this camera will use it's infrared LEDs to record crisp black and white video footage up to 130ft (40m) away and up to 90ft (27m) in complete darkness.
  • This security camera only needs a single Cat5e ethernet cable to connect it to the NVR. This cable provides video transmission, power to the camera, a stable network connection, and installation flexibility up to 300ft (as the camera does not need to be plugged into a nearby power source).
  • This security camera is equipped with High-Efficiency Video Encoding (HEVC) or H.265 video compression. This encoding technology efficiently compresses file sizes. In fact, it can compress file sizes up to 50% more than files using the previous encoding technology (H.264), without any noticeable degradation in quality. HEVC encoding will also save you plenty of bandwidth while watching live or recorded video remotely.
  • Mother Nature is no match for this security camera. Rated IP67, it can endure anything from torrential downpours to freezing snowstorms. So go ahead and place this security camera where you need it most.
  • Find what you are looking for quickly with Lorex's Area Search. Select an area of interest and automatically playback any video footage showing scene changes in that area. Ideal for doorways, drive ways, etc.
  • This NVR comes with two separate hard drive bays. Each of which can be upgraded with a hard drive up to 8TB, giving you the potential for a total of 16TB's of storage space. You can also use the second hard drive to record videos in parallel with the primary hard drive. This way, the footage is automatically backed up.
Voice Control Amazon Alexa™, Google Assistant™ Streaming Options Chromecast™, Apple TV™, Amazon Echo Show™, Google Home Hub™, Lenovo Smart Display™
Mobile Viewing Android, iOS
Compatible APP Lorex Home™
PC/Mac Remote Viewing Yes/Lorex Cloud™
Email Notification Text and Snapshot
Network Interface 1000 Base-TX, RJ45
Network Bit Rate 200 Mbps total
DDNS Yes (Optional)
USB interface USB 2.0 × 2
FW Upgrade USB/Network
Watchdog Function Yes
Power Consumption Approx. 13.2W (no HDD included)
Supply Voltage 100VAC-240VAC, 50/60hz, DC48V/2A
Total PoE Power Output PoE: Max 25.5W for single port, 130W total9
Unit Dimensions (W × D × H) 14.7 x 12.9 x 2.1” / 375 x 327 x 53 mm
Unit Weight 5.8 lbs / 2.6 kg (excl. HDD)
Operating Temperature 14° ~ 131°F / -10° ~ 55°C
Humidity 10 ~ 90% RH
Video Transmission Technology IP
Channels 16 Channels
Video Input 16 x PoE
Video Outputs 1 × VGA/1 × HDMI
Audio Input ch: RCA type
Audio Output ch: RCA type
Alarm IN 4 channels
Alarm OUT 2 channels
Display Output Resolution Up to 4K UHD, Auto Detect
Live Display 1,4,8, 9,16
Live Display Speed (Max) up to 4ch 4K@15fps
OSD On/Off
System Navigation USB Mouse
Recording Resolution 4K (8MP)/5MP/3MP/ 1080p/720p



  1. 4K Capable HD NVR
  2. 4K Ultra HD Bullet Cameras
  3. 100ft Cat5e Cable
  4. Mounting template
  5. Power adapter
  6. Ethernet cable
  7. HDMI cable
  8. Mouse
  9. Security decal
  10. Quick Start Guides
  11. Manual

 ✓ N4K3-1616WB User Manual

✓ N4K3-1616WB Data Sheet

✓ N4K3-1616WB Camera Quick Start Guide

✓ N4K3-1616WB Camera Spec Sheet

  • 4K Ultra HD Clarity: Sixteen 4K (8MP) IP cameras provide sharp, detailed footage for unmatched image quality.
  • All-in-One System: Includes 16 cameras to deliver full property coverage, perfect for large-scale surveillance.
  • Fusion Capabilities: Combines wired and wireless devices effortlessly, providing flexibility in setup and expansion.
  • Enhanced Night Vision: Ensures crystal-clear monitoring, even in complete darkness or challenging lighting.
  • Weatherproof Design: Durable, weather-resistant cameras for reliable outdoor and indoor use.
  • High Storage Capacity: Comes with a pre-installed hard drive for long-term, continuous, or event-based recording.
  • Smart Integration: Remote access via mobile apps and compatibility with voice assistants for real-time control.

Q: What is the Lorex 16-Channel Fusion NVR System designed for?
A: It’s a high-capacity surveillance system designed to secure large properties with 16 channels and 16 4K (8MP) IP cameras for complete coverage.

Q: What resolution do the cameras offer?
A: The cameras provide ultra-HD 4K (8MP) resolution, delivering sharp and detailed video for enhanced security.

Q: What makes the Fusion NVR system unique?
A: The system allows integration of both wired and wireless Lorex devices, offering flexibility and scalability for custom security setups.

Q: Are the cameras weatherproof?
A: Yes, the cameras are weather-resistant, suitable for both indoor and outdoor use, ensuring reliable performance in various conditions.

Q: Why choose this system?
A: With 16 cameras, 4K clarity, and Fusion technology, it’s an ideal solution for securing homes, businesses, or commercial properties requiring extensive surveillance.

Let me know if you’d like further adjustments

  • Firmware Updates: Keep the NVR and cameras updated to ensure security and optimal performance.
  • Lens Cleaning: Gently clean camera lenses with a microfiber cloth to maintain 4K video clarity.
  • Cable Inspection: Regularly check cables and connections for wear, damage, or looseness.
  • Storage Management: Monitor hard drive capacity and replace it as needed to avoid data loss.
  • Backup Footage: Schedule backups of important recordings to external drives or cloud storage.
  • System Testing: Periodically test all 16 cameras, motion detection, and system notifications.
  • Camera Placement: Adjust angles to ensure comprehensive coverage and minimize blind spots.
  • Weather Protection: Confirm outdoor cameras and cables are properly weather-sealed.
  • Secure Access: Use strong, unique passwords and enable encryption for remote access
