Lorex 16-Channel Fusion NVR System with Sixteen 4K (8MP) IP Cameras Security Surveillance System New N4K3-1616WB

FREE SHIPPING Save 15%
Lorex
Price:
$1,283.99 $1,509.99
American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard Shop Pay Visa

Description

Featuring industry-leading 4K (8 megapixel) resolution recording

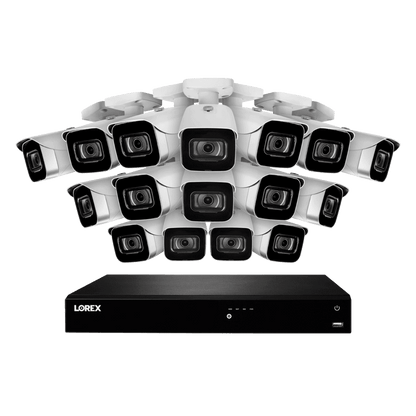

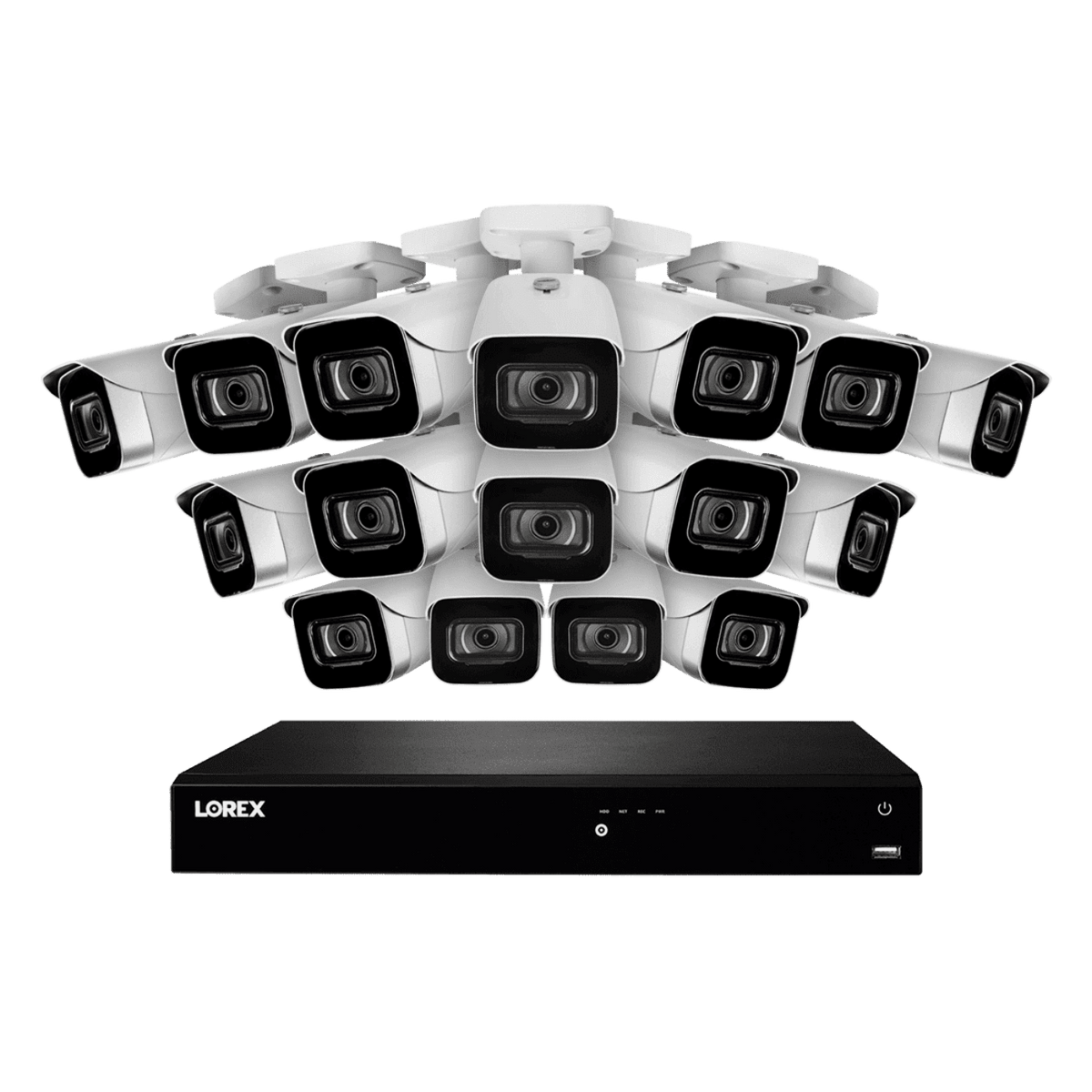

With Industry-leading 4K (8 megapixel) resolution, this security camera system from Lorex will bring a whole new level of detail to your security monitoring. It includes a 32-channel Network Video Recorder (NVR), sixteen 4K (8MP) IP security cameras, and a PoE switch to accomodate the remaining sixteen channels. Whether you are looking to protect your home or small business, this powerful security camera system will help you secure the things that matter most.

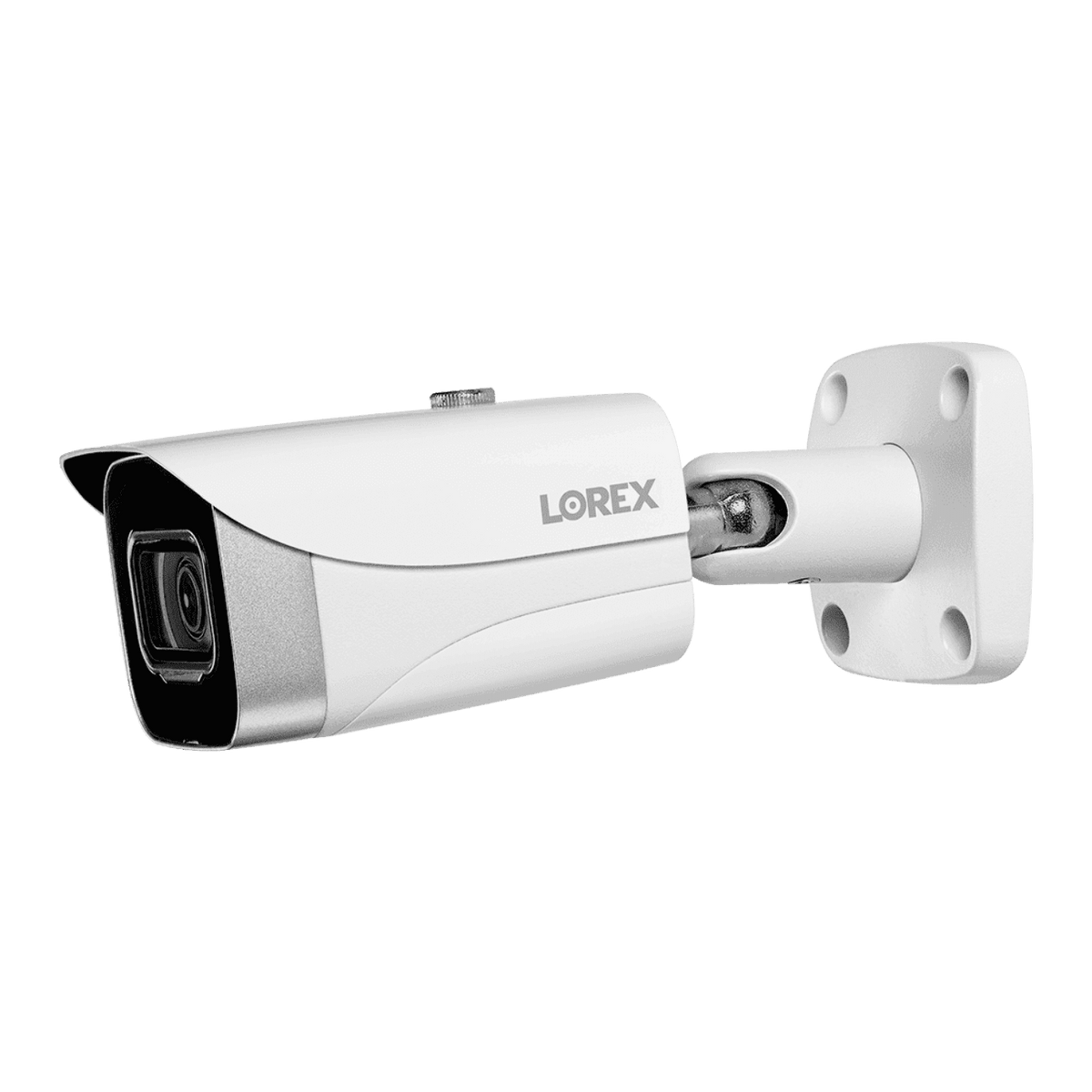

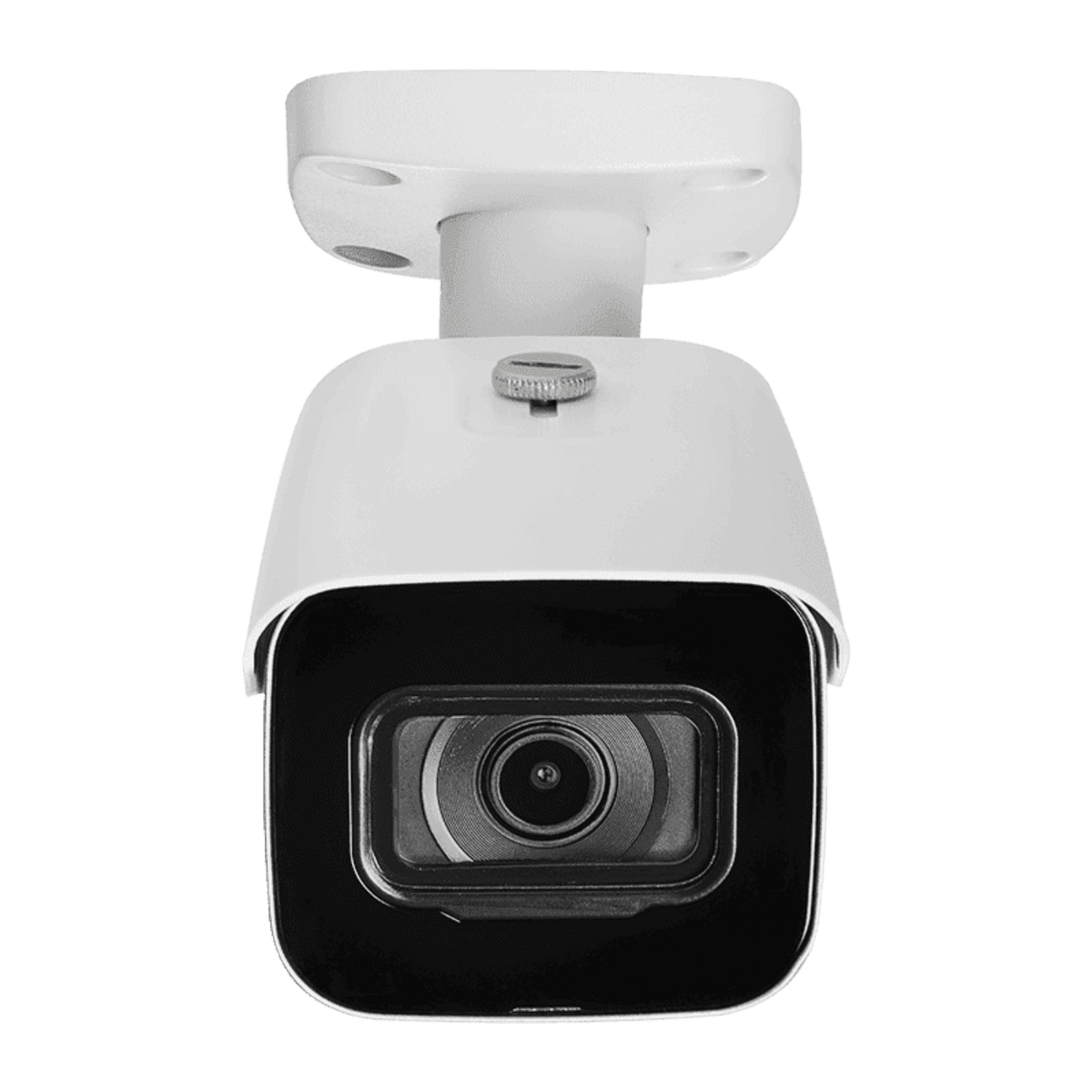

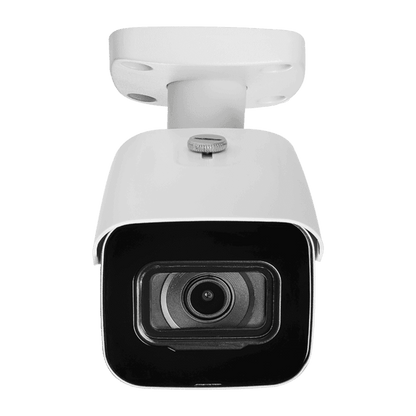

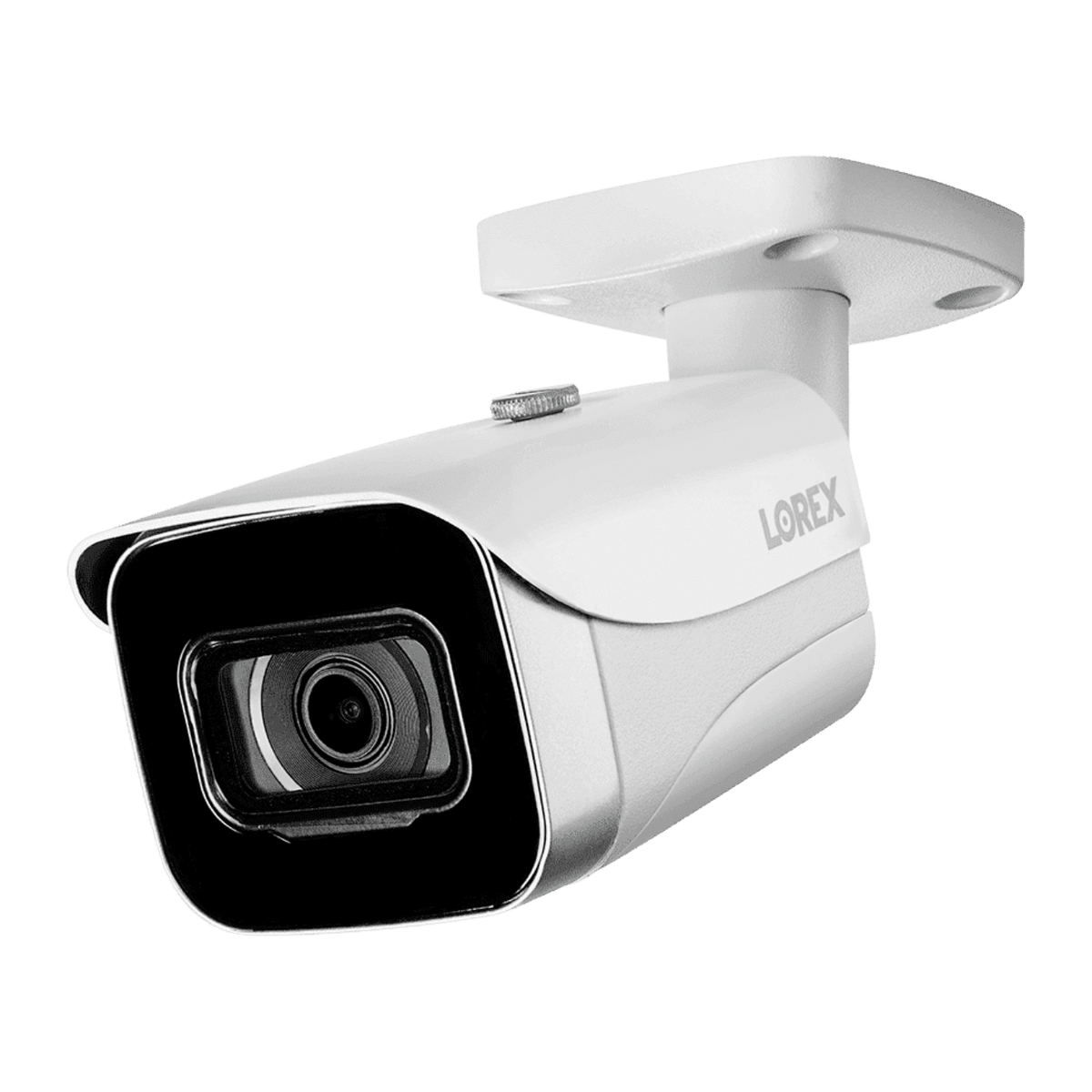

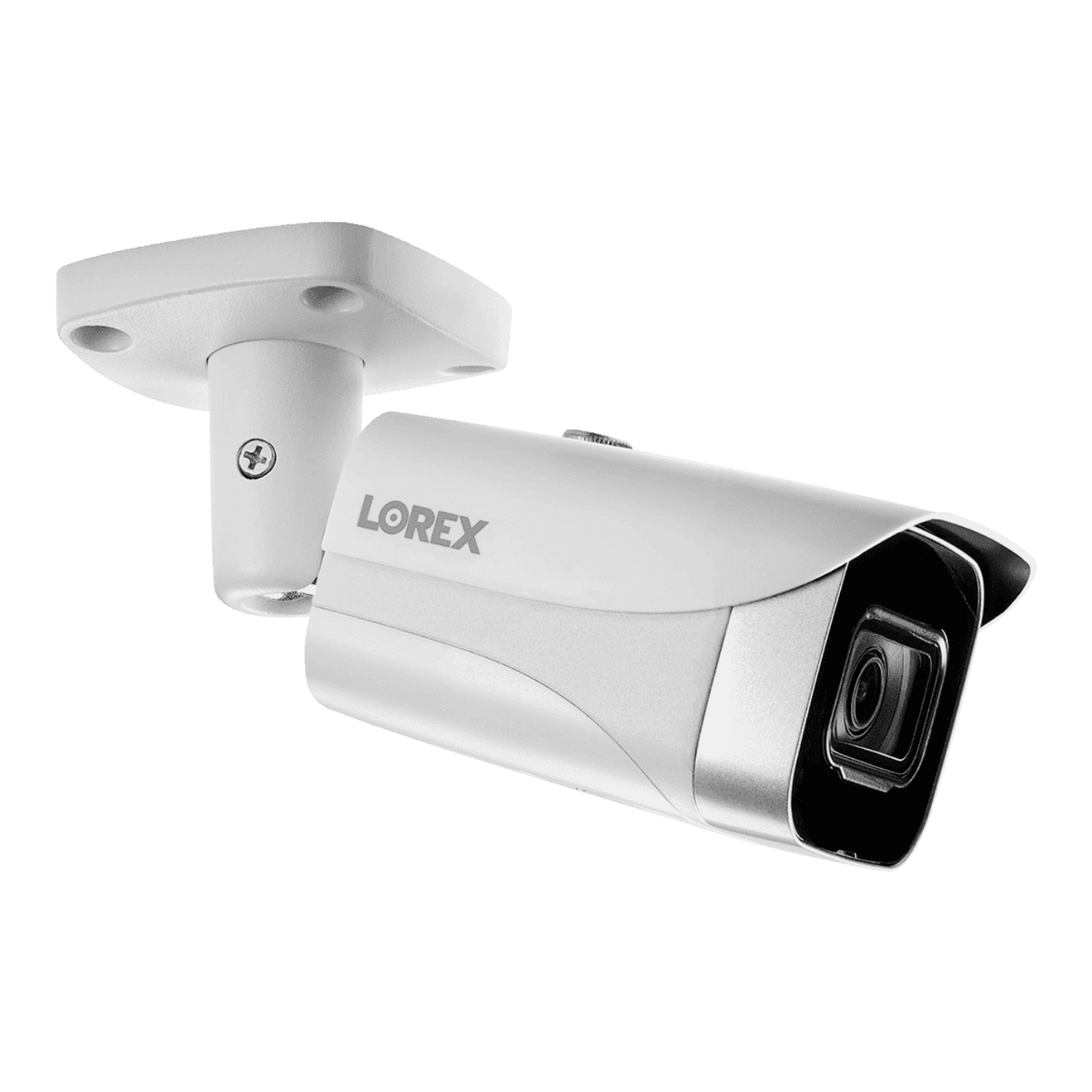

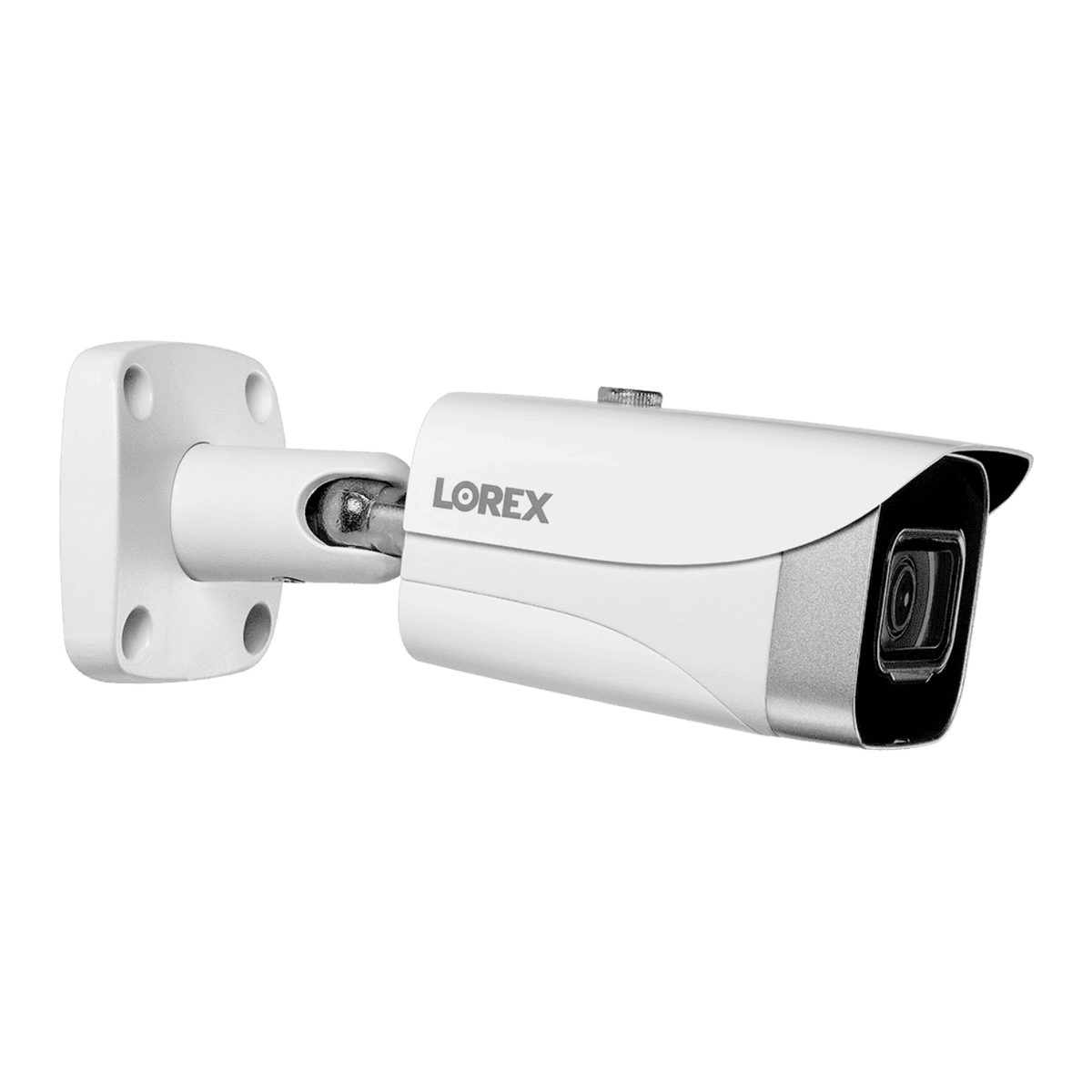

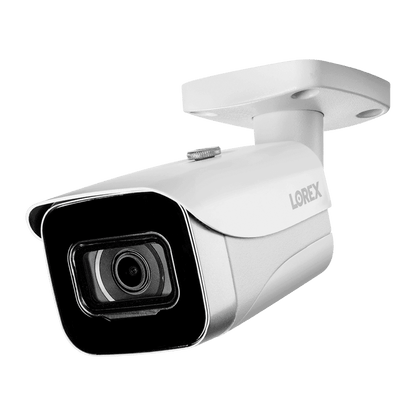

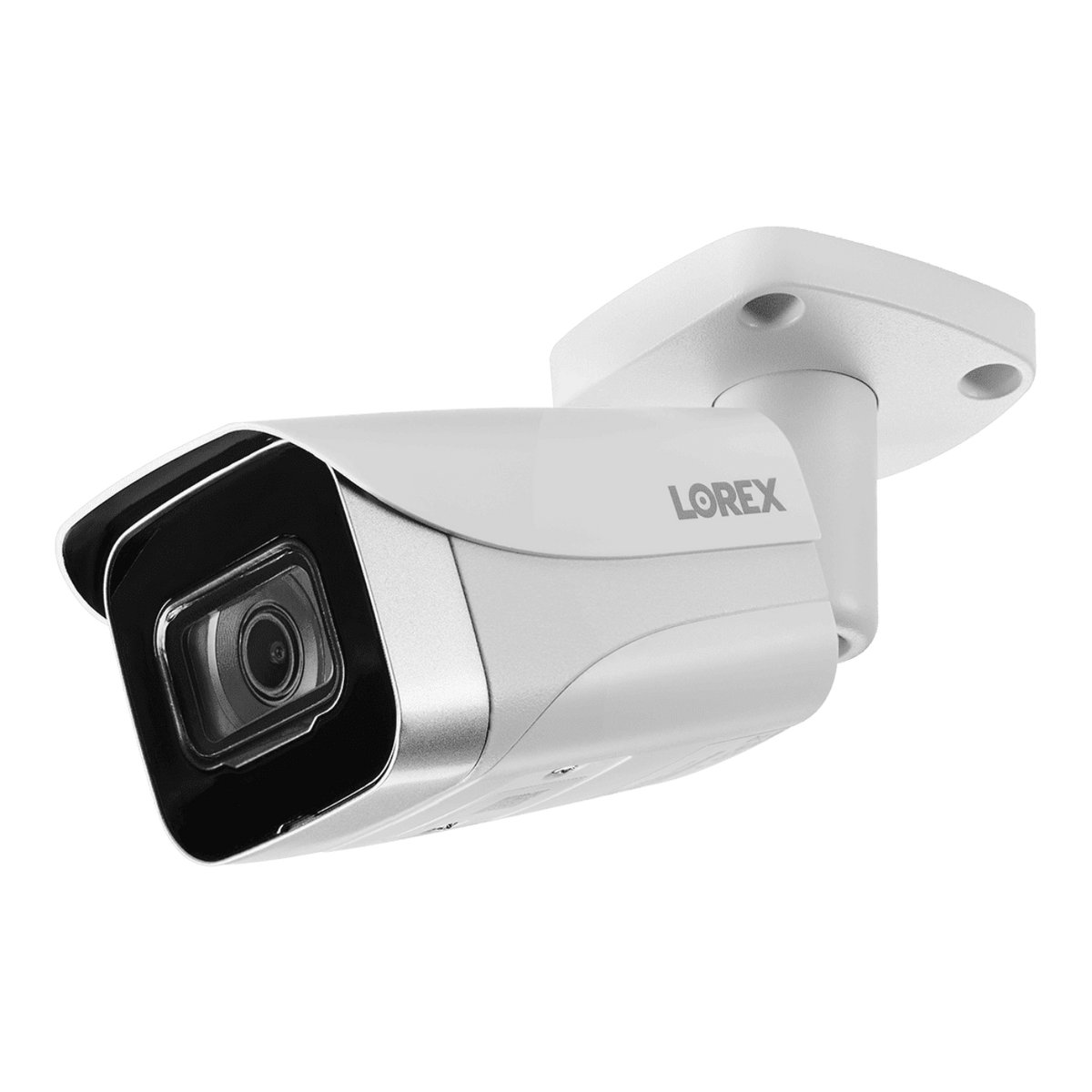

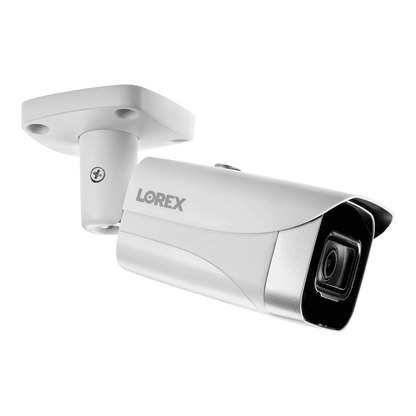

  • Thanks to the camera's powerful 8MP image sensor, you'll experience the difference that 4K resolution makes when it comes to your security. 4K means there are more than 8 million pixels, and that results in sharper video and realistic color representation
  • This camera features our revolutionary Color Night Vision™ (CNV) technology, which will produce full-color video with the help of external lighting around the camera. CNV also adds a further level of detail (the color of clothes or cars, for example), and increases contrast for easier detection and recognition of people and objects.
  • In regular nighttime conditions that are too dark for CNV to render full-color images, this camera will use it's infrared LEDs to record crisp black and white video footage up to 130ft (40m) away and up to 90ft (27m) in complete darkness.
  • Mother Nature is no match for this security camera. Rated IP67, it can endure anything from torrential downpours to freezing snowstorms. So go ahead and place this security camera where you need it most.
  • Easily access your Nocturnal security camera system through our innovative Lorex Cloud™ app for your mobile devices. With this app, you can securely view your security cameras from virtually anywhere in the world, keep track of all motion activity with easy-to-read timelines, and receive push notifications for motion-triggered events.

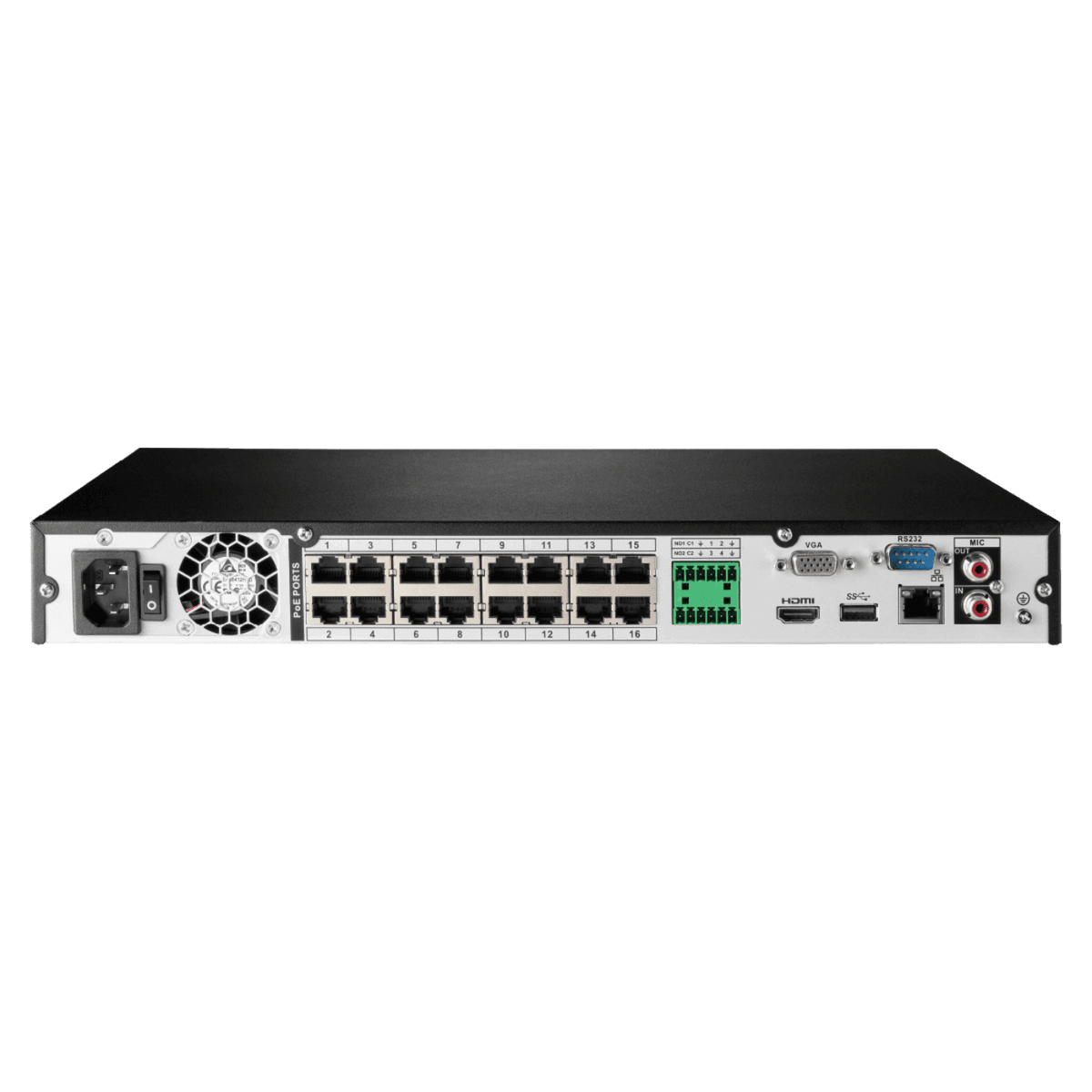

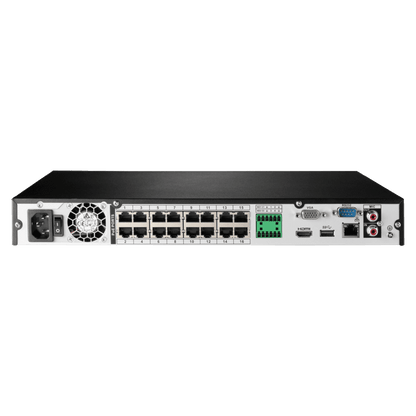

  • The 32-channel NVR supports up to 32 security cameras but only has 16 built-in PoE ports on the back. This is why a PoE switch has been included in this system. By connecting this PoE switch to your system you can utilize the remaining open channels.
  • Included in the NVR is 8TB security-grade hard drives that have been designed to meet the demands of 24/7 surveillance, while also providing ample storage space for all recorded video footage. With the possibility of increasing storage space up to 20TB (2 × 10TB), there is more than enough room to safely store all motion events that only you can access.
Compatible APP Lorex Cloud™
Recording Resolution 4K (8MP)/5MP/4MP/3MP/1080p/720p
Recording Frame Rate up to 30fps
Recording scheduling Schedule recordings through Continuous, Motion, Smart Motion (Person and Vehicle), Alarm, Day, Hour per channel
Back-up Media USB, USB HDD
Video Compression H.265 / H.264
Simultaneous Playback 4ch@4K 30fps
Playback Speed Variable Max 16×
Search By Time/Date, All Motion Events or Smart Search (Person and Vehicle), Area search
Hard Drive Bays 2 Bay
Hard Drive Capacity Up to 2 × 10TB (SATA)
Backup Media USB Flash Drive, USB HDD
Storage Mirroring Yes
Smart Motion Detection Support for Person and Vehicle Detection
Mobile Viewing Android, iOS
Operating Temperature 14° ~ 131°F / -10° ~ 55°C
Humidity 10 ~ 90% RH
Video Transmission Technology IP
Channels 16, 32 channel (32ch. includes 16ch. PoE Switch)
Video Input 16ch: 16 x PoE
Video Outputs 1 × VGA/1 x HDMI
Audio Input 1 × RCA
Audio Output 1 × RCA
Alarm In 4 channels
Alarm out 2 channels
Display Output Resolution up to 4K UHD, Auto Detect
Live Display 16ch: 1/4/8/9/16 32Ch: 1/4/8/9/16/25/32
Live Display Speed (Max) Up to 4ch 4K@30fps
OSD On/Off
System Navigation USB Mouse, Front Panel Buttons



  1. 4K Ultra HD NVR
  2. 4K Ultra HD IP Camera
  3. 100ft CAT5e Ethernet Cable
  4. Mounting Template
  5. Power adapters
  6. Ethernet cable
  7. HDMI cable
  8. USB Mouse
  9. Security Decal
  10. Quick Start Guides
  11. Manual

 ✓ N4K3-1616WB User Manual

✓ N4K3-1616WB Data Sheet

✓ N4K3-1616WB Camera Quick Start Guide

✓ N4K3-1616WB Camera Spec Sheet

  • Unmatched Video Quality: Equipped with sixteen 4K (8MP) IP cameras, delivering ultra-clear footage with exceptional detail.
  • Complete Coverage: Fully loaded with 16 cameras to monitor every angle of your property.
  • Fusion Technology: Seamlessly integrates wired and wireless devices for a flexible and unified system.
  • Superior Night Vision: Provides clear and reliable video, even in total darkness or challenging lighting conditions.
  • Rugged Durability: Weather-resistant cameras designed for both indoor and outdoor use.
  • Massive Storage: Pre-installed hard drive supports extensive recording for continuous or scheduled monitoring.
  • Remote Accessibility: Compatible with mobile apps and voice assistants for easy monitoring from anywhere.

Q: What is the Lorex 16-Channel Fusion NVR System used for?
A: It’s a robust security system designed to monitor extensive properties with 16 channels and 16 ultra-HD 4K (8MP) IP cameras for comprehensive surveillance.

Q: What resolution do the cameras provide?
A: The cameras deliver crystal-clear 4K (8MP) resolution, capturing fine details for maximum security.

Q: What are the key features of the Fusion NVR system?
A: The Fusion NVR supports both wired and wireless Lorex devices, offering flexibility, scalability, and seamless integration for various security setups.

Q: Are the cameras suitable for outdoor use?
A: Yes, the cameras are weather-resistant, making them ideal for both indoor and outdoor installations.

Q: Why choose this system?
A: With its 16 cameras, 4K resolution, and expandability, it’s the ultimate solution for securing large-scale residential, business, or commercial properties.

Let me know if there’s anything more you’d like to refine or emphasize!

  • Update Firmware: Regularly update NVR and camera firmware for enhanced security and performance.
  • Clean Lenses: Wipe camera lenses with a microfiber cloth to maintain clear 4K video quality.
  • Inspect Connections: Check cables and ports for wear, damage, or loose connections.
  • Backup Recordings: Routinely back up important footage to external storage or the cloud.
  • Monitor Storage: Check hard drive capacity and health, replacing it when necessary.
  • Test All Features: Verify that all 16 cameras, motion detection, and notifications are functioning correctly.
  • Adjust Coverage: Periodically review and optimize camera placement for maximum coverage.
  • Weatherproofing: Ensure outdoor cameras and connections are sealed against the elements.
  • Secure System: Use strong, unique passwords and enable encryption for remote access.
