Lorex 16-Channel NVR System with Sixteen 4K (8MP) IP Cameras Security Surveillance System New

FREE SHIPPING Save 15%
Lorex
Price:
$1,282.99 $1,508.99
American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard Shop Pay Visa

Description

Featuring industry-leading 4K (8 megapixel) resolution recording

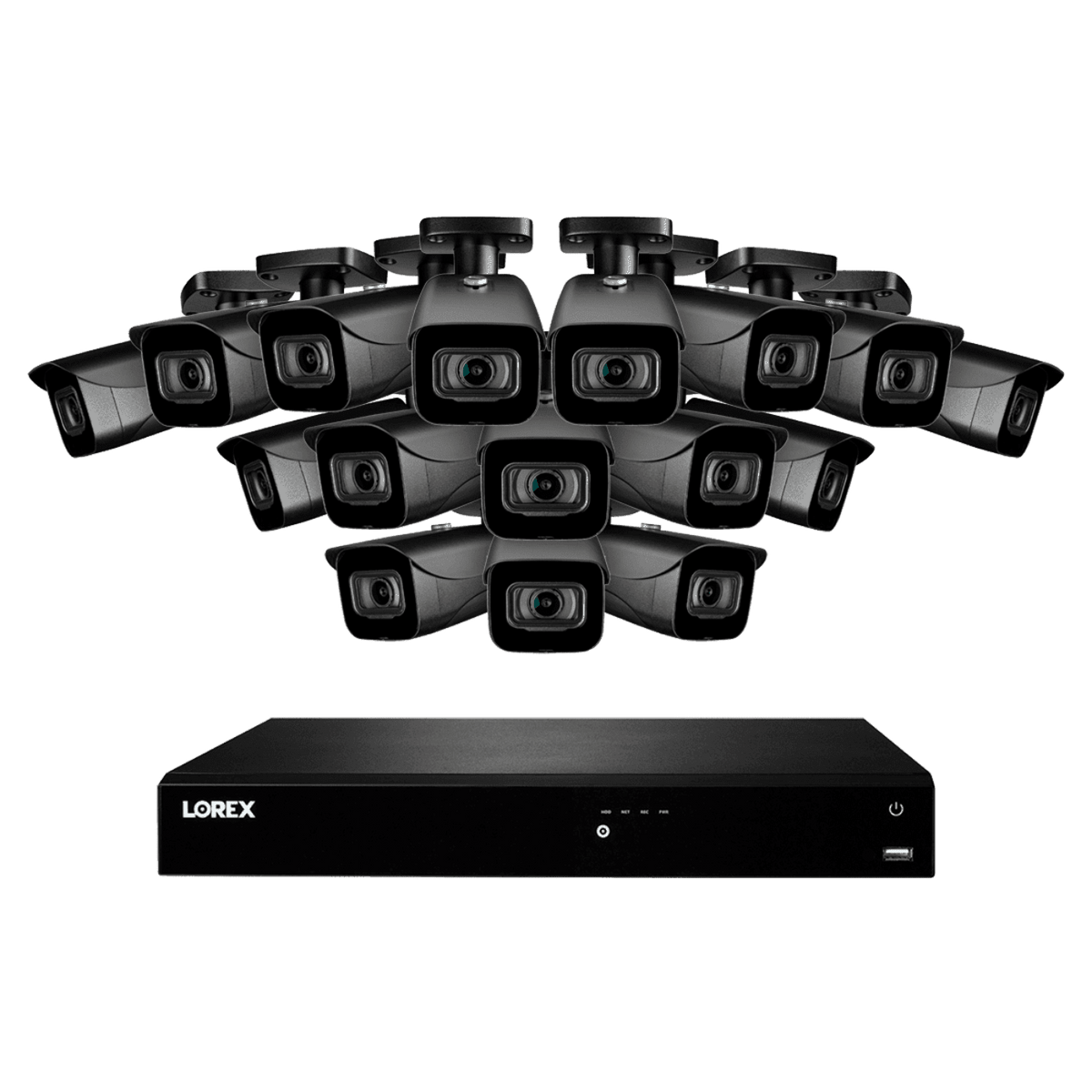

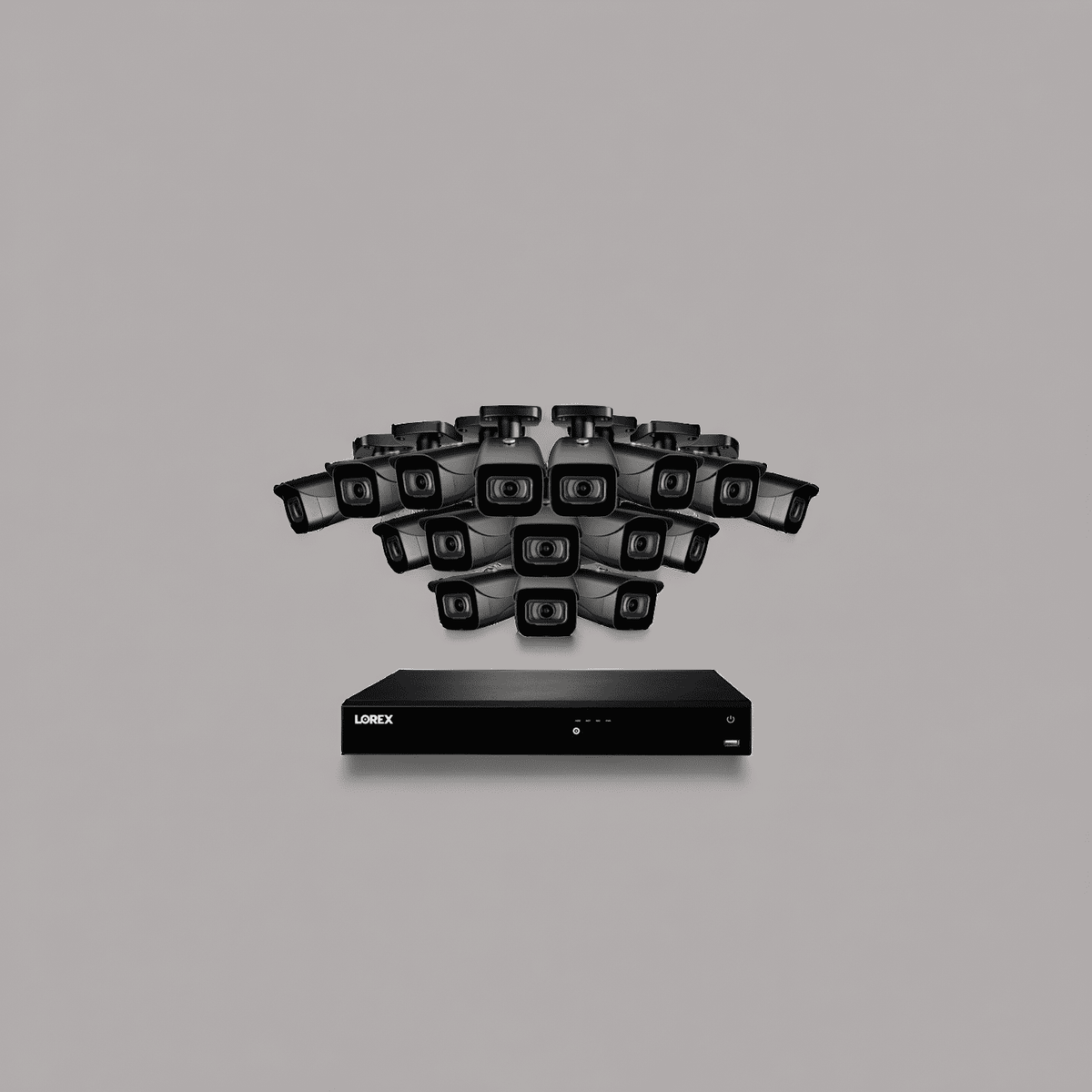

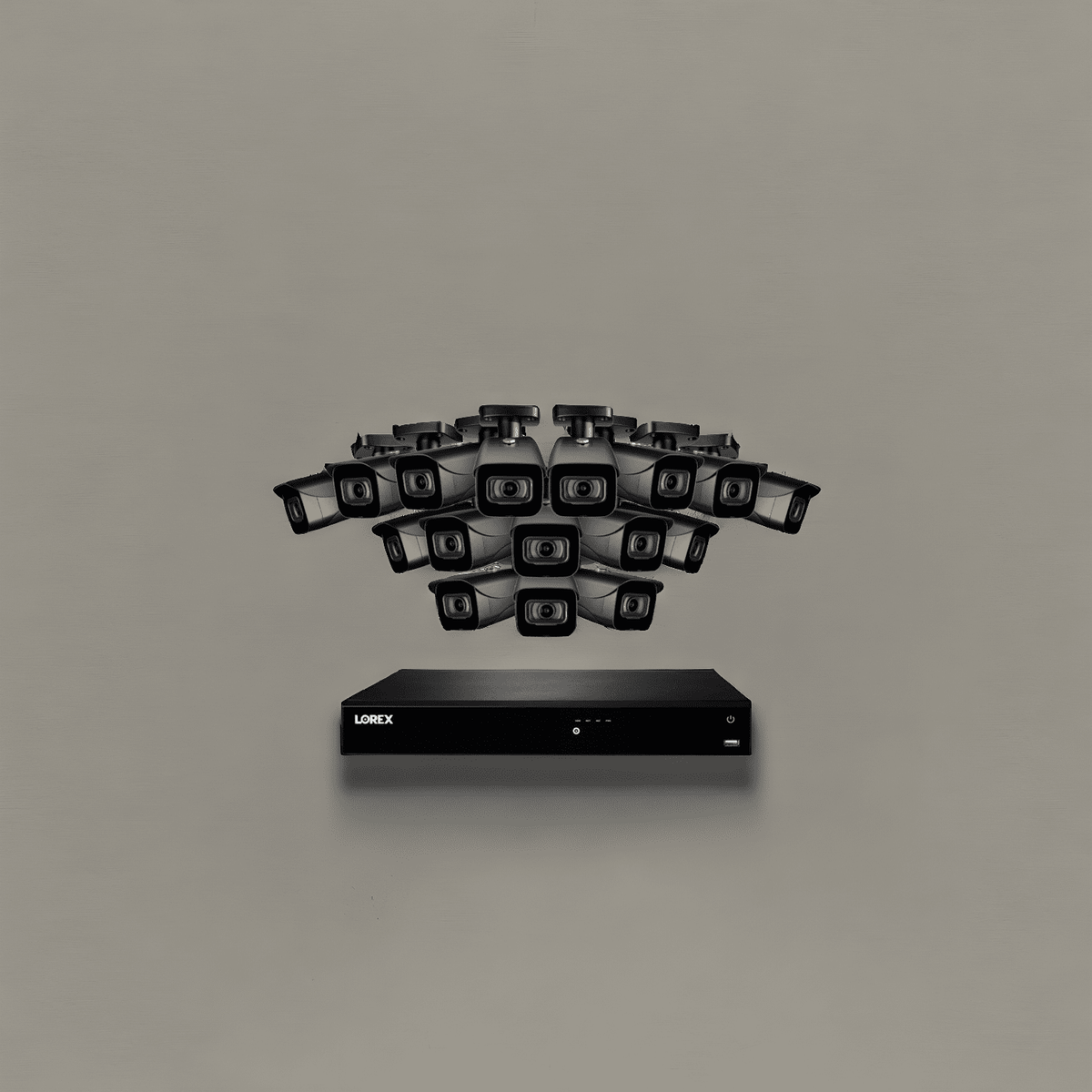

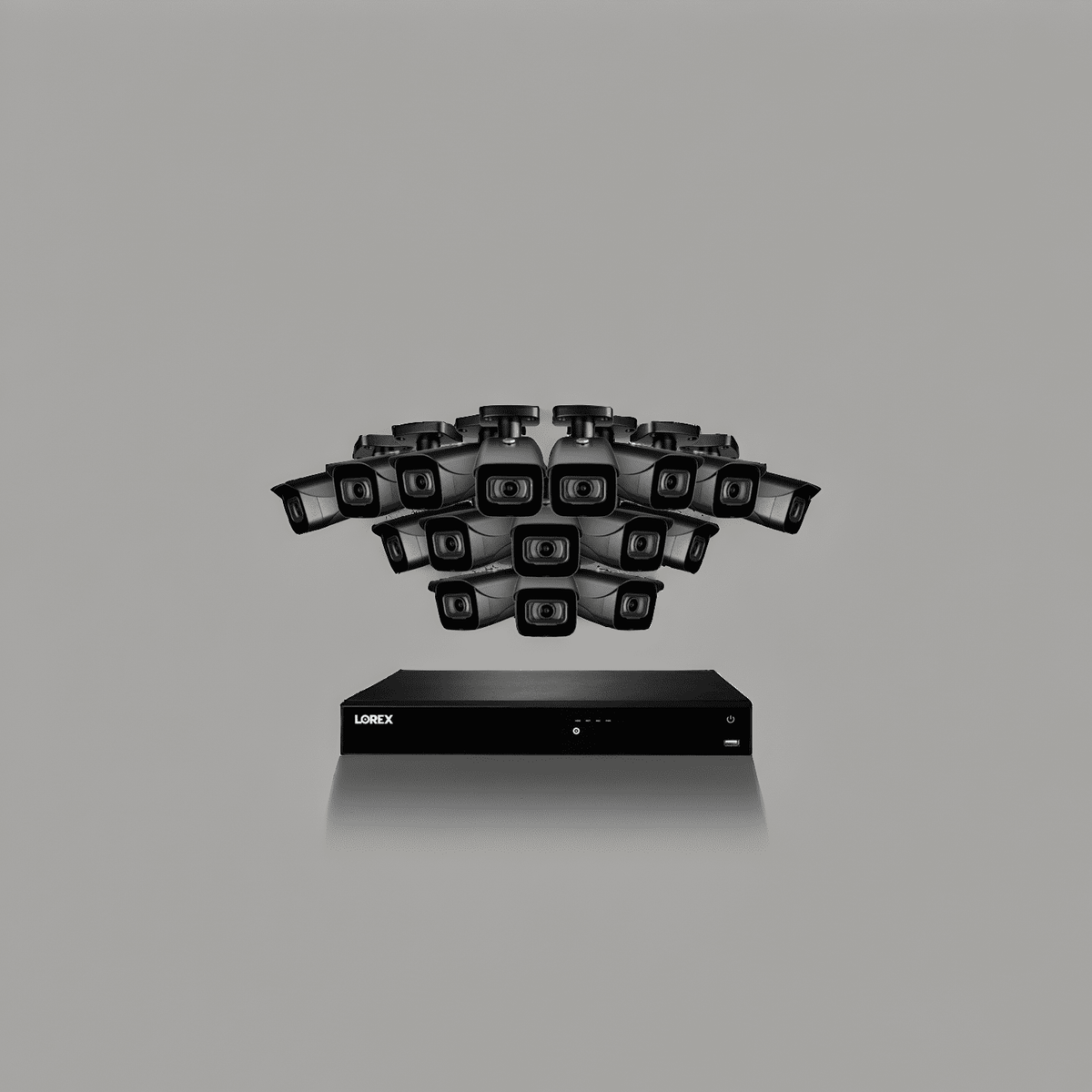

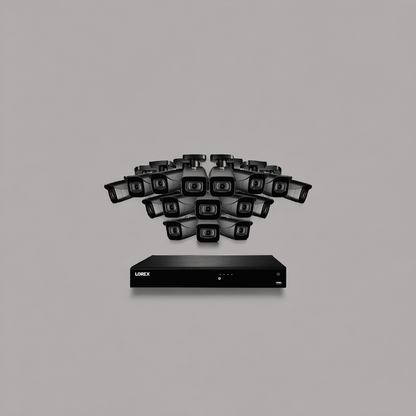

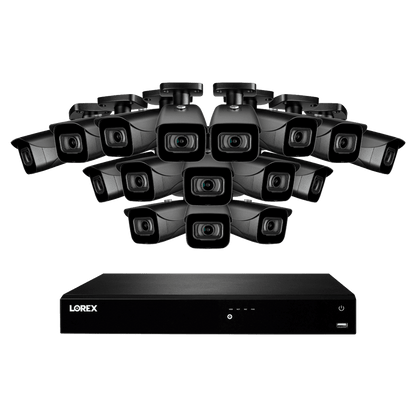

With industry-leading 4K (8 megapixel) resolution, this security camera system will bring a whole new level of detail to your security monitoring. It includes a 16-channel Network Video Recorder (NVR) and sixteen 4K bullet security cameras with Color Night Vision. So whether you are looking to protect your home, small business or commercial property, this powerful security camera system will help you secure the things that matter most.

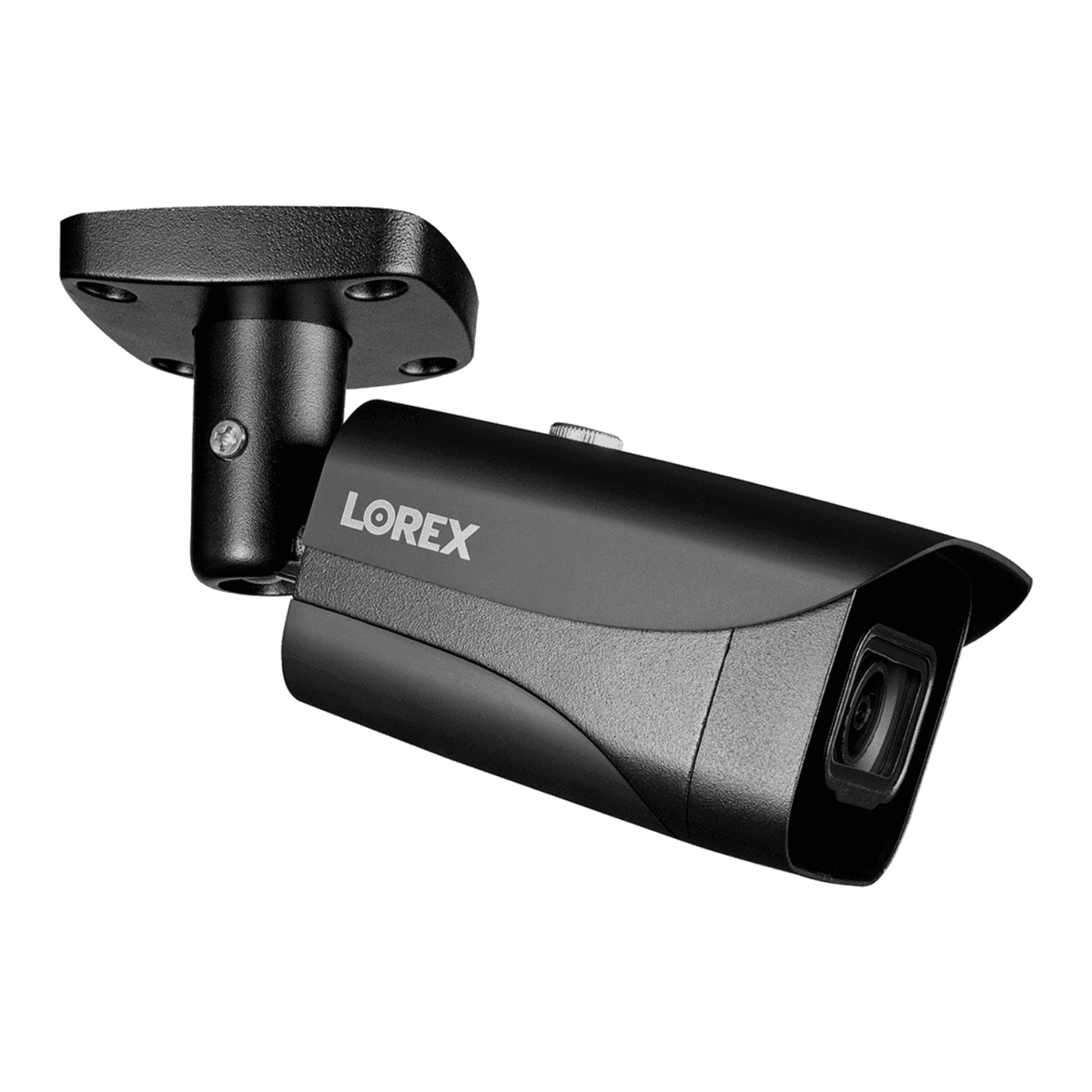

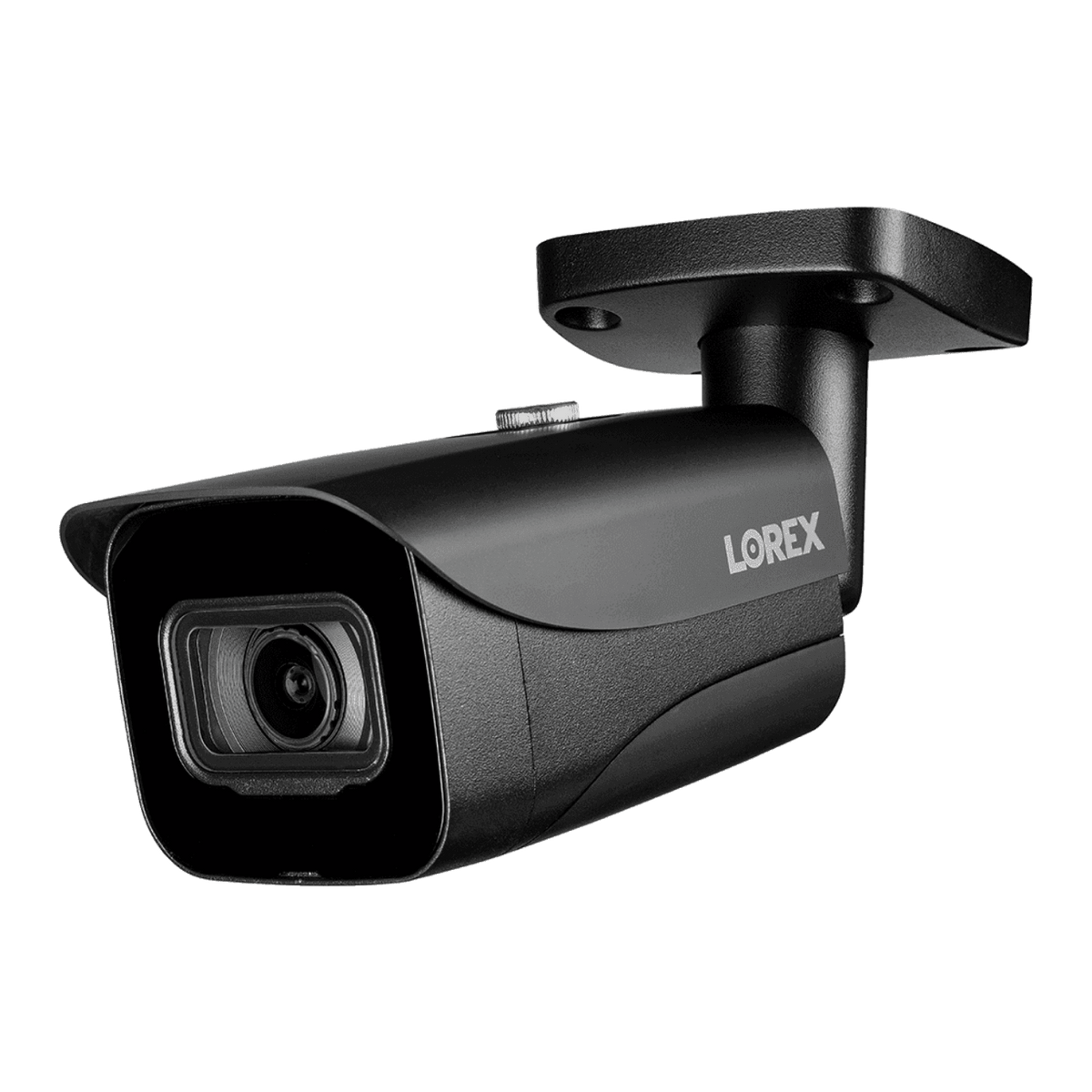

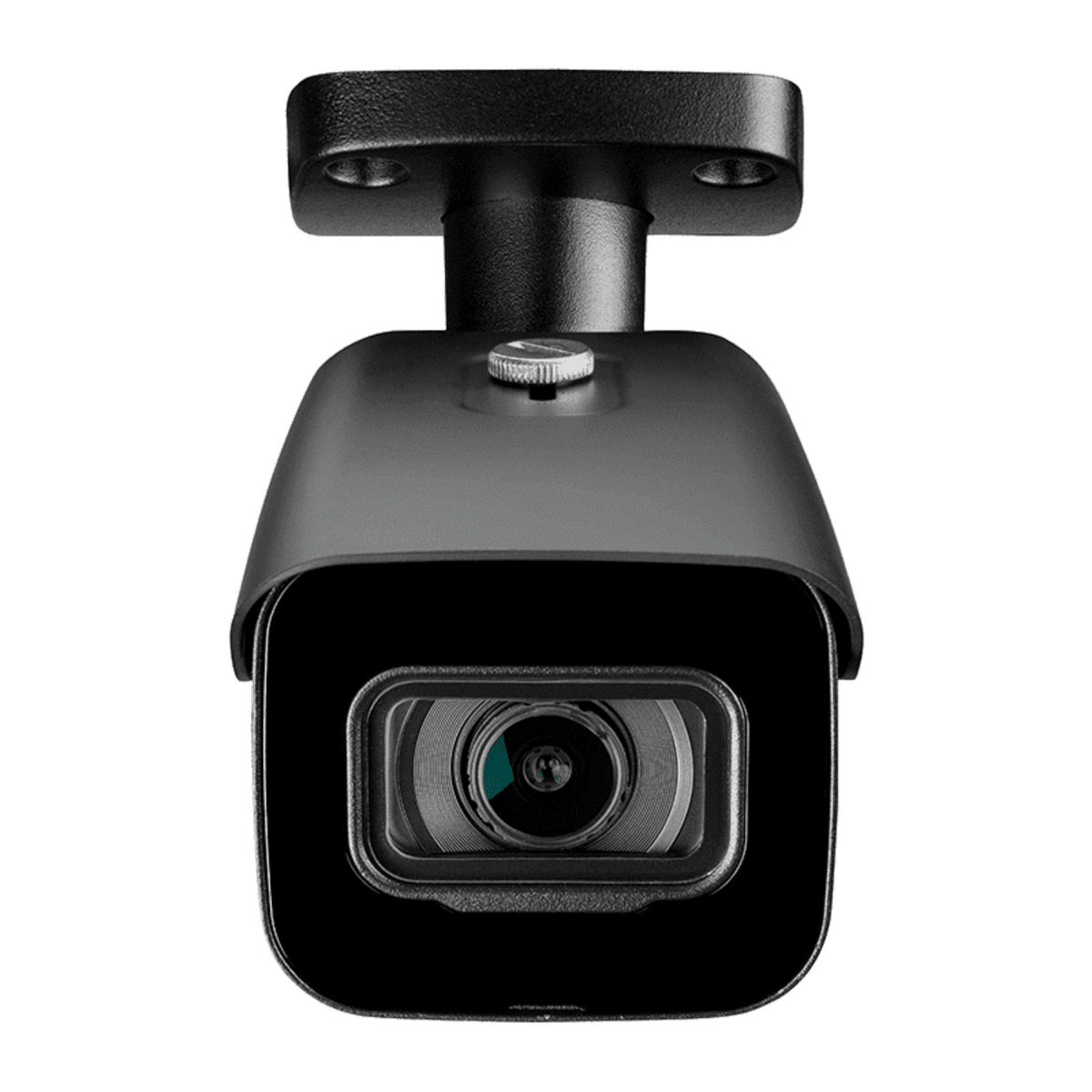

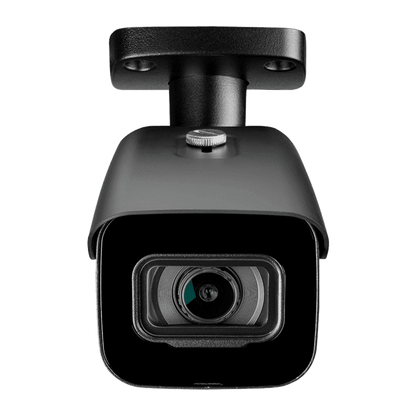

  • Thanks to the camera's powerful 8MP image sensor, you'll experience the difference that 4K resolution makes when it comes to your security. 4K means there are more than 8 million pixels, and that results in sharper video and higher quality digital zooms to capture the details you need.
  • This camera features our revolutionary Color Night Vision™ (CNV) technology, which will produce full-color video with the help of external lighting around the camera. CNV also adds a further level of detail (the color of clothes or cars, for example), and increases contrast for easier detection and recognition of people and objects.
  • In regular nighttime conditions that are too dark for CNV to render full-color images, this camera will use it's infrared LEDs to record crisp black and white video footage up to 130ft (40m) away and up to 90ft (27m) in complete darkness.
  • This security camera only needs a single Cat5e ethernet cable to connect it to the NVR. This cable provides video transmission, power to the camera, a stable network connection, and installation flexibility up to 300ft (as the camera does not need to be plugged into a nearby power source).
  • This security camera is equipped with High-Efficiency Video Encoding (HEVC) or H.265 video compression. This encoding technology efficiently compresses file sizes. In fact, it can compress file sizes up to 50% more than files using the previous encoding technology (H.264), without any noticeable degradation in quality. HEVC encoding will also save you plenty of bandwidth while watching live or recorded video remotely.
  • Mother Nature is no match for this security camera. Rated IP67, it can endure anything from torrential downpours to freezing snowstorms. So go ahead and place this security camera where you need it most.
  • This feature-rich system is designed for use with our innovative, hassle-free Lorex Home™ app. Using Lorex Home, you can quickly and easily view your security system remotely from your smartphone or tablet and control active deterrence features. Simply download the free app, scan the QR code on the NVR and your cameras will appear for you to monitor (or review footage). You can also program the app to send you motion-activated push notifications straight to your phone to keep you connected to your property at all times.
  • Find what you are looking for quickly with Lorex's Area Search. Select an area of interest and automatically playback any video footage showing scene changes in that area. Ideal for doorways, drive ways, etc.
  • A 3TB security grade hard drive (expandable up to 2 × 8TB) comes preinstalled within this NVR. Designed to meet the high workload demands of continuous security monitoring, this heavy-duty hard drive can reliably record weeks (even months) of footage without taking a break. All recorded footage is then safely stored on the hard drive where only you can access it, so there are no surprise fees or monthly cloud subscriptions.
  • This NVR comes with two separate hard drive bays. Each of which can be upgraded with a hard drive up to 8TB, giving you the potential for a total of 16TB's of storage space. You can also use the second hard drive to record videos in parallel with the primary hard drive. This way, the footage is automatically backed up.
Video Transmission Technology IP
Camera Dimensions (W × D × H) 2.8 × 7.1 × 2.8" / 70 × 180 × 70mm
Camera Weight 0.95lbs/0.44kg
Operating Temperature -22°F ~ 140°F / -30°C ~ 60°C

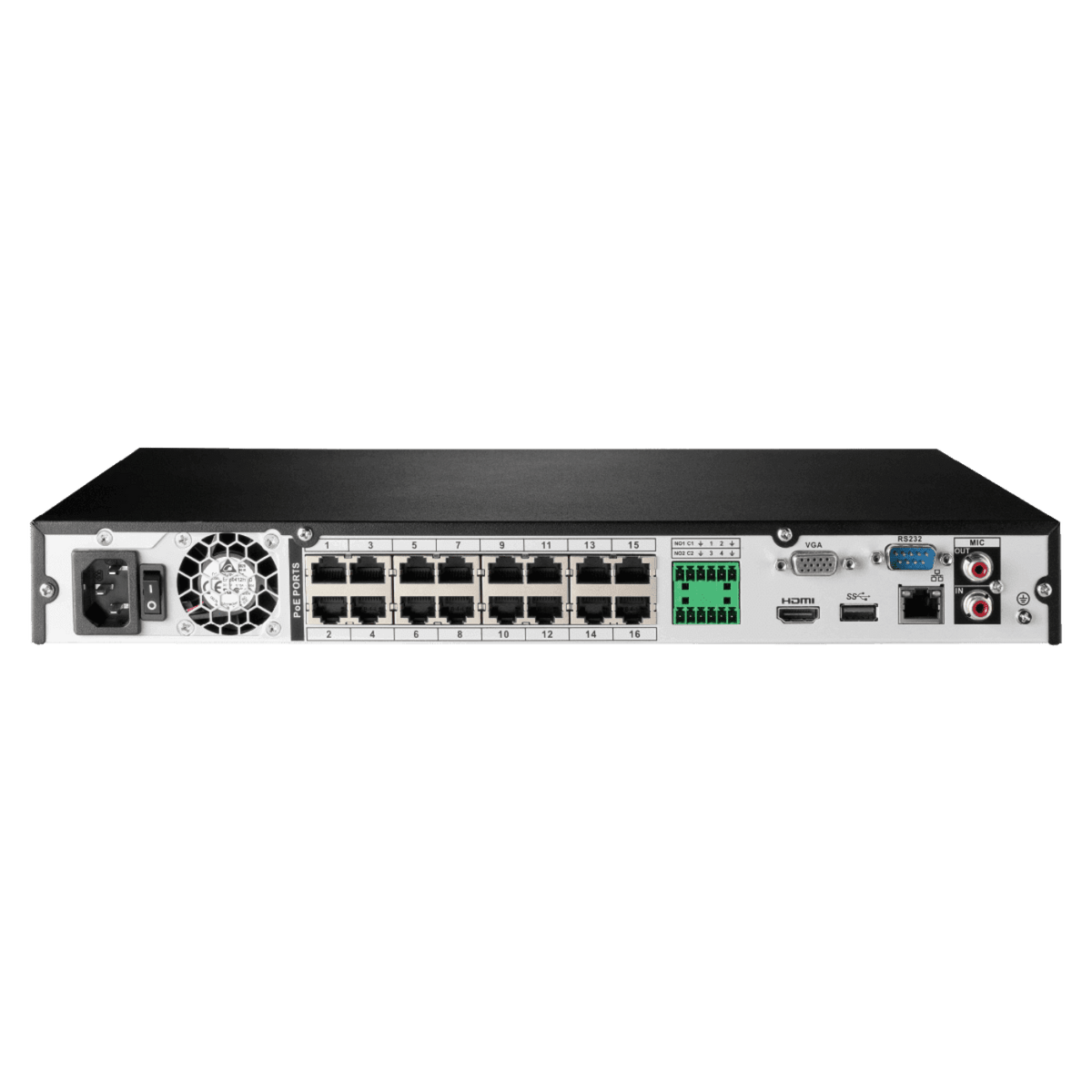

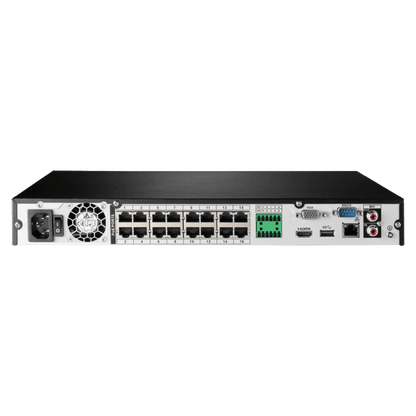

Video Outputs 1×VGA/1×HDMI
Audio Input 1 ch
Audio Output 1 ch
Alarm IN 4 channels
Alarm OUT 2 channels
Display Output Resolution Up to 4KUHD, AutoDetect
System Navigation USB Mouse
Recording Resolution 4K(8MP)/5MP/3MP/1080p/720p
Recording Frame Rate 4K@15fps;5MP@30fps;1080p@30fps;720p@30fps
Image Sensor 8MP/4K 1/2.7" CMOS
Night Vision Range (Ambient/Total Darkness 130ft (40m)/ 90ft (27m)
Power Requirements PoE (Power over Ethernet Class -802.3af)/12V DC
Power Consumption (max) 640mA / 7.68W



  1. 4K Capable HD NVR
  2. 4K Ultra HD Bullet Cameras
  3. 100ft Cat5e Cable
  4. Mounting template
  5. Power adapter
  6. Ethernet cable
  7. HDMI cable
  8. Mouse
  9. Security decal
  10. Quick Start Guides

 ✓ N4K3-1616BB User Manual

✓ N4K3-1616BB Data Sheet

✓ N4K3-1616BB Camera Quick Start Guide

✓ N4K3-1616BB Camera Spec Sheet

  • 4K Ultra HD Video: Provides sharp, crystal-clear footage with superior detail, ensuring maximum visibility.
  • Comprehensive Coverage: Includes 16 cameras to monitor large properties or multiple zones simultaneously.
  • Reliable Night Vision: Captures clear video even in complete darkness, ensuring 24/7 security.
  • Durable Construction: Weather-resistant cameras designed to withstand harsh outdoor conditions.
  • Large Storage Capacity: Features a pre-installed hard drive for continuous and event-based recording.
  • Expandable System: Supports additional features or devices for scalable surveillance needs.
  • Smart Monitoring: Accessible via mobile apps, enabling remote viewing and real-time alerts.

Q: What is the Lorex 16-Channel NVR System designed for?
A: It’s a professional-grade security system designed to monitor large properties with 16 channels and 16 ultra-HD 4K (8MP) IP cameras for complete surveillance.

Q: What resolution do the cameras provide?
A: The cameras deliver stunning 4K (8MP) resolution, ensuring crisp, clear video and capturing fine details.

Q: What are the key features of this NVR system?
A: It includes advanced motion detection, remote viewing via the Lorex app, and high-capacity recording with 24/7 coverage.

Q: Are the cameras weatherproof?
A: Yes, the cameras are weather-resistant, making them suitable for both indoor and outdoor use in various environments.

Q: Why choose this system?
A: With its 16 cameras, ultra-HD clarity, and reliable recording capabilities, it’s perfect for securing homes, businesses, or large-scale properties.

Let me know if you'd like additional details or refinements!

  • Update Firmware: Regularly update the NVR and cameras for security and functionality.
  • Clean Lenses: Use a microfiber cloth to remove dust or debris for clear 4K video.
  • Check Connections: Inspect cables and ports for damage or loose connections.
  • Monitor Storage: Check hard drive capacity and health; replace if needed.
  • Backup Footage: Periodically back up important recordings to external storage or the cloud.
  • Test Features: Verify all 16 cameras, motion detection, and notifications are working properly.
  • Optimize Angles: Adjust camera positions for maximum coverage and minimal blind spots.
  • Weatherproofing: Ensure outdoor cameras and cables are sealed against the elements.
  • Secure System: Use strong passwords and enable encryption for remote access
