Powermatic PM1200 Air Filtration System

A large portion of the design and engineering effort behind the Powermatic PM1200 Air Filtration System was devoted to striking a good balance between airflow volume and efficient filtration. Even the fins on the blower fan were subjected to considerable research and development to be sure they made the most effective fan for this application. The result is an air filtration system specifically designed from the ground up to function effectively in the woodshop environment.

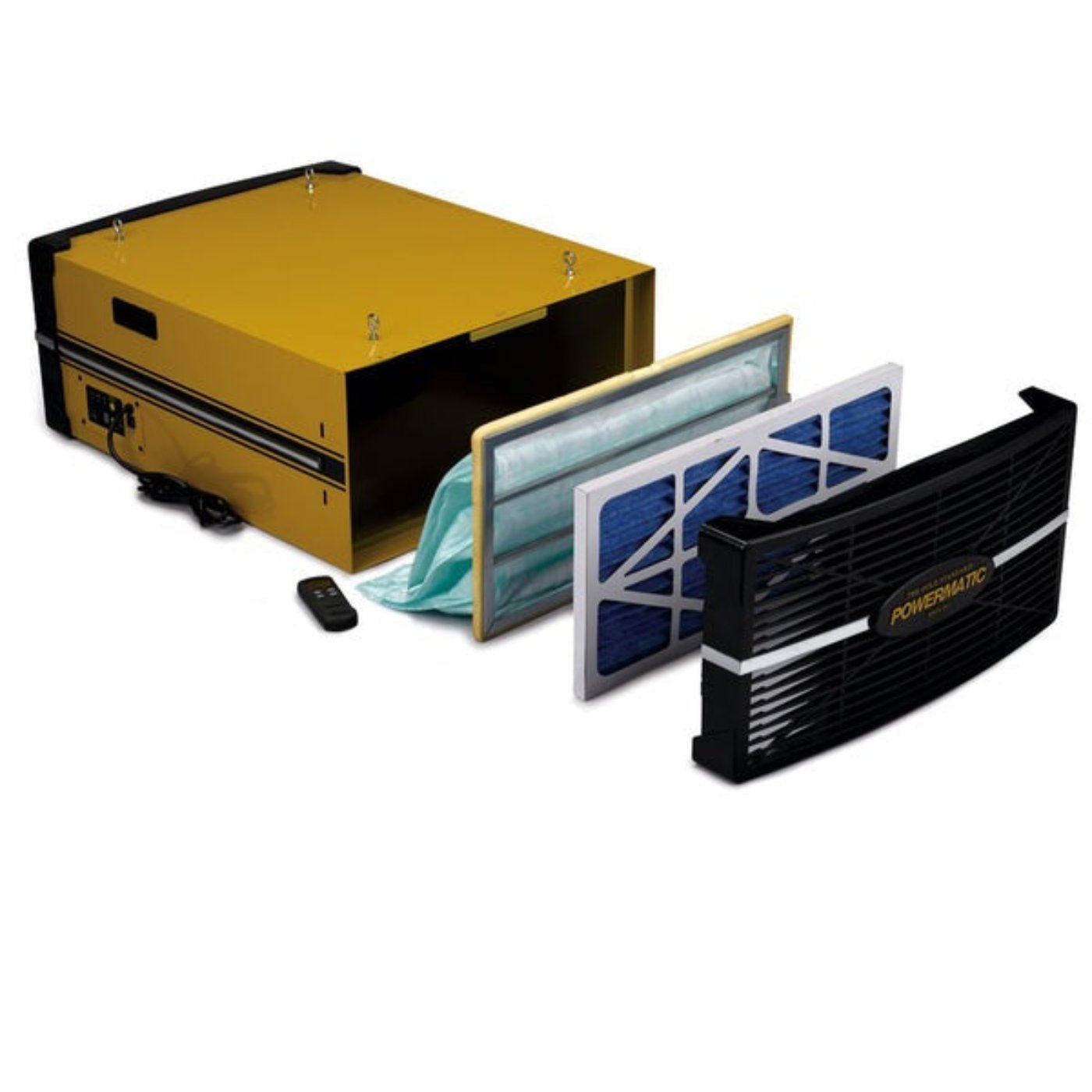

The Powermatic PM1200 Air Filtration System uses two filter stages, the outer to capture large particles and the inner smaller particles. The outer filter removes 99% of 5-micron particles. The inner filter captures 85% of 1-micron particles.

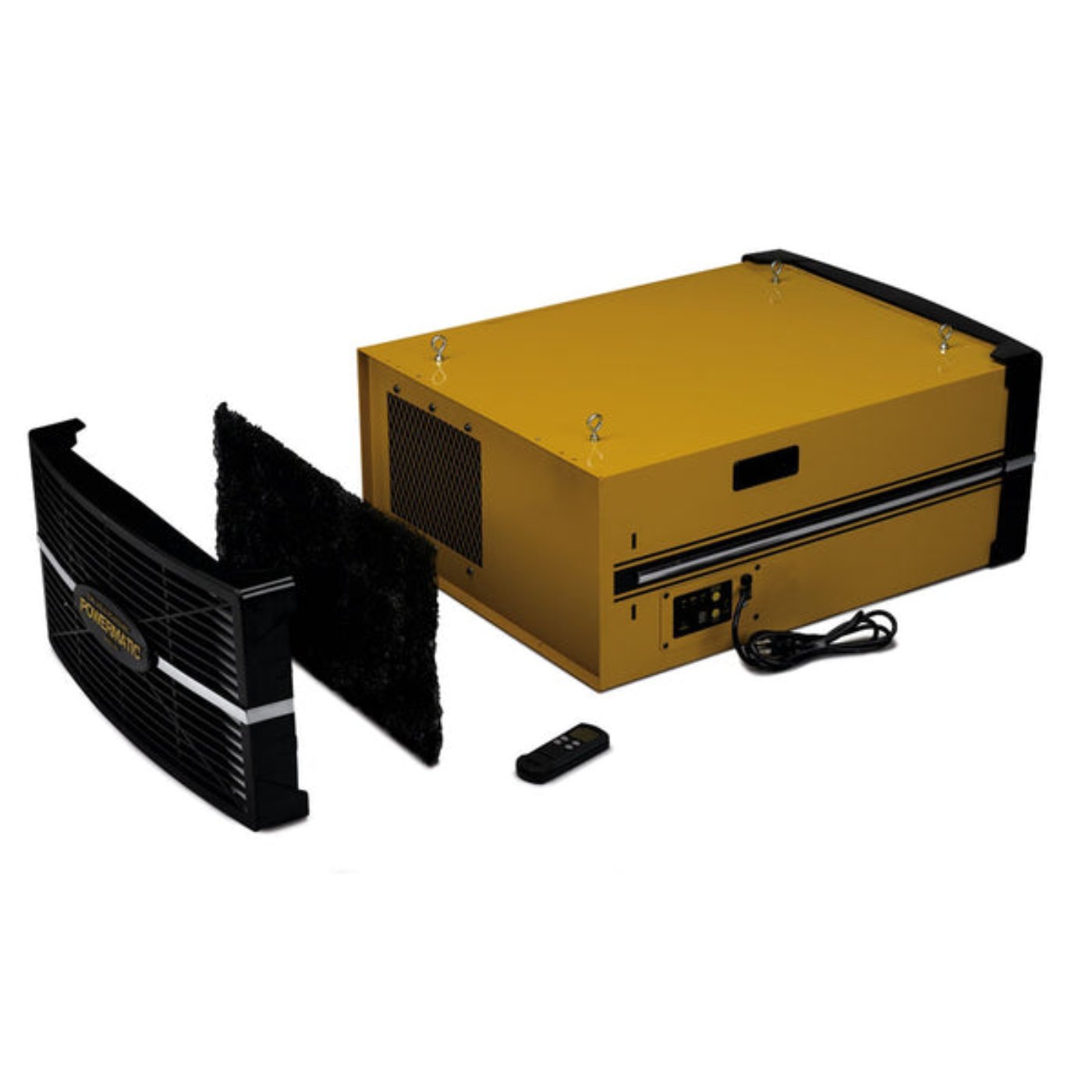

To make it easier to maintain, the PM1200 uses 12” X 24” X 1” filters on the intake side. That size was picked because they can be found at virtually any local home center. The diffusion filter on the exit side does not require replacement in most cases and can be cleaned periodically with a vacuum or compressed air.

Special attention was given to the inlet and outlet filter guards. The Powermatic PM1200 Air Filtration System filter guards are not only stylish but functional and do more than simply protect the filter elements from damage. Both the inlet and outlet filter guards are easily removed and installed without tools. This eliminates trying to extract screws or operate complicated latches while on a ladder.

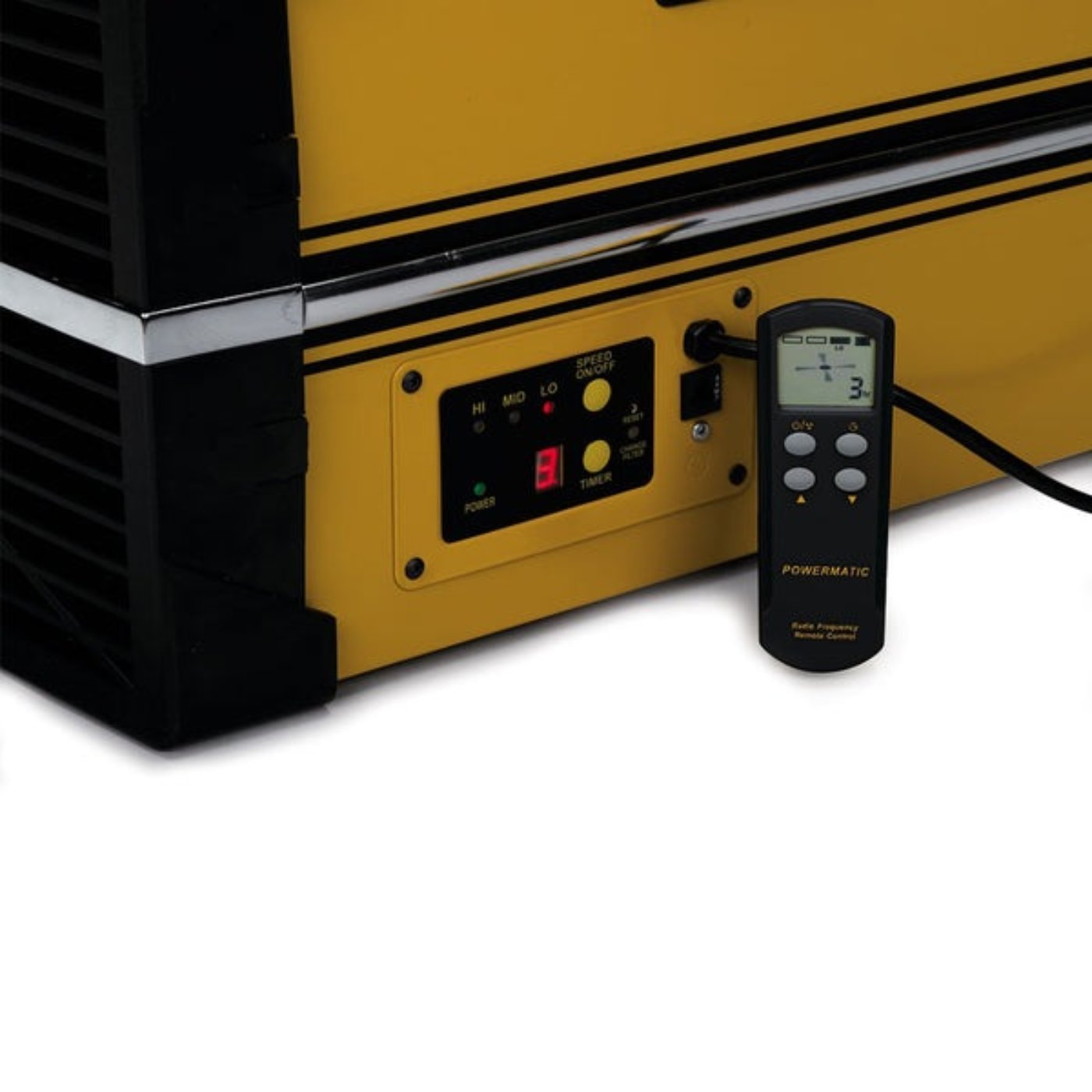

The Powermatic PM1200 has three speed ranges – Low (547 CFM), Medium (706 CFM), and High 1,196 (CFM). This range of operating speeds lets you set the PM1200 Air Filtration System for the current conditions allowing you to save energy whenever possible. All controls are available both on the air filtration unit itself, as well as on the included LCD screen remote control.

At 67 pounds the Powermatic PM1200 Air Filtration System is relatively light but requires a safe, secure mounting. High quality, appropriately sized fasteners that are properly installed into joists or rafters is required. We recommend avoiding the use of open hook-type connections. Using self-closing clip or loop-style connections will prevent one or more corners of the Powermatic PM1200 from detaching should it be struck accidentally by a project or piece of wood.

Features

• Diffusion filter disperses exhausted air
• Filter guards install and remove easily without tools for quick access to filters

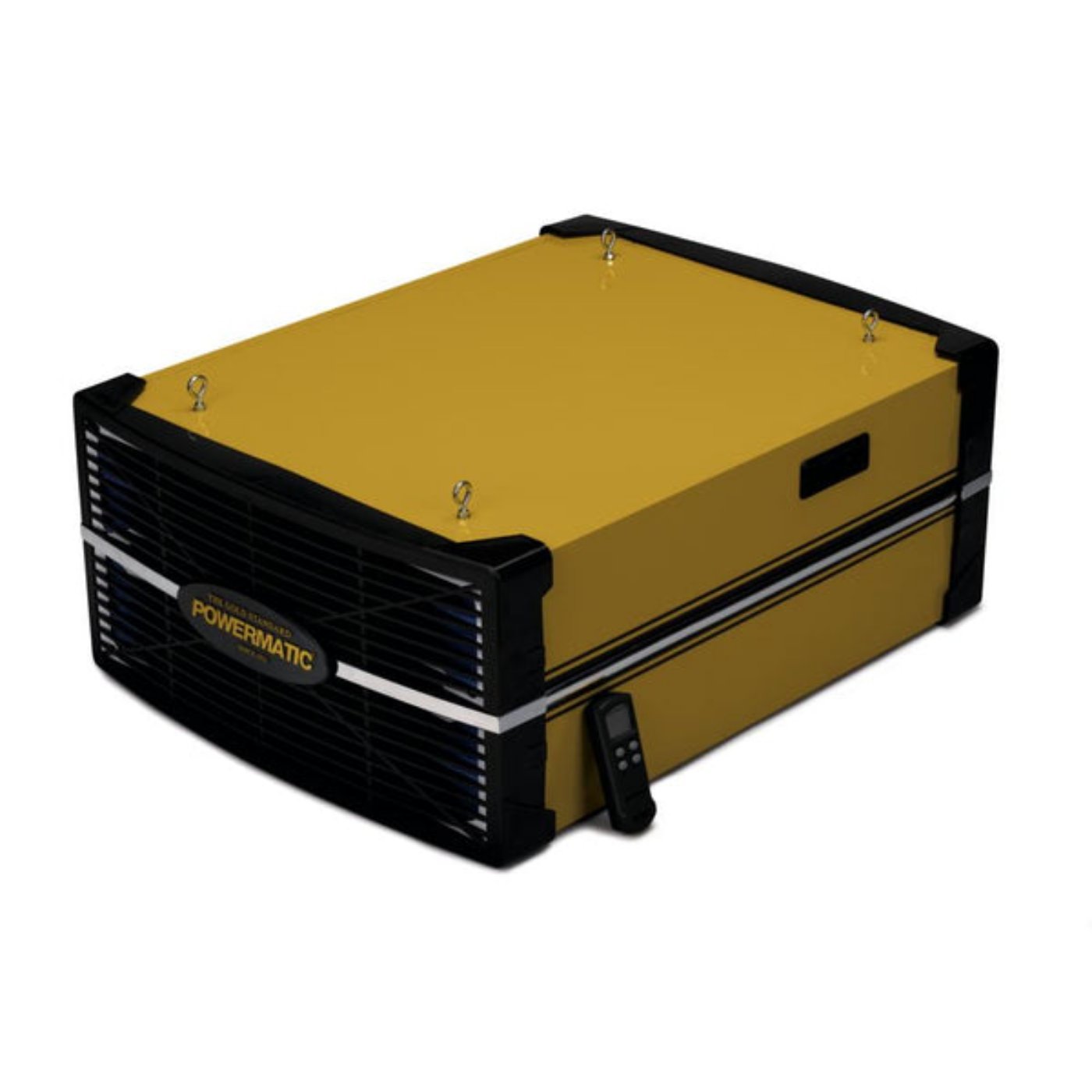

• Four eye bolts allow suspension from shop ceiling
• Re-settable, pop out fuse protects unit in the event of an overload or power surge
• Indicator lights up after 200 hours to remind user to replace filters
• Inner filter has fine mesh pockets for high efficiency, can be blown clean
• Remote control operates on radio frequency for wider range of effectiveness
• Programmable timer can be set to run for one to nine hours
• Three blower speeds to modify air flow
• Timer has nine settings, for up to nine hours of continuous operation
• Two-filter system traps particles as small as 1 micron

Specifications

What Our Experts Think

• High-Performance Filtration: Features a powerful filtration system that removes 99% of airborne particles as small as 1 micron, ensuring cleaner air.
• 3-Speed Settings: Offers customizable air circulation for optimal performance based on your shop size and needs.
• Quiet Operation: Runs with minimal noise, allowing you to work without disruption while maintaining effective filtration.
• Energy Efficient: Designed for low energy consumption, helping reduce operating costs while maintaining strong air quality.
• Durable Construction: Built with high-quality materials for long-lasting, reliable performance in demanding workshop environments.
• Convenient Remote Control: Easy-to-use remote control for adjusting settings and monitoring performance from a distance.

Q&A

Q: What are the key features of the Powermatic PM1200 Air Filtration System PM9-1791330?
A: The Powermatic PM1200 Air Filtration System features a 1/3hp motor, three-speed settings, and a 1,200 CFM air flow capacity. It is designed to efficiently filter and purify the air in woodworking shops, removing dust particles and improving air quality.

Q: What is the airflow capacity of the Powermatic PM1200?
A: The PM1200 has an airflow capacity of 1,200 CFM, providing effective air filtration for large woodworking environments.

Q: What motor does the Powermatic PM1200 use?
A: The system is powered by a 1/3hp motor, ensuring reliable performance for long hours of operation.

Q: What is the advantage of using the Powermatic PM1200 Air Filtration System?
A: The PM1200 helps improve air quality by efficiently removing harmful dust particles from the air, creating a cleaner and safer working environment.

Q: Is the Powermatic PM1200 suitable for professional use?
A: Yes, the PM1200 is designed for professional woodworking environments, offering high-efficiency filtration and ensuring optimal air quality in busy workshops.

Q: How many speed settings does the Powermatic PM1200 have?
A: The Powermatic PM1200 features three speed settings, allowing users to adjust airflow according to the size of the space and the level of filtration required.

Maintenance Tips

• Clean filters regularly: Check and clean the pre-filters and main filters to ensure optimal air filtration. Replace them as needed based on usage and manufacturer recommendations.
• Inspect the motor: Periodically check the motor for dust buildup, and clean it to prevent overheating and ensure efficient performance.
• Check airflow: Ensure the system is operating at full capacity by verifying the airflow. Low airflow can indicate clogged filters or issues with the fan.
• Clean the housing: Wipe down the exterior and intake areas of the unit to prevent dust accumulation and maintain airflow efficiency.
• Lubricate the fan: Apply light lubrication to the fan motor bearings if recommended by the manufacturer to reduce wear and noise.
• Inspect electrical components: Regularly check the wiring and power connections for wear or damage to ensure safe and reliable operation.
• Monitor system operation: Ensure the system is running smoothly without unusual noises or vibrations, which may indicate an issue needing attention
