Powermatic DDS-237 37" Dual Drum Sander 7.5hp, 1ph, 230v - PM9-1791320

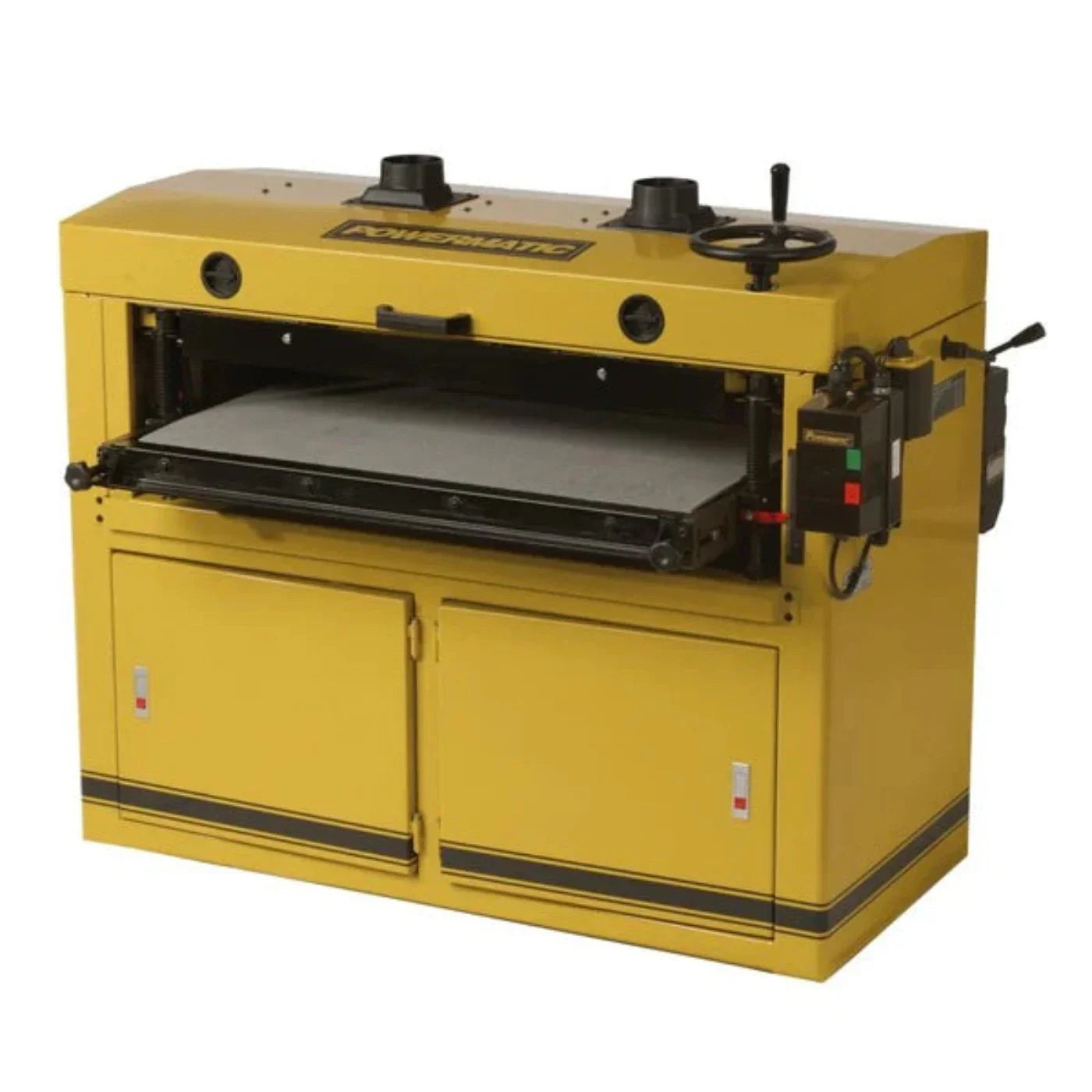

Powermatic DDS-237 37" Dual Drum Sander 7.5hp, 1ph, 230v

The Powermatic DDS-237 Dual Drum Sander is a production class machine that is loaded with features and available in configurations to suit your needs. This machine is equipped with a 7.5HP, 230V, 1Ph motor. All Powermatic Dual Drum Sanders are protected with a full magnetic On-Off switch.

Despite the compact 60” wide, 45” deep and 45” tall overall size, the DDS-237 has the capacity to handle a huge range of jobs from small to large. With a minimum board length of just 9”, a minimum thickness of 1/32” and maximum thickness of 5-1/4”, these sanders offer expansive job coverage.

Powermatic Dual Drum Sanders are enclosed in an all-steel cabinet. Compartments with latching doors at the bottom enclose the motor, drive systems and provide spacious storage. Removable panels provide good access to important systems when needed.

The full-width, hinged steel top opens to make working with the drums and roller systems easy. Built into the top are a pair of 4” diameter dust ports. These ports connect to specially designed directional baffles within the top that enhance the effectiveness of the dust evacuation. For maximum efficiency, a dust collector system with a minimum 1200 CFM capacity should be used.

Powermatic Dual Drum Sanders feature dual steel drums spinning at a consistent 1,700 RPM that are precisely machined and then given a hard durometer rubber coating that ensures a flat, non marring surface. These 6” diameter steel drums have the strength to resist flex during sanding for maximum accuracy and consistency.

A heavy cast iron table has been precisely machined to insure flatness. The table is raised and lowered on four jackscrews turned simultaneously by a slip-free chain drive. That chain drive also keeps the table level at all heights. The chain drive has an automatic tensioning system built in to reduce setup and adjustment. The table height system is operated by a large cast iron handwheel at the top of the sander.

The 1/4HP feed motor drives the conveyor belt and is controlled by a two-speed forward/reverse gearbox that produces feed rates of 8 and 12 SFPM (surface feet per minute). The gearbox can only be shifted between the low and high feed rates while the machine is running. The conveyor belt can also be reversed, using a separate three-position switch with forward, off and reverse positions.

Powermatic Dual Drum Sanders are designed with the industrial environment in mind. They are tough, easy to use and easy to maintain. Their wide capacity ranges mean one machine handles more jobs, making the Dual Drum Sanders a very cost-effective investment.

Features

• Dual drum head for superior finish
• Dual dust ports with directional baffles for more efficient dust removal
• Forward/reverse conveyor belt grips stock evenly
• Full size cast iron table for solid support
• Hard durometer rubber coating on steel drums provides flat, smooth finish
• Independently adjustable rear drum for fine tuning
• Two-speed gearbox for wide range of sanding projects
• The rear drum is independently adjustable, which allows fine-tuning, especially when it is equipped with a different grit paper than what is on the front drum
• Handy chart on the cabinet below the adjustment that shows the correct settings for the various grits
• Tracking adjusters on conveyor belt at either end of the table

Specifications

What Our Experts Think

• Powerful 7.5hp Motor: 1-phase motor provides consistent, high-performance operation for large-scale sanding jobs.
• Dual Drum Design: Allows for simultaneous sanding with two drums, increasing efficiency and reducing time spent on each project.
• Wide Sanding Capacity: 37" width capacity makes it perfect for large workpieces and commercial-grade sanding tasks.
• Smooth and Precise Finish: Designed for superior accuracy, ensuring a high-quality surface finish with minimal effort.
• Durability: Built with a heavy-duty frame for long-lasting performance under tough conditions.
• Energy-Efficient: 230V electrical input ensures reliable, energy-efficient operation for professional environments.

Q&A

Q: What are the key features of the Powermatic DDS-237 37" Dual Drum Sander PM9-1791320?
A: The Powermatic DDS-237 features dual drums for efficient sanding, a 7.5hp motor, and a 37" sanding capacity. It operates on a 1-phase, 230V power supply, making it suitable for both commercial and professional woodworking use.

Q: What motor does the Powermatic DDS-237 use?
A: The sander is powered by a 7.5hp motor, providing reliable power for efficient sanding on larger workpieces.

Q: What is the sanding capacity of the Powermatic DDS-237?
A: This dual drum sander has a 37" wide sanding capacity, allowing you to work with larger panels and boards.

Q: Is the Powermatic DDS-237 suitable for professional use?
A: Yes, the sander's powerful motor and large capacity make it ideal for commercial and professional woodworking environments.

Q: What electrical requirements does the Powermatic DDS-237 need?
A: The sander operates on a 1-phase, 230V power supply for efficient and reliable performance

Maintenance Tips

• Clean regularly: Remove dust and debris from the sanding drums, conveyor belt, and motor to maintain optimal performance.
• Inspect sanding drums: Check for wear on the sanding sleeves and replace them when they become damaged or worn down for consistent results.
• Lubricate moving parts: Apply lubricant to the feed rollers, gears, and other moving components to ensure smooth operation and reduce friction.
• Check belt tension: Ensure the conveyor belt is properly tensioned and in good condition to feed materials evenly.
• Inspect motor and electrical components: Check the motor and electrical connections for wear or damage to maintain safety and reliability.
• Monitor drum alignment: Confirm that both sanding drums are aligned properly for uniform sanding and to prevent uneven material wear.
• Tighten fasteners: Regularly inspect and tighten bolts and screws to prevent vibrations and maintain machine stability
