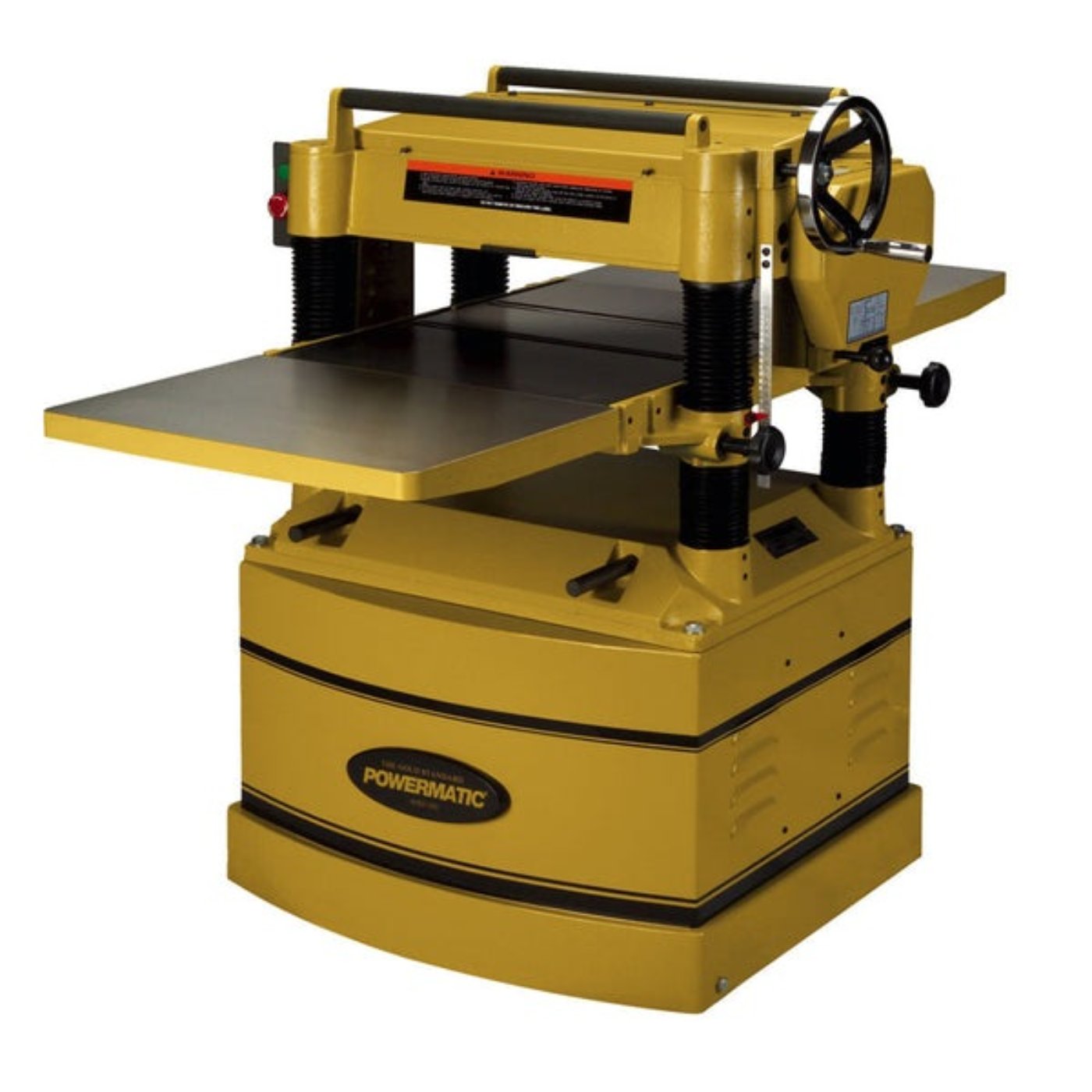

Powermatic 209HH 20" Helical Head Planer 5hp, 3PH, 230/460V
This heavy-duty planer offers performance and value, loaded with standard features not found on other machines in its class. The powerful 5HP motor and 20" planing capacity will handle the most demanding work. The helical cutterhead provides quieter operation and finer finishing than conventional systems, and the four-sided knife inserts seat themselves without requiring a set-up gauge.
The 5" dust port connects easily to any dust collector. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The solid cast iron base, table, and head are designed for production. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM.
The corrugated infeed and fine groove outfeed rollers ensure a smooth feed. The precision ground and polished cast iron table rides on four steel columns giving it plenty of support for the larger workpiece. Heavy cast iron extension wings ensure a flat, smooth cut.
Features
- Cast iron head
- Cast iron table with extensions creates a big 55-1/2" x 20" working area
- Chip breaker and pressure bar assists to reduce snipe

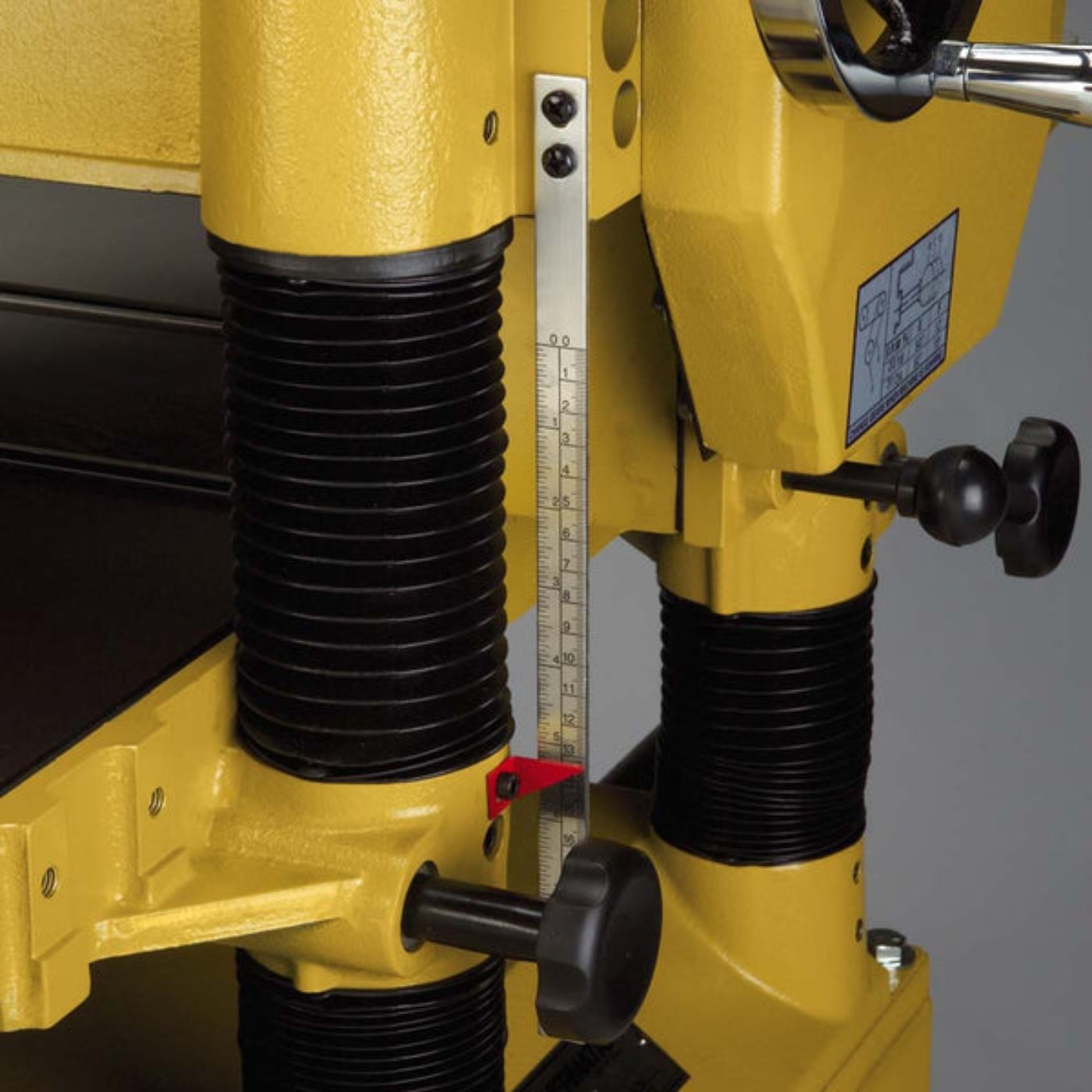

- Chrome-plated, ergonomic handwheel makes adjustments smooth and easy
- Feed rollers and cutterhead supported by full cast iron head assembly
- Feed rollers and cutterhead supported by full cast iron head assembly for rigidity
- Fully enclosed base cabinet with integrated casters for shop mobility
- Serrated steel infeed roller and smooth steel outfeed roller allows for 1/8" maximum depth of cut and trouble-free operation

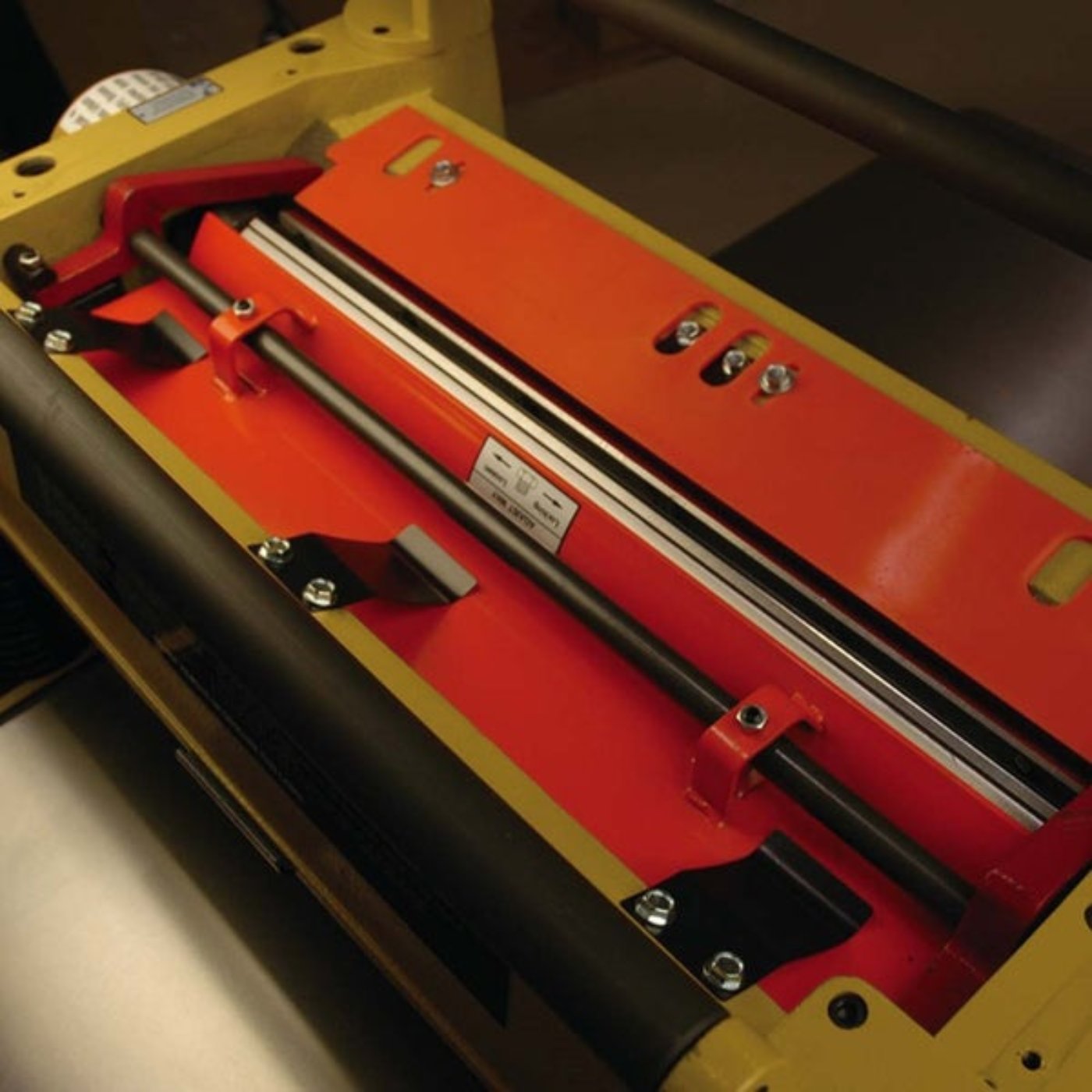

- The helical cutterhead with 100 four-sided carbide knife inserts provides smoother, quieter cutting and finer finish than conventional systems
Specifications
| Cuts Per Minute | 20,000 |
| Cutterhead Diameter | 3-3/16" |
| Cutterhead Speed | 5,000 RPM |
| Dust Collection Required (min.) | 900 CFM |
| Dust Port Outside Diameter | 5" |
| Feed Rate | 24/31 FPM |
| Max. Depth of Cut | 3/32" |
| Max. Full Width Depth of Cut | 3/32" |
| Max. Planing Thickness | 8" |
| Max. Planing Width | 20" |
| Min. Planing Length | 6-3/4" |
| Motor Phase | 3 |
| Motor Power | 5hp |
| Motor Voltage | 230/460V |
| Prewired Voltage | 230V |
| Style (Type) | Floor |
| Table Size (L x W) | 25-3/4" x 20" |
| Table Support | 4 Column |
| Type of Cutterhead | HELICAL |
What Our Experts Think
- Helical Cutterhead: Precision carbide inserts deliver smoother finishes and quieter operation.
- Powerful 5HP Motor: Handles heavy workloads with ease, perfect for demanding projects.
- Versatile Voltage: Operates on 230V or 460V for flexible shop integration.
- 20" Planing Width: Ideal for large-scale woodworking tasks with consistent accuracy.
- Heavy-Duty Construction: Built to withstand rigorous daily use, ensuring long-term reliability.
Q&A
Q: What is the Powermatic 209HH 20" Helical Head Planer (PM9-1791316)?
A: A robust 20" planer with a 5HP motor, helical cutter head, and 3-phase operation at 230/460V, engineered for high-performance woodworking.
Q: What are its key features?
A: Helical cutter head with carbide inserts for smooth finishes and reduced noise, 5HP motor, cast iron table, and adjustable feed rates for precision and efficiency.
Q: Who is it ideal for?
A: Designed for industrial woodworkers and large shops needing a durable, high-capacity planer.
Q: Why choose this model?
A: It delivers exceptional surface quality, long cutter life, and reliable performance for heavy-duty applications
Maintenance Tips
- Check Cutter Inserts: Inspect and rotate or replace inserts for consistent, smooth cuts.
- Clean After Use: Remove wood chips and debris from the cutterhead, table, and motor area.
- Lubricate Components: Regularly grease the feed rollers, bearings, and adjustment mechanisms.
- Inspect Electrical Connections: Verify proper voltage (230/460V) and check wiring for wear.
- Table and Rollers: Keep the table smooth, clean, and waxed for easy material feeding.
- Belt Tension: Check and adjust the drive belt tension to ensure optimal performance.
- Check Alignment: Verify proper alignment of the cutterhead and feed rollers for consistent results.
- Proper Storage: Store in a dry area to prevent rust and prolong machine life.
