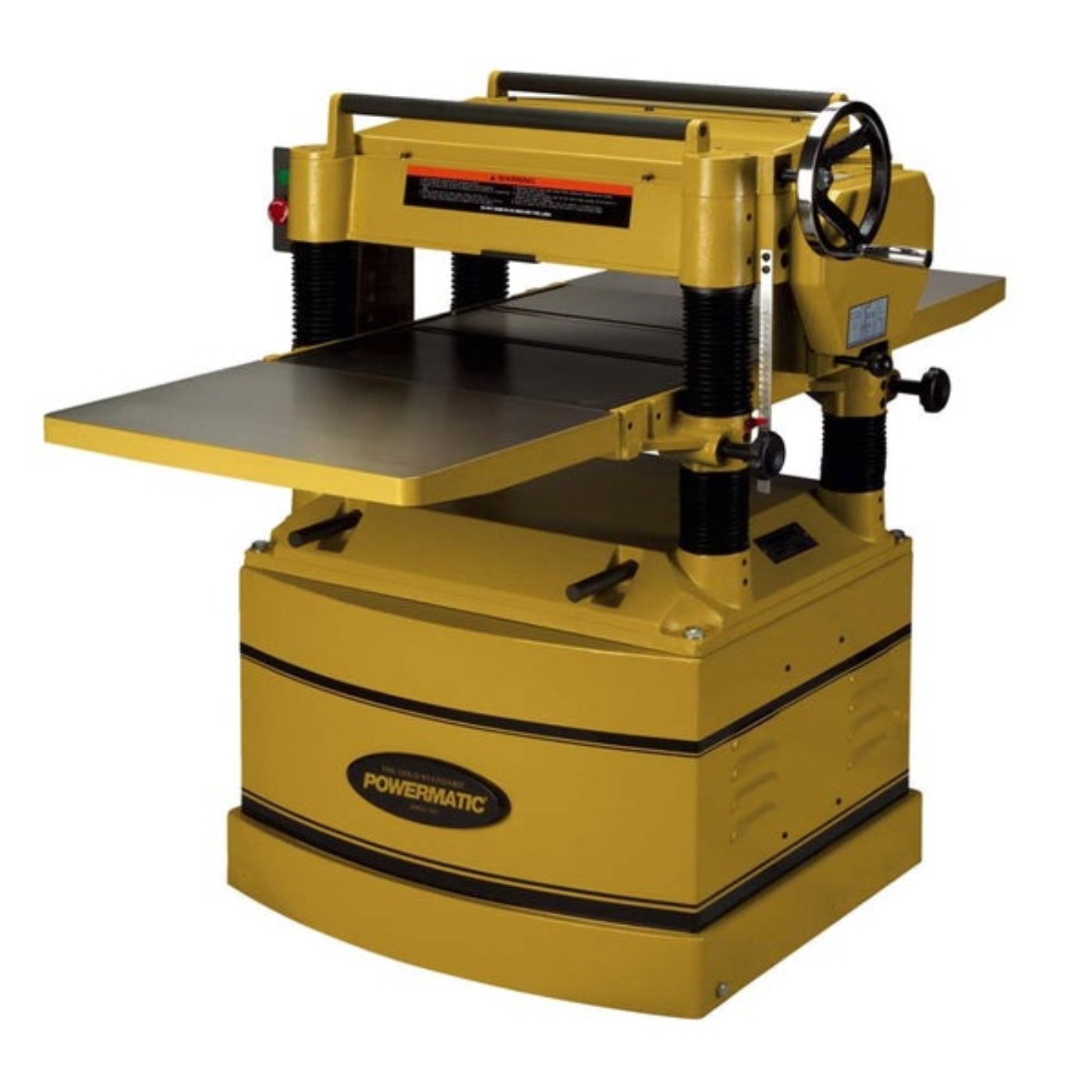

Powermatic 209 20" Straight Knife Planer 5hp, 3PH, 230/460V
This heavy duty Planer offers performance and value, loaded with standard features not found on other machines in its class. The powerful 5HP motor and 20" planing capacity will handle the most demanding work. The 5" dust port connects easily to any dust collector. The cutterhead has four high speed steel knives and turns at 5,000 RPM producing 20,000 cuts per minute. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish.
The solid cast iron base, table and head are designed for production. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM. The corrugated infeed and fine groove outfeed rollers ensure a smooth feed. The precision ground and polished cast iron table rides on four steel columns giving it plenty of support for the larger workpiece. Heavy cast iron extension wings ensure a flat, smooth cut.
Features
- Cast iron head
- Cast iron table with extensions creates a big 55-1/2" x 20" working area
- Chip breaker and pressure bar assists to reduce snipe

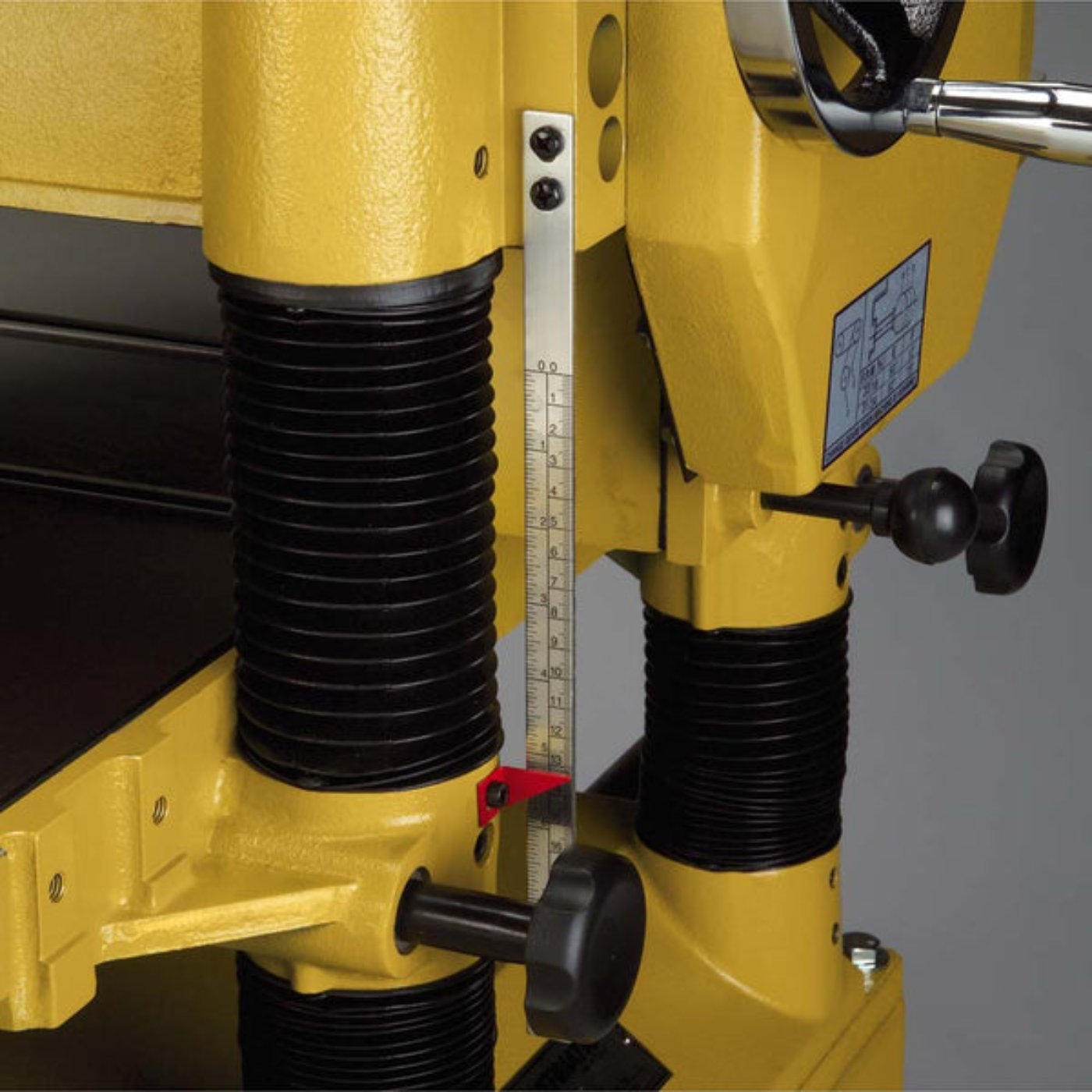

- Chrome-plated, ergonomic handwheel makes adjustments smooth and easy

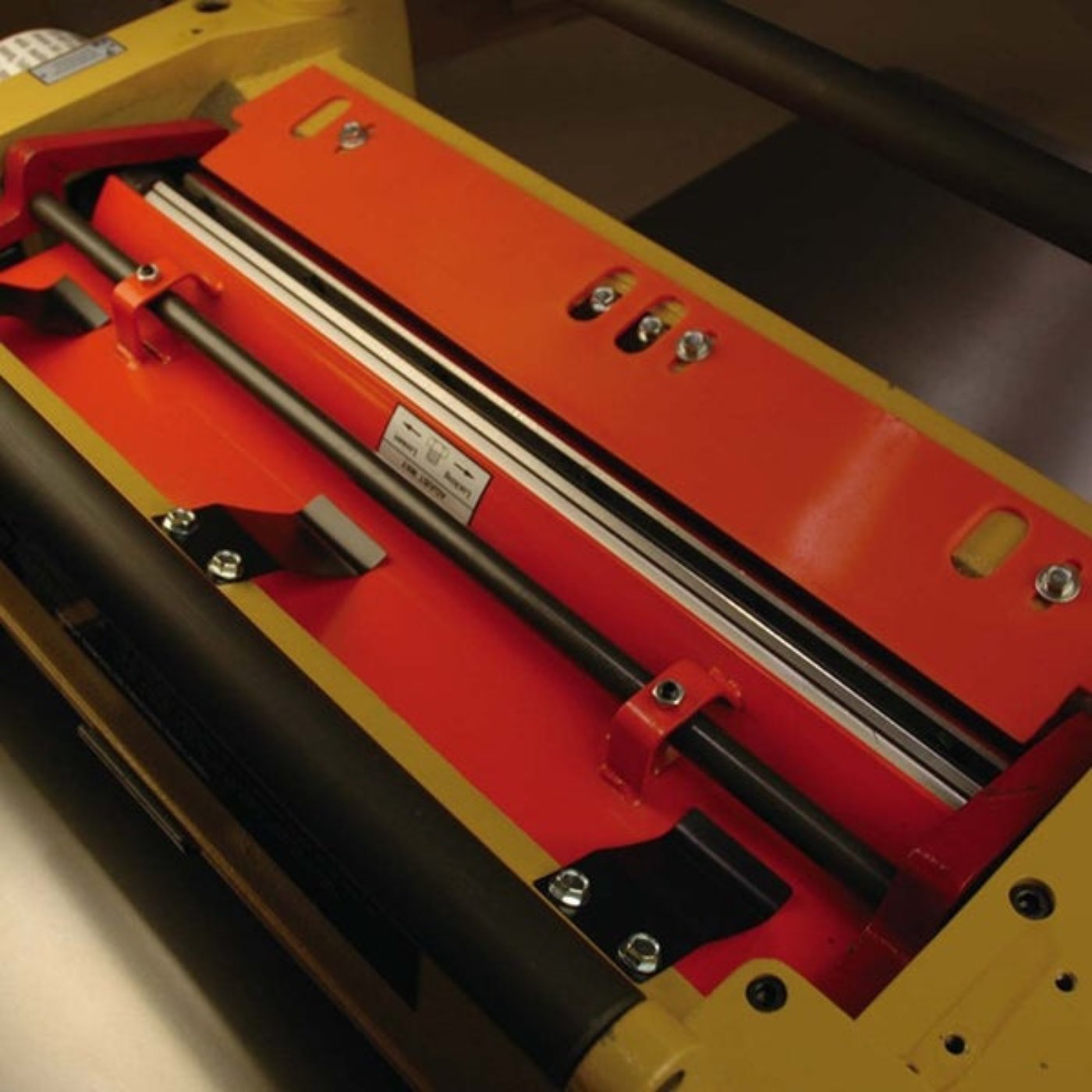

- Cutterhead contains 4 high speed steel straight knives for a clean, smooth cut
- Feed rollers and cutterhead supported by full cast iron head assembly
- Feed rollers and cutterhead supported by full cast iron head assembly for rigidity
- Fully enclosed base cabinet with integrated casters for shop mobility
- Serrated steel infeed roller and smooth steel outfeed roller allows for 1/8" maximum depth of cut and trouble-free operation
Specification
| Cuts Per Minute | 20,000 |
| Cutterhead Diameter | 3-3/16" |
| Cutterhead Speed | 5,000 RPM |
| Dust Collection Required (min.) | 900 CFM |
| Dust Port Outside Diameter | 5" |
| Feed Rate | 24/31 FPM |
| Max. Depth of Cut | 3/32" |
| Max. Full Width Depth of Cut | 3/32" |
| Max. Planing Thickness | 8" |
| Max. Planing Width | 20" |
| Min. Planing Length | 6-3/4" |
| Motor Phase | 3 |
| Motor Power | 5hp |
| Motor Voltage | 230/460V |
| Prewired Voltage | 230V |
| Recommended Circuit Size | 40 Amps |
| Style (Type) | Floor |
| Table Size (L x W) | 25-3/4" x 20" |
| Table Support | 4 Column |
| Type of Cutterhead | Straight Knife |
What Our Experts Think
- Powerful 5HP Motor: Handles tough hardwoods with ease, ensuring smooth cuts.
- Wide Planing Capacity: 20" width accommodates larger workpieces, perfect for professional shops.
- Straight Knife Cutterhead: Delivers precise, clean finishes on various wood types.
- Durable Construction: Heavy-duty cast iron and steel components ensure longevity.
- Flexible Voltage: Operates on 230V or 460V, adaptable for different shop setups.
Q&A
Q: What is the Powermatic 209 Planer?
A: A powerful 20" straight knife planer with a 5HP motor, 3-phase operation, and 230/460V compatibility, designed for heavy-duty woodworking.
Q: What are its key features?
A: 20" planing width, 5HP motor, four high-speed steel knives for precise cuts, cast iron table, and adjustable feed rates for smooth, efficient operation.
Q: Who is it ideal for?
A: Perfect for professional woodworkers and industrial workshops needing high-capacity, precise surface planning.
Q: Why choose this model?
A: It offers durability, power, and precision, making it a reliable choice for large-scale woodworking projects.
Maintenance Tips
- Blade Care: Regularly inspect and sharpen or replace knives for smooth, accurate cuts.
- Clean Dust and Debris: Clear wood chips and dust from the cutterhead, table, and motor housing after each use.
- Lubrication: Apply lubricant to feed rollers, bearings, and adjustment screws to prevent wear.
- Electrical System: Ensure proper voltage (230/460V) and inspect wiring connections periodically.
- Table Maintenance: Keep the table clean and waxed for smooth material feeding.
- Check Belt Tension: Inspect and adjust drive belts to maintain efficient power transfer.
- Align Rollers and Cutterhead: Regularly check for proper alignment to ensure even planing.
- Store Safely: Keep in a dry, controlled environment to prevent rust and damage.
