Lectrotab XKA Aluminum Alloy Trim Tab Kit w/Rocker Switch - 12 x 18 - XKAF12X18A - CW96301

Lectrotab XKA Aluminum Alloy Trim Tab Kit w/Rocker Switch - 12 x 18 - XKAF12X18A - CW96301

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking. Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.

Features

• All Tabs sealed with a corrosive resistant epoxy coating

• Equivalent strength to 10 gauge stainless steel

• "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when under way or backing down

• Quiet operation

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Specification

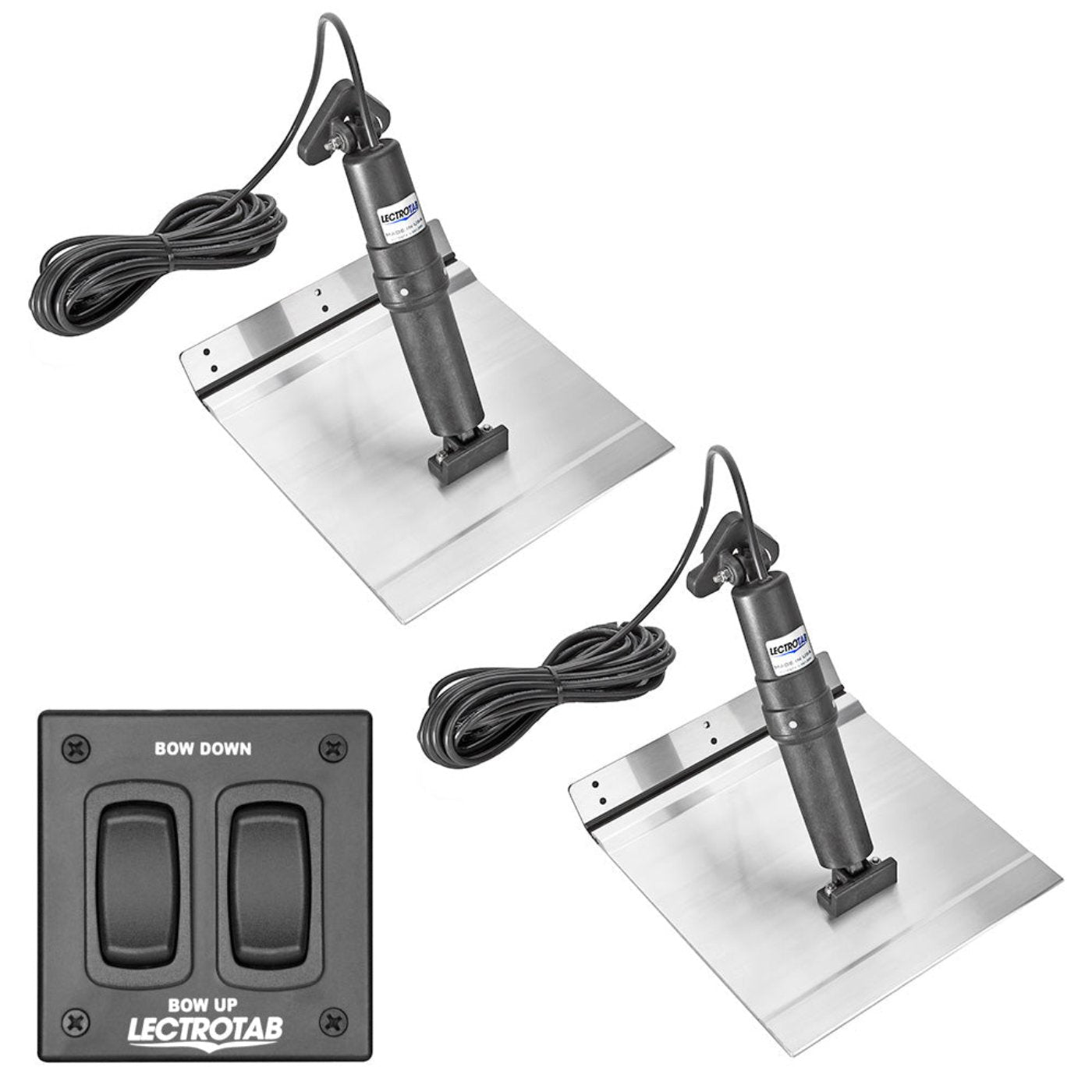

In the Box

• One (1) Manual Leveling Control

• Two (2) Aluminum Alloy tabs

• Two (2) actuators w/23' (7 M) cables

• Instruction Manual

Product Manual

Owners Manual

Product Brochure

What Our Experts Think

The Lectrotab XKA Aluminum Alloy Trim Tab Kit (12" x 18") with Rocker Switch offers a balance of durability and performance. Here’s why it’s an ideal choice:

• Optimal Size: 12" x 18" dimensions deliver reliable lift and stability, suitable for medium to larger boats.
• Lightweight Aluminum Alloy: Corrosion-resistant material ensures longevity in both saltwater and freshwater environments.
• Complete System: Includes a rocker switch for precise, user-friendly trim adjustments.
• Enhanced Efficiency: Improves handling, reduces drag, and boosts fuel economy for a smoother boating experience.
• Easy Installation: Pre-drilled tabs make setup quick and hassle-free.
• Versatile Design: Perfect for boats needing dependable lift and enhanced control under various conditions.

Q&A

Q: What are the features of the Lectrotab XKA Aluminum Alloy Trim Tab Kit with Rocker Switch (12 x 18)?
A: The Lectrotab XKAF12X18A trim tab kit includes 12″ x 18″ aluminum alloy trim tabs, offering lightweight durability, excellent corrosion resistance, and improved boat performance. It comes with a rocker switch for precise control, enhancing stability and fuel efficiency.

Q: What is included in the kit?
A: The kit includes two 12″ x 18″ aluminum alloy trim tabs, a rocker switch for control, and all necessary mounting hardware for installation.

Q: What material are the trim tabs made of?
A: The trim tabs are constructed from high-quality aluminum alloy, providing strength and resistance to corrosion in marine environments.

Q: What is the purpose of this trim tab kit?
A: It improves boat stability, reduces bow rise, enhances fuel efficiency, and ensures smoother rides in varying water conditions.

Q: Does the kit include a control switch?
A: Yes, the kit includes a rocker switch for easy and precise adjustment of the trim tabs.

Q: Is installation easy?
A: Yes, the kit is designed for straightforward installation and includes all necessary hardware.

Q: What are the dimensions of the trim tabs?
A: Each trim tab measures 12″ x 18″, making them ideal for medium-sized or performance-driven boats.

Maintenance Tips

• Rinse After Use: Wash the trim tabs with fresh water after every outing, especially in saltwater, to prevent salt buildup and corrosion.
• Inspect Components: Regularly examine the tabs, brackets, and fasteners for wear, bending, or rust. Tighten any loose connections.
• Apply Anti-Fouling Paint: Use marine-grade anti-fouling paint on the tab surfaces to prevent barnacle and algae growth.
• Test Rocker Switch: Ensure the rocker switch operates smoothly and check wiring for damage or corrosion.
• Lubricate Actuators: Periodically apply marine-grade lubricant to the actuators for smooth and reliable operation.
• Verify Alignment: Confirm the tabs are aligned and fully retractable when not in use to minimize drag and prolong durability.
