Description

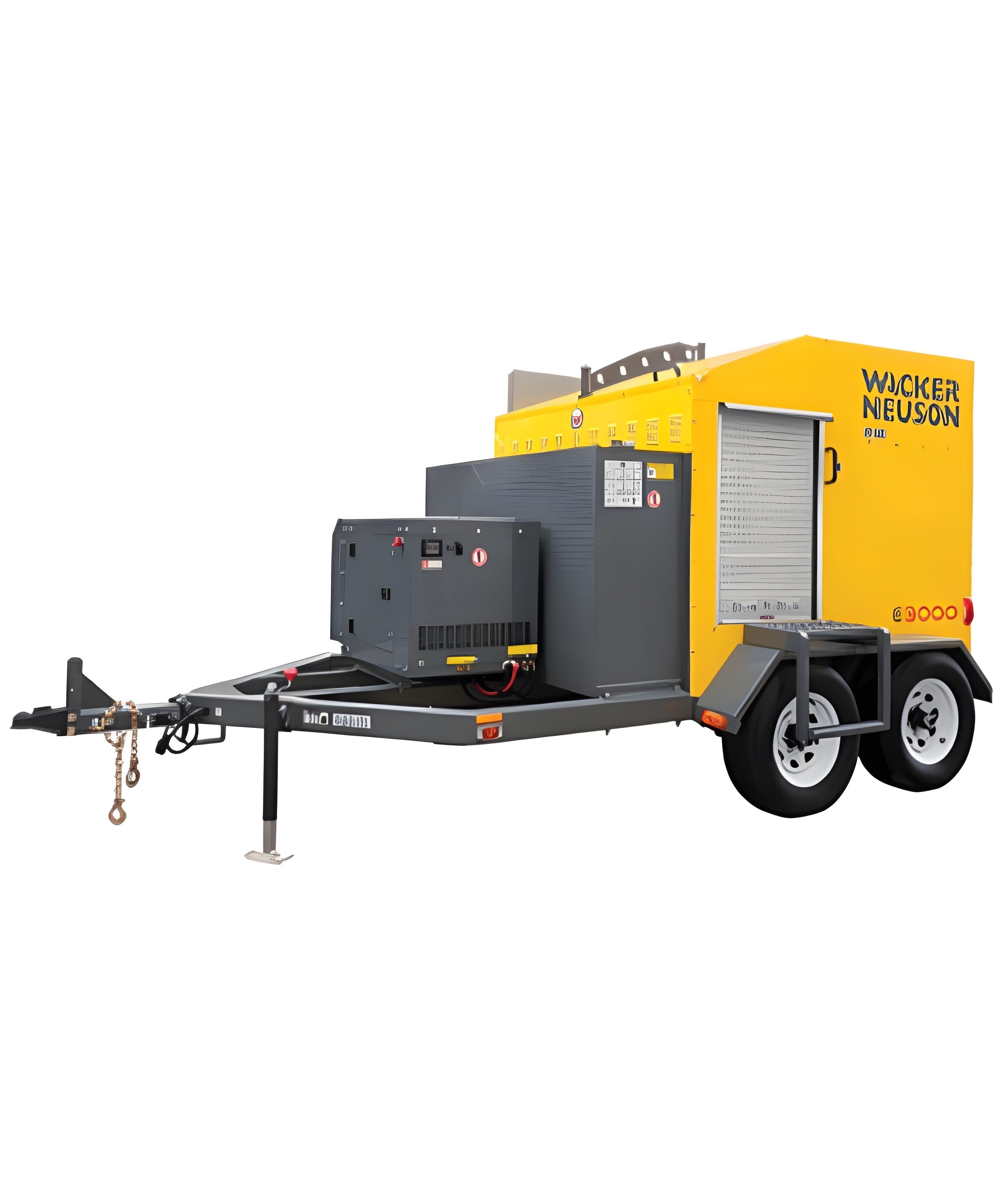

Wacker Neuson ES Ground-Surface Heater – E3000
Engineered for reliable performance and trouble-free starts for up to 101 hours of run time, the Wacker Neuson E3000 ES ground-surface heater will provide maximum flow and ensure consistent heat delivery for thawing and curing applications. The E3000ES thaws or cures up to 6,000 sq. ft. With accessories this heater will cure up to 12,000 sq. ft. or provide 360,000 cu. ft. of dry heat at 84% efficiency, the highest in the industry.
Specifications
E3000ES | E3000ES W/ 5kW Gen | E 3000ES W/ 3kW Gen | |
---|---|---|---|
Dimensions |
|||
L x W x H in | 169 x 72 x 88 | 169 x 72 x 88 | 169 x 72 x 88 |
Operating weight lb | 5,725 | 6,250 | 6,370 |
Shipping weight lb | 4,960 | 5,485 | 5,670 |
Heat transfer fluid US gal | 115 | 115 | 115 |
Hose Length ft | 3000 | 3000 | 3000 |
Quantity Hose Reels | 1 | 1 | 1 |
Quantity Circulation Loops | 2 | 2 | 2 |
Temperature monitor | Digital | Digital | Digital |
Operating data |
|||
Pump performance per pump US gal/h | 265 | 265 | 265 |
Flow velocity per Circulation Loop US gal/h | 265 | 265 | 265 |
Hose pressure Normal Operating psi | 110 | 110 | 110 |
Heating power Gross Input BTU/h | 252,000 | 252,000 | 25,200 |
Heat efficiency % | 87 | 87 | 87 |
Operating temperature ° F | 180 | 180 | 180 |
Capacity Thaw (Std) ft² | 6,000 | 6,000 | 6,000 |
Capacity Thaw (w/acc) ft² | 6,000 | 6,000 | 6,000 |
Capacity Cure (Std) ft² | 6,000 | 6,000 | 6,000 |
Capacity Cure (w/acc) ft² | 12,000 | 12,000 | 12,000 |
Capacity Frost (Std) ft² | 9,000 | 9,000 | 9,000 |
Capacity Frost (w/acc) ft² | 18,000 | 18,000 | 18,000 |
Capacity Air Heat ft³ | 360,000 | 360,000 | 360,000 |
Engine performance Generator kW | 5 | 3 | |
Rated current A | 20 | 20 | 20 |
Rated voltage V | 115 | 115 | 120 |
Engine / Motor manufacturer | Kubota | Kubota | |
Engine / Motor type | 2 Cylinder Liquid Cooled | 2 Cylinder Liquid Cooled | |
Displacement in³ | 29.23 | 36.5 | |
Engine performance hp | 11.1 | 16.8 | |
Engine RPM rpm | 3000 | 3600 | |
Fuel type | Winter-Blend Diesel | Winter-Blend Diesel | Winter-Blend Diesel |
Fuel consumption Generator US gal/h | 0.6 | 0.28 | |
Fuel consumption Burner US gal/h | 1.81 | 2.2 | 1.81 |
Tank capacity Useable Fuel US gal | 115 | 115 | 115 |
Tank capacity Oil US qt | 2 | 2.64 | |
Runtime @ 100% Burner Run Percentageh | 61 | 50 | 50 |
Runtime @ 75% Burner Run Percentageh | 82 | 67 | 67 |
What Our Experts Think
- Efficient Ground Heating: The Wacker Neuson E3000 delivers reliable, even heat for thawing frozen ground, curing concrete, and providing temporary heat in cold-weather applications.
- Covers Up to 3,000 Sq. Ft.: Ideal for medium to large job sites, ensuring consistent heat distribution for construction, roadwork, and industrial projects.
- Hydronic Heating System: Uses a closed-loop glycol system to prevent frost, accelerate concrete curing, and maintain optimal ground conditions.
- Fuel-Efficient Diesel Operation: Offers long run times with minimal fuel consumption, making it a cost-effective heating solution.
- Rugged & Weather-Resistant: Designed to withstand harsh job site conditions, ensuring durability and reliable performance in extreme temperatures.
- Easy Transport & Setup: Features forklift pockets and lifting points, allowing for quick and efficient deployment where needed.
- Versatile Use Cases: Perfect for construction sites, pipeline projects, utility work, and enclosed space heating.
Q&A
Q: What is the Wacker Neuson E3000 ES Ground-Surface Heater?
A: The Wacker Neuson E3000 ES is a hydronic ground heater designed for thawing frozen ground, curing concrete, and providing temporary heat in cold-weather conditions.
Q: What is this heater used for?
A: It is used for ground thawing, concrete curing, frost prevention, and temporary heating in construction, roadwork, and cold-climate operations.
Q: Is this heater easy to use?
A: Yes, it features an automated control system and an efficient heat distribution system for consistent and reliable performance in extreme temperatures.
Q: Who is this product ideal for?
A: This heater is ideal for contractors, construction crews, and professionals needing dependable ground heating solutions for winter projects.
Maintenance Tips
- Pre-Use Inspection: Check for fuel leaks, worn hoses, and loose connections before each use. Ensure glycol lines and heat exchangers are intact and functioning.
- Use High-Quality Fuel: Always use clean, fresh diesel fuel. Drain water and contaminants from the fuel tank and fuel filters regularly to prevent clogging.
- Monitor and Change Engine Oil: Check the oil level frequently and change it according to the manufacturer’s schedule using the recommended oil type.
- Inspect and Maintain Glycol System: Ensure proper glycol levels, inspect hoses for leaks or cracks, and use the recommended glycol-to-water mixture for optimal heat transfer.
- Clean or Replace Air Filters: Keep air filters clean to ensure proper airflow and prevent overheating or reduced efficiency. Replace as needed.
- Check Hydraulic System: Inspect hydraulic fluid levels and hoses for leaks. Change hydraulic oil and filters at manufacturer-recommended intervals.
- Test Safety and Control Systems: Regularly test thermostats, flame sensors, emergency shutoff mechanisms, and circulation pumps to ensure safe and reliable operation.
- Inspect Exhaust and Venting: Keep exhaust vents and air intakes clear of obstructions to prevent carbon monoxide buildup and ensure efficient combustion.
- Keep the Unit Clean: Remove dirt, glycol spills, and debris after each use to prevent corrosion and maintain performance.
- Proper Storage: Store in a dry, covered location when not in use. For long-term storage, drain fuel, check glycol levels, and protect components from extreme temperatures.
