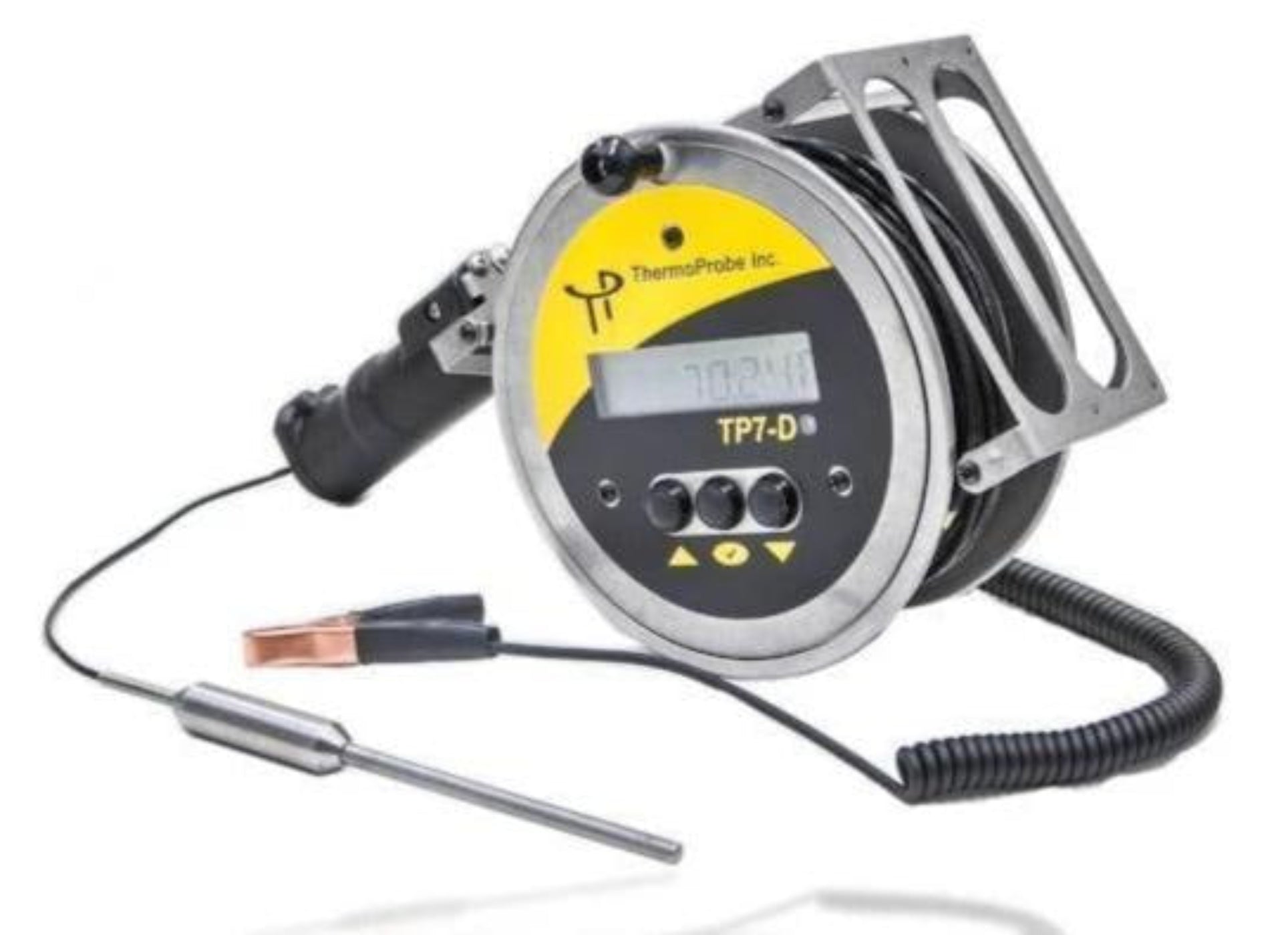

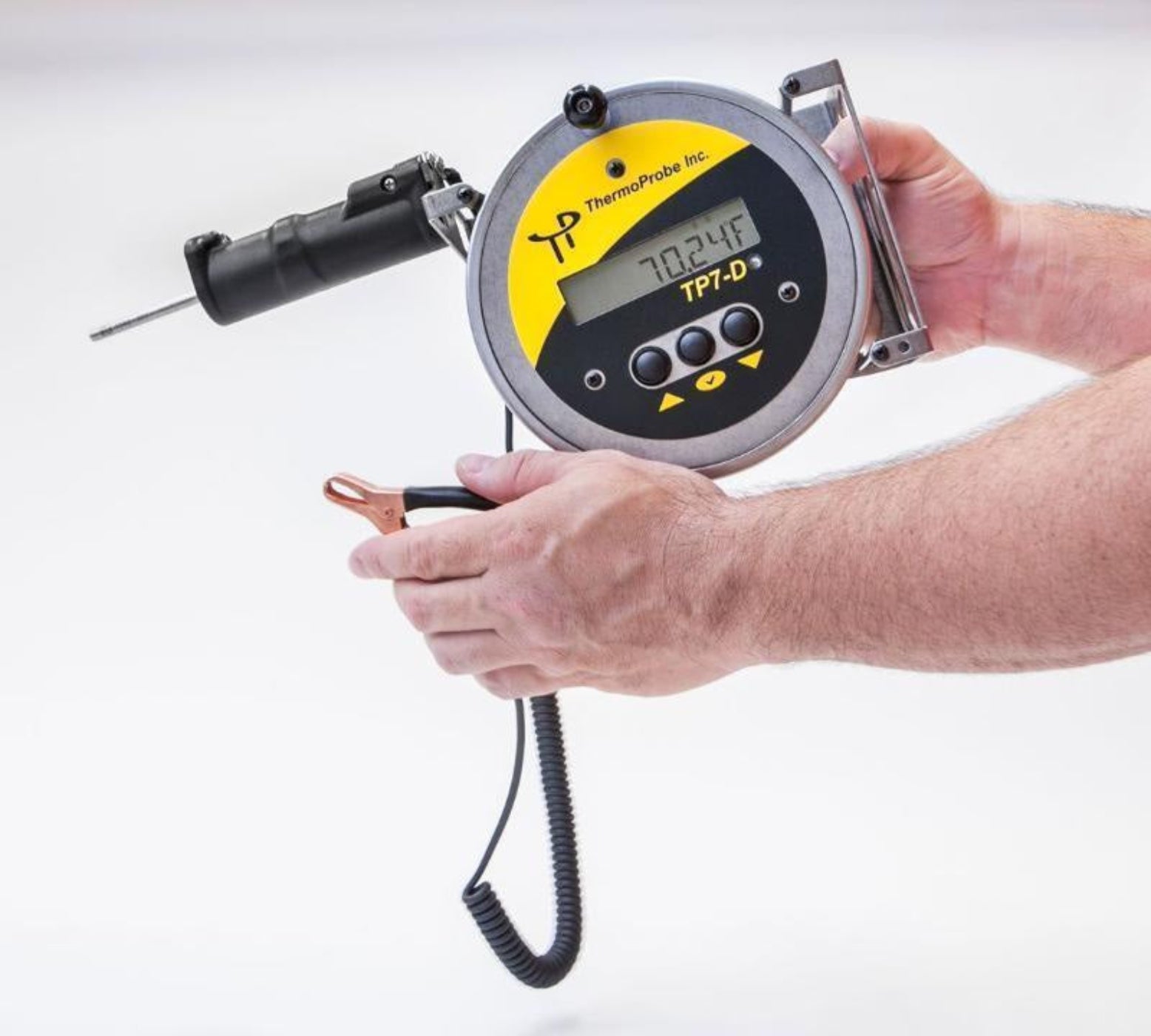

TP7-D Series by ThermoProbe
The ThermoProbe TP7-D (Replaces TP7-C) is a Zone 0 intrinsically safe digital gauging thermometer re-designed to the latest standards for use in hazardous locations. With over 30 years experience manufacturing digital thermometers, ThermoProbe has designed the TP7-D with reliable RTD sensors based on our previous industry-standard thermometers such as the TP7-C and TP9 Petroleum Gauging Thermometer.
Based on our laboratory thermometer technology, the latest ThermoProbe TP7-D electronics are more accurate than previous models. The convenient user interface provides a large 1/2” alpha-numeric character display and buttons that can be easily used with gloves. An automatic backlight feature is included to help read the display in low light conditions. An intuitive menu allows the user to easily select Celsius or Fahrenheit units, display resolution, and access calibration. Icons on the display help the user identify temperature stability, battery condition and menu items. The TP7-D intrinsically safe digital thermometer comes equipped with easily replaceable AA batteries, providing up to 200 hours of operation.
The ThermoProbe TP7-D rugged instrument body is constructed from stainless steel and static-dissipative plastic components. The TP7-D spool-reel design allows the user to quickly deploy and retrieve the sensor probe into various products. With multiple probe configurations and allowable lengths up to 50 meters (165 ft), this intrinsically safe digital thermometer is well suited to many tank gauging applications. The probe assembly is constructed of easy to clean materials such as non-stick cable and stainless steel.
Recommended Operation per API 7.2, International Safety Guide for Oil Tankers and Terminals, API 4 and other recommended procedures and standards.
Custody Transfers, Hazardous Location, Intrinsically safe, Inventory, PET, Tank, Pipeline, Barge, Ship, Railcar, Tank Truck, Viscosity, Petroleum, Portable, Digital, Thermometer, Inspector, NIST, Certified, Ex, ATEX, IECEx, EAC, TIIS, GOST, TR TS
Gasoline, Diesel, Asphalt, Molten Sulphur, Petrochemical, Viscous, Caustic, Acid, Chemical, Alkali, Molasses, Syrup, Distilled spirits, Aviation fuel
| Maximum Dimensions |
12 x 7 x 5.5 in. (30.5 x 17.8 x 14 cm |
|---|---|
| Weight |
4.5 lb (2 kg) – with 75′ standard weight probe assembly |
| Probe |
Stainless Steel, Sealant, Aramid Fiber Reinforced, FEP or PFA Cable Jacket, Coaxial Construction |
| Enclosure Material |
Stainless steel, Static-dissipative plastic probe holder |
| Batteries |
2 AA Alkaline; Battery Life of approximately 200 hours Battery manufacturer’s battery operating temperature range -4 to 130°F, -20 to 54°C Note: Battery may not provide adequate power if ambient temperature is extremely low or high. |
| Temperature |
Resolution 0.01 Range: -40 to +400°F -40 to +204°C Calibrated Accuracy: ±0.2°F from 32 to 200°F ±0.5°F from 200 to 400°F ±0.1°C from 0 to 100°C ±0.3°C from 100 to 200°C 4 Point NIST Traceable Report of Test Long-term drift not to exceed 0.05%/year Meets API requirements |
| Certification |
ATEX & IECEx (Ex ia IIB T4 Ga) |
Q: What is the TP7D-075-SW-SM?
A: It is a high-performance temperature probe from the TP7D Series by ThermoProbe, designed for precise temperature measurement in industrial applications.
Q: What is the length of the TP7D-075-SW-SM probe?
A: The probe has a 75-meter cable, offering extended reach for large-scale monitoring.
Q: What applications is the TP7D-075-SW-SM suitable for?
A: It is ideal for tank gauging, process control, and other systems requiring accurate temperature monitoring over long distances.
Q: Is the TP7D-075-SW-SM probe compatible with other ThermoProbe devices?
A: Yes, it is compatible with various ThermoProbe tank gauging thermometers and devices.
Q: Is the TP7D-075-SW-SM probe durable?
A: Yes, it is built with robust materials to withstand harsh environments and provide long-lasting accuracy.
Q: How do I install the TP7D-075-SW-SM probe?
A: Installation is easy and quick, with clear instructions for integration into your existing system.
| Badge | No reviews |
|---|---|
| Cord Length | 25 ft, 25 m, 50 ft, 75 ft |
| Widget | Customer Reviews Be the first to write a review Write a review 0% (0) 0% (0) 0% (0) 0% (0) 0% (0) |
| Sensor Weight | Asphalt Weight, Extra Weight, Standard Weight |
| Cord Marking | Metric Marking, No Marking, Standard Marking |
