Description

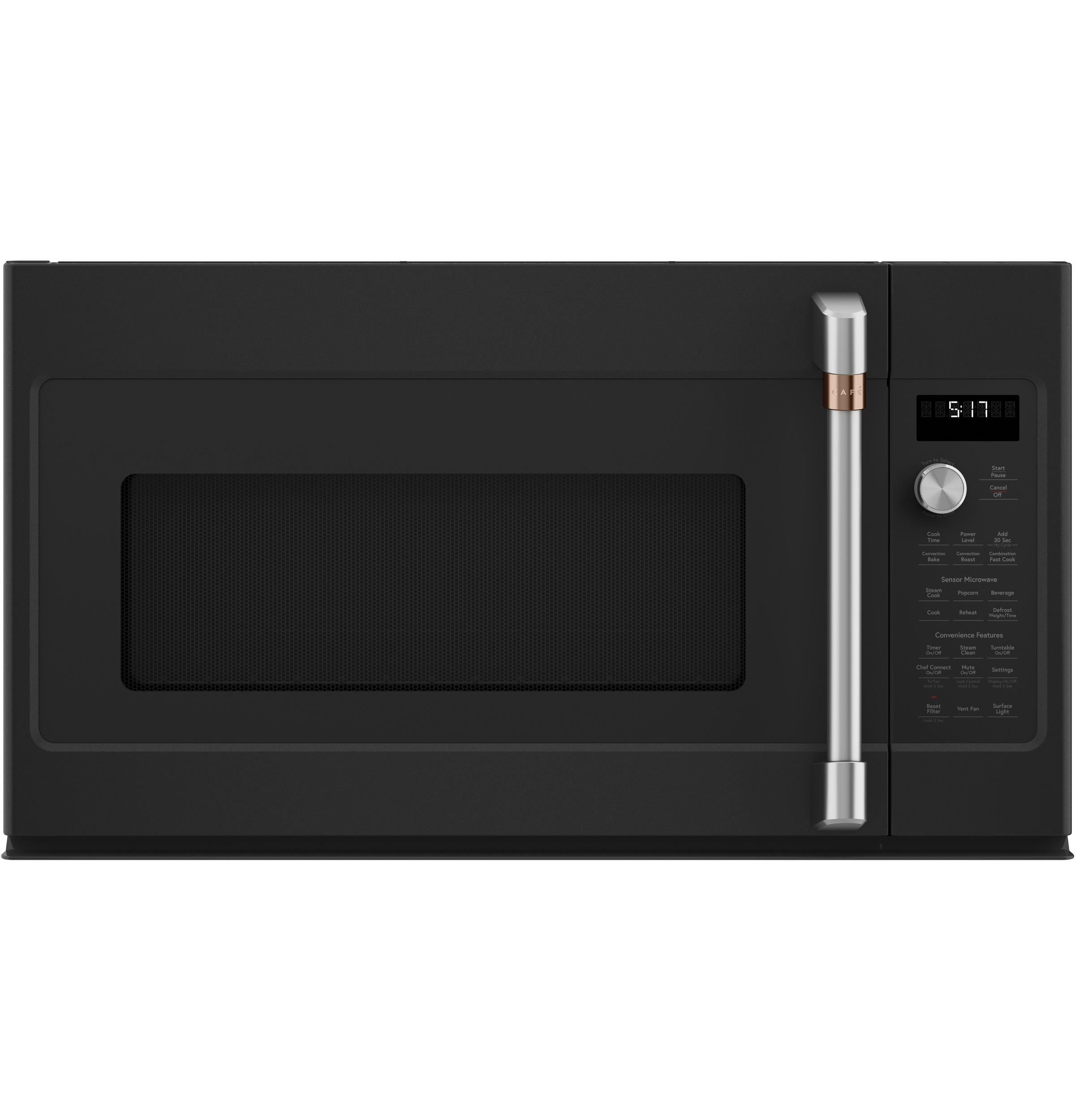

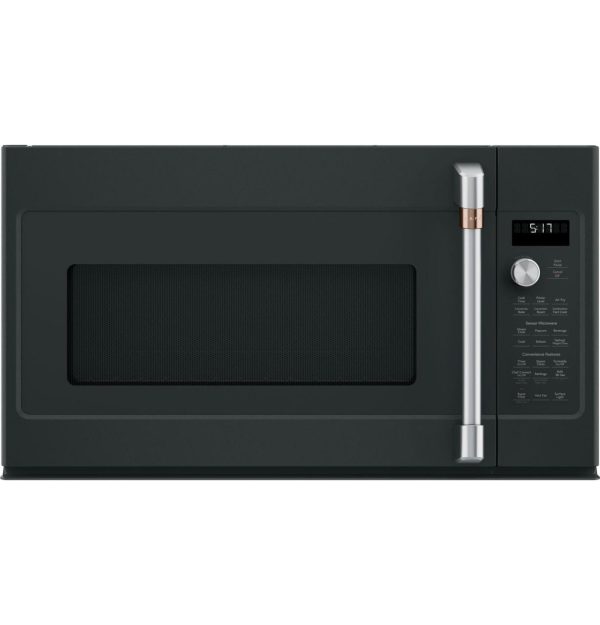

CAFE Café 1.7 Cu. Ft. Convection Over-the-Range Microwave Oven – CVM517P3RD1-KT
Features
- Create a streamlined cooking experience
- Cook more at once
- A simple and smart addition to your culinary repertoire
- Delicious results in no time at all
- A microwave that’s as versatile as you are
- Sparkling clean with just a wipe
- Air Fry
- Say goodbye to guesswork
- Brighten up the room
- Like a breath of fresh air
Specifications
Cooking Technology | Microwave/Convection/Air Fry |
---|---|
Cooktop Lighting | LED High/Low/Off Auto Night Light |

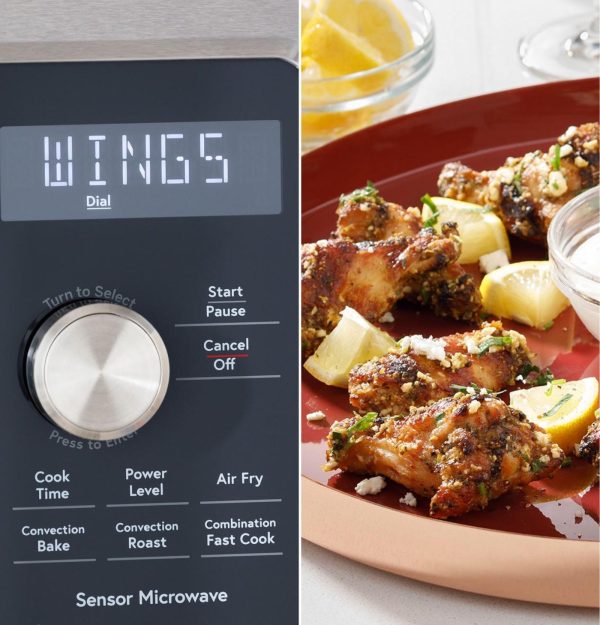

Control Type | Glass Touch Dial |
Exhaust Fan | Hi/Med/Low/Off 300-CFM 3-Speed |
Microwave Sensor Cooking Controls | Steam Cook Reheat Popcorn Cook (5 Foods) Beverage |
Product Type | Over-the-range Microwave |
Style | Over-The-Range |

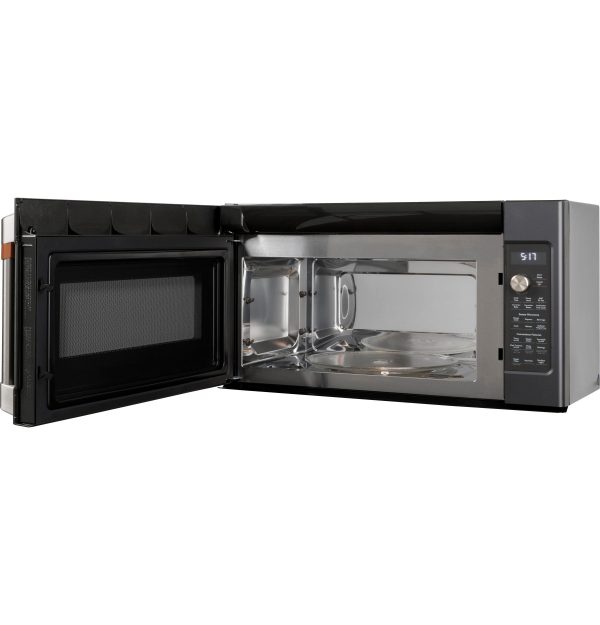

Microwave Oven Interior | Stainless Steel |
Turntable Size | 13.6 in |
Turntable | Glass |
Turntable On / Off | Yes |
Power Levels | 10 |
Interior Oven Light | Halogen |
Display On/Off | Yes |
Microwave Watts (IEC-705) | 950.0 W |
Electronic Digital Display with Clock | Yes (LED) |
Rack Type | 2 Fixed Positions 1 Square Rack 1 Round Rack |
Convection Cooking Controls | Roast Fast Cook Bake |

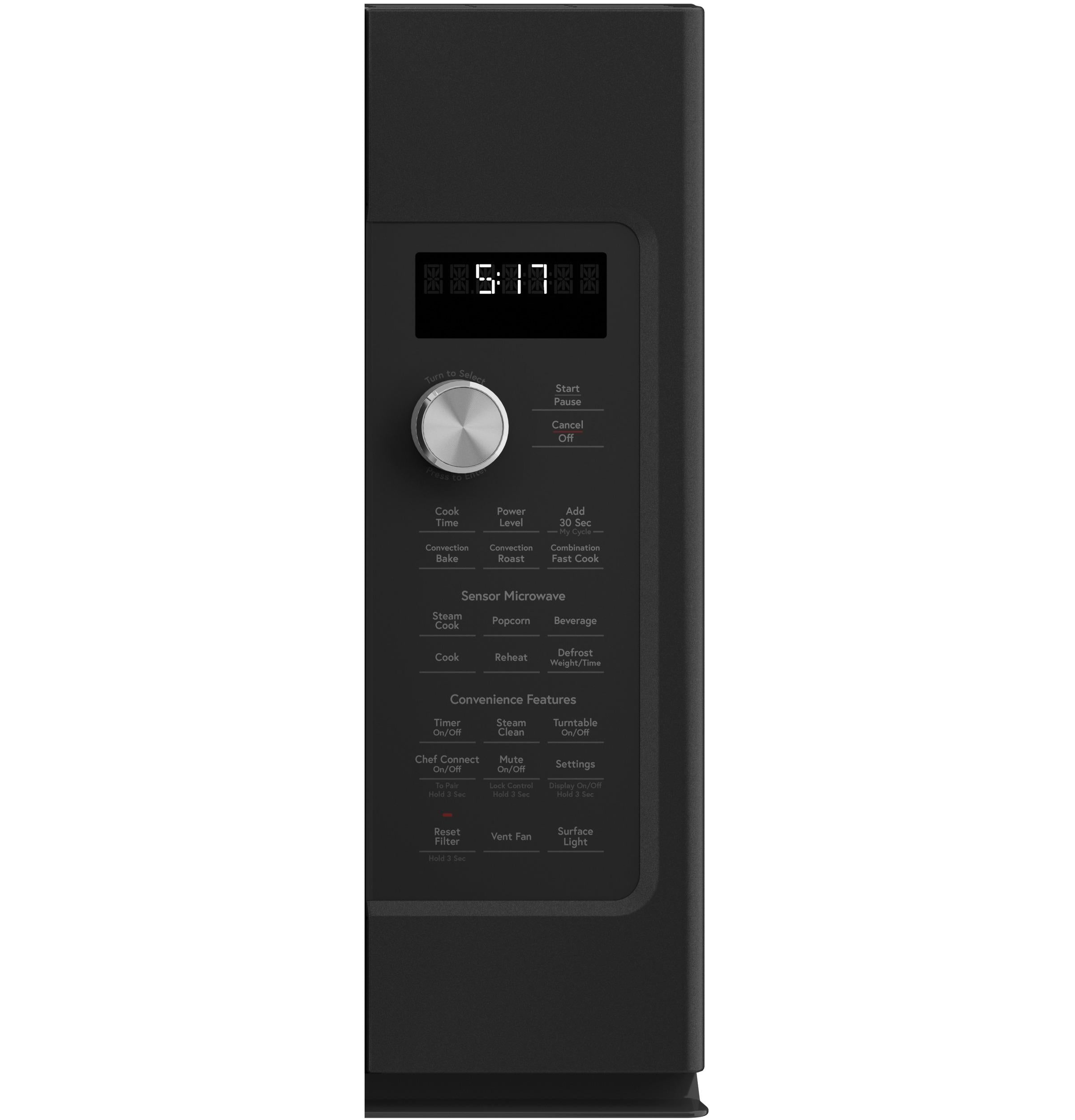

Control Features | Vent Fan Turntable On/Off Timer On/Off Sync Auto Off; Surface Light Sync; Vent Fan Sync Surface Light Steam Clean Start/Pause Settings Power Level My Cycle Mute On/Off Display On/Off Defrost: Weight/Time Cook Time Chef Connect On/Off Cancel/Off Air Fry Add 30 Seconds |
Oven Interior | Stainless Steel |
Cooking Modes | Microwave Fast Cook Convection Roast Convection Bake Air Fry |
ACCESSORIES | |
Recirculating Charcoal Filter Kit | WB02X35607 Included |
Optional Kits | CXOTRHKPMCU Brushed Copper CXOTRHKPMBZ Brushed Bronze CXOTRHKPMBT Brushed Black |
Optional Side Filler Panel Kit | JX36BDS |
APPEARANCE | |
Handle | Stainless Steel Appearance |
Color Appearance | Matte Black |
Case Color | Graphite Gray |
Door Color | Black Stainless |
CAPACITY | |
Exhaust Capacity | 300.0 ft3/min |
Total Capacity (cubic feet) | 1.7 cu ft |
Vent CFM | 300 |
ECONOMICAL / QUIET | |
Venting Type | Externally Vented |
POWER / RATINGS | |
Input Volts/Hertz | 120/60 |
Electrical Input – 120V Watts | 1700 |
Electrical Input – 120V Amperage | 14.5 |
WARRANTY | |
Labor Warranty | Limited 1-year entire appliance |
Parts Warranty | Limited 5-year magnetron tube Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
WEIGHTS & DIMENSIONS | |
Overall Depth | 17.9375 in |
Cabinet Width | 30.0 in |
Cavity (W x H x D) | 21-5/8 x 9-3/4 x 14-1/8 |
Net Weight | 85.0 lb |
Overall Width | 29.875 in |
Overall Height | 16.3125 in |
Product Manual
What Our Experts Think
- Versatile Cooking – Convection and microwave functions combine for fast, even heating.
- Spacious 1.7 Cu. Ft. Capacity – Accommodates large dishes and cookware with ease.
- Powerful Ventilation – Built-in 300 CFM vent hood efficiently removes smoke and odors.
- Smart & Intuitive Controls – Touch controls and preset cooking modes for effortless operation.
- Sleek Matte Black Design – Adds a bold, modern touch to any kitchen.
Q&A
Q: What are the key features of the Café CVM517P3RD1 microwave?
A: This 1.7 cu. ft. over-the-range microwave features convection cooking, sensor technology, and a venting system, providing versatile cooking and ventilation.
Q: Does this microwave have convection cooking?
A: Yes, it includes a convection feature, allowing for baking and roasting with even heat distribution.
Q: What type of ventilation does this microwave offer?
A: It has a built-in venting system to help remove smoke, steam, and odors from your kitchen.
Q: Can this microwave be installed over a range?
A: Yes, it is designed for over-the-range installation and includes mounting hardware.
Q: What is the power output of this microwave?
A: It delivers 950 watts of power for efficient cooking and reheating.
Maintenance Tips
- Regular Cleaning: Wipe the interior and exterior with a damp cloth and mild detergent.
- Avoid Harsh Chemicals: Use a microwave-safe cleaner for stubborn stains.
- Clean the Filters: Wash grease filters monthly and replace charcoal filters as needed.
- Inspect the Door Seal: Ensure the door closes properly to maintain efficiency.
- Ventilation Check: Keep vents clear for proper airflow and performance.
