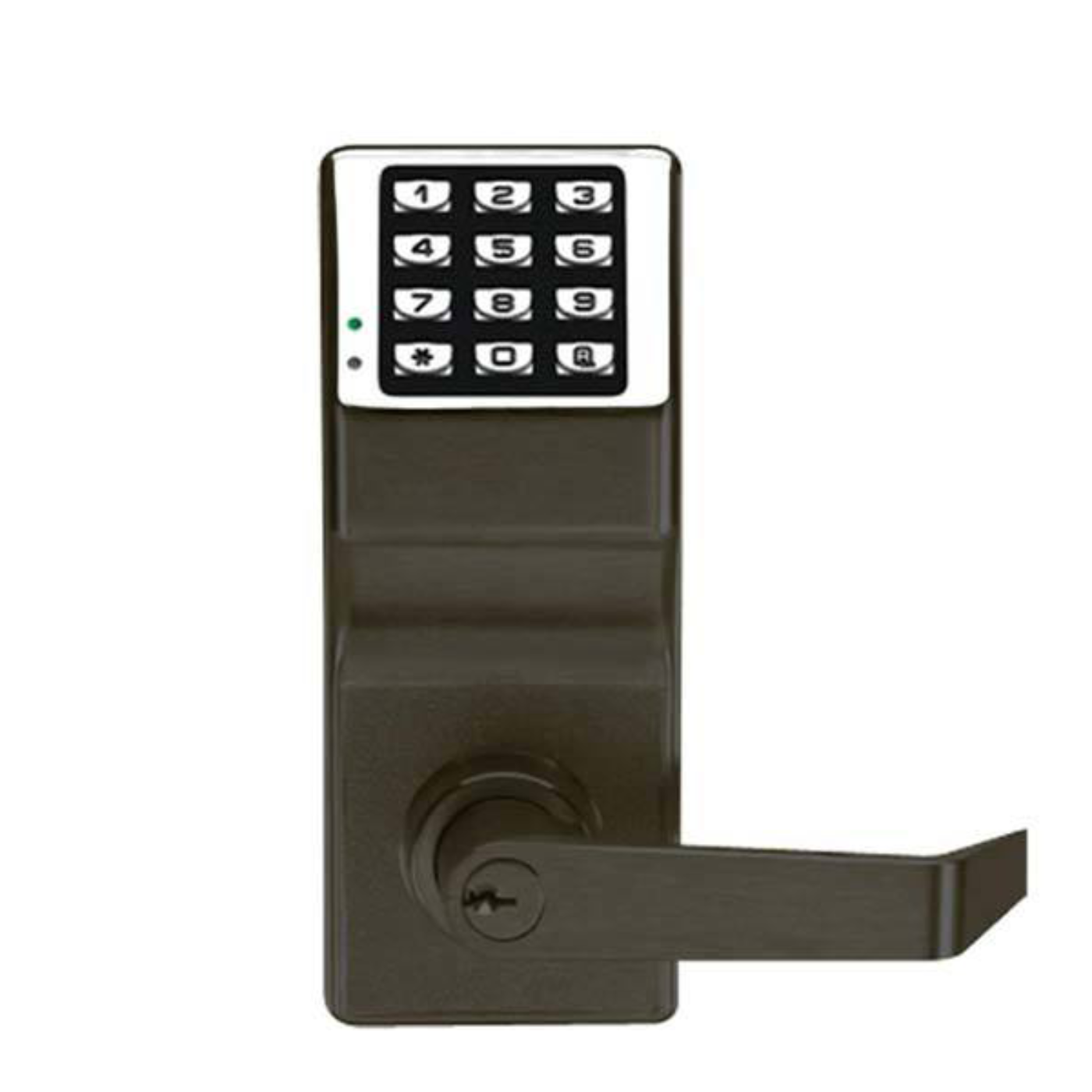

The Trilogy DL2700 Series is one of Alarm Lock’s most popular standalone pushbutton cylindrical lock with Grade 1 durability. a leader in access and egress solutions for education, healthcare, multi-use commercial, retail, transportation & industry. Field-proven reliability.
Electronic battery-operated standalone digital cylindrical keyless door lock.
More codes: up to 100 3-5 digit codes: 1 master, 10 managers, 90 basic users, 3 one-time service codes
| LOCK FUNCTION | Entrance |
|---|---|
| OPERATION | The clutch mechanism permits turning the lever without retracting the latch and reduces stress on lock bodies and spindle. Outside lever free turning in the locked position. Entering access code, key bypass, or remote bypass will allow the lever to retract the latch. Inside lever always instant egress |
| DOOR THICKNESS | 1 5/8″ to 1 7/8.” |
| BACKSET | 2 3/4″ Standard. |
| KEYPAD | All metal, 12 buttons programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability, and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced |
| STANDARD KEY OVERRIDE CYLINDERS | Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks. Additional tailpieces included HW580 fits Schlage, Corbin/ Russwin CL, Sargent 480 Series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders |
| INTERCHANGEABLE CORE MODELS | Accepts 6 & 7 Pin Cylinders from Best, Arrow, KSP, Medeco Keymark & Kaba Peaks. Alarm Lock Tailpiece is supplied; IC Core is not included |
| LATCHBOLT | UL Listed, fire-rated, 3 hours, 1/2” throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors |
| STRIKE | 1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included. With screws for wood or metal jambs |
| LATCH FRONT | 1 1/8” x 2 1/4” wrought brass or stainless steel |
| HANDING | Non-handed |
| FINISHES | 10B Duronodic |
| POWER | 5 AA alkaline batteries are now rated at 200,000 cycles, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive® motor |
| DOOR PREP | Standard ANSI 161 Series Prep, modified by adding additional through-bolt holes |
| COMPLIANCES | Grade 1, heavy-duty cylindrical lockset, UL listed and FCC certified. ADA compliant lever sets |
Premium Security: The Alarm Lock DL2700 provides reliable keypad access control, offering enhanced security with keyless entry.
Durable Construction: Built to last with Grade 1 materials and finished in oil-rubbed bronze for a stylish and long-lasting design.
User-Friendly: The keypad is easy to use, with programmable access codes for secure entry.
Strong & Reliable: Grade 1 rating ensures maximum strength and durability for high-traffic environments.
Sleek Appearance: The oil-rubbed bronze finish adds an elegant and sophisticated look to any door or entryway.
Trusted Brand: Alarm Lock is known for its advanced, high-quality security solutions, widely trusted in both residential and commercial settings.
Q: What is the Alarm Lock Trilogy DL2700 Keypad Lever Set (ALL-DL2700-10B)?
A: The Alarm Lock Trilogy DL2700 (ALL-DL2700-10B) is a Grade 1 keypad lever set with a high-security oil-rubbed bronze (10B) finish. It offers keyless entry and enhanced access control for both commercial and residential properties.
Q: What are the key features of the DL2700 keypad lever set?
A: The DL2700 includes a secure, easy-to-use keypad for keyless entry, a Grade 1 security rating for durability, and an oil-rubbed bronze (10B) finish for a sleek, timeless look that resists wear and corrosion.
Q: How does the DL2700 work?
A: The DL2700 allows users to access the property through a secure keypad. It can be programmed with multiple user codes, providing convenient and reliable access control for commercial buildings or residential spaces.
Q: What is the oil-rubbed bronze (10B) finish?
A: The oil-rubbed bronze (10B) finish is a durable, corrosion-resistant coating that provides an elegant, aged appearance. It offers both aesthetic appeal and long-lasting performance, making it perfect for high-traffic areas.
Q: Is the DL2700 lock easy to install?
A: Yes, the DL2700 is designed for simple installation on most standard doors. It’s a practical solution for businesses or homes requiring secure access control with a stylish finish.
Clean the Keypad & Lever – Use a soft, damp cloth to clean the keypad and lever regularly. Avoid abrasive cleaners or materials that can scratch the surface.
Inspect the Locking Mechanism – Test the lock mechanism for smooth operation and ensure that it engages and disengages properly. Lubricate the moving parts periodically if needed.
Check Battery Levels – Monitor the battery indicator and replace batteries when necessary to ensure consistent performance.
Test Keypad Functionality – Regularly test the keypad to ensure it responds accurately to key inputs and provides secure access.
Inspect the Wiring & Connections – If connected to a system, check all wiring and connections for any signs of damage or wear.
Clean the Proximity Reader (if applicable) – Use a microfiber cloth to clean the proximity reader to ensure accurate card scanning and smooth operation.
